9DOF Click-Platine
9DOF Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview
Das 9DOF Click Board™ enthält das Trägheitsmessmodul LSM9DS1 von ST, das einen 3D-Beschleunigungsmesser, ein 3D-Gyroskop und ein 3D-Magnetometer in einem einzigen Gerät kombiniert, das Daten mit sogenannten neun Freiheitsgraden ausgibt.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-1996
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.017 kg
|
| Other | |
Country of Origin |
|
HS Code Customs Tariff code
|
|
EAN |
8606015077130
|
Warranty |
|
IC/Module: LSM9DS1 Inertial Module

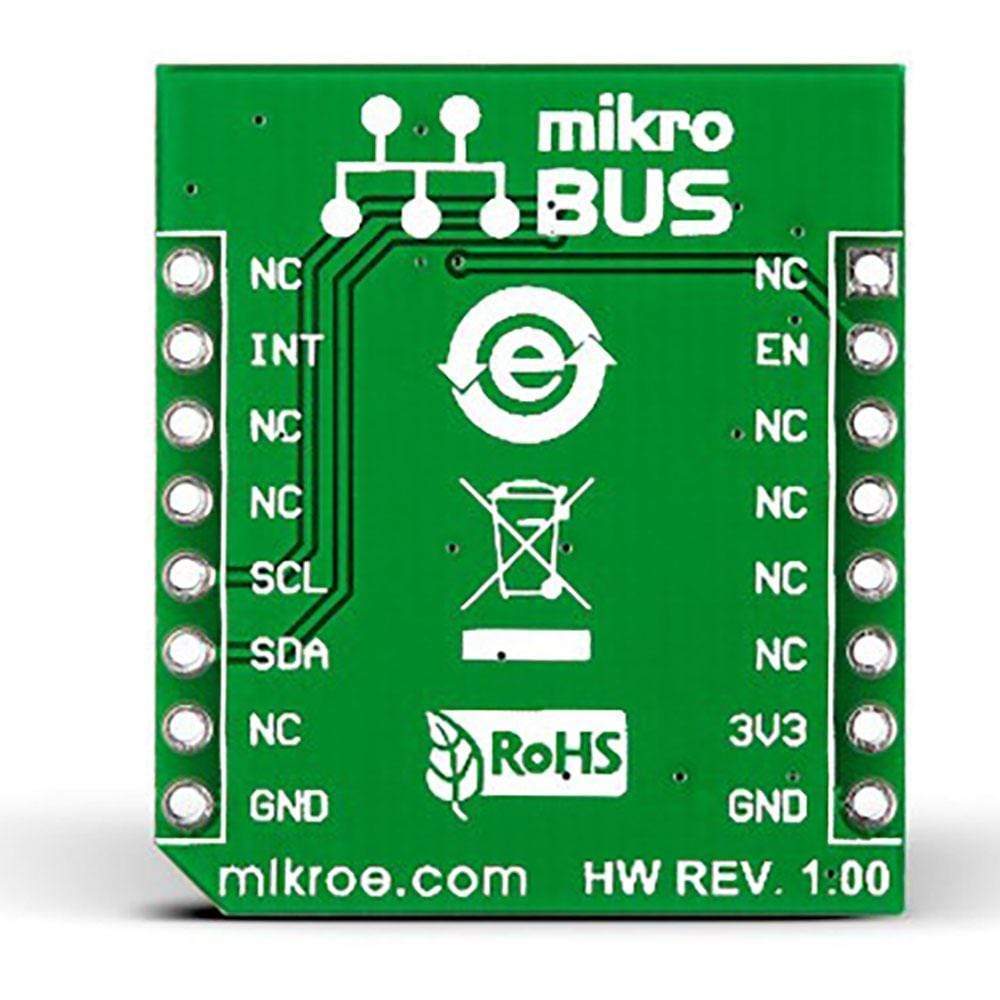

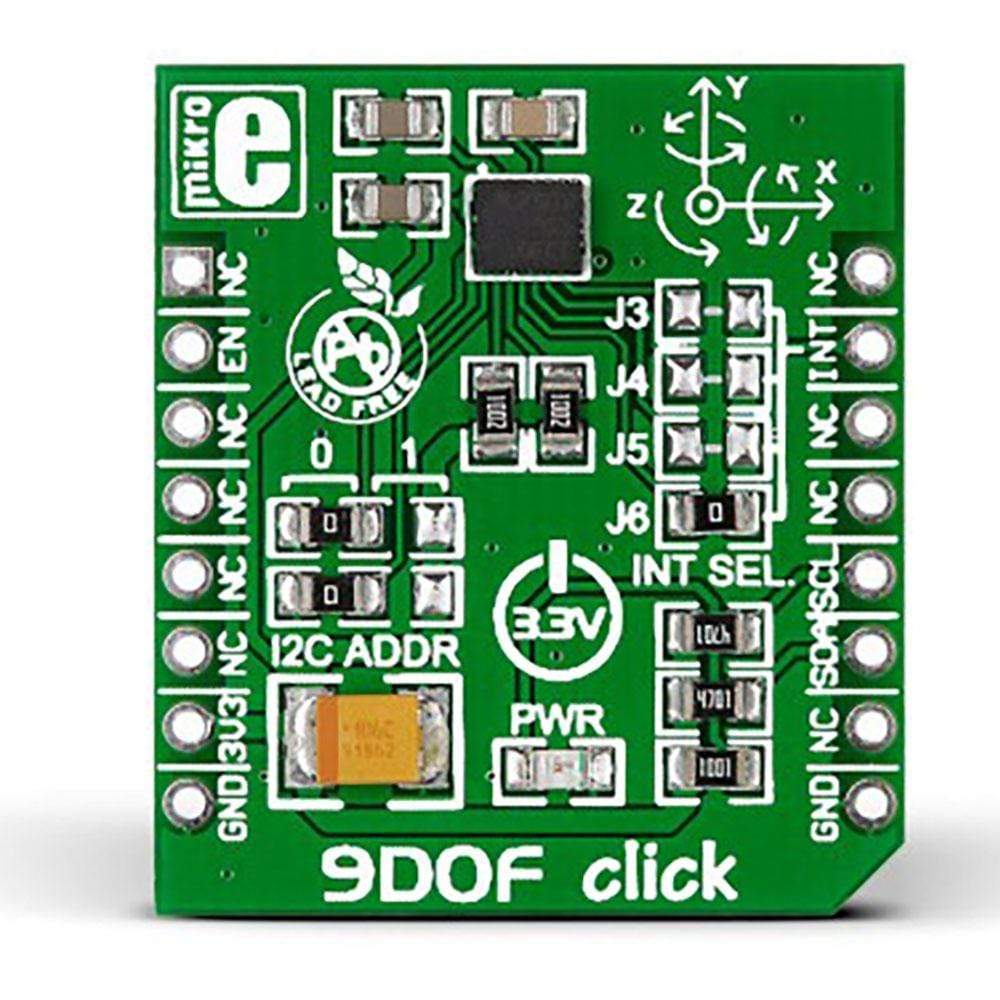

The 9DOF Click Board™ carries STs LSM9DS1 inertial measurement module that combines a 3D accelerometer, a 3D gyroscope and a 3D magnetometer into a single device outputting so called nine degrees of freedom data (3-axis acceleration, angular velocity and heading), in 16-bit resolution. The 9DOF Click Board™ communicates with the target MCU through the mikroBUS I2C interface (SCL and SDA) with additional functionality provided by the programmable Interrupt (INT) pin, as well as the Enable (EN) pin. The IC has multiple interrupt lines which can be accessed through jumpers on the Click Board™. I2C addresses are specified in the same manner. The board uses a 3.3 power supply only.
