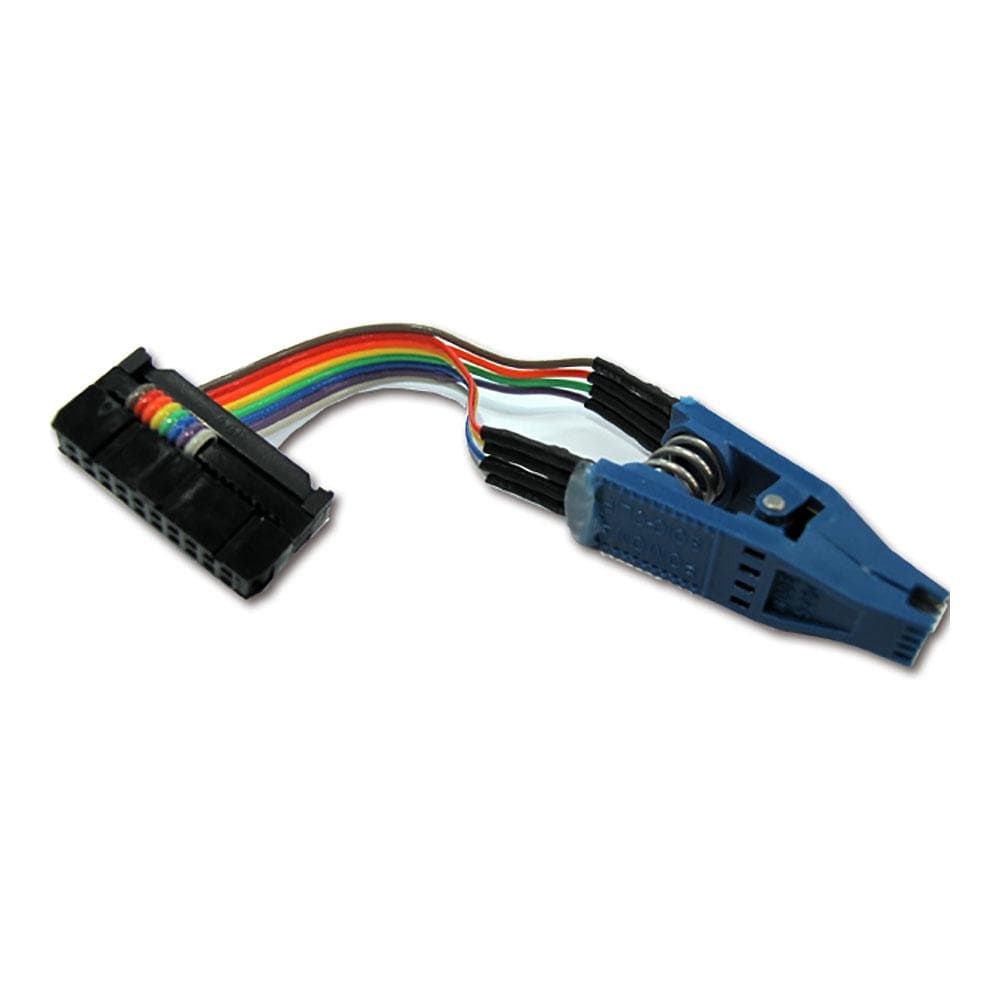

Pince de test Dediprog SO8 avec connecteur 2x10

Pince de test Dediprog SO8 avec connecteur 2x10

SO8 in-circuit programming clip for EM100/EM100Pro and SF600/SF600Plus programmers.

SKU: EM-TC-8

Prix habituel
€63,95 EUR hors taxes
Prix habituel Prix promotionnel
€63,95 EUR hors taxes
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
If no stock is shown above, order now and we'll ship within 10 working days.
Afficher tous les détails

Key Features

2×10 IDC Interface
SO8N & SO8W Support
No Desoldering Required
Engineered Clamping Mechanism
Ecosystem Compatibility
Broad Board Compatibility
Pairs With Accessories

Overview

Dediprog EM-TC-8 SO8 Test Clip provides a direct, reliable connection to SO8 serial flash devices soldered on the target PCB, enabling in-circuit programming and debug without desoldering. It mates via a 2×10 (20-pin) IDC lead with Dediprog SF600/SF600Plus-G2 and EM100Pro-G3 tools for streamlined workflows. It supports both SO8N (150 mil) and SO8W (200 mil) packages commonly used for SPI NOR flash.

The clip is designed for compatibility with most boards (no hardware modification required) and is supplied as a robust, serviceable accessory for engineering benches and field update tasks. Dediprog also offers related clips in the range (e.g., EM-TC-16 for SO16W) and ISP-series clips for the SF100 ISP programmer, allowing selection by programmer and package.

Engineers choose EM-TC-8 when they need dependable, repeatable contact on soldered-down SO8 flash with minimal downtime—particularly during bring-up, recovery, or firmware iteration—while staying inside the Dediprog ecosystem for known pinout and signal integrity.

Rapid In-Circuit Updates

Programme soldered SO8 flash without rework, reducing risk and turnaround during bring-up and field fixes.

Tight Integration

Direct 2×10 IDC link to EM100/EM100Pro and SF600 families simplifies setup and improves repeatability.

Covers Common SO8 Footprints

One clip for SO8N and SO8W packages across vendors and boards.

Le clip de test SO8 pour EM100, EM100Pro et SF600 est utilisé pour connecter l'EM100, l'EM100Pro et le SF600 à la mémoire Flash série principale soudée sur la carte, offrant ainsi la possibilité au contrôleur d'application de travailler automatiquement sur l'EM100, l'EM100Pro et le SF600 sans avoir besoin de connecteur.

Frequently Asked Questions

Have a Question?

Ask a Question
  • What are SO8N and SO8W?

    Standard SOIC-8 package widths: ~150 mil (“narrow”) and ~200 mil (“wide”).

  • Is desoldering ever required?

    The clip enables in-circuit access; desoldering is typically unnecessary unless system design prevents bus isolation.

  • Will the clip hold reliably during longer operations?

    DediProg highlights a firm, durable clamping design for stable, repeatable contact.

  • How is this different from the ISP-TC-8?

    EM-TC-8 uses a 2×10 IDC for EM100/EM100Pro/SF600; ISP-TC-8 is for SF100 ISP use.

  • Does it support both SO8 package widths?

    Yes—SO8N (150 mil) and SO8W (200 mil). This covers typical SPI NOR footprints.

  • What programmers is EM-TC-8 designed to work with?

    It connects to Dediprog EM100/EM100Pro emulators and SF600/SF600Plus programmers via 2×10 IDC.
