RTC 4 Click Board
RTC 4 Click Board
Couldn't load pickup availability
The RTC 4 Click Board™ is a time measurement add-on board that incorporates DS2417 IC. The DS2417 is a real-time clock/calendar (RTC) with a fully compatible 1-Wire MicroLAN interface. It also features a programmable interrupt output for system wakeup on a separate pin. It utilizes an on-chip oscillator that is connected to an external 32.768 kHz crystal. Being a 1-Wire device, it features a unique, factory-lasered 64-bit long ROM code that allows the user to use it in a MicroLAN network.
It uses a backup energy source that maintains a charge with an onboard coin-cell 1F supercapacitor. The real-time clock has an accuracy of +/- 2 minutes per month at 25°C.

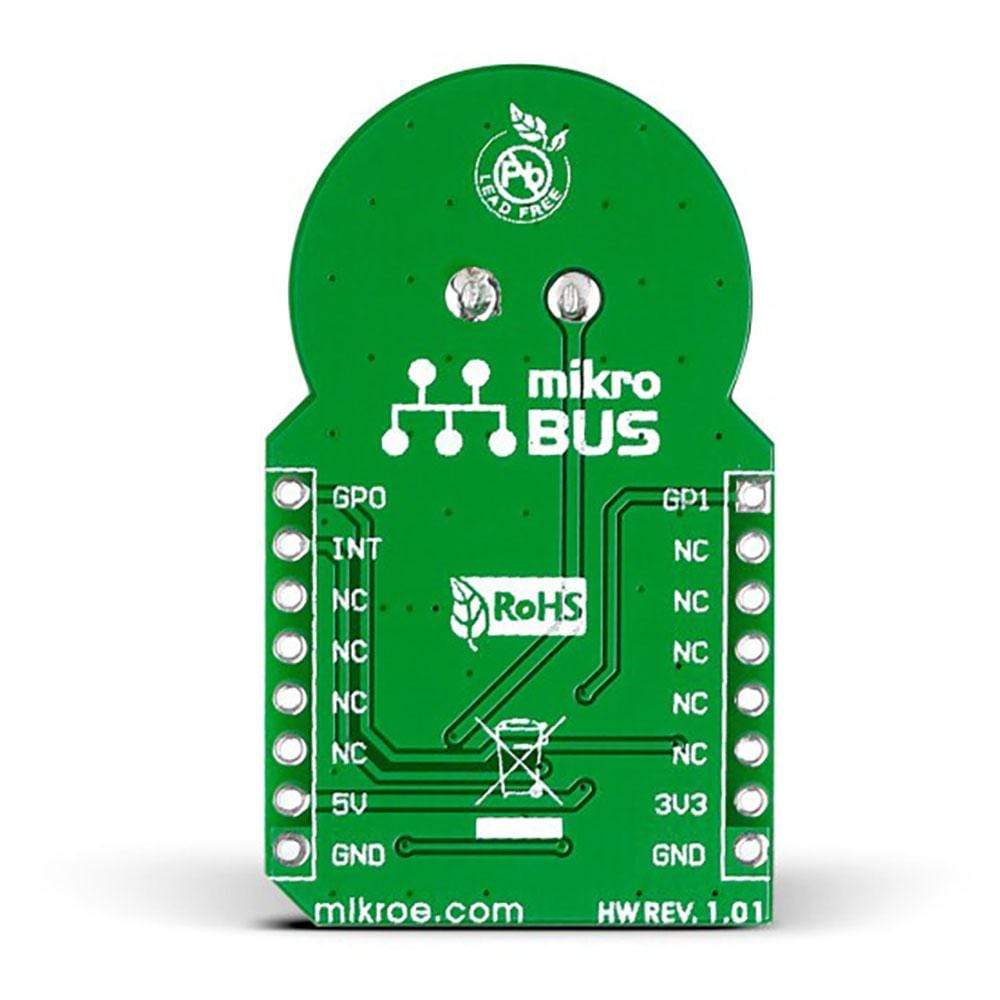

The RTC4 Click Board™ communicates with the target board MCU either through MikroBUS AN or PWM pin (here, GPI01, GPIO0), plus the INT pin, depending on the position of the onboard jumper.
![Mikroelektronika d.o.o. MIKROE-1891 RTC 4 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-rtc-4-click-board-28887988699325.jpg?v=1685126083&width=1445)
![Mikroelektronika d.o.o. MIKROE-1891 RTC 4 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-rtc-4-click-board-28887988601021.jpg?v=1685054992&width=1445)

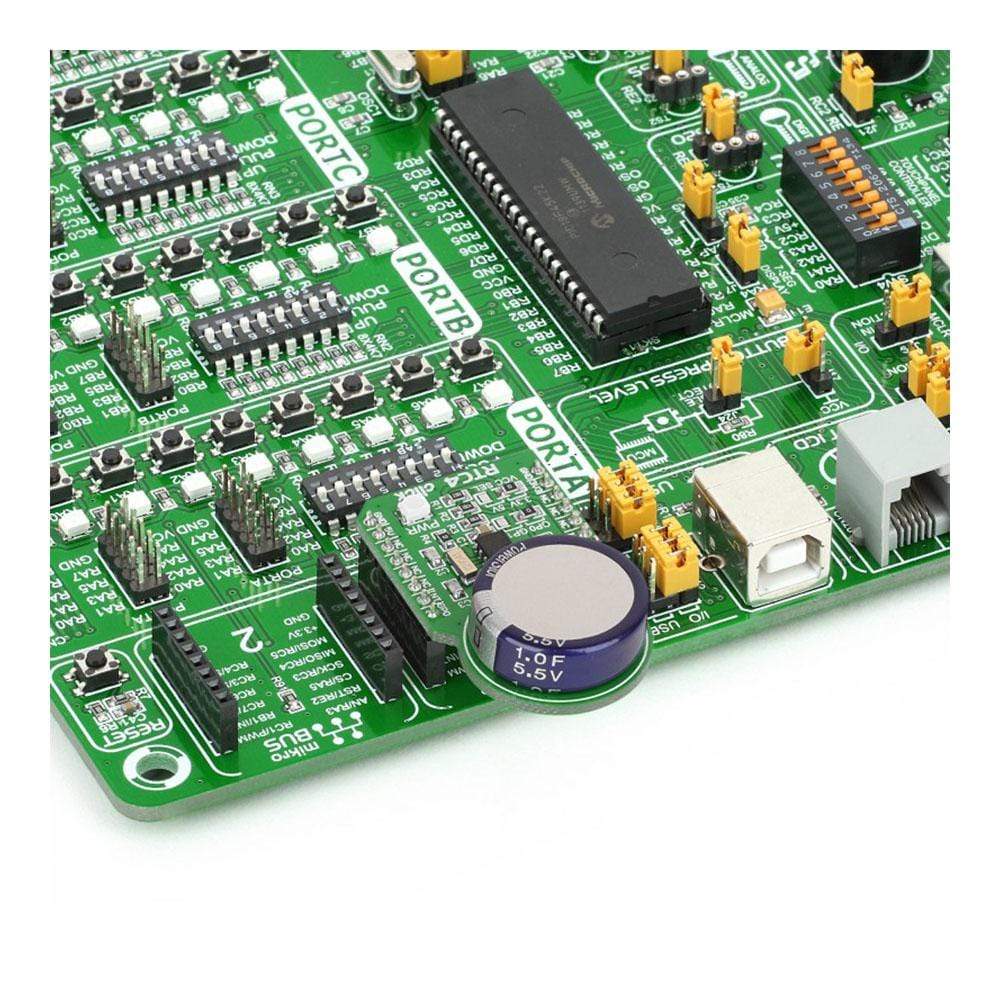

![Mikroelektronika d.o.o. MIKROE-1891 RTC 4 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-rtc-4-click-board-28887988764861.jpg?v=1685126099&width=1445)
![Mikroelektronika d.o.o. MIKROE-1891 RTC 4 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/products/mikroelektronika-d-o-o-click-board-rtc-4-click-board-28887988732093.jpg?v=1685054995&width=1445)
The RTC 4 Click Board™ is based on the DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output. The clock frequency is derived from an onboard 32.768KHz oscillator. An integrated backup energy source maintains a charge with an onboard coin cell supercapacitor. The clock has an accuracy of +/-2 minutes per month at a 25 degrees Celsius temperature. Depending on the position of the onboard jumper, the RTC 4 Click Board™ communicates with the target board MCU either through mikroBUS AN or PWM pin (here, GPI01, GPIO0), plus the INT pin. The board is designed to use either a 3.3V or 5V power supply.
IC/Module: DS2417
DS2417 is a time chip featuring a unique 64-bit lasered ROM and a real-time clock/calendar. It would make a great choice for any electronic appliance or embedded application using a microcontroller to add functions such as calendar, time and date stamp, and logbook. This compact, low-cost DS2417 package uses a 1-Wire interface for communication with the target board. It also has a programmable interrupt for system wakeup.
1F Supercapacitor

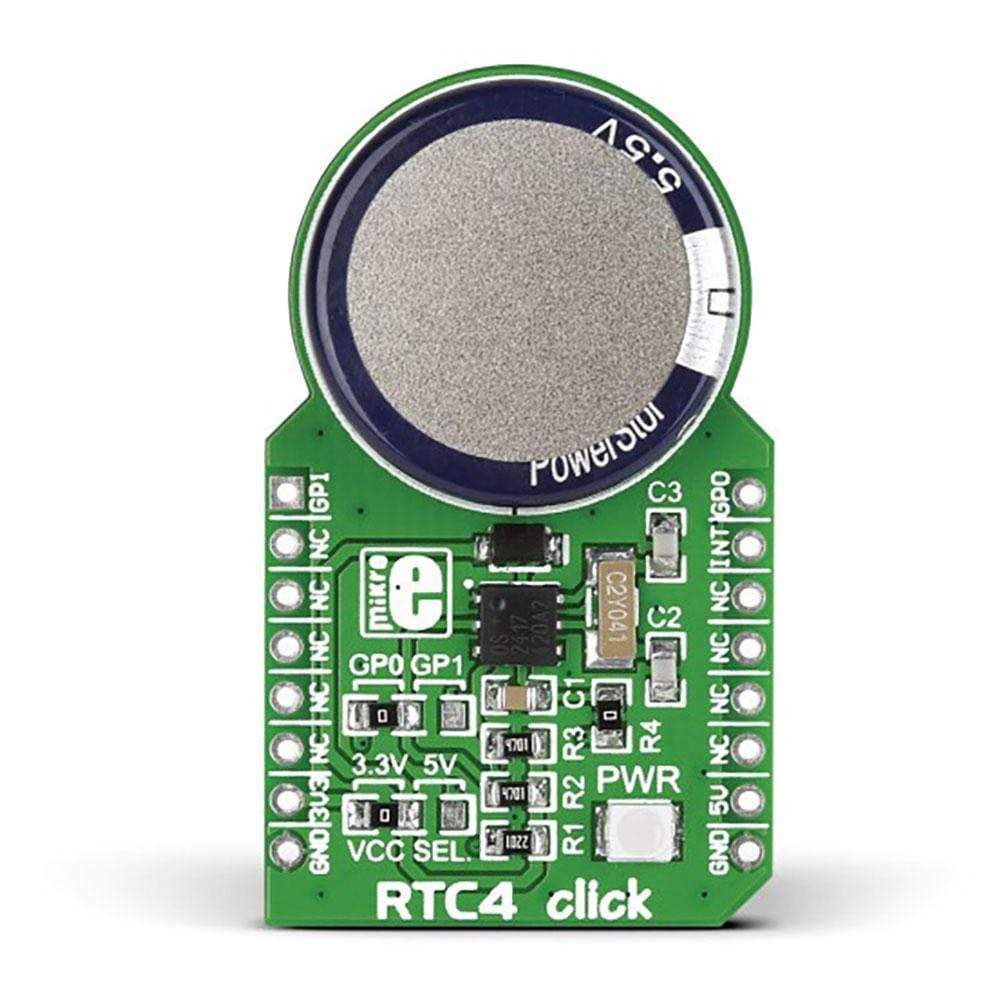

RTC4 Click Board™ includes a coin cell 1F supercapacitor that blends in with your design and enable the Click Board™ to do its work for a long time. On the Click Board™, the DS2417 IC is placed under the supercapacitor.
1-Wire Interface (Selectable Pins)
In RTC4 Click Board™, DS2417 acts as a slave device and communicates with the master MCU through a 1-Wire bus. With its 64-bit registration number, RTC4 Click Board™ can function within a MicroLAN network, i.e, a network of 1-Wire devices that are all associated with a master device.
