DediProg ADP-SF600-TO-SF100xCB Universal Adaptor
DediProg ADP-SF600-TO-SF100xCB Universal Adaptor
SKU: ADP-SF600-TO-SF100xCB
Couldn't load pickup availability
Key Features
Overview
Overview

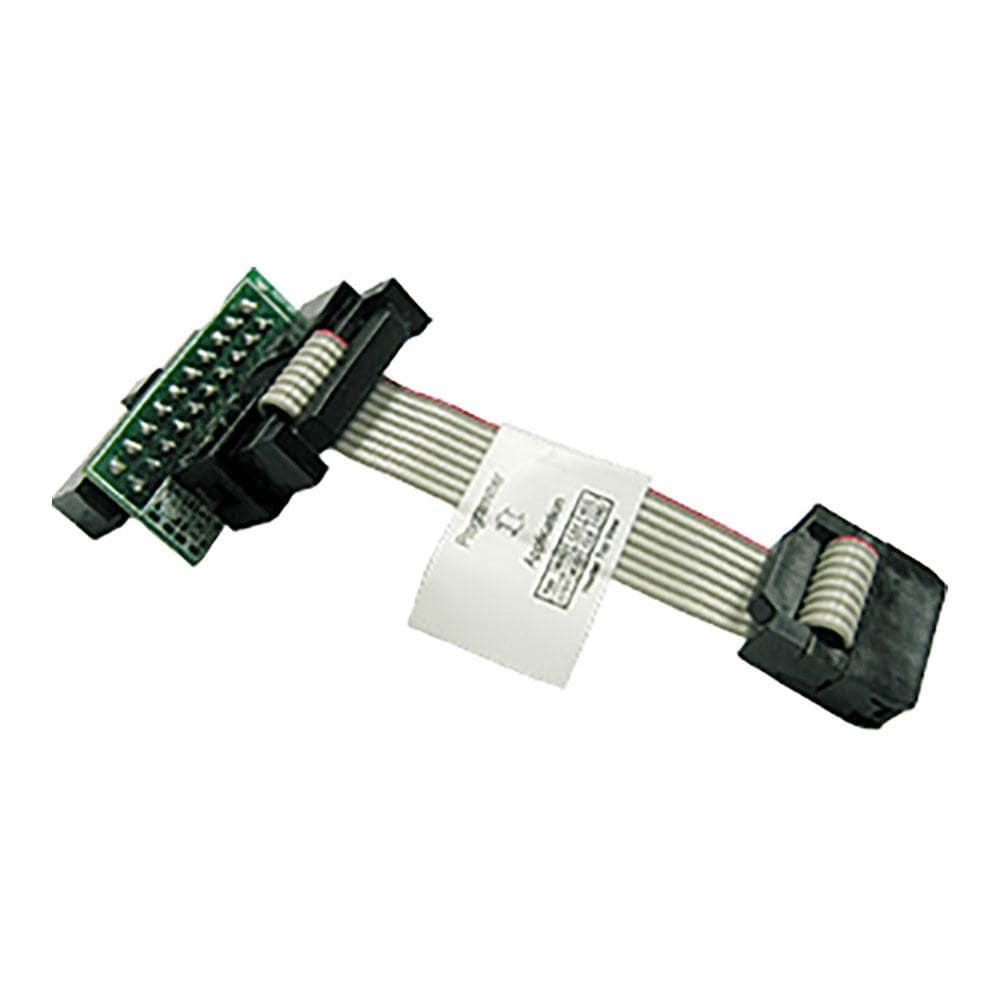

The DediProg ADP-SF600-TO-SF100xCB is a universal adaptor and cable set that maps the SF600 programmer’s 2×10 (2.54 mm) ISP header to the SF100 family pinout (2×7, 2.54 mm) and includes an SF100 2×4 ISP cable. It is intended for engineers whose target boards were designed around the SF100 pinout but who are using an SF600/SF600Plus programmer.
What It Does
It provides a straight-through, documented pin-mapping (CS, CLK, MOSI, MISO, VCC, GND, VPP/ACC, IO3, SCL/SDA where present) so you can connect an SF600/SF600Plus to boards wired for SF100 without re-spinning fixtures or building custom harnesses.
Where It Fits
This adaptor complements DediProg’s SPI-flash tools and is bundled with some SF600Plus kits. If you work primarily with SF100-style headers, it saves setup time and reduces connection errors versus flying leads.
Related Products on Debug Store
- DediProg SF600Plus-G2 Programmer
- DediProg SF100 Programmer
- SF600 ISP Cable (ISP-600-CB1-G)
- SF100 2×4 ISP Cable (ISP1-CB)
- SF100 Universal Adaptor (ISP-UADP-127)
If you need a simple, documented way to bridge SF600 hardware to SF100-designed boards, this adaptor offers a low-overhead, repeatable connection that aligns with DediProg’s published pinouts.
Why Engineers Choose The DediProg ADP-SF600-TO-SF100xCB Universal Adaptor
Maintain Pinout Compatibility
Reduce Setup Time & Errors
Fit Existing Ecosystem
SF100 ISP Header Pin Out (2x7)
| 1 | I/O1 | I/O4 | 2 |
| 3 | I/O2 or CS2 | NC | 4 |
| 5 | Vcc | GND | 6 |
| 7 | CS | CLK | 8 |
| 9 | MISO | MOSI | 10 |
| 11 | Vpp/Acc | I/O3 | 12 |
| 13 | SCL | SDA | 14 |
SF100 ISP Cable Connector Pin Out (2x4)
| 1 | Vcc | GND | 2 |
| 3 | CS | CLK | 4 |
| 5 | MISO | MOSI | 6 |
| 7 | Vpp/Acc | I/O3 | 8 |
| General Information | |
|---|---|
Part Number (SKU) |
ADP-SF600-TO-SF100xCB
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.05 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383621835
|
Frequently Asked Questions
Have a Question?
-
Is the 2×4 cable included?
Yes. If you need a spare, see SF100 2×4 ISP cable (ISP1-CB).
-
What header pitch does it use?
2.54 mm on both the 2×10 and 2×7 connectors, matching common board footprints and ensuring robust mating across repeated insertions.
-
How does this compare with more expensive fixtures?
Versus bespoke test fixtures or ATE adapters, this is a simpler, lower-overhead way to bridge pinouts—ideal for labs and small production—without the complexity of a full fixture redesign.
-
Can it help with dual-flash designs?
Yes, it passes chip-select and IO lines used by DediProg tools for single/dual SPI configurations, allowing standard workflows without custom wiring.
-
Is it compatible with SF100 programmers?
If you already have an SF100, you won’t need this adaptor; the SF100 uses the target pinout natively.
-
When should I choose this over flying-lead cables?
Use this adaptor when your board already follows SF100 pinout. It is faster to connect, less error-prone and mechanically more reliable than individual fly-leads.
-
Does it support in-system programming (ISP) on-board?
Yes—pair it with an SF600/SF600Plus programmer for ISP of SPI NOR devices..
-
Which signals are carried?
SPI lines (CS, CLK, MOSI, MISO), VCC, GND, VPP/ACC and IO lines; SF100 also exposes SCL/SDA where used. Use with the included SF100 2×4 cable or a 2×7 header when applicable.
-
What does ADP-SF600-TO-SF100xCB do?
It adapts the SF600 2×10 (2.54 mm) header to the SF100 pinout and provides a 2×4 ISP cable, so SF600/SF600Plus can connect to boards laid out for the SF100.
