Total Phase, Inc

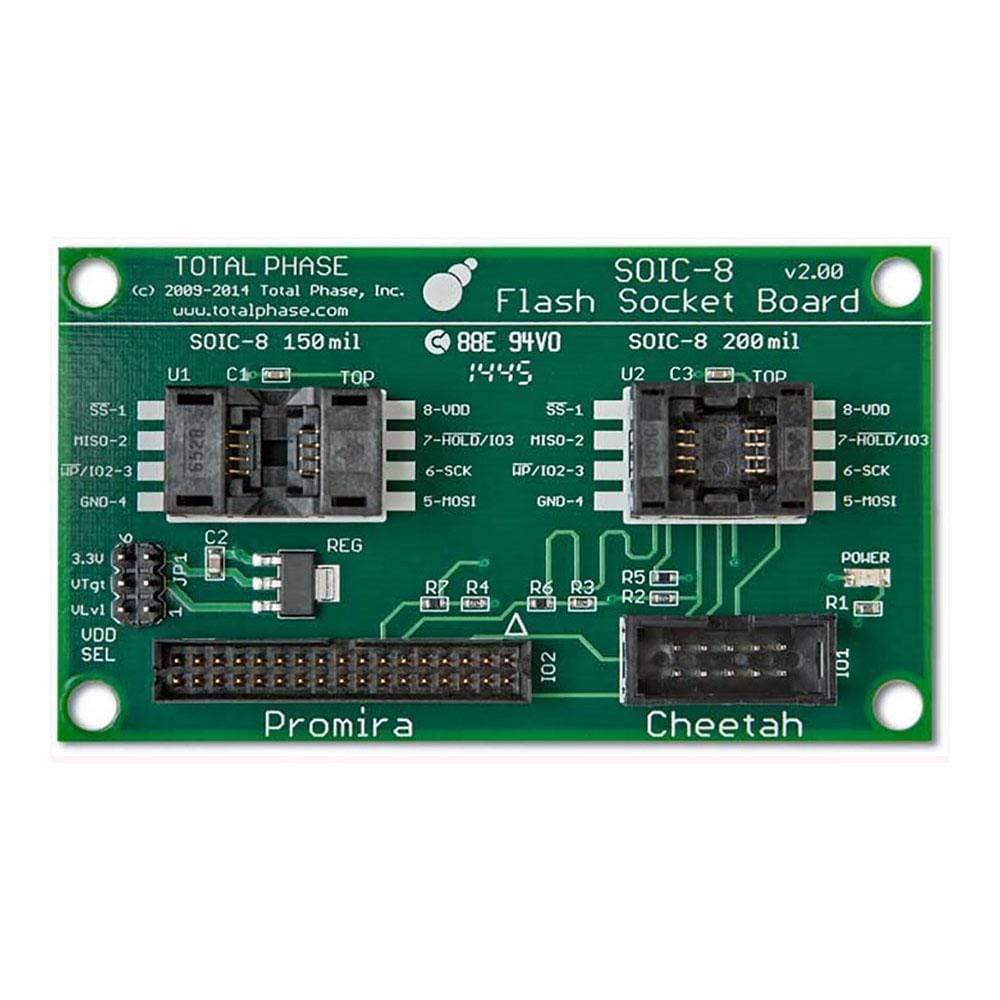

Total Phase TP282310 Flash SOIC8 Socket Board 10-34

Total Phase TP282310 Flash SOIC8 Socket Board 10-34

SKU: TP282310

Regular price
€143,95 EUR exc tax
Regular price Sale price
€143,95 EUR exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 5 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The Flash SOIC-8 Socket Board provides embedded systems engineers with an easy and cost-effective method of programming SPI-based Serial Flash chips using Total Phase's Cheetah™ or the PROMIRA.

Downloads

User Manuals

  • Total Phase Flash SOIC8 Socket Board 10-34 PDF641 KB · v1.00 · Nov 2014
    Details

The Flash SOIC-8 Socket Board provides embedded systems engineers with an easy and cost-effective method of programming SPI-based Serial Flash chips using Total Phases Cheetah™SPI Host Adapter and the Flash CenterSoftware.

Detailed technical information about the Flash SOIC-8 Socket Board can be found in the Specification section and in the User Manual.

Flash SOIC-8 Socket Board Pinout.

Figure 2: Supported SOIC-8 Pinout.

Ordering information
Part number (SKU)TP282310
ManufacturerTotal Phase, Inc
EAN5055383688319
Warranty2 years
Shipping weight0.5 kg
  • 1 × Total Phase TP282310 Flash SOIC8 Socket Board 10-34

Contact us to confirm the full contents of the box.

Total Phase TP282310 Flash SOIC8 Socket Board 10-34 compared with Total Phase TP280310 Flash SOIC8 Socket Board and Total Phase TP240511 Flash EPROM Socket Board - I2C/SPI Memory Programming on 6 specifications.

Specifications of Total Phase TP282310 Flash SOIC8 Socket Board 10-34 compared with Total Phase TP280310 Flash SOIC8 Socket Board and Total Phase TP240511 Flash EPROM Socket Board - I2C/SPI Memory Programming
SpecificationThis product Total Phase TP282310 Flash SOIC8 Socket Board 10-34TP282310Currently unavailable Total Phase TP280310 Flash SOIC8 Socket BoardTP280310In stock Total Phase TP240511 Flash EPROM Socket Board - I2C/SPI Memory ProgrammingTP240511In stock
Memory supported SPI serial flashSPI serial flashI2C/SPI EEPROM
Sockets / packages SOIC-8 (150 mil), SOIC-8W (200 mil)SOIC-8 (150 mil), SOIC-8W (200 mil)DIP8, SOIC8, TSSOP8
Host connector 10-pin and 34-pin boxed headers10-pin boxed header2 boxed headers (Aardvark 1, Aardvark 2)
Compatible adapters Promira, Cheetah, AardvarkCheetah, AardvarkAardvark, Cheetah
Target supply 0.9 V to 5 V, adapter or external3.3 V from adapter5 V, 3.3 V or external VDD
Device pinout Standard pinout onlyStandard pinout onlyNon-standard via pin board
Price€143,95 €110,95 €93,95
  • Total Phase Flash Center Software PDF983 KB · 1.45 · Apr 2026
