Dediprog SF700 SPI-Flash-Programmierer
Dediprog SF700 SPI-Flash-Programmierer

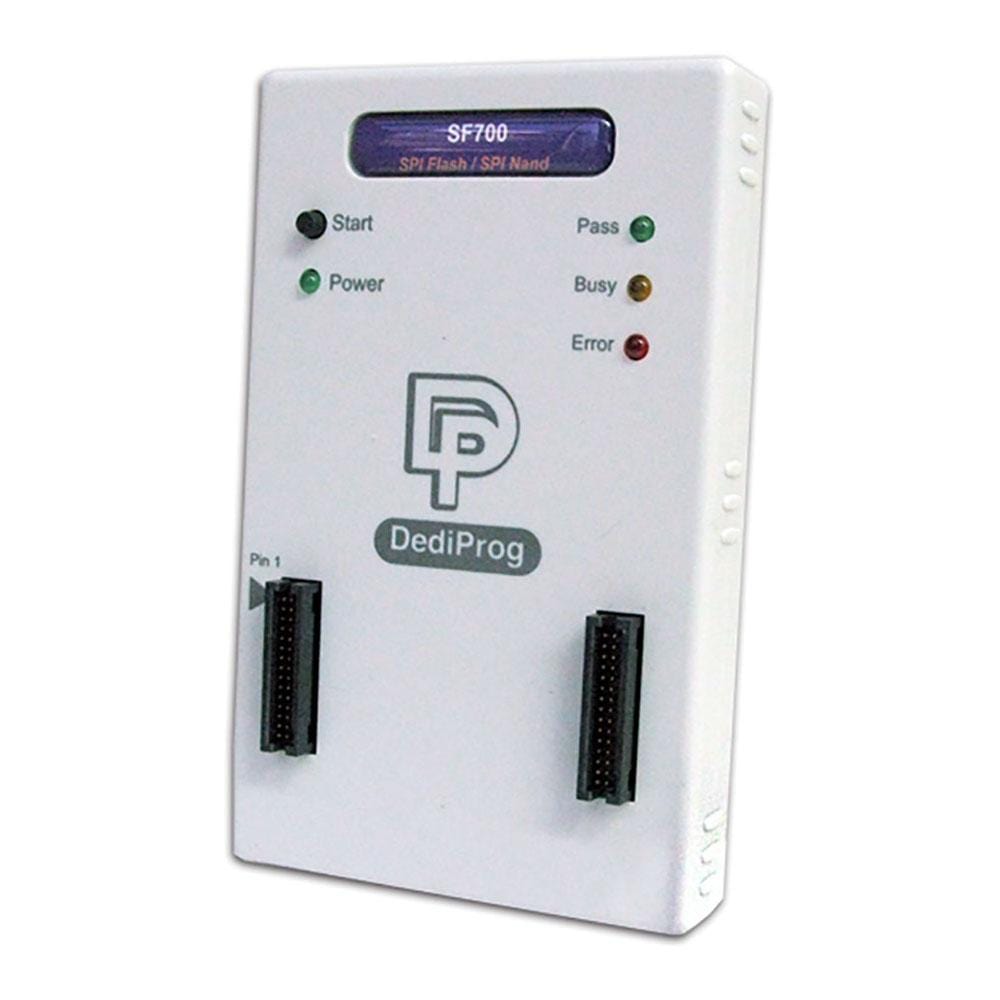

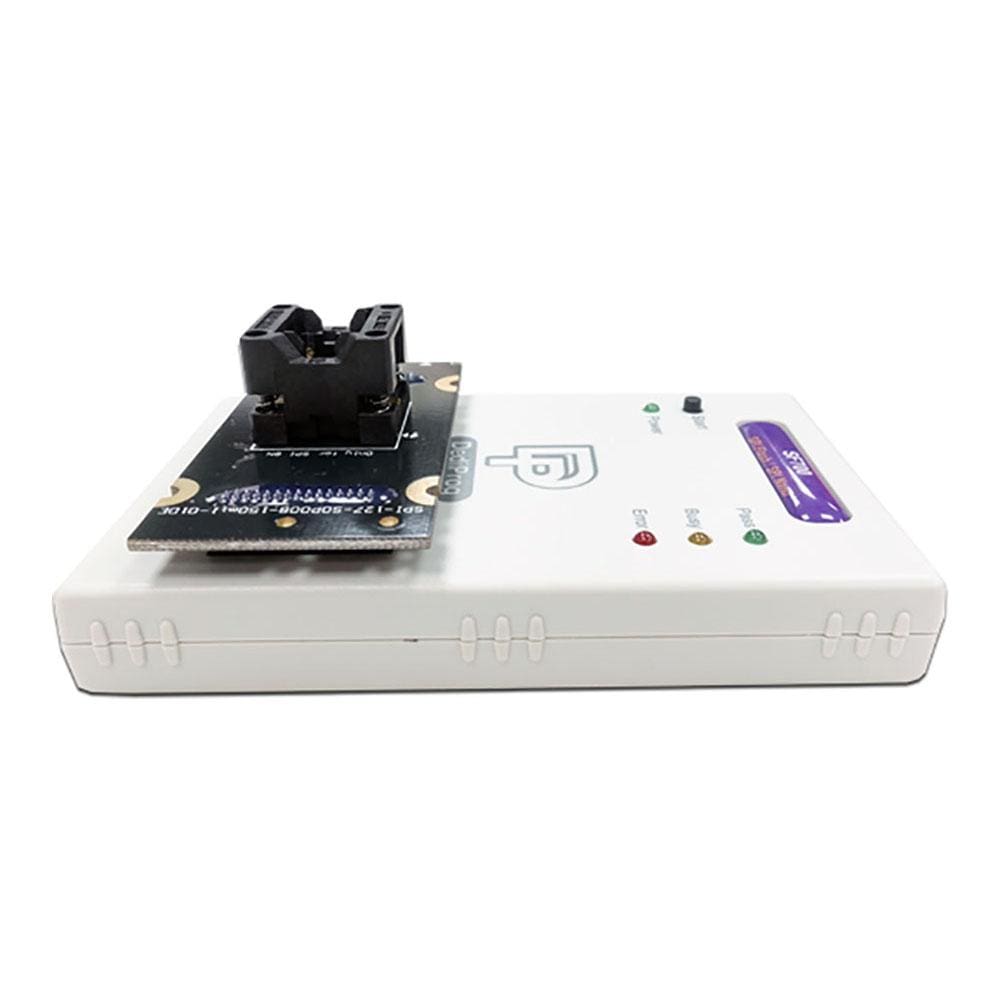

Der Dediprog SF700 ist ein brandneuer SPI-Flash-Programmierer, der als einer der ersten auf dem Markt SPI-NOR- und SPI-NAND-Flash-Geräte unterstützt.
Der Programmierer ist für die technische Laborumgebung geeignet und bietet die Wahl zwischen der vertrauten Befehlszeilenschnittstelle oder der Windows-GUI-Schnittstelle. Der SF700 ist eine erweiterte Version des bekannten Dediprog SF600-Programmierers mit zusätzlicher Unterstützung für SPI-NAND-Geräte.
Der Dediprog SF700 eignet sich auch gut für die Programmierung kleinerer Produktionen, da er im Standalone-Modus (unter Verwendung des internen Speichers) oder bei Anschluss an einen PC als Gruppenprogrammierung arbeiten kann.
Hinweis: Der SF600 G2 hat den SF700 abgelöst. Der SF700 ist nicht mehr verfügbar.
High Speed Programming
The SF700 has a high-speed ARM CPU at its core and also utilises FPGA technology.
IC Type |
IC P/N |
Data Size |
P+V Time(sec) |
|
Engineering mode |
Production mode |
|||
SPI Octal NOR |
MT35XU01GBBA1 |
128MB |
141 |
138 |
MX66UM1G45G |
128MB |
148 |
146 |
|
SPI NAND |
GD5F1GQ4UC |
64MB |
61 |
62 |
Supported Device Types
The programmer has been designed to support a wide range of high-capacity flash devices including
- SPI Octal NOR Flash
- SPI NOR Flash
- SPI NAND Flash
Devices with a power supply voltage as low as 1.2V are supported. Many programmers are unable to support such devices.
User Interfaces
The SF700 is supported by a GUI Windows interface in addition to the popular Command-Line standard interface, making it suitable for a wide range of users.
Stand-Alone Use
The SF700 is fitted with 4Gbits of memory, allowing the programmer to be used in Stand-Alone Mode. This is ideal for use in a production environment where access to a host PC may not be practical. The programmer is also fitted with an ATE interface, which, when used with an ISP adapter provides Busy | Pass | Error statuses in addition to a Start pin for remote control.
Multi-site Gang Programming
Multiple SF700 programmers can be connected via a USB cable to a host PC. This facilitates programming of multiple devices concurently, controlled by a single Windows application.
ATE Port
ATE Interface includes Start Signal in addition to Busy, Pass and Error Status Information.
What's Included
- SF700 IC Programmer
- USB Cable
- AC 100~240V to DC 5V/1A Power Adapter

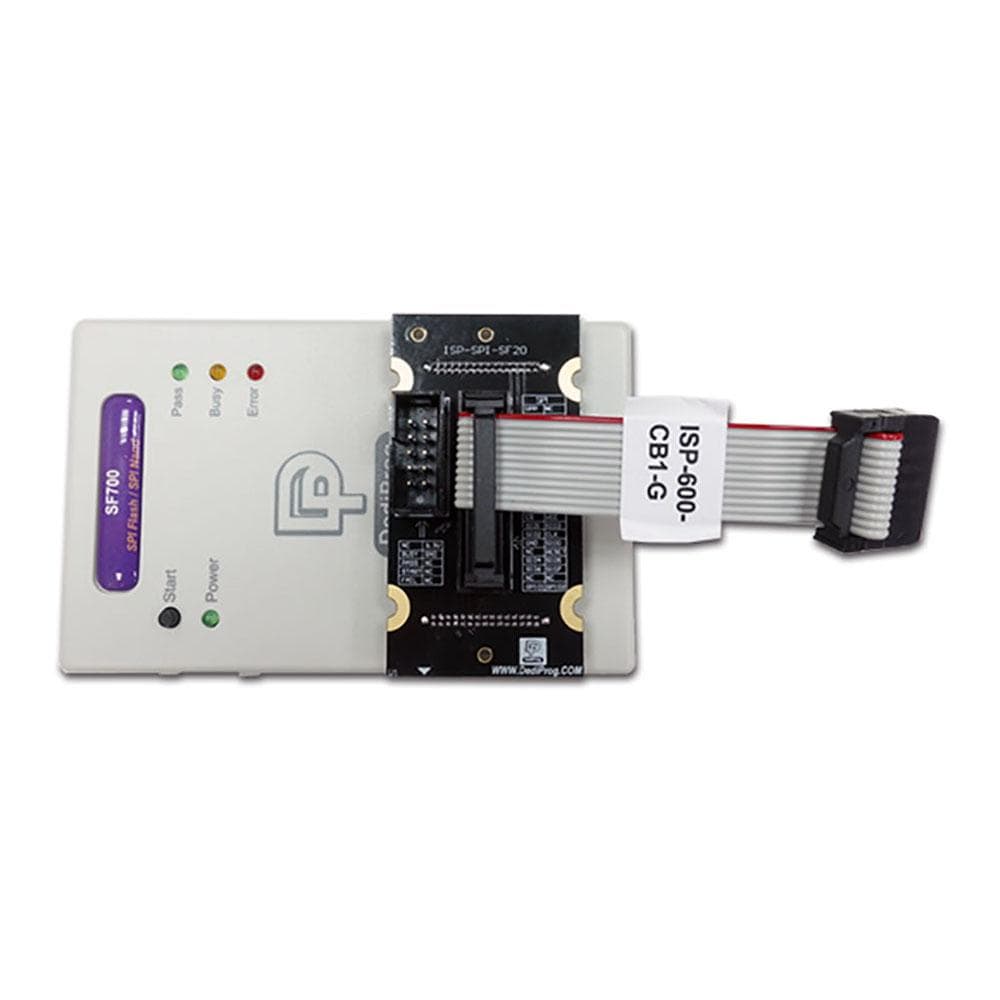

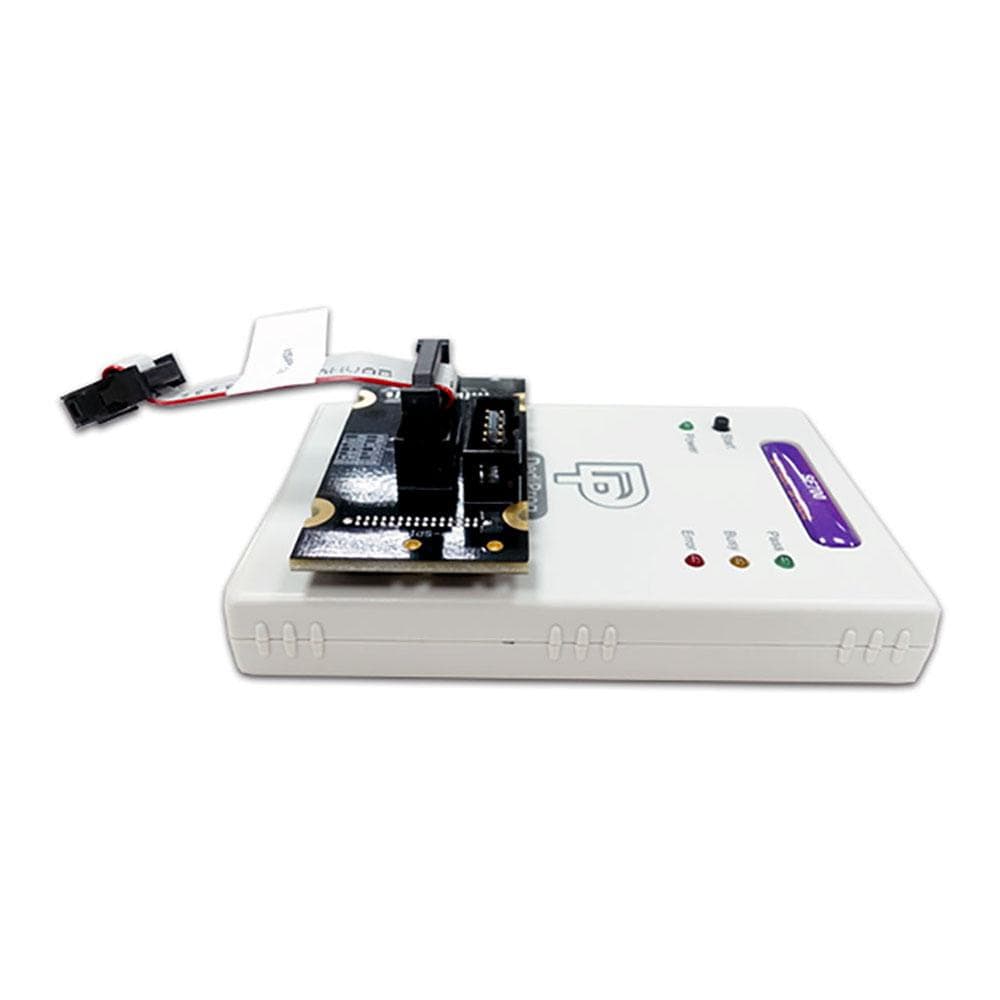

- ISP-SPI-SF20 ISP Adapter with ISP cable
- ISP-SPI-SF14 ISP Adapter with ISP cable

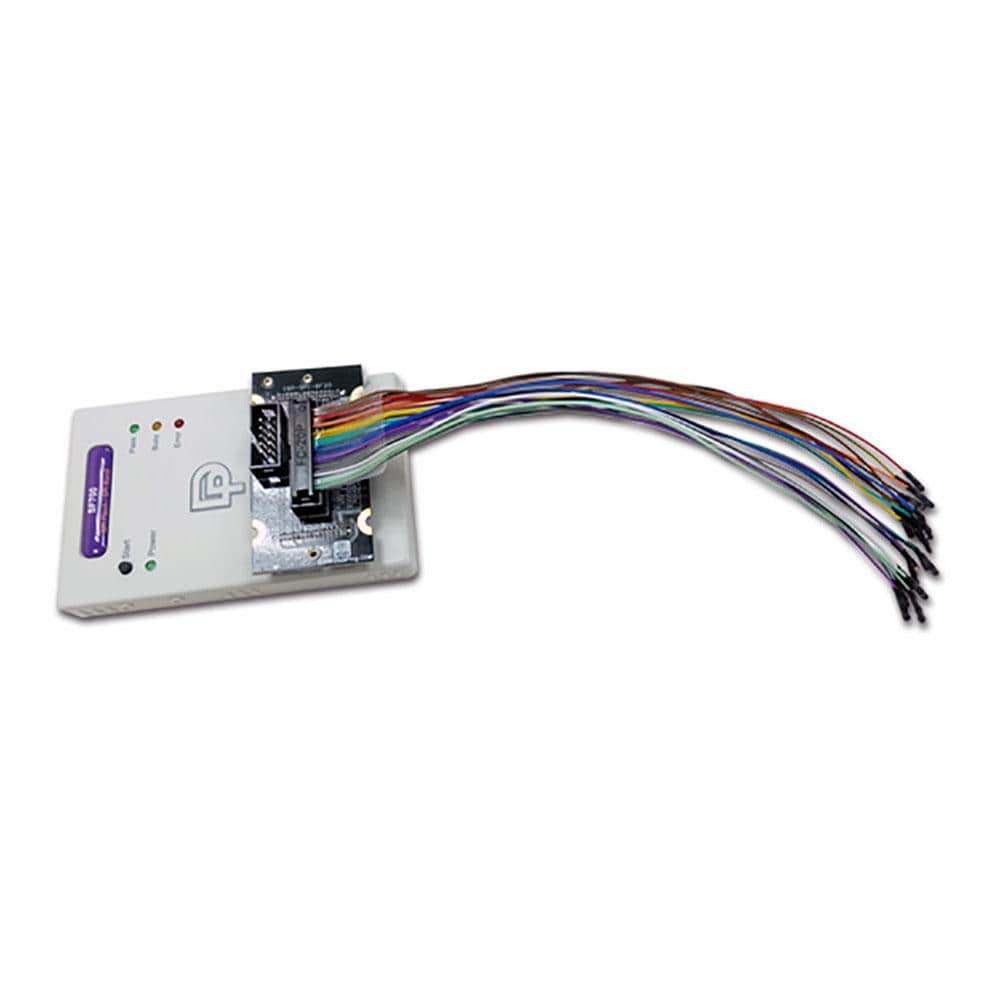

- ISP split cable for SPI Octal NOR Flash
- ATE Split Cable (MA-IDC3B-05F-DUP254-10F-028-A)
- CD-ROM (Include software and user manual)
