Overview

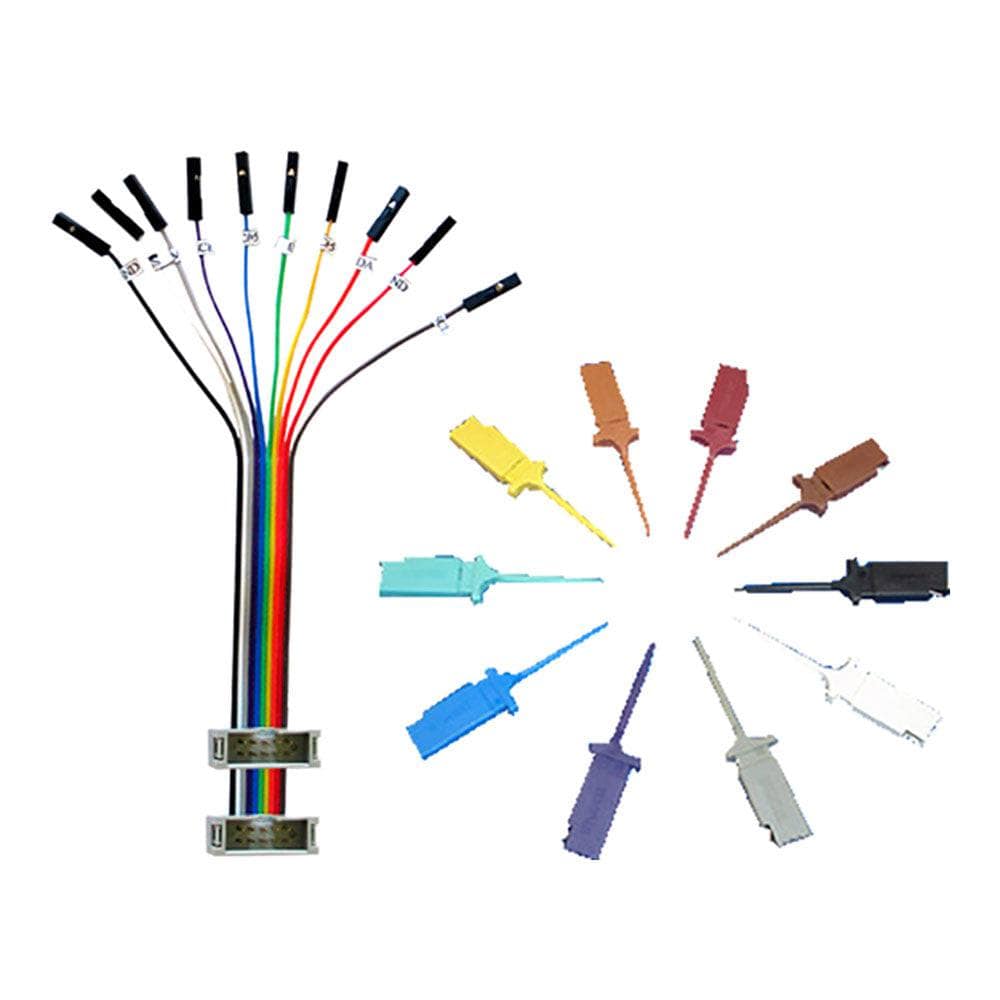

Le câble de séparation de phase totale permet de connecter l'Aardvark™, le Beagle™ ou le Cheetah™ aux broches d'en-tête ou aux pattes de circuit intégré de votre carte cible. Un jeu de 10 clips de fixation de haute qualité est inclus pour la fixation aux pattes de circuit intégré et aux broches de borne.
The 10-Pin Grabber Clip Split Cable has a 10-pin box header that attaches to the ribbon cable. Each individual lead has a different colour and is labelled with the pin name so that they are easy to identify.
10 - individually colour coded grabber clips are included:.
.
The connector is a standard 5x2 0.100" (2.54mm) pitch IDC type keyed box connector. Each individual lead is terminated with a single pin crimp connector with the same 0.100" (2.54mm) pitch. The cable is only 5" (12.7cm) long to minimize signal degradation.
Universal Use
The 10-Pin Grabber Clip Split Cable is an incredibly useful tool that will save you from having to create or purchase adapter boards for your 10-pin ribbon cable. Although it is labelled with the Aardvark™ I2C/SPI Host Adapter and Beagle™ I2C/SPI Protocol Analyser specific pinout, this split cable is universally adaptable to a variety of applications.
This split cable will connect to any standard 0.100" (2.54mm) pitch 10-pin keyed female IDC-type connector.
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
What's Included
Câble divisé Total Phase TP240411 avec pinces
- Split Cable with Grabbers
