L' Amfeltec SKU-071-02 est un répartiteur PCIe vers MiniPCI conçu pour étendre les cartes mères dépourvues d'interface MiniPCI. Ce répartiteur permet de connecter jusqu'à quatre cartes d'extension MiniPCI 124 broches 16 W à votre ordinateur à l'aide de la carte mère
The SKU-071-02 PCIe to 4x MiniPCI Splitter is designed to connect four 16W 124-pin MiniPCI add-in boards to the PCI Express connector of your computers motherboard.

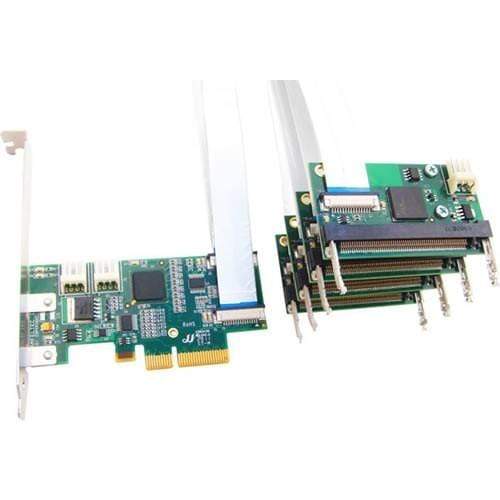

This splitter comes with one x4 PCI Express Host board, four 16W MiniPCI Adapter boards, and four 304mm (12") Flat PCI Express cables. The host board connects to the motherboard of the host computer and the adapter boards are connected to the host board with the help of the Flat PCI Express cables. The expansion MiniPCI add-in boards are connected to the MiniPCI Adapter boards at the standard 124-pin MiniPCI connectors provided on the adapter boards.
Convenient Board Mounting
Due to its versatile connectivity feature, the splitter allows easy connection of expansion MiniPCI add-in boards around any peripherals inside the computer chassis or even at a distance from the from the PCI Express Host board. The adapter boards come with two mounting holes that allow them to securely fit in a computer chassis.
Plug and Play
One of the best features of this splitter is that it supports Plug-and-Play operation and works right out of the box without any software installation in the computer.
Status LEDs
It comes with surface-mounted LEDs that indicate the Link status between PCI Express Host card and MiniPCI Express Adapter boards, along with MiniPCI Express Adapter boards "PRESENT" and "RESET" status.
Power
The splitter is powered from a standard ATX power supply or an external 5V power supply.
