Amfeltec SKU-064-02 Répartiteur PCIe vers MiniPCIe 3 voies x1 (ATX)
Amfeltec SKU-064-02 Répartiteur PCIe vers MiniPCIe 3 voies x1 (ATX)
Impossible de charger la disponibilité du service de retrait
Le Amfeltec SKU-064-02 est un répartiteur flexible PCIe x1 vers MiniPCIe utilisé pour étendre les cartes mères modernes avec une interface PCI Express. Ce répartiteur permet de connecter jusqu'à trois cartes d'extension MiniPCI Express au connecteur PCI Express standard de la carte mère. Il est livré avec une carte hôte PCI Express x1, trois cartes adaptateurs MiniPCI Express et 3 câbles PCI Express plats de 254 mm (10").
Le répartiteur est alimenté par une alimentation ATX standard
.

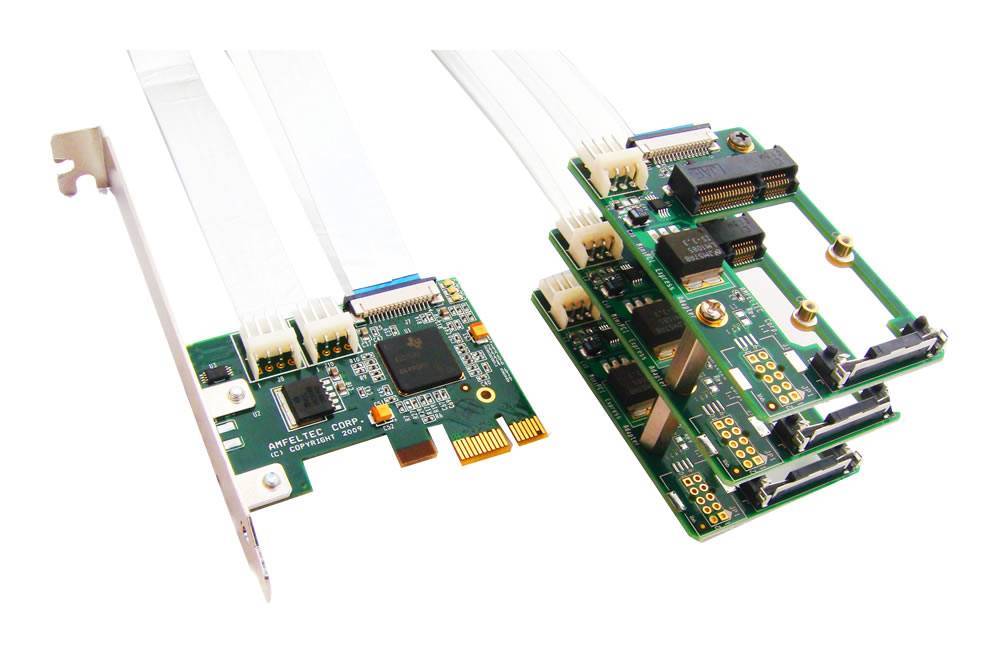

The Amfeltec SKU-064-02 PCIe Splitter is designed to connect three PCI Express add-in boards to the PCI Express connector of a computers motherboard. This splitter comes with one x1 PCI Express Host board, three MiniPCI Express Adapter boards, and three 254mm (10") Flat PCI Express cables. The host board connects to the motherboard of the host computer and the adapter boards are connected to the host board with the help of Flat PCI Express cables. The expansion MiniPCI Express add-in boards are connected to the MiniPCI Express Adapter boards at the standard MiniPCI Express connectors provided on the adapter boards.
Mechanical
The connection versatility of this splitter allows an easy connection of expansion MiniPCI Express add-in boards around any peripherals inside the chassis and even away from the PCI Express Host board. The adapter boards come with two mounting holes that allow them to securely fit in a computer chassis.
Plug n Play
One of the best features of this splitter is that it supports Plug-and-Play operation and works right out of the box with any software installation in the computer. It comes with the surface-mounted LEDs that indicate the Link status between PCI Express Host card and MiniPCI Express Adapter boards, along with the MiniPCI Express Adapter boards "PRESENT" and "RESET" status.
Power
The MiniPCI Express add-in boards derive power from a standard ATX power supply.
