Amfeltec SKU-042-05 Répartiteur PCIe x1 vers PCIe x1 2 voies (ATX)
Amfeltec SKU-042-05 Répartiteur PCIe x1 vers PCIe x1 2 voies (ATX)
Impossible de charger la disponibilité du service de retrait
Le Amfeltec SKU-042-05 est un répartiteur PCIe 2 voies flexible, utilisé pour étendre les cartes mères utilisées dans les ordinateurs modernes. Ce répartiteur permet de connecter jusqu'à 2 cartes PCI Express (x4) à la carte mère

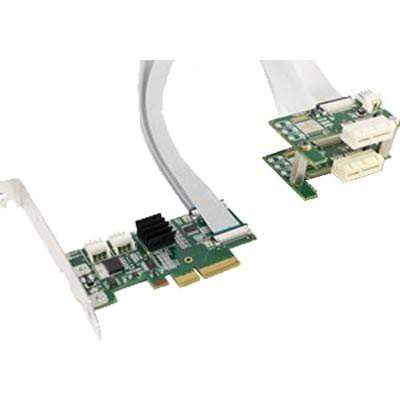

The SKU-042-05 is a flexible x4 PCI Express 4-Way Splitter that is used for expanding the motherboard of a computer system. This splitter converts the standard x4, x8, or x16 PCI Express motherboard slot up-to 2 independent x4 PCI Express slots. It comes with one x4 PCI Express Host card, two x4 PCI Express adapter boards, and two 304mm (12") Flexible PCI Express cables. The adapter boards connect to the main host board via Flex PCI Express cables. The expansion PCI Express add-in boards have to be plugged into the standard x4 PCI Express female connectors on the PCI Express adapter boards. The versatile nature of the connection allows positioning of PCI Express add-in boards away from the splitter.
Power Supply
This PCI Express Splitter system is powered by a standard ATX PSU and can also be powered by an external 12V PSU.
Mechanical

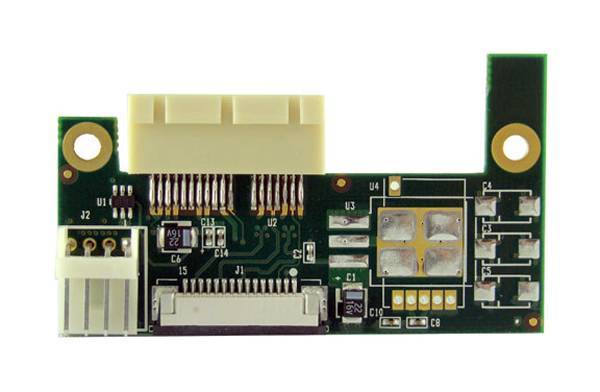

The mounting holes provided on the x4 PCI Express adapter boards allow them to be securely fixed inside a computer chassis. Apart from this, the x4 PCI Express adapter boards come with two support tabs that provide mechanical stabilization for expansion add-in boards (US Patent 7,255,570). To keep the PCI Express Host card securely inside a computer chassis, you can use a full-size bracket or the unique PCI Express add-in card Retainer (Patent Granted) that solves the same purpose without using the bracket.
