Solution d'affichage intelligente, mikroMedia™ HMI 5" dispose d'un écran couleur haute luminosité de 800 x 480 px à l'avant et d'un puissant microcontrôleur FT900Q 32 bits avec des circuits essentiels supplémentaires à l'arrière - ce qui en fait une solution autonome mais économique adaptée aux applications industrielles. Ce mode dispose de l'écran le plus lumineux de toutes les cartes mikroMedia™ HMI.
mikroMedia™ HMI boards are driven by FTDI Chips FT900Q with their proprietary 32-bit RISC core with industry-leading performance. With execution from shadow memory, the MCU can achieve speeds of 3.1 DMIPS/MHz at 100 MHz. FT900Q has 256KB of Flash memory, a small part of which is taken by the built-in bootloader.
The concept of mikroMedia™ HMI is to keep only the essential components that simplify its integration into a final product, whilst keeping overall costs down.

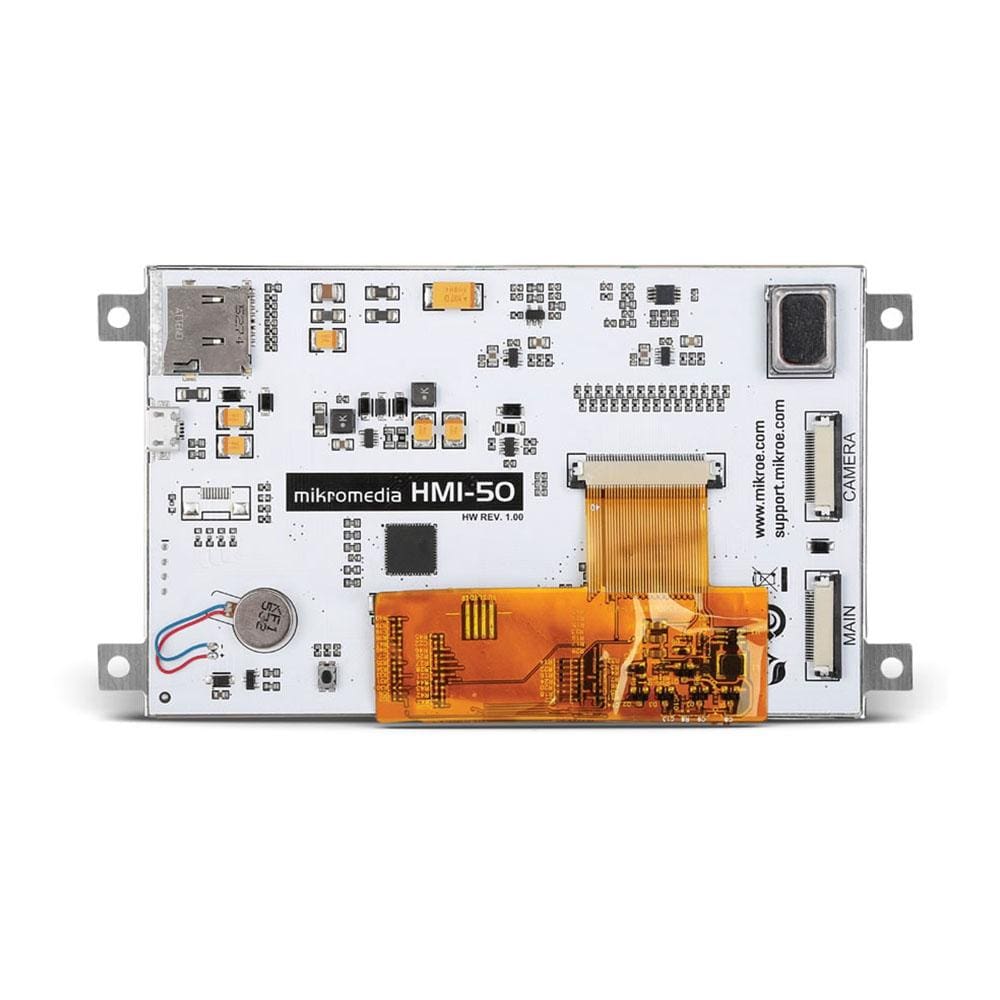

The board integrates a microSD card for expanding storage capacity, a haptic feedback motor, small audio speaker, and a micro USB connector. A connector for interfacing the MCU with external electronics, along with a separate connector for FT900Qs parallel camera interface.

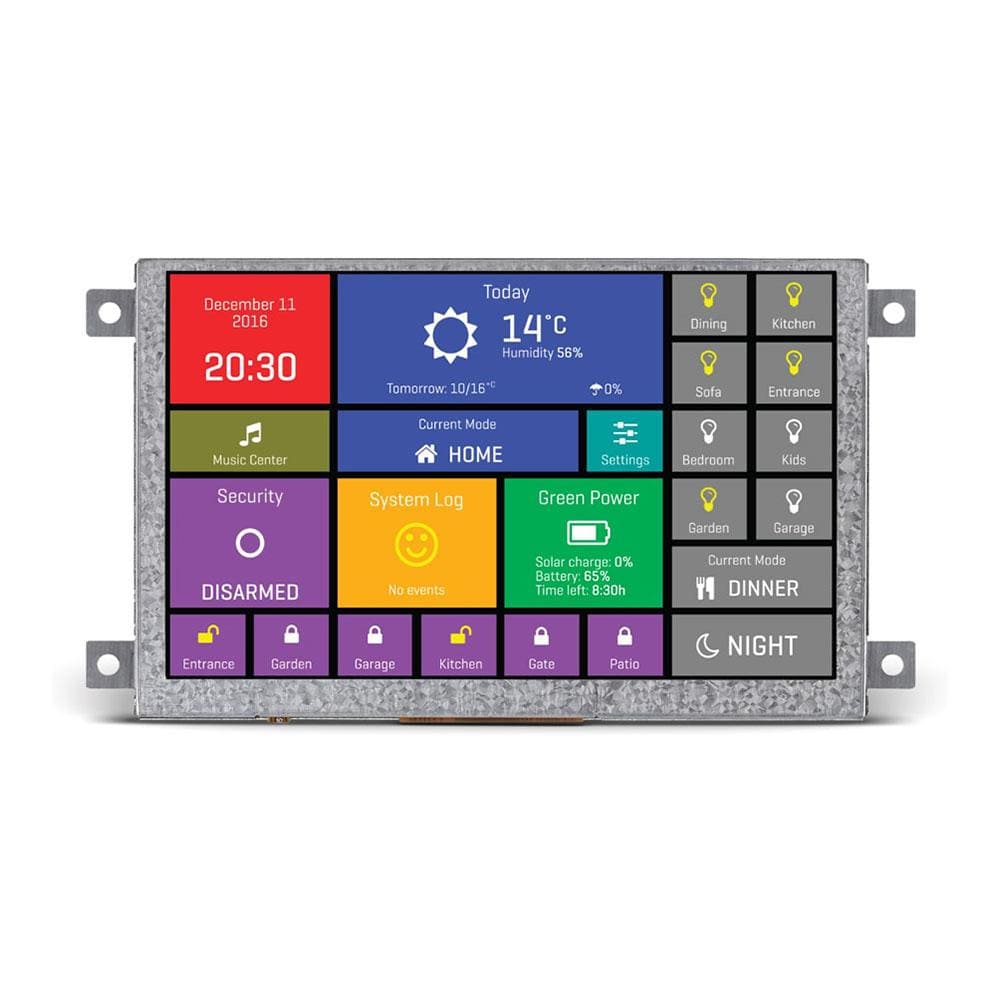

mikroMedia™ for HMI 5" Res has a high-quality Riverdi display with 16.7M color depth and 550 NIT brightness. The display is driven by a FT812 graphic controller. A mounting frame surrounding the screen simplifies integration.
.
Extras
The Mikromedia HMI Breakout Board (sold separately) contains a micro USB port, an RJ-45 Ethernet connector, as well as an external programmer connector (ideally used with mikroProg for FT90x). Two 24-pin flat cables are included in the packaging, enabling the use of both mikroMedia™ HMI connectors at the same time (MAIN, CAMERA).
