Carte à clic eFuse 2
Carte à clic eFuse 2
Impossible de charger la disponibilité du service de retrait

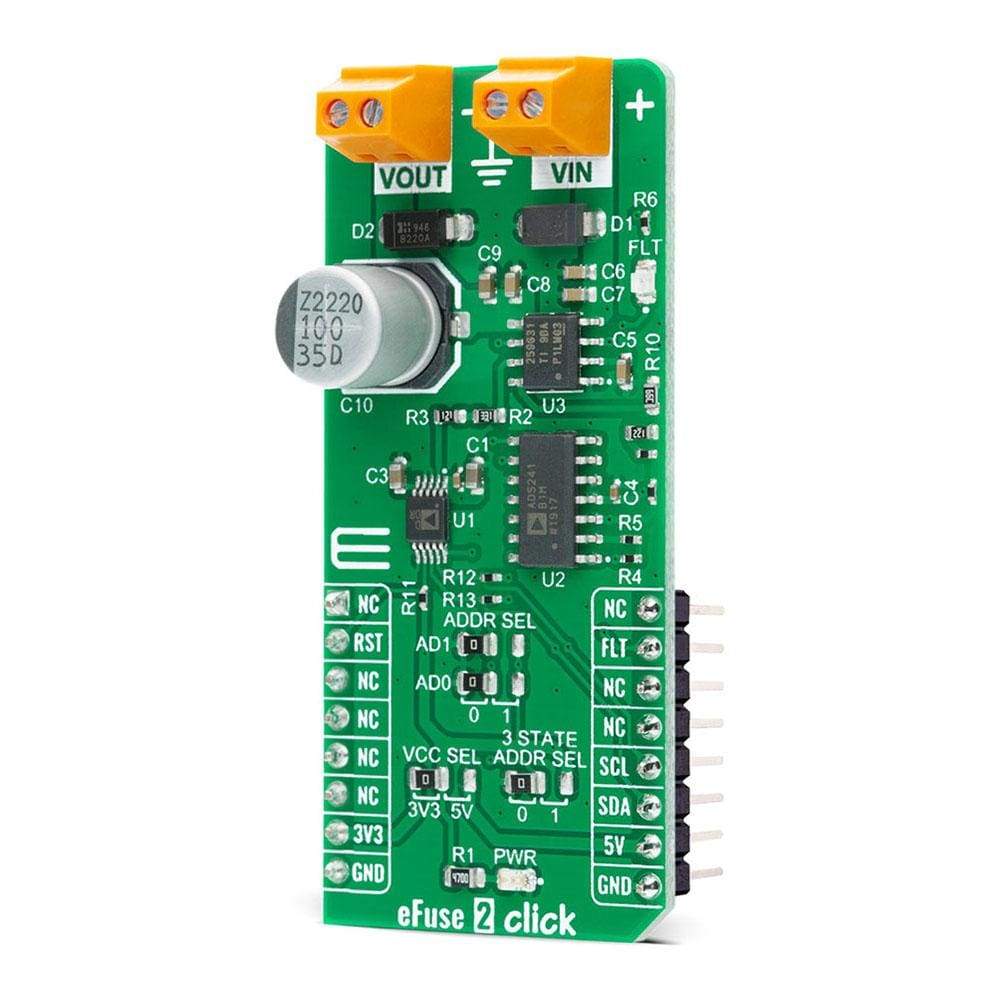

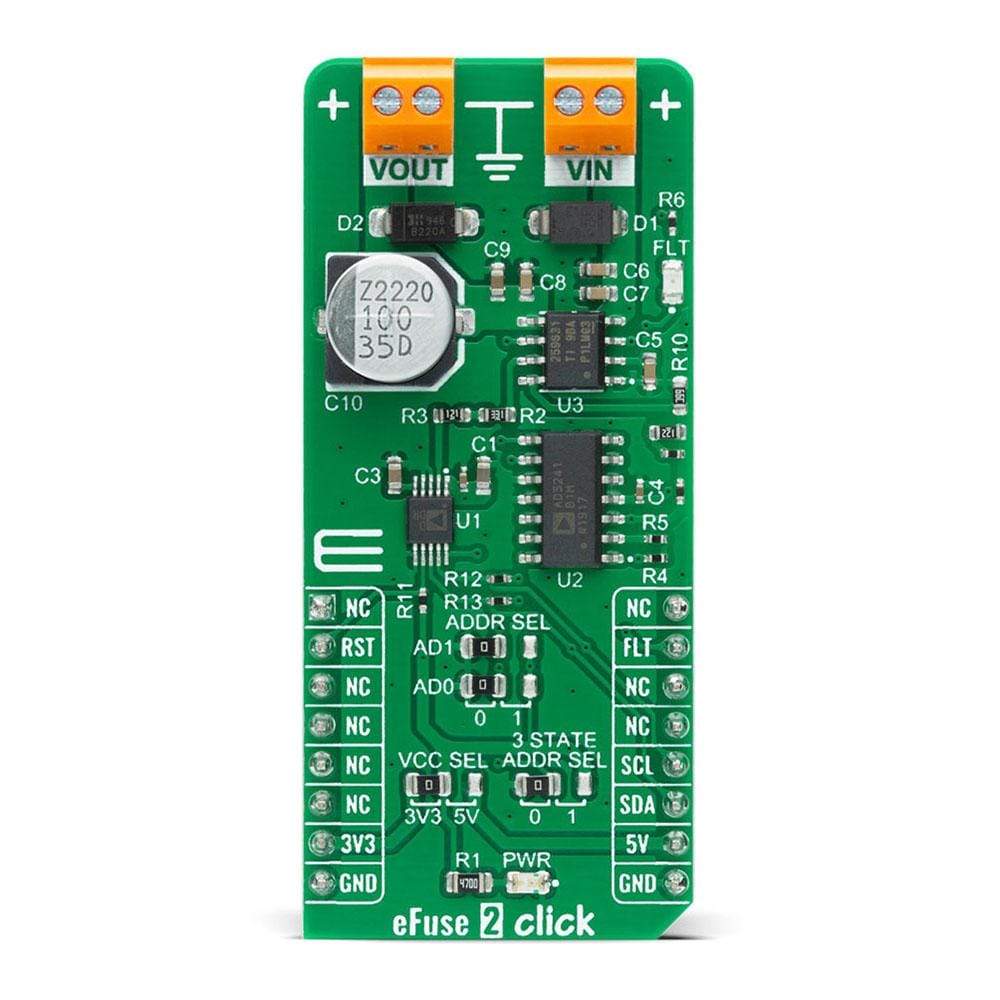

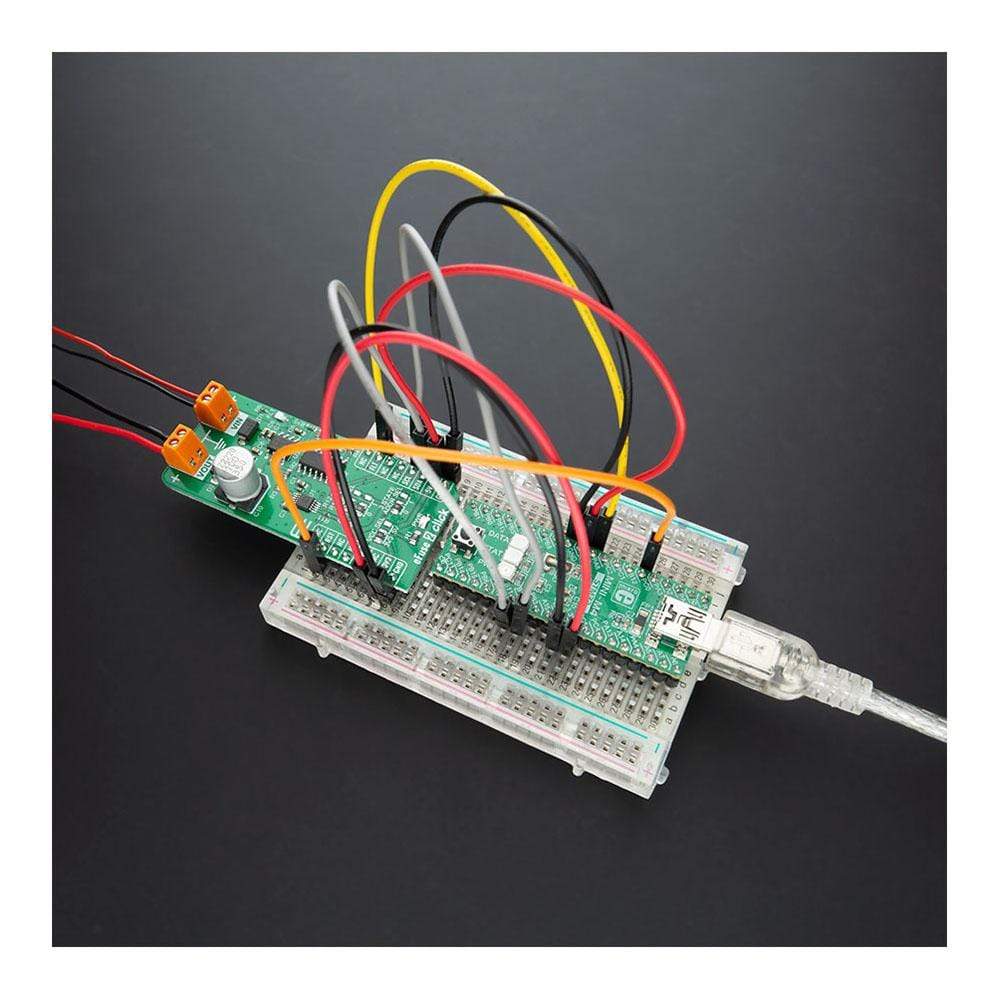

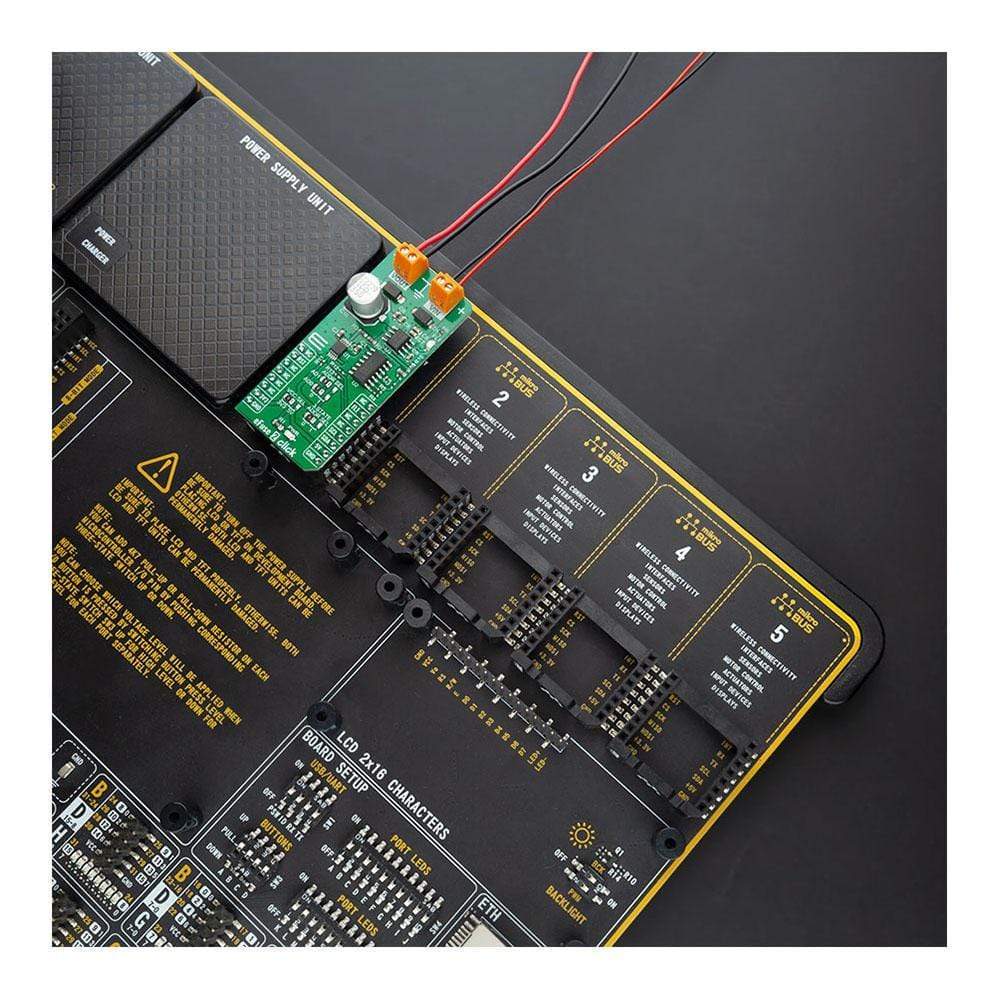

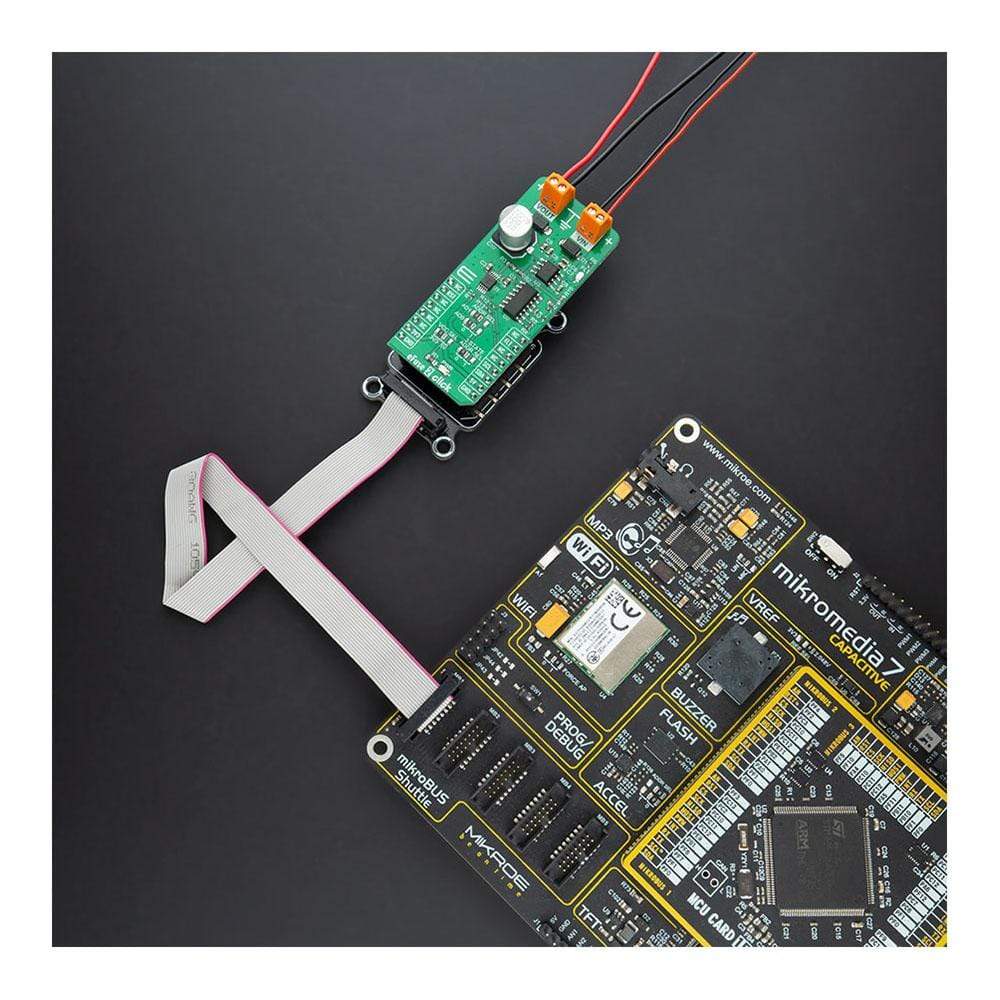

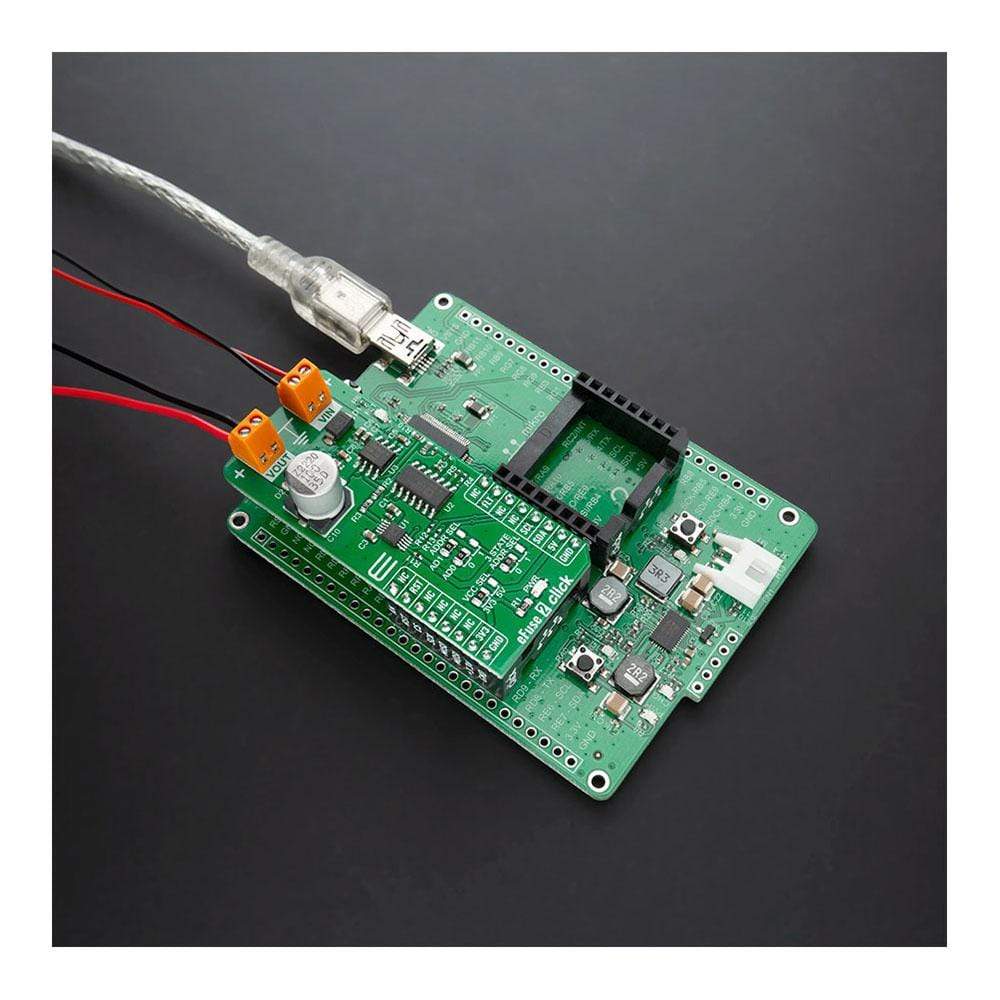

La carte Click Board™ eFuse 2 est une carte complémentaire compacte qui contient un dispositif FET hot-swap intégré. Cette carte est équipée du TPS259631, une solution de protection de circuit et de gestion de l'alimentation hautement intégrée de Texas Instruments. Elle offre plusieurs modes de protection contre les surcharges, les courts-circuits, les surtensions et les courants d'appel excessifs. Il est également possible d'obtenir une idée précise du courant de charge de sortie en mesurant la chute de tension sur le rhéostat numérique qui peut définir le niveau de limite du courant de sortie. L'appareil utilise également un mécanisme d'arrêt thermique intégré pour se protéger lors de ces événements de défaut. Cette carte Click Board™ est généralement utilisée pour les applications de remplacement à chaud et de protection des rails d'alimentation.
La carte Click Board™ eFuse 2 est prise en charge par une bibliothèque compatible mikroSDK, qui comprend des fonctions qui simplifient le développement logiciel. Cette carte Click Board™ est un produit entièrement testé, prêt à être utilisé sur un système équipé du socket mikroBUS™.
How Does The eFuse 2 Click Board™ Work?
The eFuse 2 Click Board™ is based on the TPS259631, an integrated eFuse device that is used to manage load voltage and load current from Texas Instruments. The TPS259631 provides various factory-programmed settings and user manageable settings, which allow device configuration for handling different transient and steady-state supply and load fault conditions, thereby protecting the input supply and the downstream circuits connected to the device. The device also uses an in-built thermal shutdown mechanism to shield itself during these fault events.
The eFuse 2 Click Board™ provides a simple solution for current limiting, inrush current control, and supervision of power rails for a wide range of applications operating from 2.7 V to 19 V external power supply and delivering up to 2A. Besides, the eFuse 2 Click board™ monitors the input supply the entire time and comes up with a user-adjustable UVLO and OVLO ... mechanism through an I2C compatible digital potentiometer, the AD5241 from Analog Devices, to ensure that the load is powered up only when the voltage is at a sufficient level.
It is also possible to get an accurate sense of the output load current by measuring the voltage drop across the current limit resistor. By replacing the resistor with a digital rheostat, you can easily program the current limit as performed on this Click board™. For this purpose, the AD5175 single-channel 1024-position digital rheostat from Analog Devices that communicate with the MCU through the I2C serial interface is used to program the current limit. The TPS259631 regulates the current to the set current limit value within the nominal overcurrent response time and exits current limiting when the load current falls below the current limit value.
The eFuse 2 Click Board™ allows the choice of the least significant bit (LSB) of the I2C slave addresses for both AD5241 and AD5175. This can be performed by positioning the SMD jumper labelled as ADDR SEL to its appropriate position. Additional functionality such as hardware reset for AD5175 and fault indication interrupt is provided and routed at RST and INT pins of the mikroBUS™ socket labelled as RST and FLT. This open-drain fault output is associated with a red color LED indicator, marked as the FLT that will be pulled low when a fault is detected.
The eFuse 2 Click Board™ is designed to be operated with both 3.3V and 5V logic voltage levels that can be selected via VCC SEL jumper. This allows for both 3.3V and 5V capable MCUs to use the I2C communication lines properly. However, this Click board™ comes equipped with a library that contains easy to use functions and an example code that can be used as a reference for further development.
SPECIFICATIONS
| Type | Power Switch |
| Applications | Can be used for hot-swapping and power rail protection applications. |
| On-board modules | The eFuse 2 Click Board™ is based on the TPS259631, an integrated eFuse device that is used to manage load voltage and load current from Texas Instruments. |
| Key Features | Adjustable current limit with load current monitor, overtemperature protection, fault indication, overvoltage protection, and adjustable under-voltage lockout, wide input voltage range, and more. |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

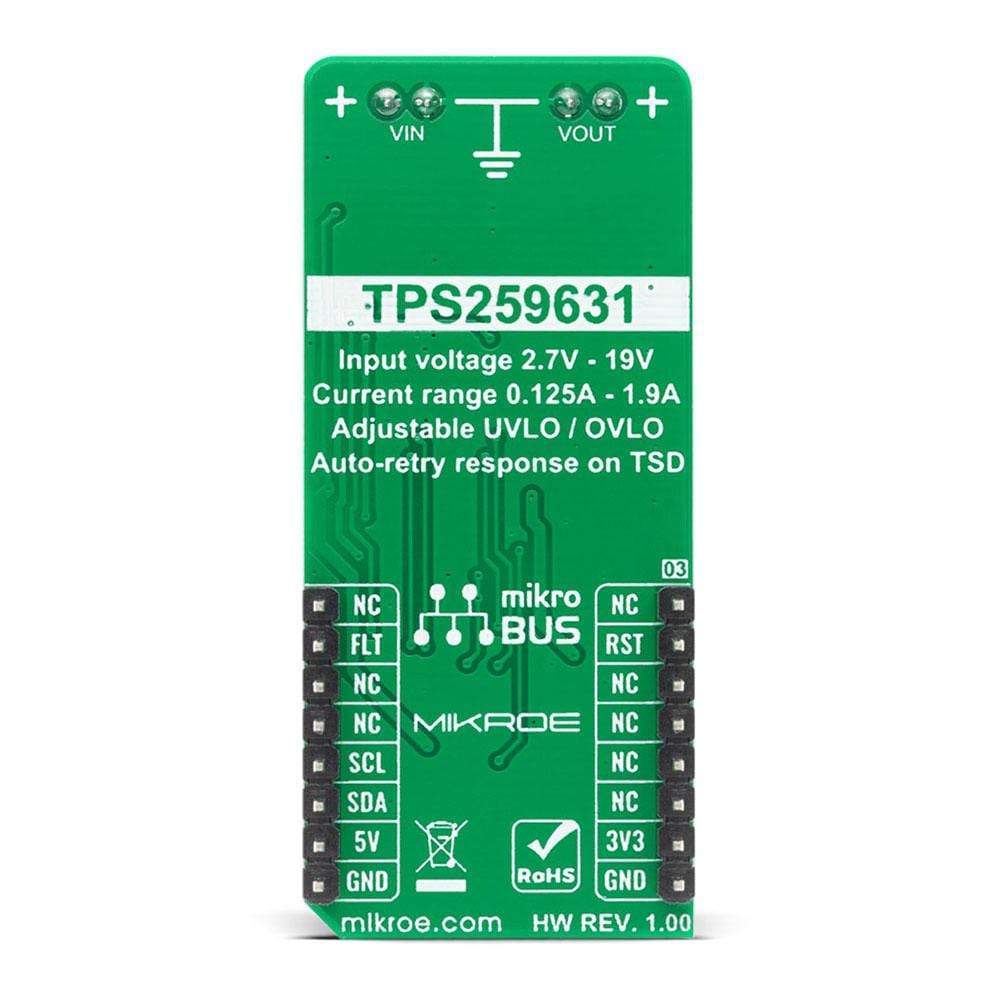

PINOUT DIAGRAM
This table shows how the pinout of the eFuse 2 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| Reset | RST | 2 | RST | INT | 15 | FLT | Fault Indication |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| LD2 | FLT | - | Fault LED Indicator |
| JP1 | VCC SEL | Left | Power Supply Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
| JP2-JP3 | ADDR SEL | Left | AD5241 I2C Address Selection: Left position 0, Right position 1 |
| JP4 | 3 STATE ADDR SEL | Left | AD5175 I2C Address Selection: Left position 0, Right position 1 |
EFUSE 2 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 2.7 | - | 19 | V |
| Current Limit | 0.13 | - | 2 | A |
| I2C Clock Frequency | - | - | 400 | kHz |
| Operating Temperature Range | -40 | - | +125 | °C |
Software Support
We provide a library for the eFuse 2 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library covers all the necessary functions to control the eFuse 2 Click Board™. Library performs a standard I2C interface communication.
Key Functions
float *min_voltage, float *max_voltage )- Set operating voltage function.void efuse2_set_operating_current ( float current )- Set operating current function.void efuse2_operating_mode ( uint8_t mode )- Set operating mode function.
Example Description
The application is composed of three sections :
- System Initialization - Initializes I2C, set RST pin as an output, set INT pin as input and start to write log.
- Application Initialization - Initialization driver enables - I2C, AD5175: enable write, set the normal operating mode and operating current to the 1,2 A; AD5241: set operating voltage to the 12,0 V; display diagnostic states and temperature.
- Application Task - (code snippet) This is an example that demonstrate the use of the eFuse 2 Click Board™. The eFuse 2 Click Board™ uses USB UART log to display operating voltage, OVLO, UVLO and current limit condition. This firmware provides the functions to set the operating voltage and current limiting conditions in order to provide the threshold of the fault conditions. When one of the fault conditions is met, the microcontroller is notified via INT pin which is checked by the app to initiate a shutdown mode. All data logs write on USB UART changes every 2000 milliseconds.
void application_task ( )
{
if ( efuse2_get_fault( ) == EFUSE2_FAULT )
{
efuse2_operating_mode( EFUSE2_AD5175_SHUTDOWN_MODE );
Delay_ms( 1000 );
mikrobus_logWrite( " Shutdown Mode ", _LOG_LINE );
mikrobus_logWrite( "-----------------------------", _LOG_LINE );
for ( ; ; );
}
FloatToStr( op_voltage, log_text );
mikrobus_logWrite( " Oper. Voltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( min_voltage, log_text );
mikrobus_logWrite( " Undervoltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( max_voltage, log_text );
mikrobus_logWrite( " Overvoltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( op_current, log_text );
mikrobus_logWrite( " Current Limit : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " A", _LOG_LINE );
mikrobus_logWrite( "-----------------------------", _LOG_LINE );
Delay_ms( 2000 );
}
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The eFuse 2 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the eFuse 2 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library covers all the necessary functions to control the eFuse 2 Click Board™. Library performs a standard I2C interface communication.
Key Functions
float *min_voltage, float *max_voltage )- Set operating voltage function.void efuse2_set_operating_current ( float current )- Set operating current function.void efuse2_operating_mode ( uint8_t mode )- Set operating mode function.
Example Description
The application is composed of three sections :
- System Initialization - Initializes I2C, set RST pin as an output, set INT pin as input and start to write log.
- Application Initialization - Initialization driver enables - I2C, AD5175: enable write, set the normal operating mode and operating current to the 1,2 A; AD5241: set operating voltage to the 12,0 V; display diagnostic states and temperature.
- Application Task - (code snippet) This is an example that demonstrate the use of the eFuse 2 Click Board™. The eFuse 2 Click Board™ uses USB UART log to display operating voltage, OVLO, UVLO and current limit condition. This firmware provides the functions to set the operating voltage and current limiting conditions in order to provide the threshold of the fault conditions. When one of the fault conditions is met, the microcontroller is notified via INT pin which is checked by the app to initiate a shutdown mode. All data logs write on USB UART changes every 2000 milliseconds.
void application_task ( )
{
if ( efuse2_get_fault( ) == EFUSE2_FAULT )
{
efuse2_operating_mode( EFUSE2_AD5175_SHUTDOWN_MODE );
Delay_ms( 1000 );
mikrobus_logWrite( " Shutdown Mode ", _LOG_LINE );
mikrobus_logWrite( "-----------------------------", _LOG_LINE );
for ( ; ; );
}
FloatToStr( op_voltage, log_text );
mikrobus_logWrite( " Oper. Voltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( min_voltage, log_text );
mikrobus_logWrite( " Undervoltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( max_voltage, log_text );
mikrobus_logWrite( " Overvoltage : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " V", _LOG_LINE );
FloatToStr( op_current, log_text );
mikrobus_logWrite( " Current Limit : ", _LOG_TEXT );
mikrobus_logWrite( log_text, _LOG_TEXT );
mikrobus_logWrite( " A", _LOG_LINE );
mikrobus_logWrite( "-----------------------------", _LOG_LINE );
Delay_ms( 2000 );
}
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The eFuse 2 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
