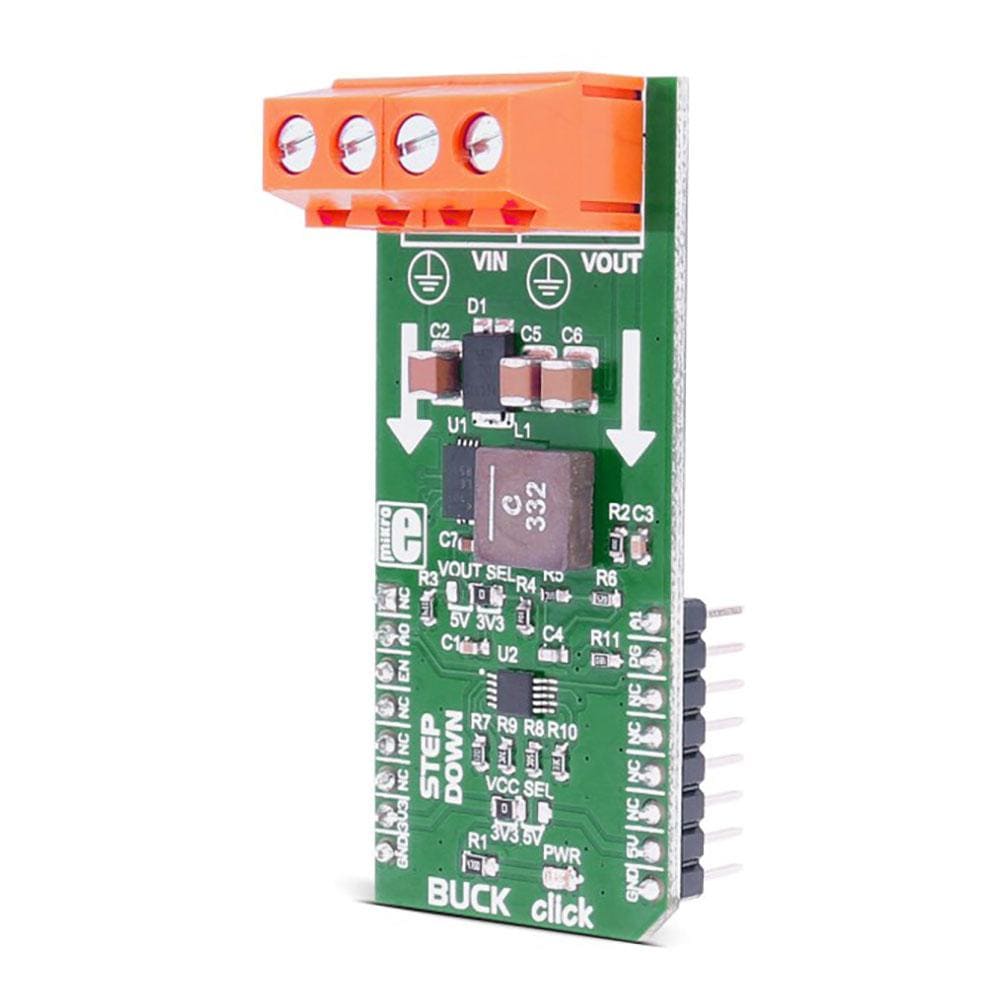

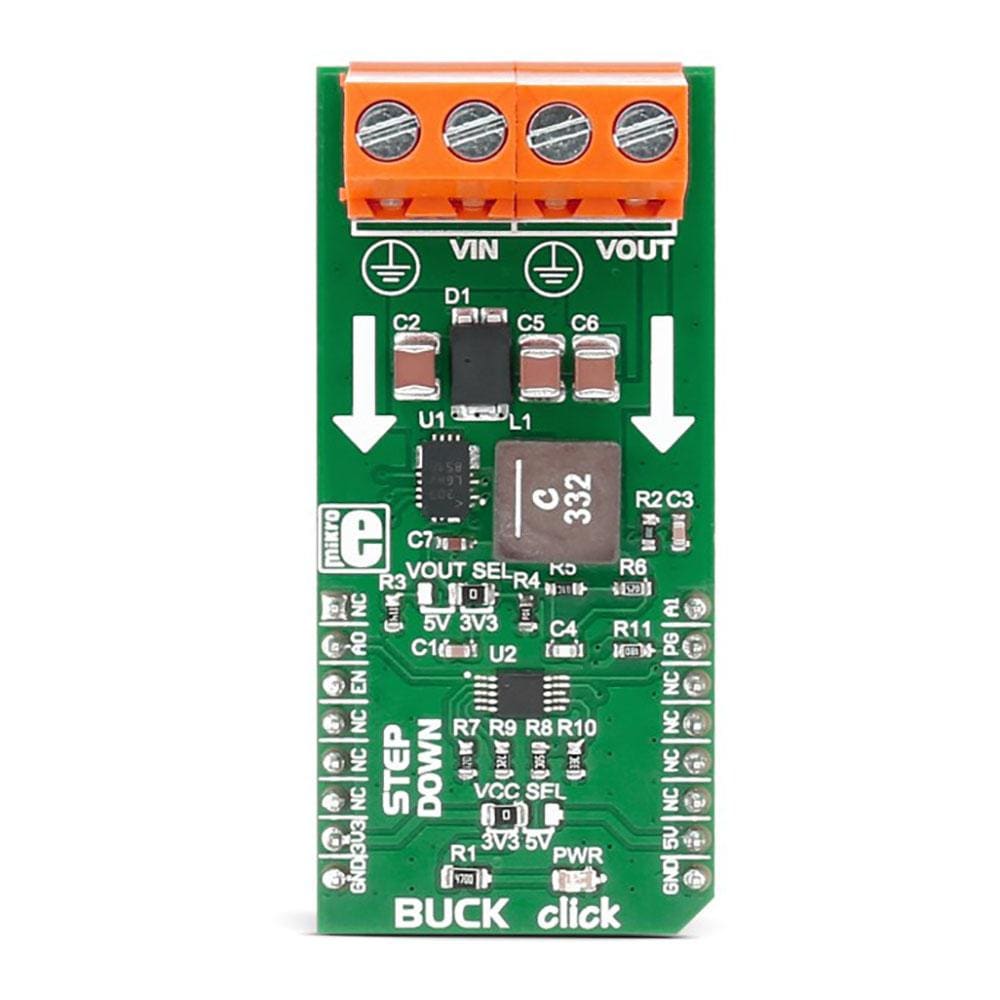

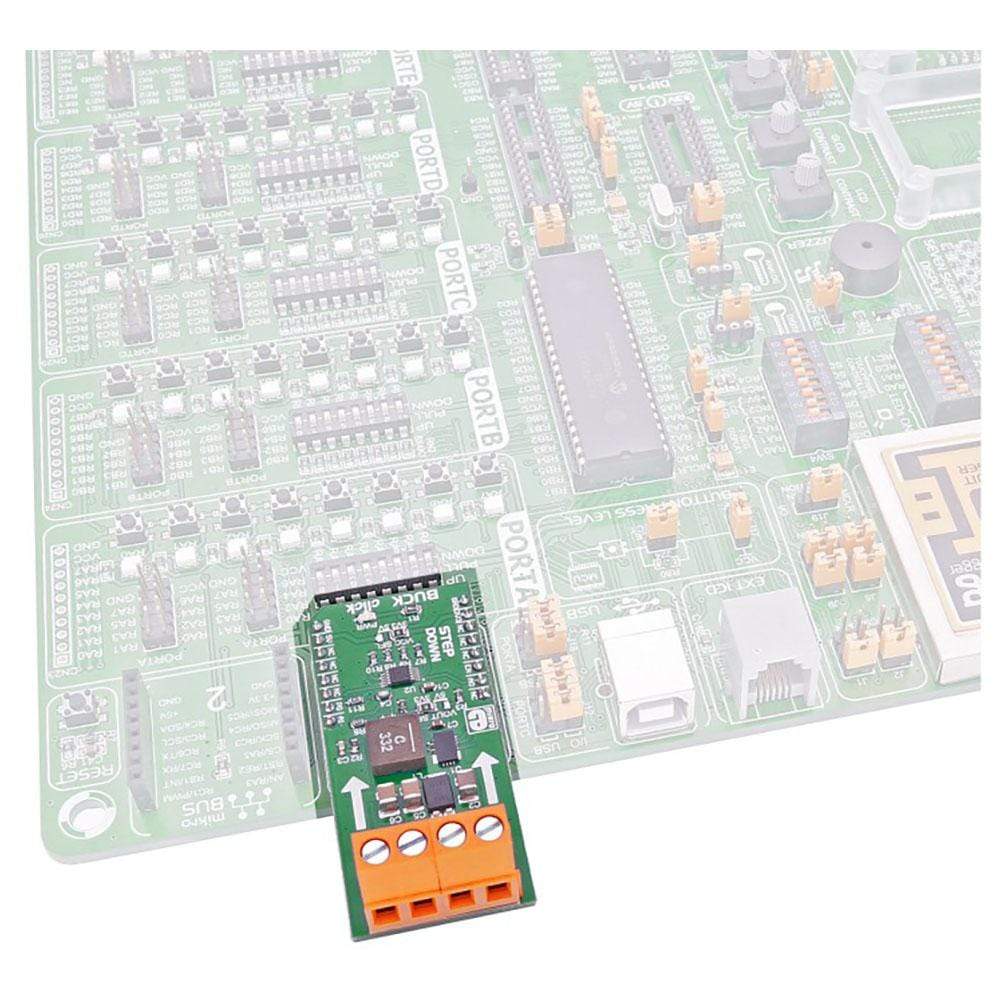

Le Buck Click Board™ est un régulateur de commutation abaisseur qui accepte une large plage de tension d'entrée allant jusqu'à 40 V et la réduit à 3,3 V ou 5 V. Le Click Board™ est équipé du régulateur de commutation abaisseur LT3976 40 V, 5 A, 2 MHz avec un courant de repos de 3,3 µA.
La Buck Click Board™ communique avec le microcontrôleur cible via les broches suivantes sur la ligne MikroBUS : PWM, INT, RS, CS.
The Buck Click Board™ is a buck switching regulator that accepts a wide input voltage range of up to 40V and steps it down to 3.3V or 5V. The click carries the LT3976 from Analog Devices, 40V, 5A, 2MHz step-down switching regulator with 3.3µA quiescent current. BUCK click communicates with the target microcontroller over the following pins on the mikroBUS™ line: PWM, INT, RS, CS.
Note : When all the usual conditions and proper cooling are met, the Buck Click Board™ can supply up to 5A of load current.
LT3976 REGULATOR FEATURES
The LT3976 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 40V . Low quiescent current design consumes only 3.3µA of supply current while regulating with no load. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping the output ripple below 15mV in a typical application.
The LT3976 can supply up to 5A of load current and has current limit foldback to limit power dissipation during short-circuit. A low dropout voltage of 500mV is maintained when the input voltage drops below the programmed output voltage, such as during automotive cold crank.
How Does The Buck Click Board™ Work?

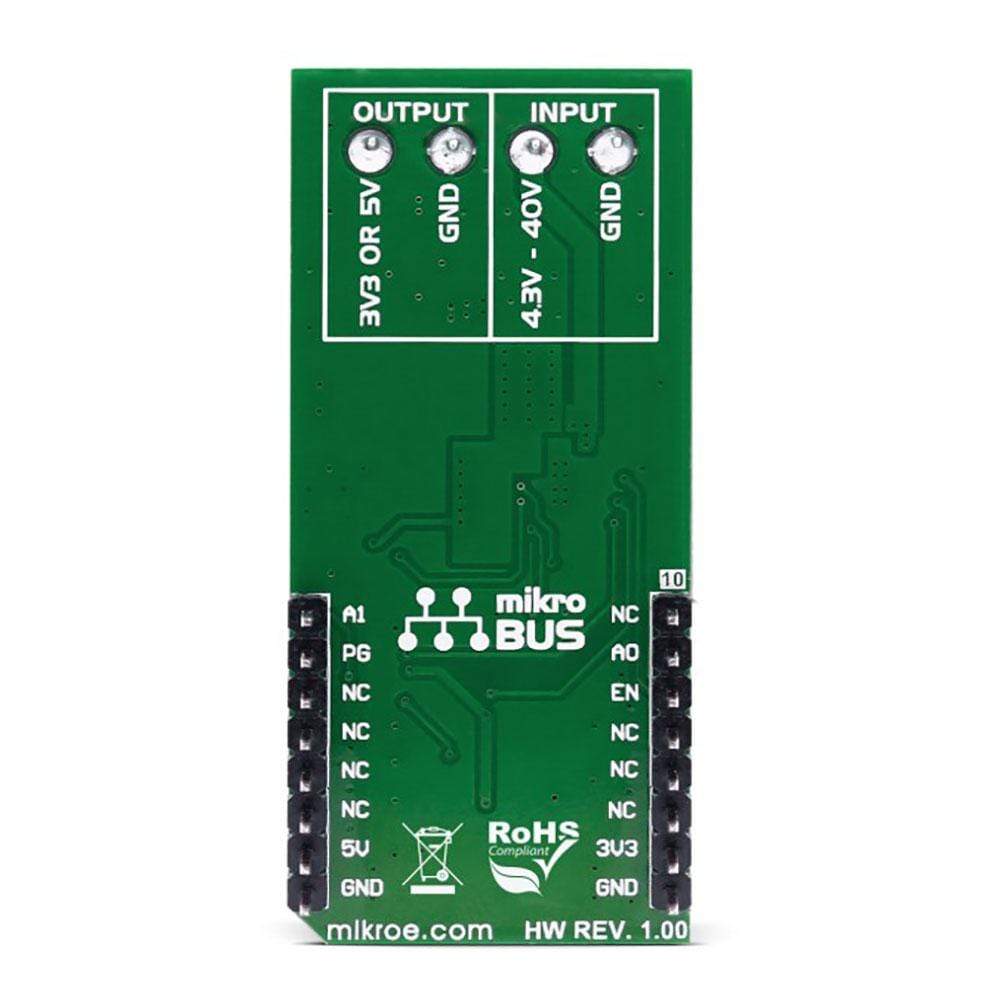

There are two onboard screw terminals, one for connecting the external input supply, and the other for the output. There is also a multiplexer which chooses the resistor used for setting the switching frequency.
.jpg)
The multiplexer is used for selecting one of the four different resistors. Each of these resistors, if selected, sets different switching frequency:
| A0 | A1 | Selects resistor | Switching frequency [MHz] |
|---|---|---|---|
| 0 | 0 | R7 = 130k | 0.4 |
| 0 | 1 | R8 = 32.4k | 1.2 |
| 1 | 0 | R9 = 54.9k | 0.8 |
| 1 | 1 | R10 = 21.5k | 1.6 |
SPECIFICATIONS
| Type | Buck |
| Applications | Automotive battery regulation, portable devices, industrial supplies, etc. |
| On-board modules | LT3976 step-down switching regulator, MAX4634 4-channel CMOS analog multiplexer |
| Key Features | Thermal shutdown protection, output voltage can be set to 3.3V or 5V, 4 possible switching frequencies |
| Interface | GPIO |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
PINOUT DIAGRAM
This table shows how the pinout of the Buck Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | A1 | Multiplexer A1 pin | |
| Multiplexer A0 pin | A0 | 2 | RST | INT | 15 | PG | Open drain output of an internal comparator |
| Enable IC | EN | 3 | CS | TX | 14 | NC | |
| NC | 4 | SCK | RX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power supply | +3.3V | 7 | 3.3V | 5V | 10 | +5V | Power supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
JUMPERS AND SETTINGS
| Designator | Name | Default Position | Default Option | Description |
|---|---|---|---|---|
| JP1 | VOUT SEL | Right | 3V3 | Output Voltage Selection 3V3/5V, left position 5V, right position 3V3. |
| JP2 | VCC SEL | Left | 3V3 | Power Supply Voltage Selection toward host MCU 3V3/5V; left position 3V3, right position 5V |
Software Support
Code examples for the Buck Click Board™, written for MikroElektronika hardware and compilers are available on Libstock.
