Amfeltec Corp
Adaptateur PCIe vers MiniPCI Amfeltec SKU-056-02
Adaptateur PCIe vers MiniPCI Amfeltec SKU-056-02
Impossible de charger la disponibilité du service de retrait

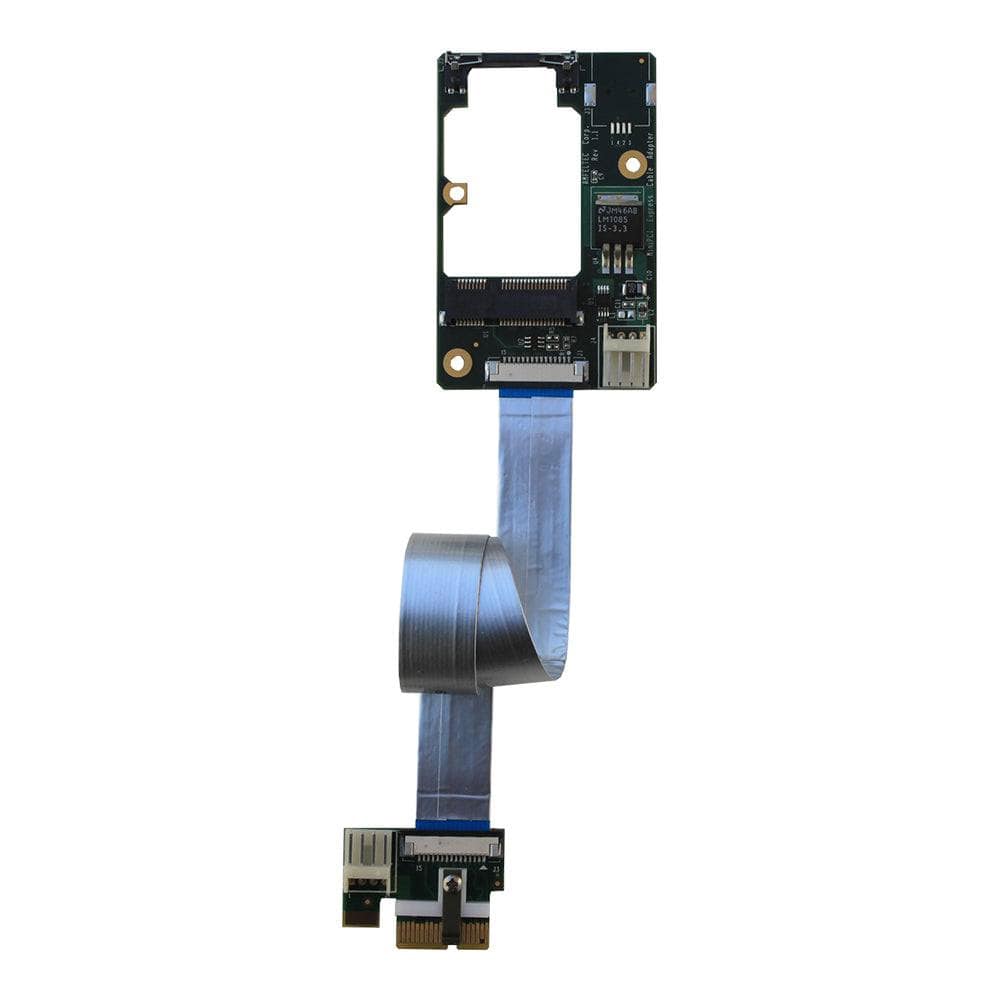

La carte adaptateur PCIe vers miniPCI Amfeltec SKU-056-02 a été conçue pour convertir le bus PCI Express x1 en bus MiniPCI Express via un câble flexible.
The adapter allows you to connect the MiniPCI Express expansion add-in board to the motherboard PCI Express connector. The Adapter includes a MiniPCI Express adapter board (downstream), x1 PCI Express host card and PCI Express Flat cable. The x1 PCI Express host card connects to the motherboard PCI Express connector. The PCI Express Flat cable (305mm) is used for connecting the host card and MiniPCI Express Adapter board, and it provides a flexible connection between the MiniPCI Express expansion add-in board and the motherboard. The power for the downstream MiniPCI Express expansion board is supplied via a MiniPCI Express connector. The MiniPCI Express Adapter has a standard 4-pin "floppy drive" power connector for receiving power from a PCI Express host card. The MiniPCI Express Adapter board has mounting holes for its mechanical fixation inside the computer chassis (embedded computer). The x1 PCI Express host card can be retained inside the chassis by using a unique PCI Express add-in card retainer (US Patent 7,850,475) to prevent the PCI Express host card from being unstable. This add-in card retainer can securely hold a PCI express board without using a standard bracket.
Adaptateur PCIe vers MiniPCI Amfeltec SKU-056-02
