High-Speed Differential Signal Integrity Analysis
SKU: P2103A
Regular price
112,560.00TL
exc tax
Regular price
Sale price
Unit price
per
112,560.00TL
exc tax
Shipping calculated at checkout.
If no stock shown above, Order NOW to ship within 7 working days
Couldn't load pickup availability
Key Features
- High Bandwidth: Supports DC-6GHz (uncorrected) for comprehensive signal analysis

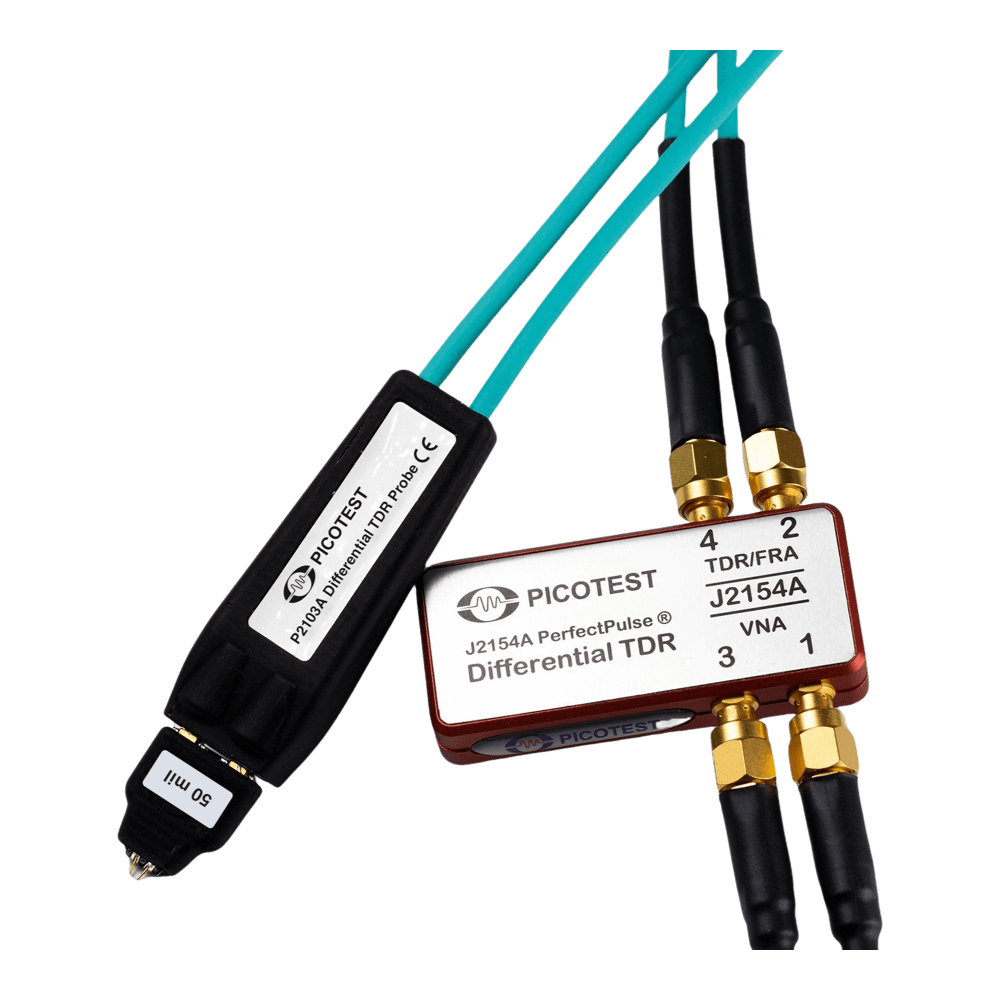

- Versatile Compatibility: Works seamlessly with the Picotest J2154A PerfectPulse® Differential TDR and all 50 Ohm instruments.

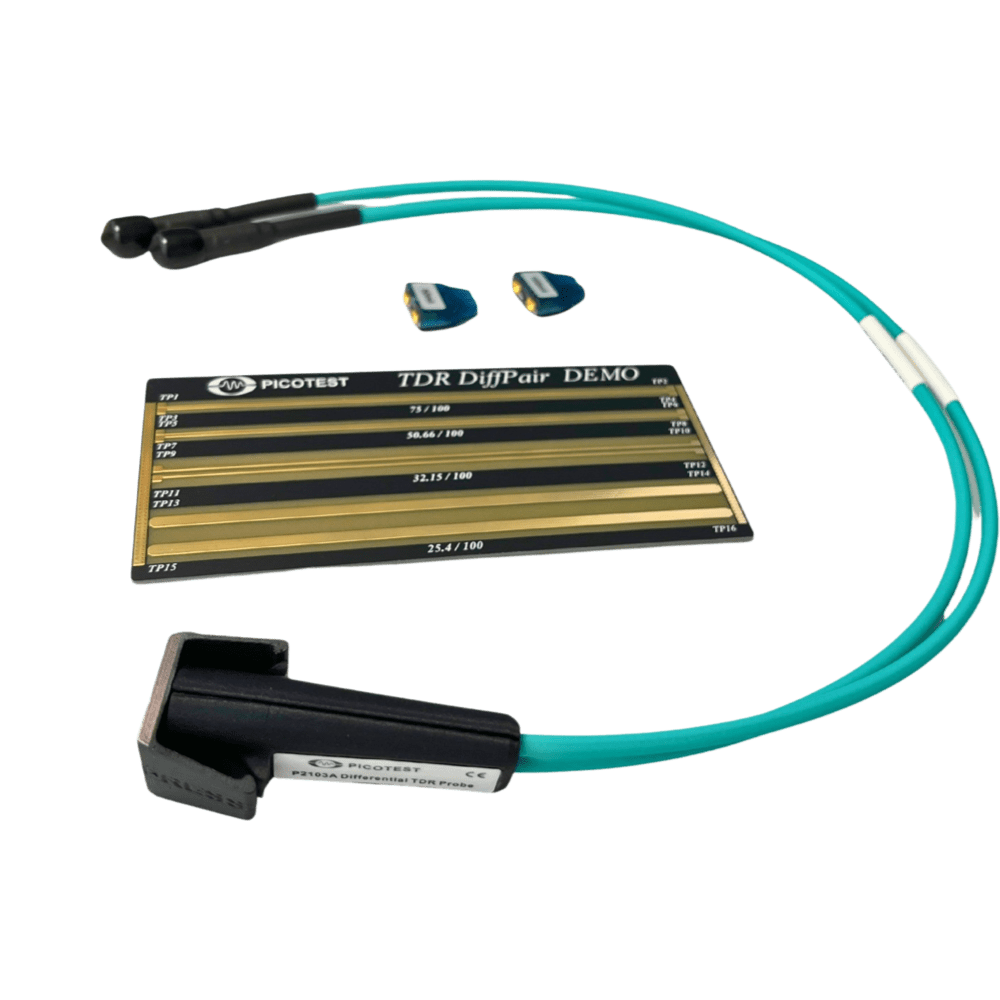

- Fixed Pitch Options: Comes with 50 and 100 mil pitch tips for flexible differential pair measurements.
- Low Inductance: Offers minimal inductance at the tip, ideal for dense PCB environments.
- Repeatable Measurements: Fixed pin spacing ensures reliability and consistency in data collection.

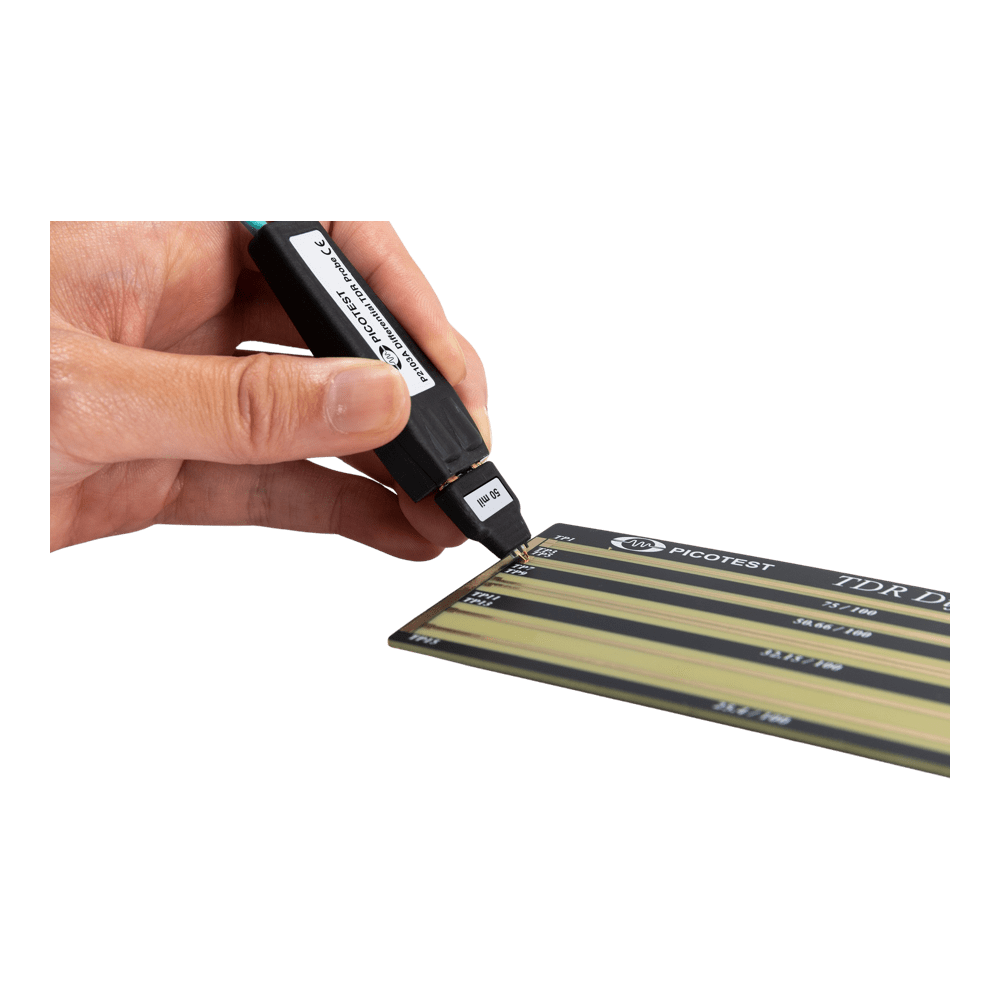

- Ergonomic Design: Slim, low-profile housing for easy handheld operation.
- Multiple Probe Use: Enable multi-port TDR setups for thorough analysis.
Discover unparalleled precision with the Picotest P2103A Differential TDR Probe, the essential tool for engineers focusing on high-speed differential electrical channels. This differential transmission line 'browser' probe is designed to characterise differential pairs effectively through Time Domain Reflectometry (TDR/TDT) applications.
The P2103A boasts a remarkable 6GHz bandwidth (uncorrected) and features spring-loaded pins for easy placement, ensuring quick and accurate measurements. The probe's ergonomic design facilitates handheld use, providing visibility and comfort during testing.
