EasyPIC PRO v7 Development Board
EasyPIC PRO v7 Development Board
Couldn't load pickup availability

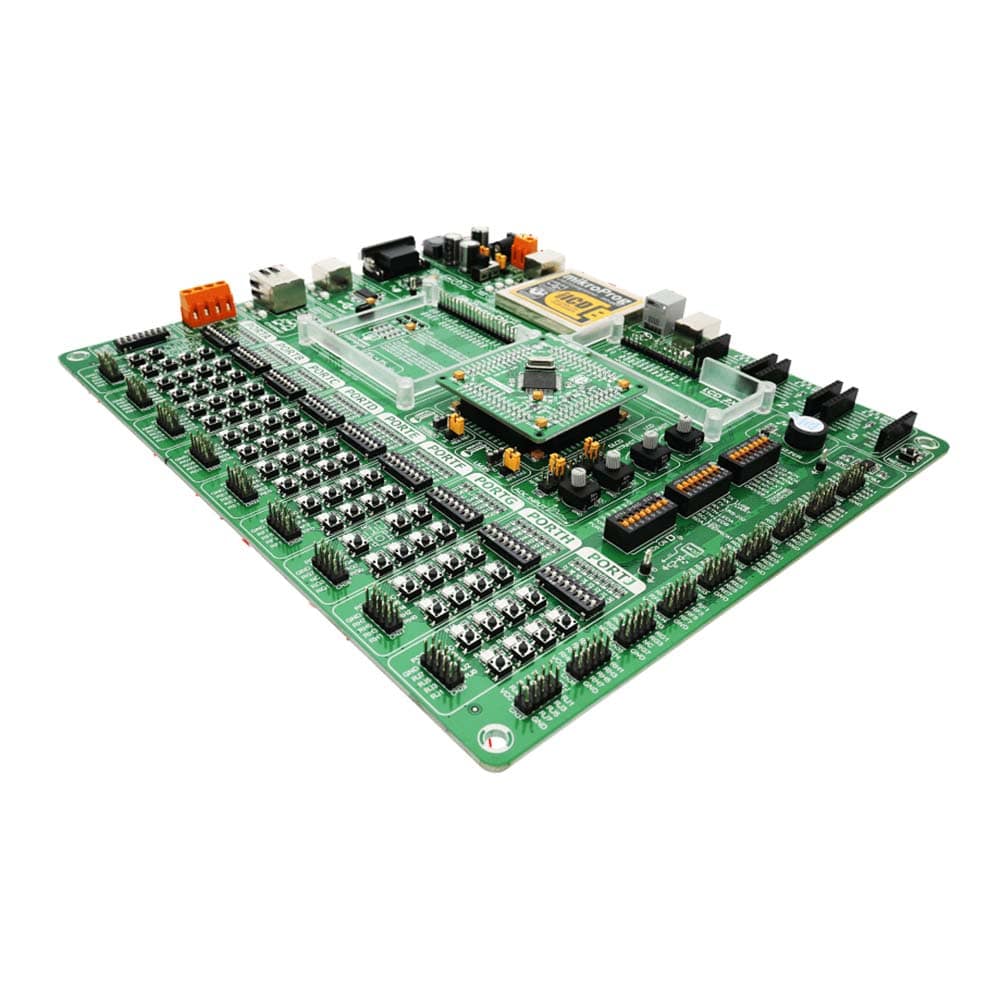

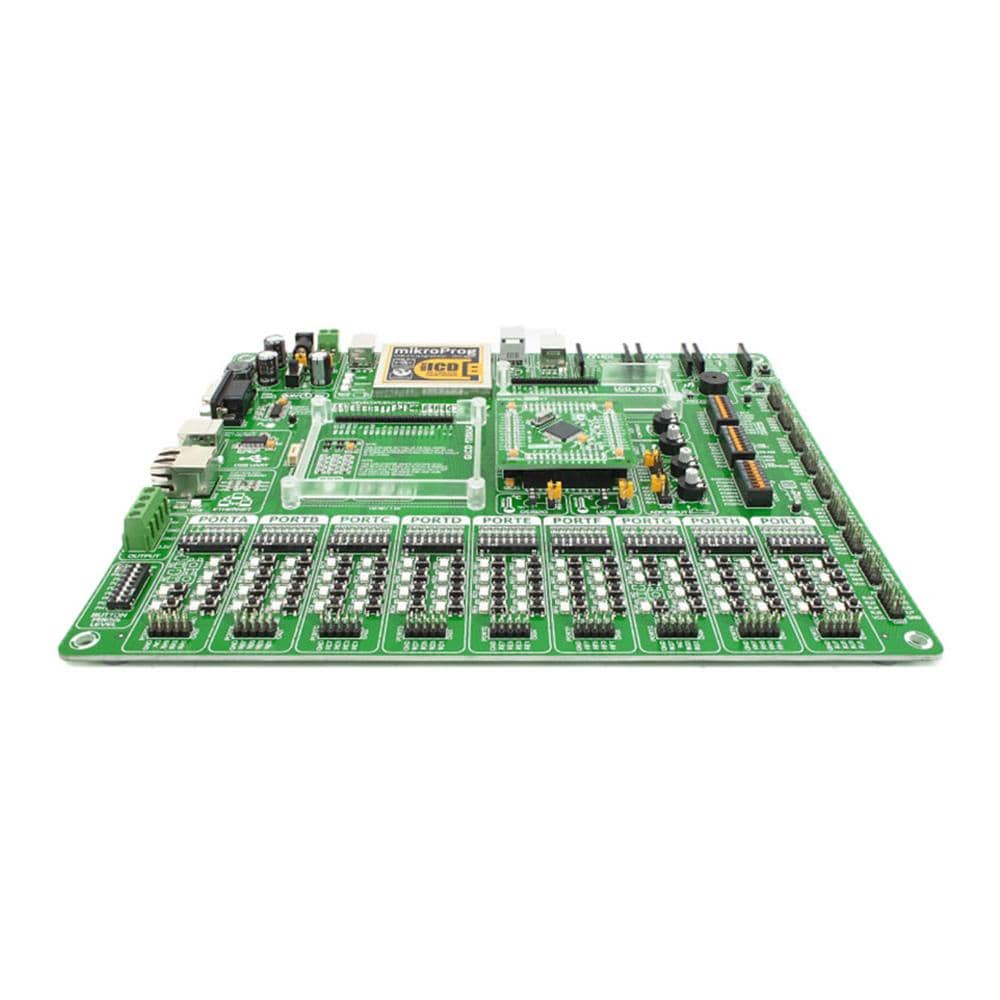

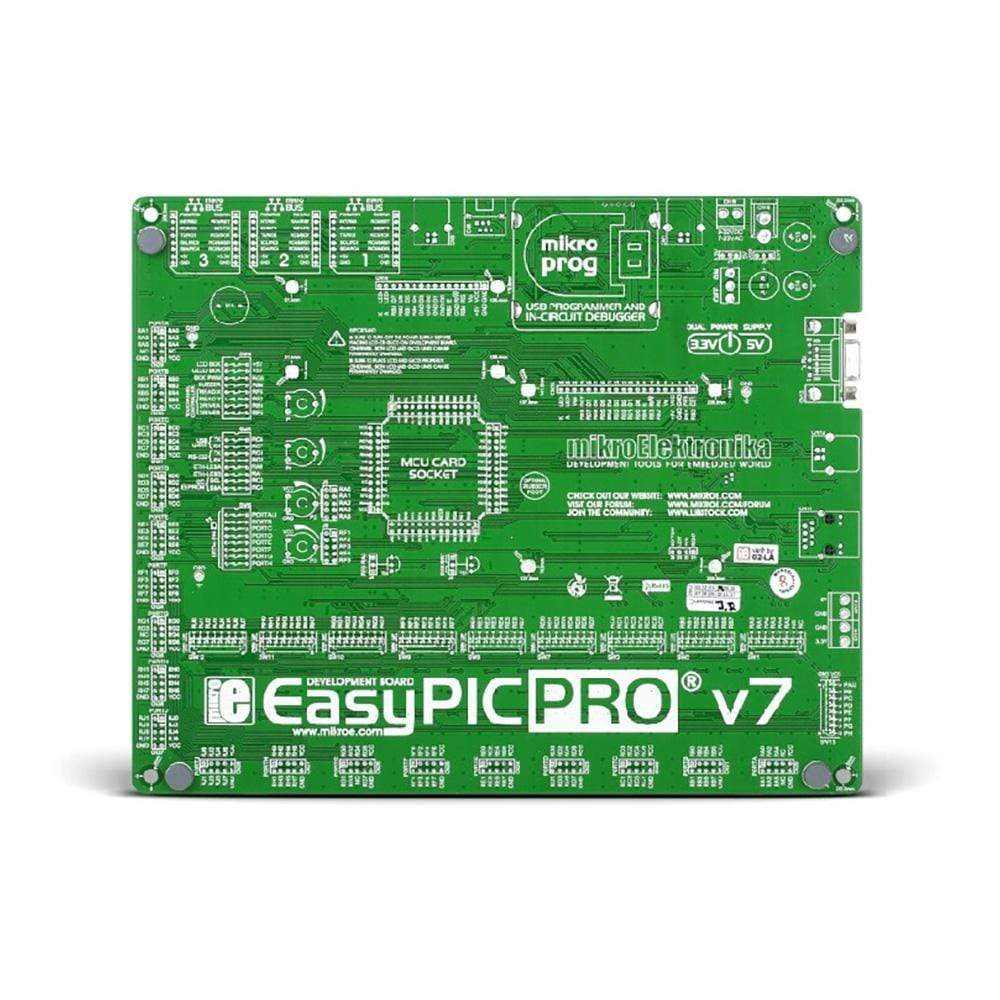

The EasyPIC PRO v7 is a full-featured development board for high pin-count 8-bit Microchip PIC microcontrollers. It contains many on-board modules necessary for the development variety of applications, including graphics, Ethernet, USB, data logging and others.
The EasyPIC PRO v7 is designed for use with surface-mount package versions of the PIC MCU, mounted onto an MCU card. If you wish to use dual-In-line package versions of the PIC MCU then you need to purchase the EasyPIC v7 Development Board instead.
The Best Place for Big PIC Development
Amazing Connectivity
Four connectors for each port
EasyPIC PRO v7 is all about connectivity. Having two different connectors for each port, you can connect accessory boards, sensors and your custom electronics easier than ever before.
MikroProg™ On-Board
Everything is already here
The Powerful onboard mikroProg programmer and In-Circuit debugger can program and debug over 155 microcontrollers. You will need it, whether you are a professional or a beginner.
Dual power supply
Supports 3.3V and 5V devices
EasyPIC PRO v7 is among the few development boards which support both 3.3V and 5V microcontrollers. This feature greatly increases the number of supported MCUs.It's like having two boards instead of one!
MikroBUS™ Support
For easier connections
Just plug in your mikroBUS board, and it's ready to work. We picked up a set of the most useful pins you need for development and made a pinout standard you will enjoy using.
What's Onboard?
MCU Card
Featuring nanoWatt XLP Technology, PIC18F87K22 is a great 8-bit microcontroller with lots of peripherals. It has 128KB of program memory, 3862 bytes of RAM and up to 16 MIPS operation.
What is The EasyPIC PRO™ V7 Development Board
EasyPIC PRO™ v7 is a full-featured development board for high pin-count 8-bit PIC® microcontrollers. It contains many onboard modules necessary for the development variety of applications, including graphics, Ethernet, USB, Temperature measurement and others. On-board mikroProg™ programmer and debugger support over 155 PIC® microcontrollers. The development board is delivered with MCU socket containing the PIC18F87K22 microcontroller.
Built-In Modules
Ethernet Onboard
Ethernet connector (RJ-45) allows you to develop ethernet applications.
UART
Write UART applications for laptops too. Besides RS-232, we also added USB-UART.
Output
We added additional screw terminals with output 5V and 3.3V power supply.
GND
We added three additional GND pins for easier access to your oscilloscope probes.
Display Socket
Special plastic GLCD and LCD holders make sure that your displays securely fit in place.
Power
The dual switching power supply allows the board to support both 3.3V and 5V devices.
MikroBUS™ Sockets
With three mikroBUS™ sockets, you can add dozens of new functionality to your board with minimum hardware adjustments. The collection of mikroBUS™ compatible Click Boards is growing rapidly, and we have designed them with great care, so you don't have to make any complicated settings. Just plug your board in, and you are good to go.
MCU CARD
Standard 80-pin MCU card with PIC18F87K22 is included in the package with the board. It's also sold separately if you'd like a spare one to integrate into your own hardware or for any other reason.
