GPS & GLONASS External Passive Antenna
GPS & GLONASS External Passive Antenna
Regular price
383.00TL
exc tax
Regular price
637.00TL
Sale price
Unit price
per
383.00TL
exc tax
Shipping calculated at checkout.
If no stock shown above, Order NOW to ship within 10 working days
Couldn't load pickup availability
Key Features
- GPS: 1575.42MHz ± 1.023MHz
- GLONASS: 1602MHz ± 4MHz
- 50Ω Impedance
- 3m Cable with SMA Male Connector

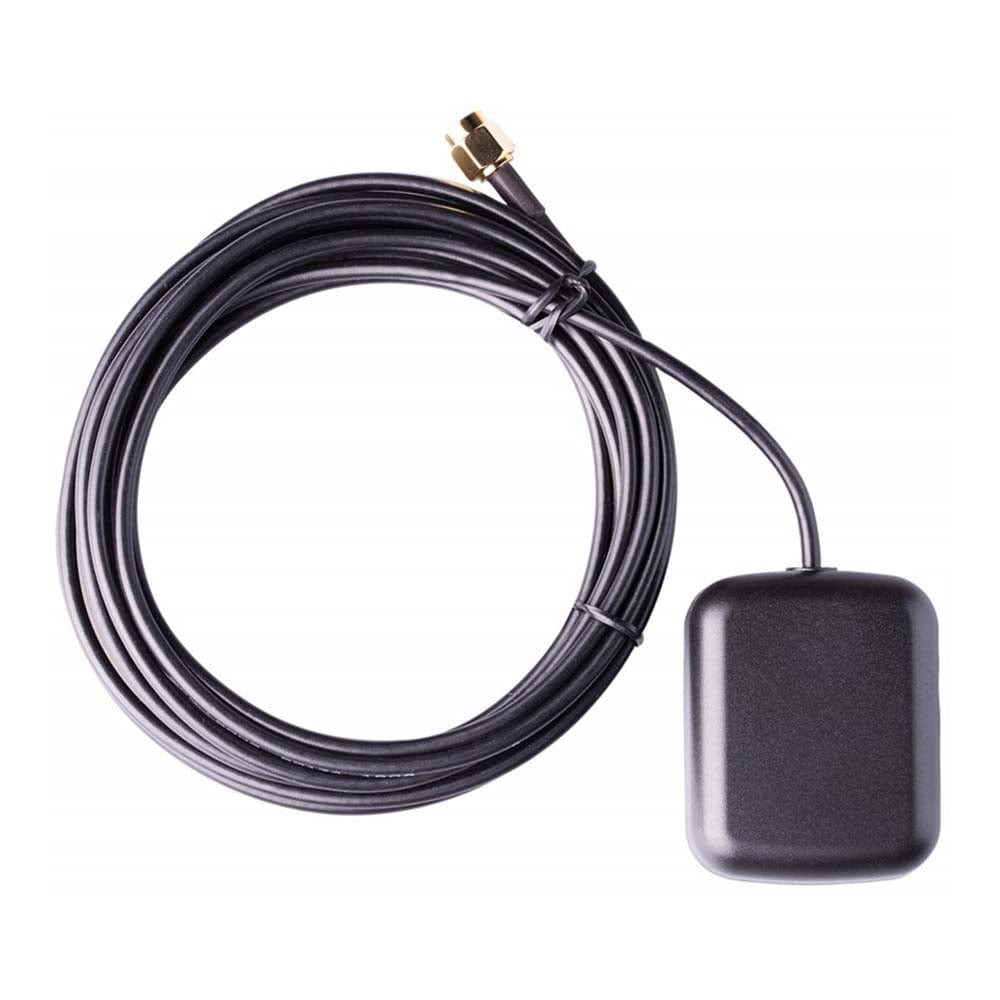

The GPS&GLONASS External Passive Antenna is a 100% waterproof external antenna, which represents an excellent choice for all GPS/GNSS Click boards™ from our offer. It has wide bandwidth that supports GSM/GPRS modules. The antenna has 3m cable with SMA male connector on the end, which allows you easy positioning in space. If you are looking for a perfect external antenna for your locator device, this is the right product for you.
View full details
Specifications
- Frequency range:
- GPS: 1575.42MHz ± 1.023MHz
- GLONASS: 1602MHz ± 4MHz
- Impedance: 50Ω
- V.S.W Ratio: 1.5:1
- Gain: 2.5dBic
- Bandwidth: ≥10MHz
- Polarization: RHCP
- Cable Length: 3m
- Connector Type: SMA male
- Working Temperature: -40⁰C to +85⁰C
GPS & GLONASS External Passive Antenna
Frequently Asked Questions
Ask a Question-
What is the dimensions of this antenna?
The antenna is 49mm x 39mm x 12mm
