Mikroelektronika d.o.o.

SKU: MIKROE-1361

IrThermo Click Board 3.3V

IrThermo Click Board 3.3V

Regular price
2,564.00TL exc tax
Regular price Sale price
2,564.00TL exc tax
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

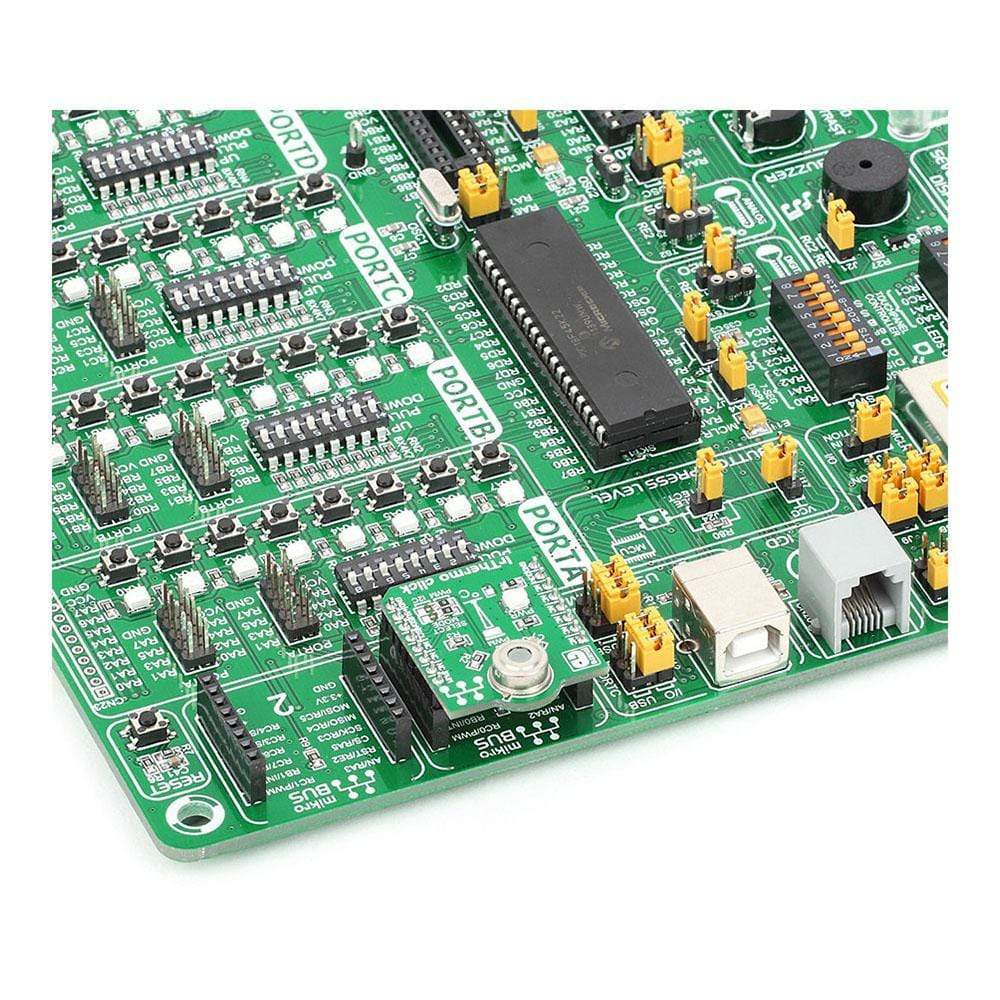

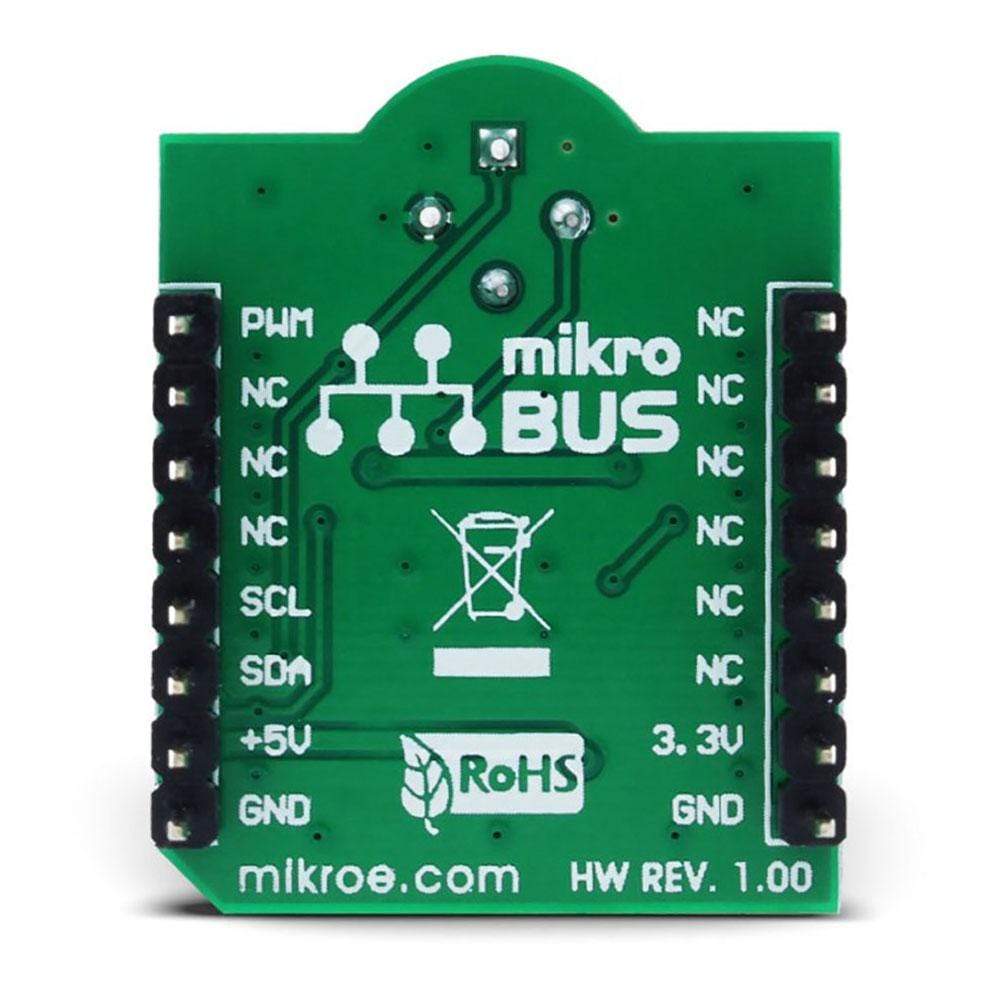

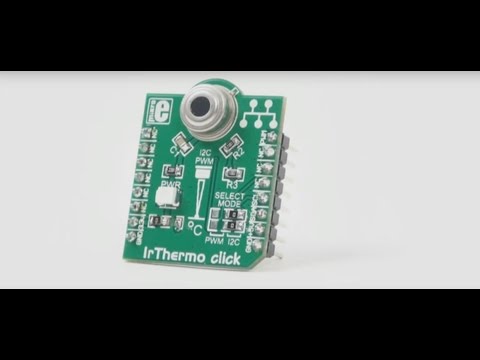

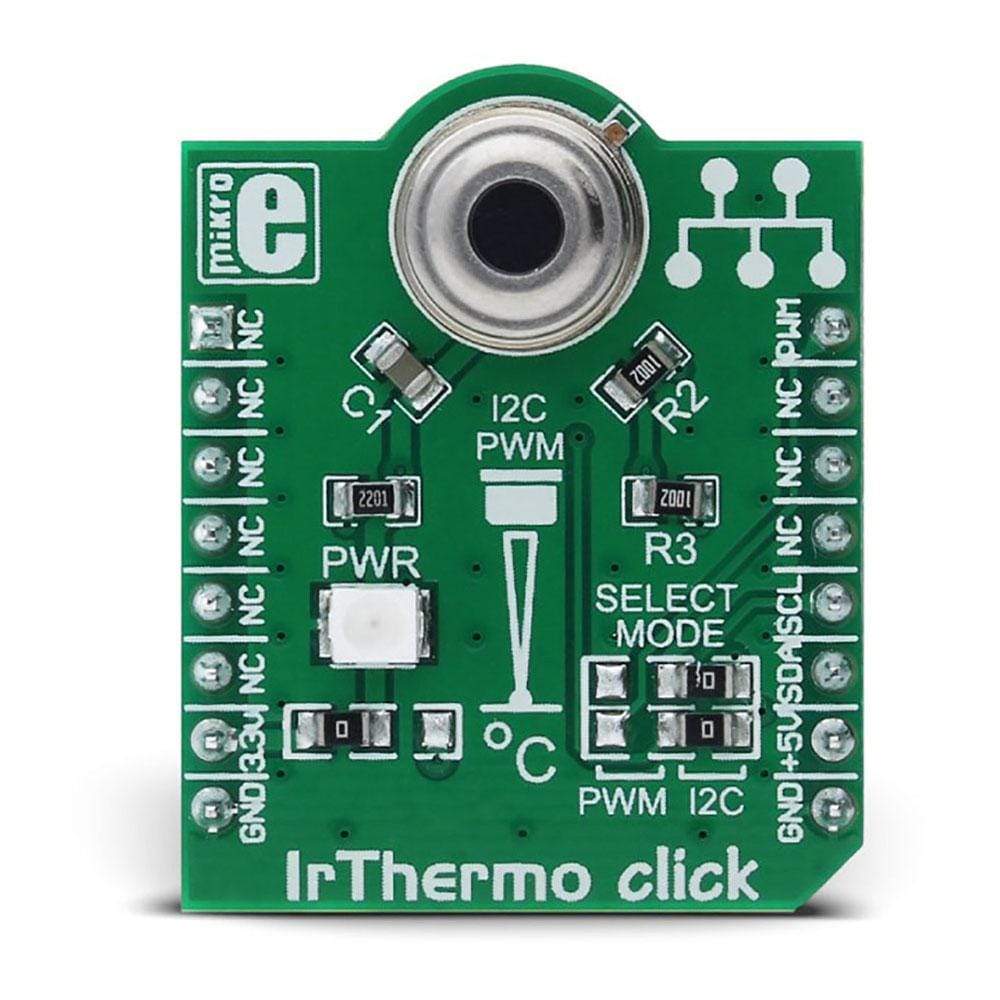

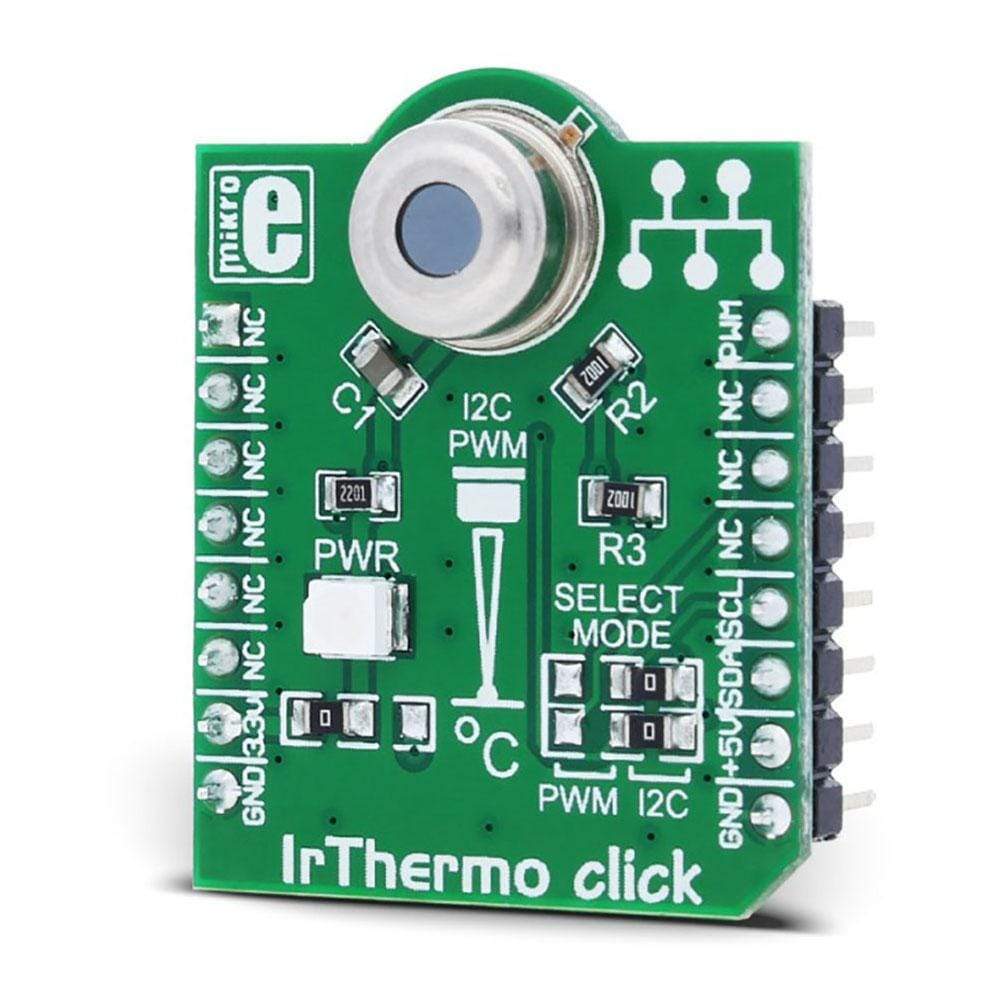

Introduce Infrared (Ir) Thermometer to the user design with the IrThermo Click Board™. This add-on board offers a compact and easy solution for non-contact temperature measurements. This 3.3V version of the IrThermo Click Board™ features a Melexis MLX90614ESF-BAA single-zone infrared thermometer module that is configured to determine temperature in the range of -70 to +380 °C with output resolution of 0.014 °C. The MLX9061 module also includes a low noise amplifier, 17-bit ADC, and powerful DSP unit for high accuracy and resolution of the thermometer. For communication with the target board microcontroller, the IrThermo Click Board™ uses the MikroBUS I2C lines (SCL, SDA) and PWM line. The communication interface can be selected by placing SMD jumpers in appropriate positions. It supports a 3.3V power supply only and features a LED diode that denotes the presence of power supply. A 5V version IrThermo Click Board™ is also available.

The IrThermo Click Board™ is an ideal choice for automotive, industrial temperature control, body temperature measurement, movement detection, air conditioning control and many more.
