Dediprog Technology Co Ltd
Dediprog ISP-UADP-127 Universal Adapter
Dediprog ISP-UADP-127 Universal Adapter
Designed For Use With The Dediprog SF100 Programmer
SKU: ISP-UADP-127
Regular price
880.00TL
exc tax
Regular price
Sale price
Unit price
per
880.00TL
exc tax
Shipping calculated at checkout.
If no stock shown above, Order NOW to ship within 10 working days
Couldn't load pickup availability

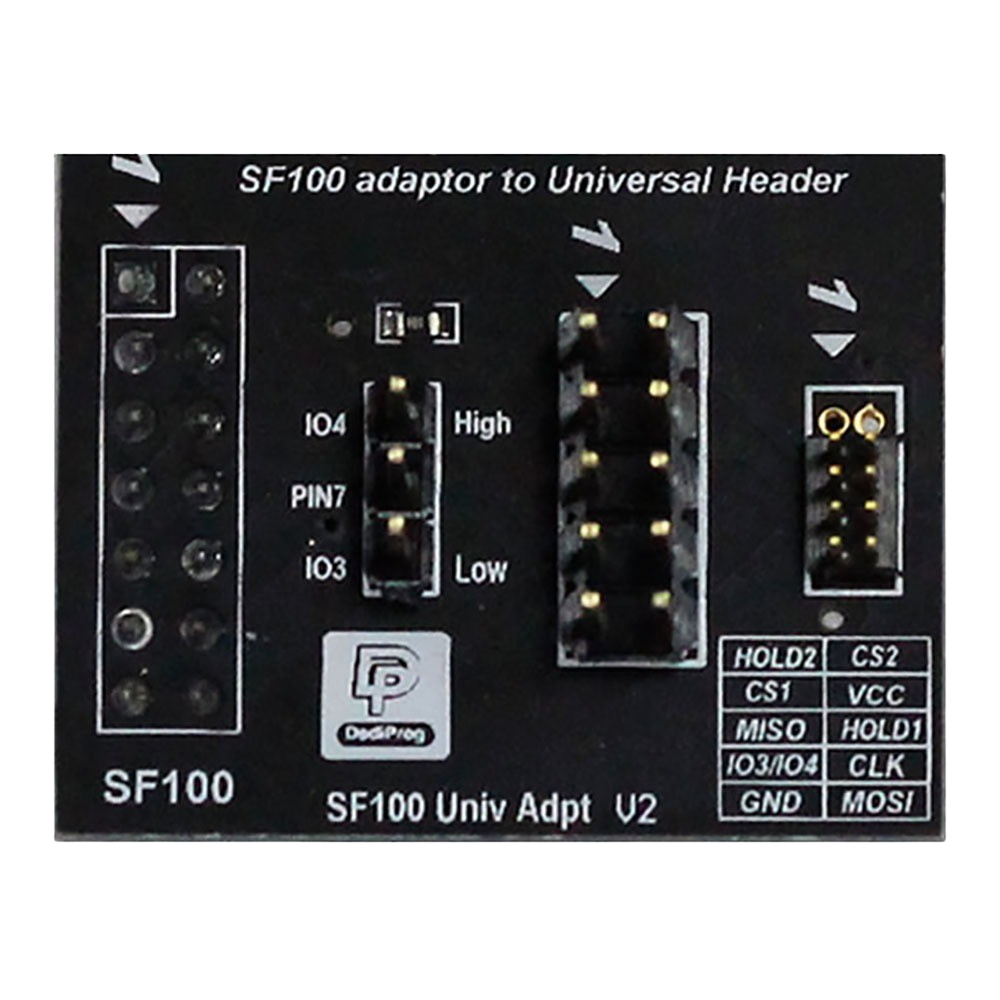

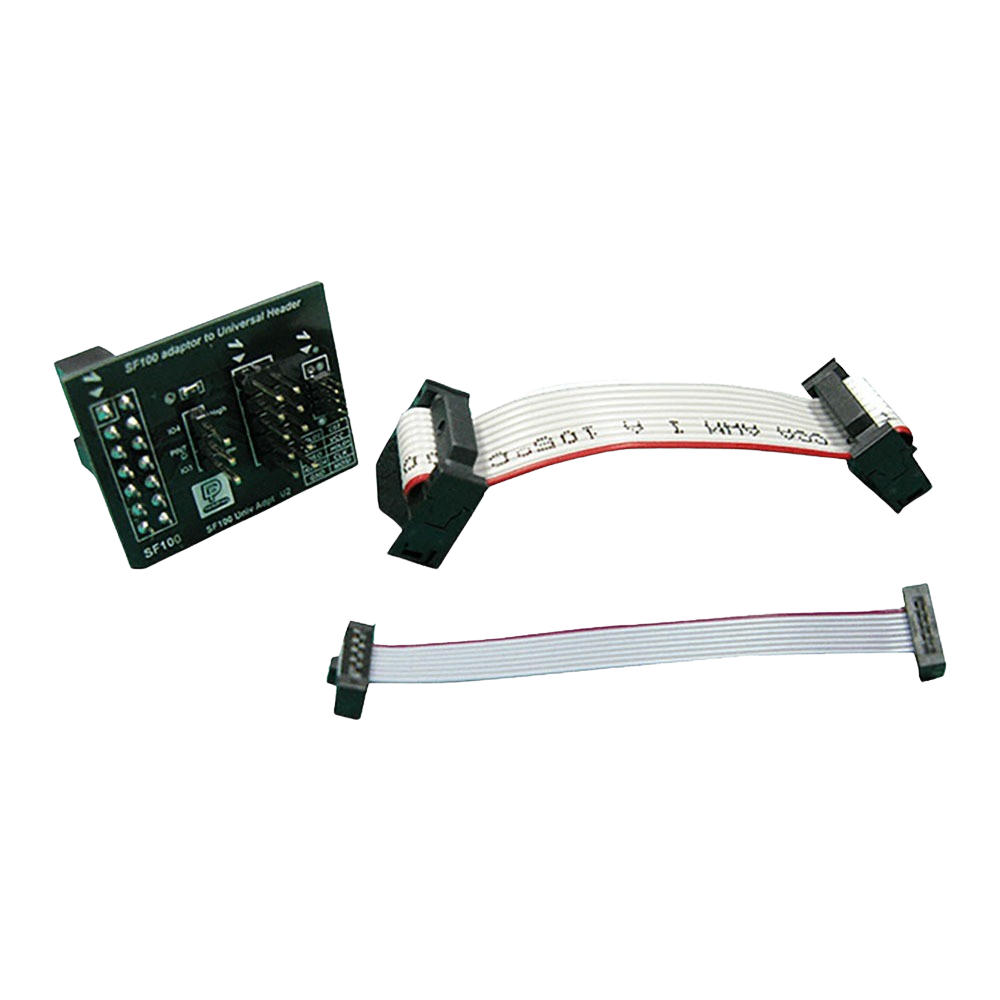

The ISP-UADP-127 SF100 Programmer Universal Adapter connects s SF100 programmer to a 1.27mm or 2.54mm header.
ISP Cable Connector Pin Out (2x5)
| 1 | HOLD2 | CS2 | 2 |
| 3 | CS1 | VCC | 4 |
| 5 | MISO | HOLD1 | 6 |
| 7 | IO3/IO4 | CLK | 8 |
| 9 | GND | MOSI | 10 |
Dediprog ISP-UADP-127 Universal Adapter
