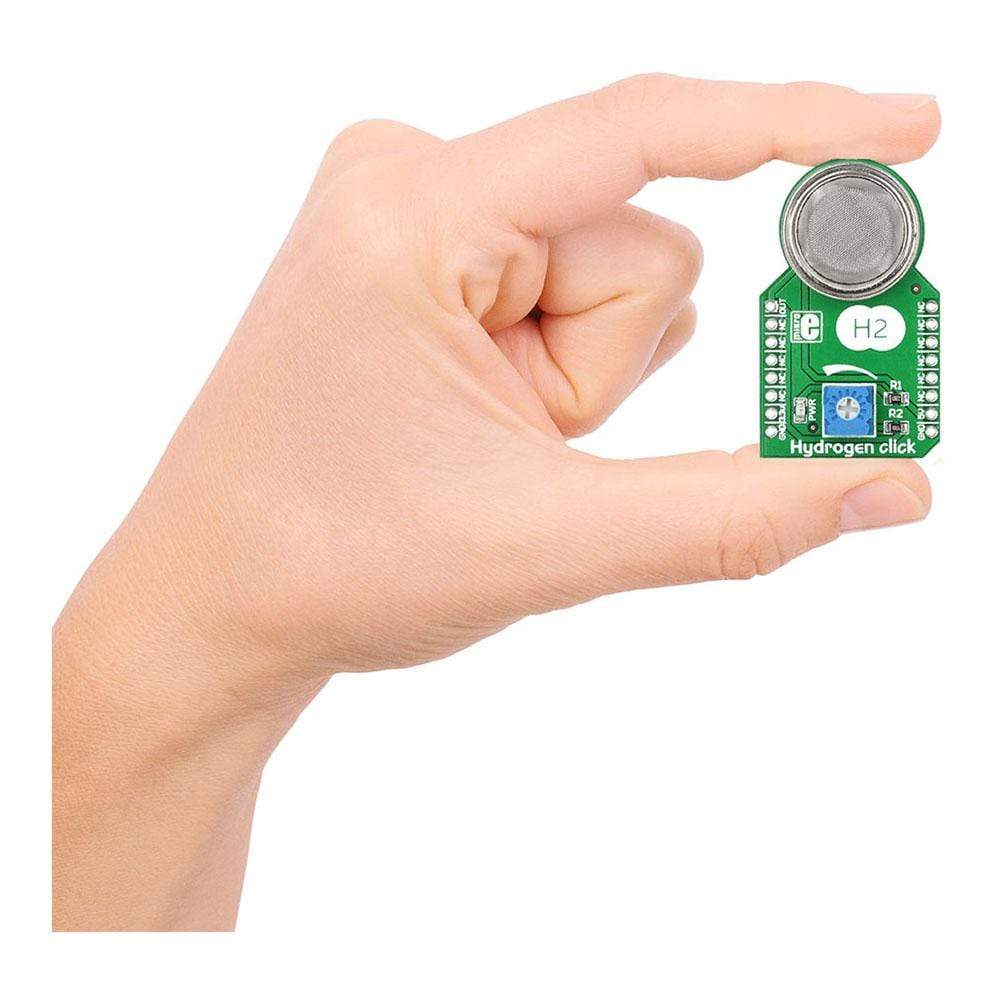

Hydrogen Click Board™
Hydrogen Click Board™
Couldn't load pickup availability
Overview
The Hydrogen Click Board™ carries an MQ-8 sensor for hydrogen (H2). The gas sensing layer on the sensor unit is made of tin dioxide (SnO2), which has lower conductivity in clean air.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-1629
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.035 kg
|
| Other | |
HS Code Customs Tariff code
|
|
EAN |
8606015075532
|
MQ-8 Sensor

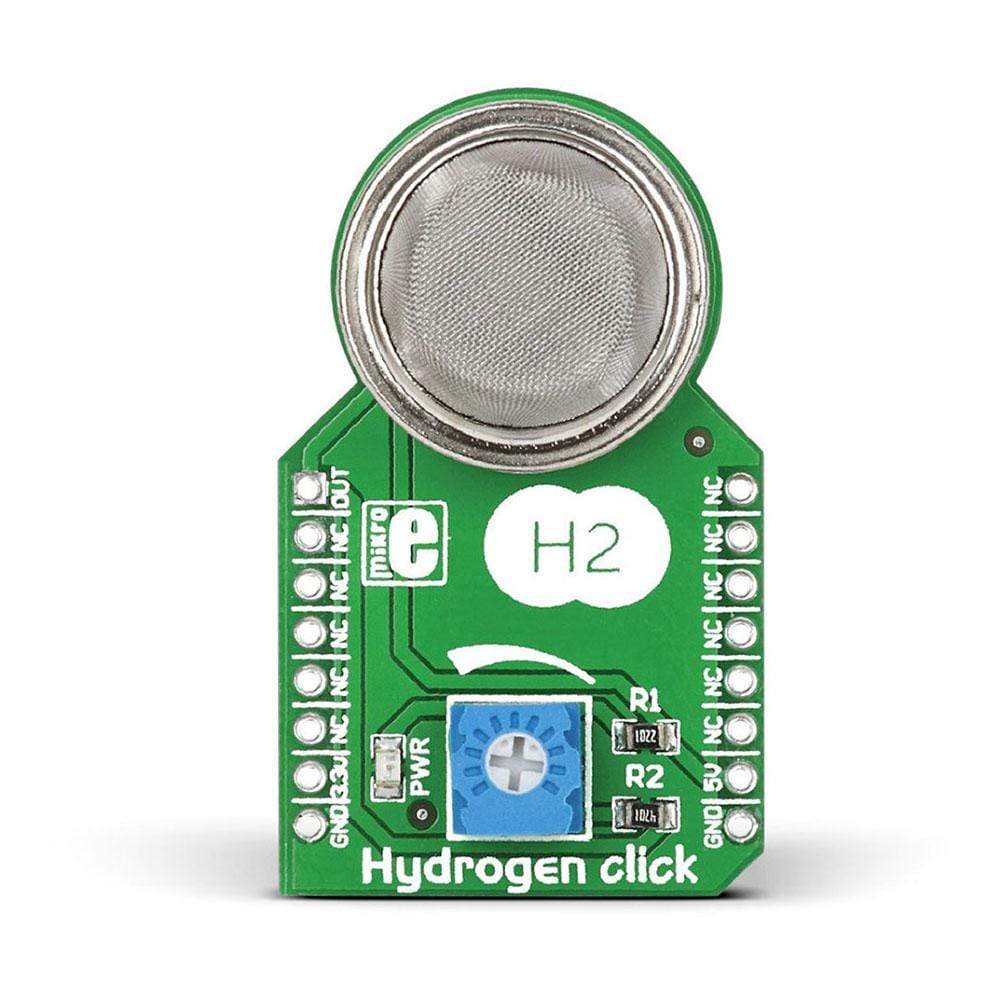

The Hydrogen Click Board™ is based on the MQ-8 sensor features a gas sensing layer constructed of tin dioxide which is an inorganic compound with the formula SnO2. Tin dioxide is known to have lower conductivity in clean air. As the percentage of hydrogen increases in the environment, the conductivity rises too.
Mode of Communication

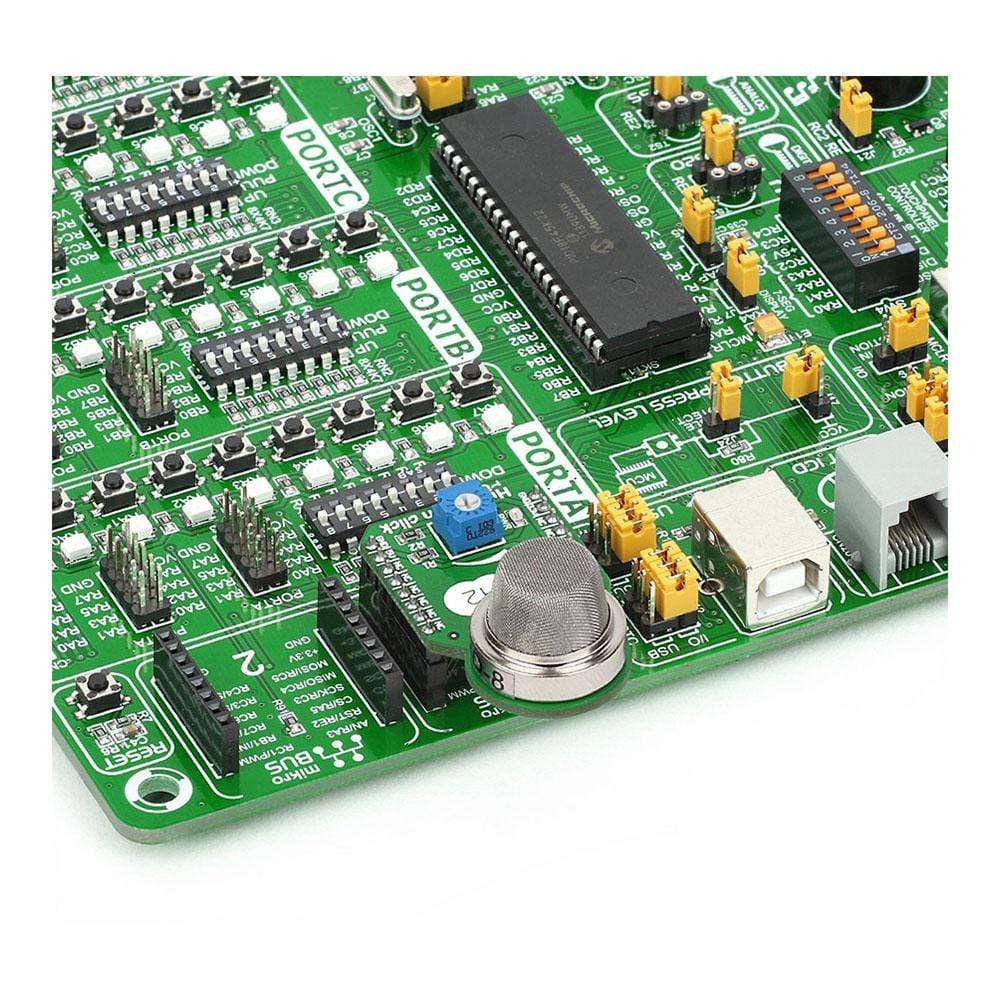

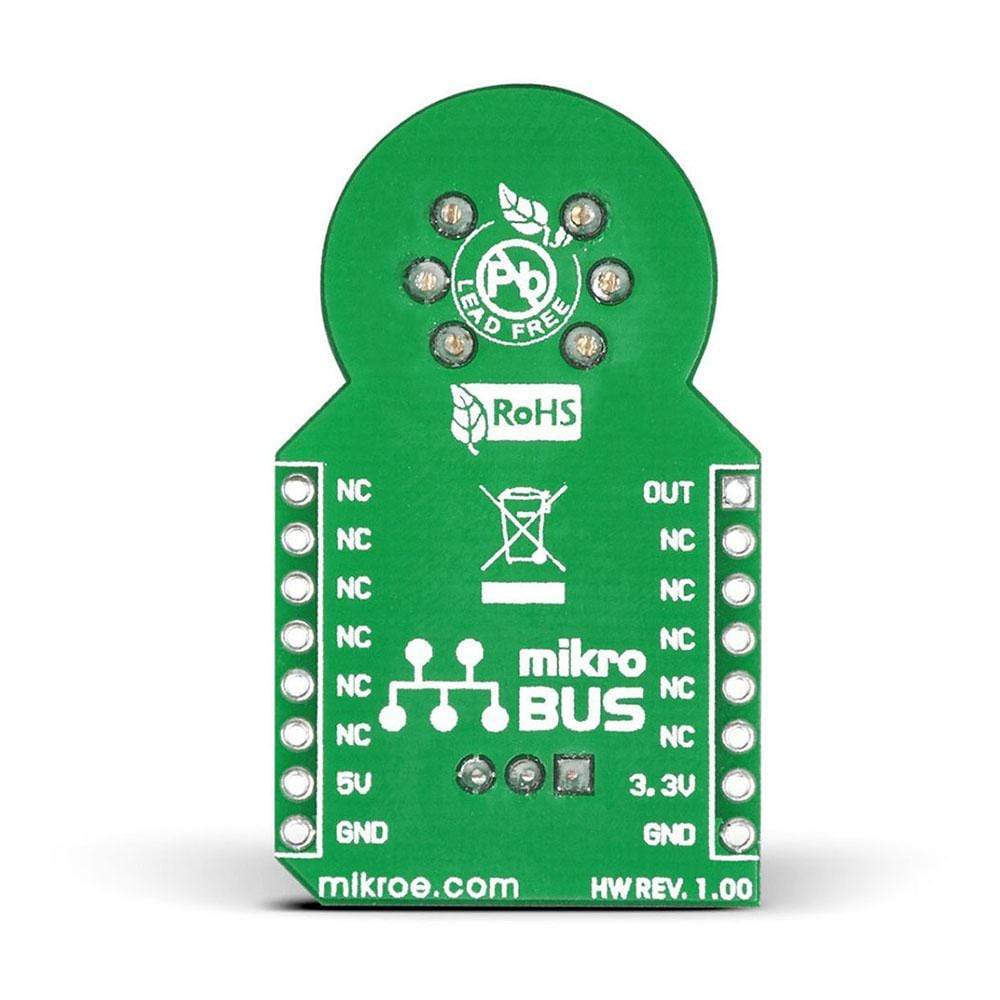

The Hydrogen Click Board™ uses AN (OUT) mikroBUS line for communicating with the target board. This accessory board is designed to use a 5V power supply only.
Applications
The Hydrogen Click Board™ finds great application in designing gas leakage equipment. Being suitable for detecting hydrogen concentration, Hydrogen Click Board™ can be used in the environments like hydrochloric acid production, atomic hydrogen welding, those using hydrogen as a rotor coolant in electrical generators, and also metallic ore reduction.
