Hantek 2D42 2-ch, 40MHz Scope/DMM/Waveform Generator

with Multimeter and Waveform Generator

SKU: Hantek-2D42

Product variants

7,078.00TL exc tax

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, Order NOW to ship within 10 working days

Order Quantity

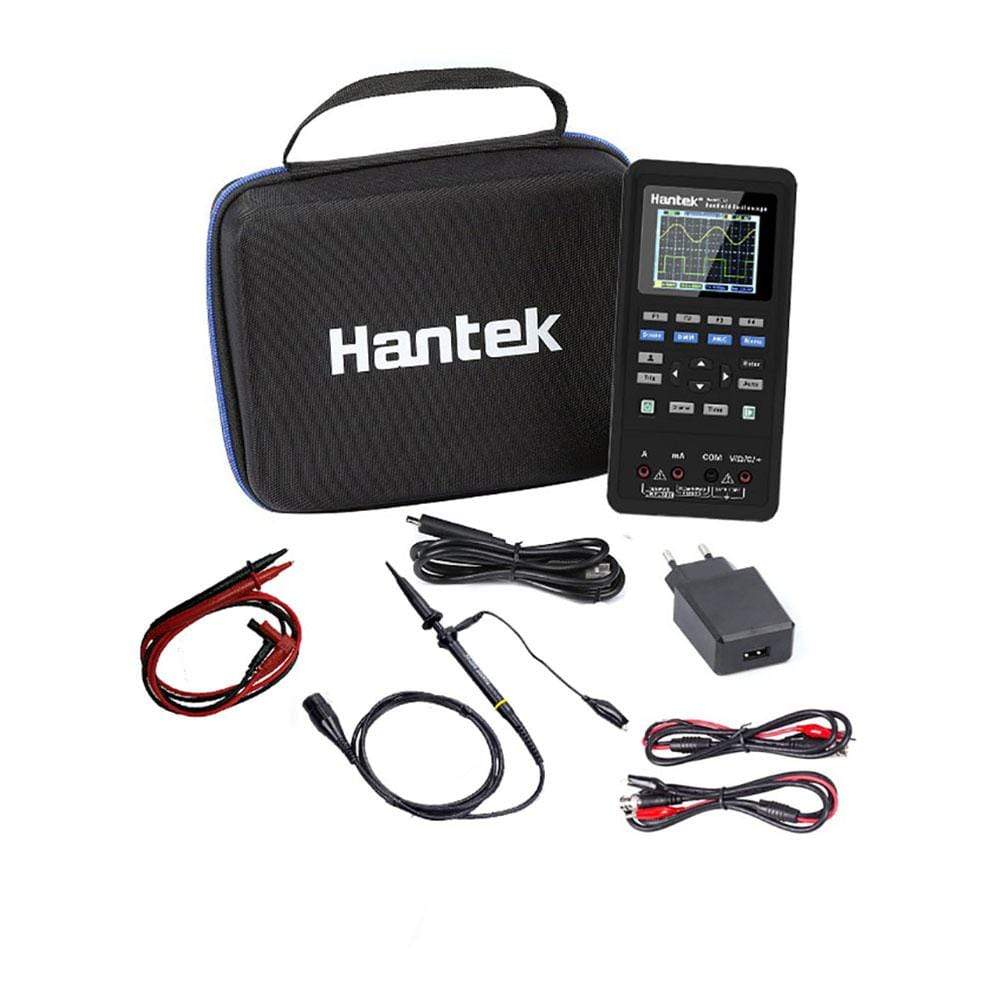

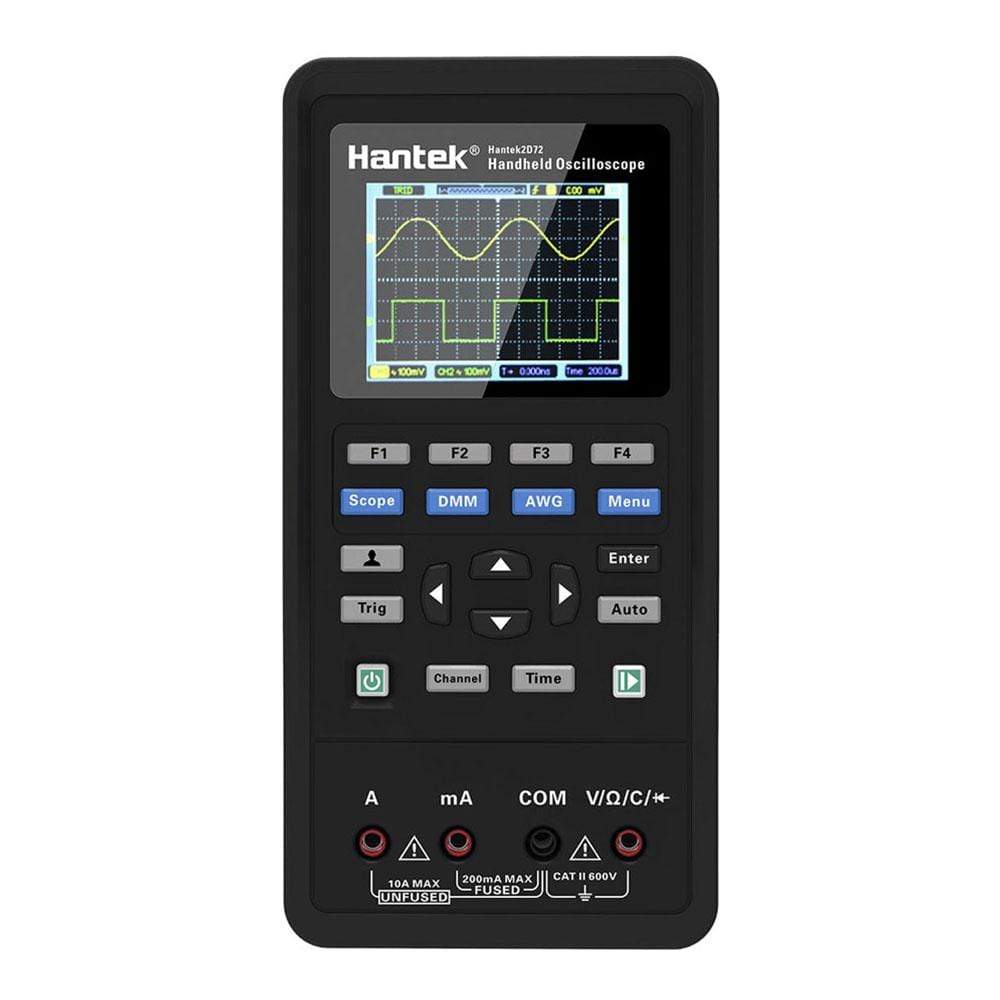

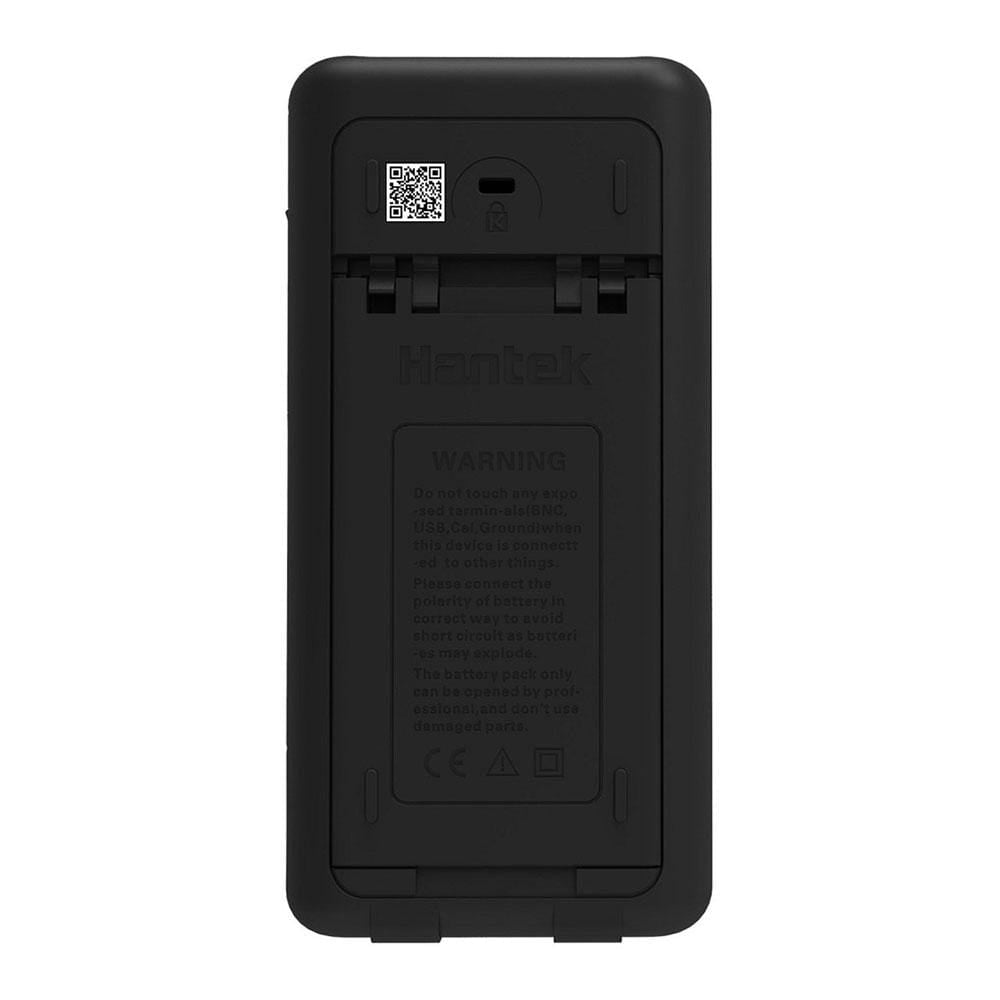

The Hantek 2D42 is a two-channel, 40MHz bandwidth, portable oscilloscope with a built-in four-digit digital multimeter and Waveform Generator. It features a 2.8-inch colour TFT display for maximum readability and is powered from an internal rechargeable battery or main power adapter.

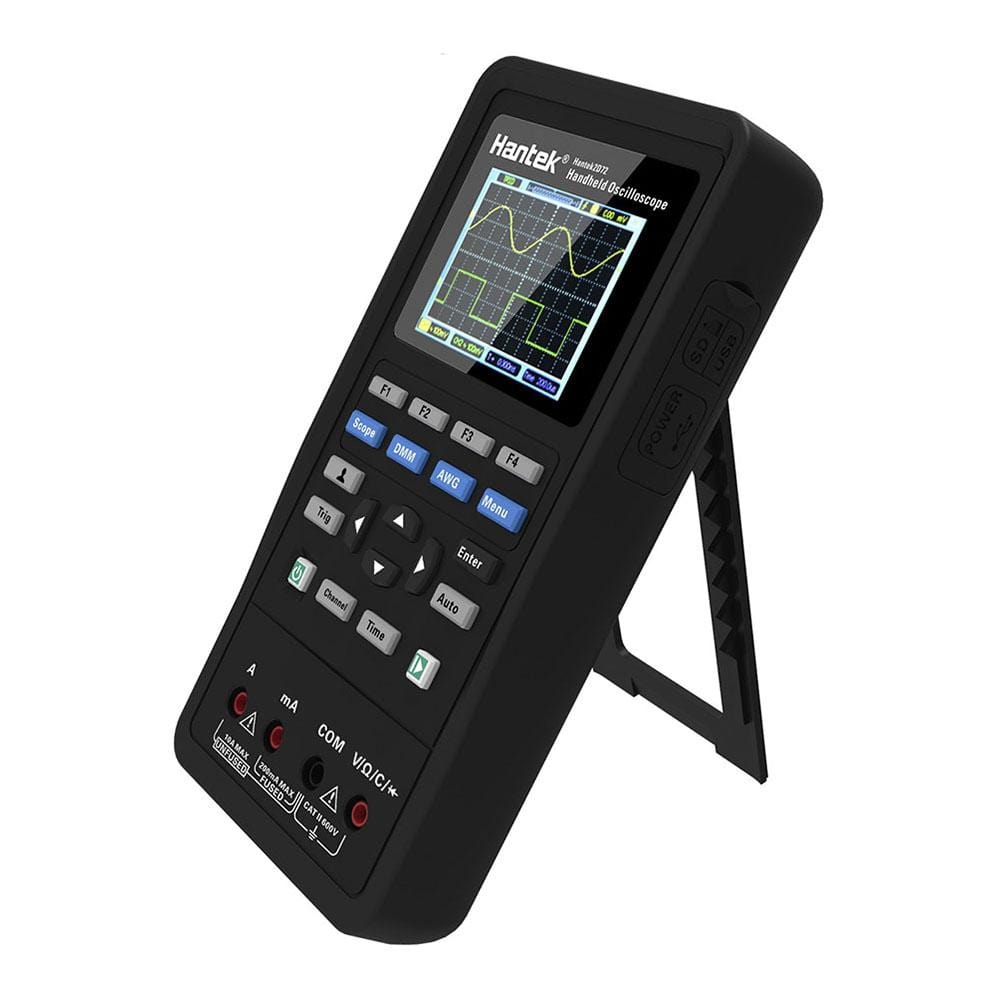

It is compact and portable making it ideal for use on a small table or propped against electronics in the field. The case has been designed to be impact resistant with a fine touch feeling and excellent heat resistance.

A 2-hour battery charge will keep the scope running continuously for a whole working day or 2 months on standby.

The instrument can be connected to a host supplied and is supplied with software for Win 7/8/9/10, 32 and 64-bit.

View full details

Quirky, but I love it

DMM great, AWG great, Scope is limited, but good enough for 90% of my uses
Great value for money and battery operation is excellent.
Perfect as a second scope. Handy multifunction tool.
What is not to like? - especially at this price

Thanks for the review Robin.
The 2D42 offers a lot for the price. It is not intended to be the main oscilloscope for the lab but it is handy when measurements need to be taken away from the lab.
I am pleased you like it.
John

Model	Hantek-2D72	Hantek-2D42	Hantek-2C72	Hantek-2C42
Oscilloscope
Bandwidth	70MHz	40MHz	70MHz	40MHz
Channel	2CH+DMM+AWG	2CH+DMM+AWG	2CH+DMM	2CH+DMM
					Horizontal
Sample Rate Range	250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation	(sin x)/x
Record Length	Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range	5ns/div~500s/div 1, 2, 5 sequence
Vertical
A/D Converter	8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range	10mV/div~10V/divat input BNC
Bandwidth Limit, typical	20MHz
					Low Frequency Response (-3db)	≤10Hz at BNC
Rise Time at BNC, typical	≤5ns
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes	Normal
Trigger
Type	Edge
Mode	Auto, Normal, single
Level	±4 divisions from center of screen
Trigger Level Accuracy	0.2div × volts/div within ±4 divisions from center of screen
Slope	Rising, Falling, Rising & Falling
Source	CH1/CH2
Input
Coupling	DC, AC or GND
Input Impedance,	25pF±3 pF, 1MΩ±2%
DC coupled
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factors	1X, 10X, 100X, 1000X
Maximum Input Voltage	150V_RMS
Measurement
Cursor	Voltage difference between cursors: △V
	Time difference between cursors: △T
Automatic Measurements	Frequency, Amplitude
Arbitrary Waveform Generator
Waveform Frequency	Sine: 1Hz~25MHz		-	-
	Square: 1Hz~10MHz		-	-
	Ramp: 1Hz~1MHz		-	-
	EXP: 1Hz~5MHz		-	-
Sampling	250MSa/s		-	-
Amplitude	2.5Vpp(50Ω)		-	-
	5Vpp(High impedance)		-	-
Frequency Resolution	0.10%		-	-
Channel	1CH waveform output		-	-
Waveform Depth	512Sa		-	-
Vertical Resolution	12 bit		-	-
Output Impedance	50 Ω		-	-
Multimeter
Maximum Resolution	4000 Counts
DMM Testing Modes	Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input Voltage	AC:600V, DC: 600V
Maximum Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
Measurement Term	Range	Accuracy	Resolution
DC Voltage	400.00mV	± (0.8% + 5)	100uV
	4.000V		1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	± (1% + 2)	1V
	Overload protection: 400mV: 250V, other: 600Vrms.
AC Voltage	4.000V	± (1.2% + 5)	1mV
	40.00V		10mV
	400.0V		100mV
	600.0V	±(1.5% + 5)	1V
	Frequency: 40Hz~400Hz;
	Frequency of 400V and 600V: 40Hz~100Hz
DC Current	40.00mA	± (1% + 2)	10uA
	200.0mA	± (1.5% + 2)	100uA
	4.000A	± (1.8% + 2)	1mA
	10.00A	± (3% + 2)	10mA
	Overload protection:
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
AC Current	40.00mA	± (1.3% + 2)	10uA
	400.0mA	± (1.8% + 2)	100uA
	4.000A	± (2% + 3)	1mA
	10.00A	± (3% + 5)	10mA
	Frequency: 40Hz~400Hz;
	self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
Resistance	400.0Ω	±(1% + 3)	0.1Ω
	4.000KΩ	±(1.2% + 5)	1Ω
	60.00KΩ		10Ω
	400.0KΩ		100Ω
	4.000MΩ		1KΩ
	40.00MΩ	± (1.5%±3)	10KΩ
	Overload protection: 220Vrms
Capacitance	40.00nF	±(3% + 5)	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	100.0uF		100nF
	Overload protection: 220Vrms
Diode	0V~1.0V
On-Off	<50Ω
General Specification
Display
Display Type	2.8 inch64K color TFT
Display Resolution	320 horizontal by 240 vertical pixels
Display Contrast	Adjustable
Power Supply
Supply Voltage	100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A
Power Consumption	<2.5W
Fuse	T, 3A
Battery	2600mA*2
Environmental
Operating Temperature	0~50 °C (32~122 °F)
Storage Temperature	-40~+71 °C (-40~159.8 °F)
Humidity	≤+104℉(≤+40°C): ≤90% relative humidity
	106℉~122℉ (+41°C ~50°C): ≤60% relative humidity
Cooling Method	Convection
Altitude	Operating and	3,000m (10,000 feet)
	Nonoperating
Mechanical Shock	Random Vibration	0.31g_RMS from 50Hz to 500Hz, 10 minutes on each axis
	Nonoperating	2.46g_RMS from 5Hz to 500Hz, 10 minutes on each axis
	Operating	50g, 11ms, half sine
Mechanical
Dimension	199 x 98x 40mm (L x W x H)
Weight	624g
Standard Accessories	Probe1,Clip Probe2, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe2, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe1, Type Charging Cable1, Power Adapter1, Multimeter Probe*1	Probe1,Clip Probe1, Type Charging Cable1, Power Adapter1, Multimeter Probe*1
