Aaronia AG

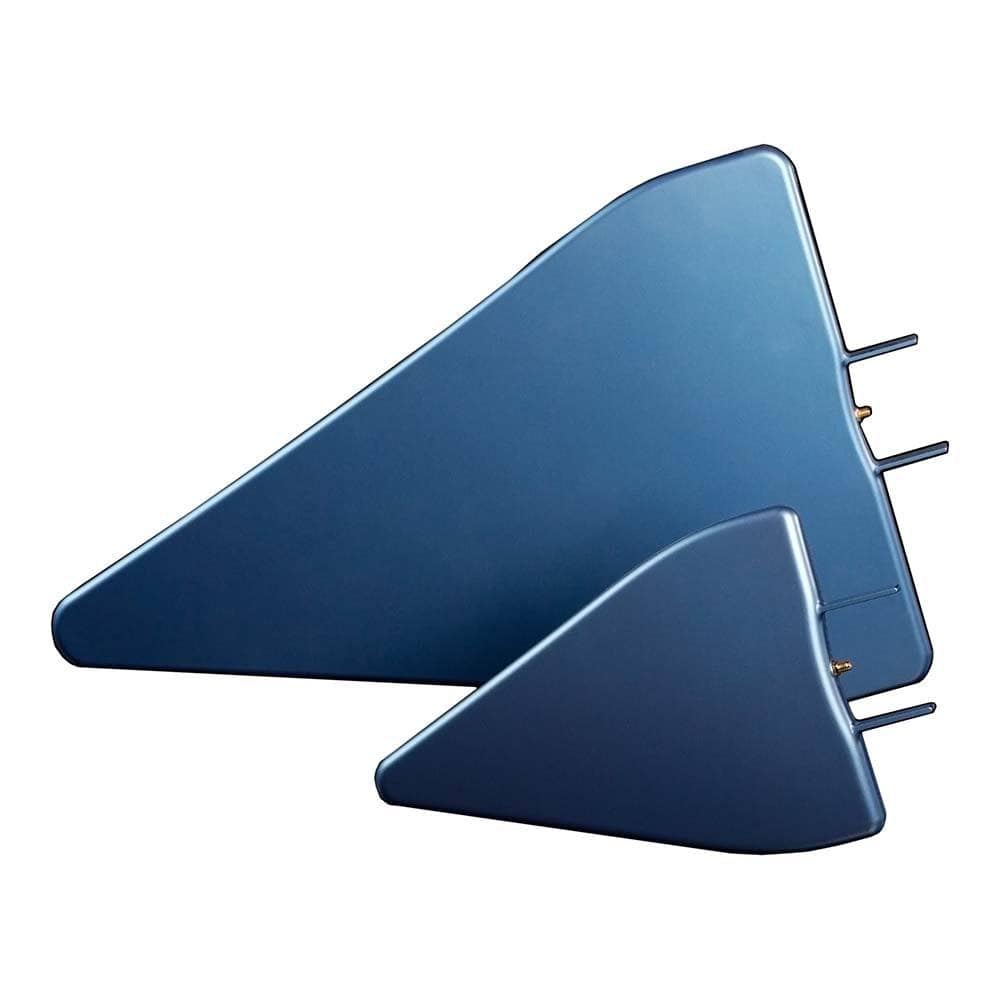

Aaronia HyperLOG 6000 Series 680MHz-35GHz Log Periodic Antenna

Aaronia HyperLOG 6000 Series 680MHz-35GHz Log Periodic Antenna

Professional log periodic antenna for wideband EMC measurements and spectrum analysis from 680MHz to 35GHz.

SKU: 201/004

Variant
Regular price
36,525.00TL exc tax
Regular price Sale price
36,525.00TL exc tax
Sale Sold out
Shipping calculated at checkout.
Check Availability before Ordering
View full details

Key Features

Ultra-wide frequency coverage 680MHz to 35GHz
Gold-plated TEFLON construction for stability
Comprehensive calibration data included
Directional pattern with excellent F/B ratio
Integrated 1/4" tripod mount
SMA connector with over-torque protection
Splash-proof design for field use

Overview

The HyperLOG 6000 Series delivers exceptional RF measurement capabilities in a compact, portable design. These German-engineered antennas feature gold-plated elements on a high-tech TEFLON substrate, ensuring stable performance across decades of frequency coverage. The series spans five models from the compact 6080 (680MHz-8GHz) to the ultra-wideband 60350 (680MHz-35GHz).

Each antenna undergoes rigorous factory calibration and includes a protective radome, precision SMA connector, and comprehensive accessories in an aluminium carrying case. The directional radiation pattern with excellent front-to-back ratio makes these antennas ideal for spectrum analyser applications, EMI troubleshooting, and pre-compliance testing.

Compatible with all major spectrum analysers including handheld models and benchtop units from Rohde & Schwarz, Keysight, Anritsu, and others.

Single Antenna Solution

Eliminates need for multiple antennas across different frequency bands, reducing equipment costs and setup complexity

Reference-Grade Accuracy

0.3dB measurement uncertainty enables use as calibrated reference standard for EMC test laboratories and pre-compliance testing

Rugged German Engineering

Gold-plated construction and protective radome ensure reliable performance in demanding laboratory and field environments

Ultra-Wideband Log Periodic Antenna for Spectrum Analysis

The Aaronia HyperLOG 6000 Series represents the pinnacle of log periodic antenna technology, offering exceptional performance across an ultra-wide frequency range from 680MHz to 35GHz. Built on an ultra-thin, gold-coated high-tech TEFLON substrate, these antennas deliver unmatched precision for EMC testing, spectrum analysis, and RF signal detection.

Technical Architecture

Log periodic dipole arrays (LPDA) operate on the principle of frequency-dependent resonance. Each dipole element resonates at specific frequencies, with element lengths and spacing following a logarithmic relationship. The design ratio τ (tau) determines the geometric scaling between adjacent elements, typically 0.7 for optimal bandwidth performance.

Active Region Concept: Only a small portion of the antenna structure is electrically active at any given frequency. This "active region" shifts along the antenna as frequency changes, ensuring consistent directional patterns across the entire band.

Model Variants Available

Model Frequency Range Gain (typ.) Antenna Factor Weight
HyperLOG 6080 680MHz - 8GHz 5 dBi 22-44 dB/m 250g
HyperLOG 60100 680MHz - 10GHz 5 dBi 22-46 dB/m 250g
HyperLOG 60180 680MHz - 18GHz 5 dBi 22-50 dB/m 250g

Connection and Setup

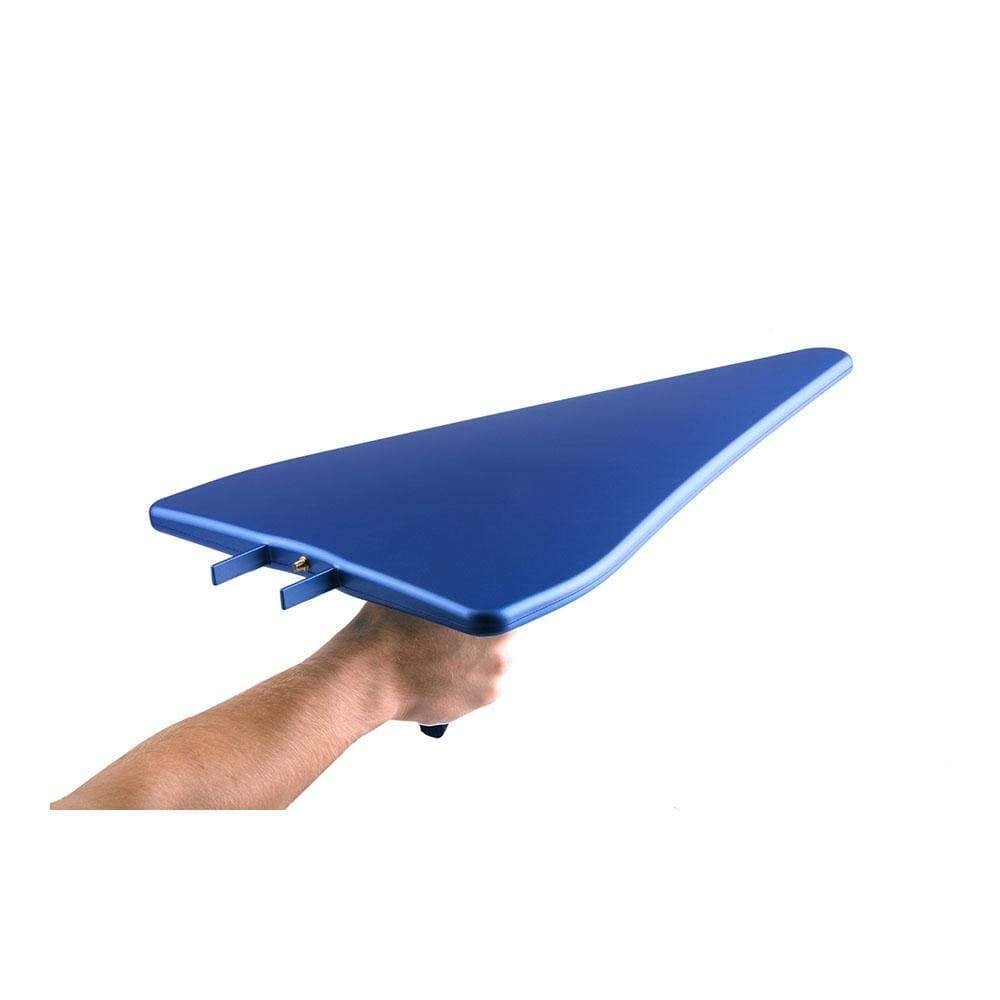

The antenna features a precision SMA female connector (18GHz rated) with over-torque protection. For applications requiring N-type connections, adapters are included. The integrated 1/4" tripod mount enables flexible positioning using the included pistol-grip handle with mini-tripod function.

Antenna connection diagram showing SMA connector pinout and cable routing

Calibration and Accuracy

Each antenna includes comprehensive calibration data with up to 1,733 calibration points at 10MHz steps (model dependent). This extensive calibration enables precise field strength measurements and ensures compliance with CISPR 16-1, MIL-STD-461, and EN 55011/55022 standards.

Professional Grade: The 0.3dB measurement accuracy across the full frequency range qualifies these antennas as reference standards for EMC test laboratories.
