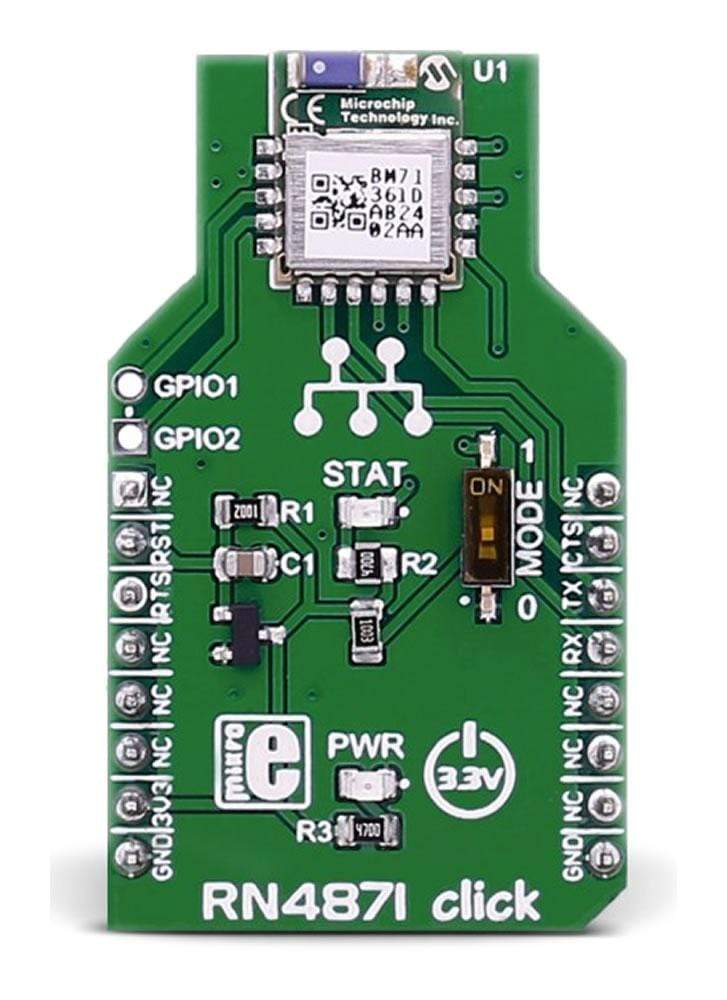

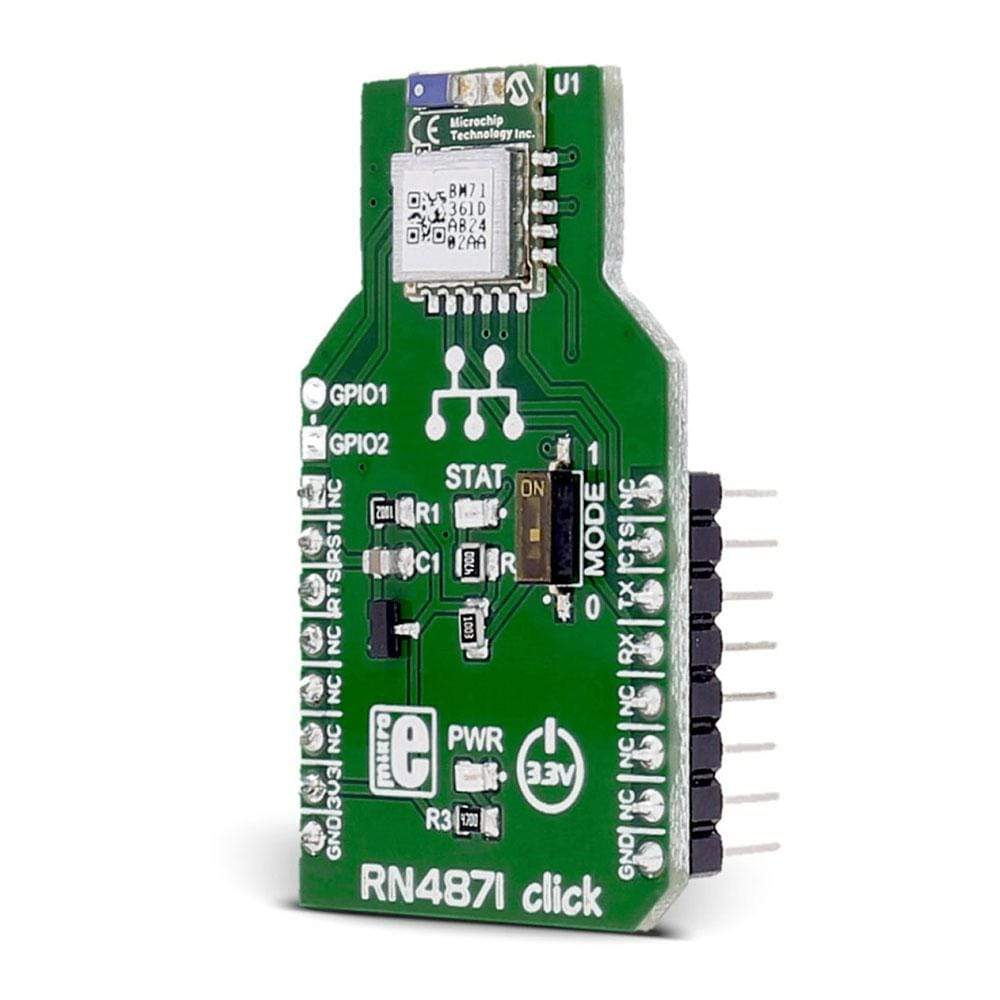

RN4871 Click Board™

RN4871 MODULE FEATURES

The RN4871 Bluetooth Low Energy module integrate Bluetooth 4.2 baseband controller, on-board Bluetooth stack, digital and analog I/O, and RF power amplifier into one solution.

The module contains an integral ceramic chip antenna.

All products in the RN series can be dynamically configured by the host microcontroller with a few simple ASCII commands.

The RN4871 Click Board™ supports both peripheral and central Generic Access Profile (GAP) roles, actively scanning for other connectable devices instead of waiting for incoming connection requests. The peripherals are usually small, low-power devices like sensors and monitors, that broadcast information to the central device. The central device can communicate with multiple peripherals.

RN4871 Click Board™ Features

SPECIFICATIONS

PINOUT DIAGRAM

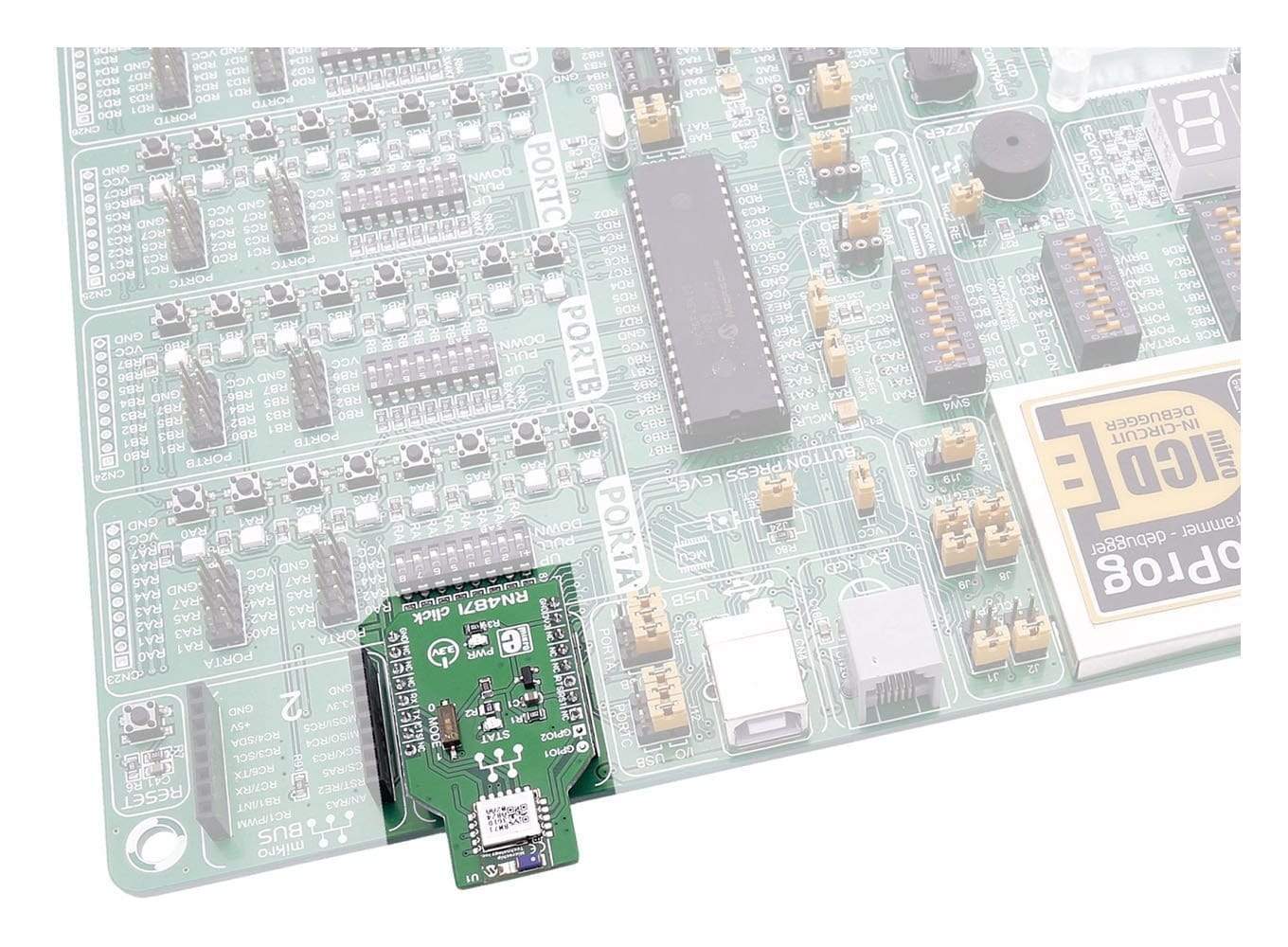

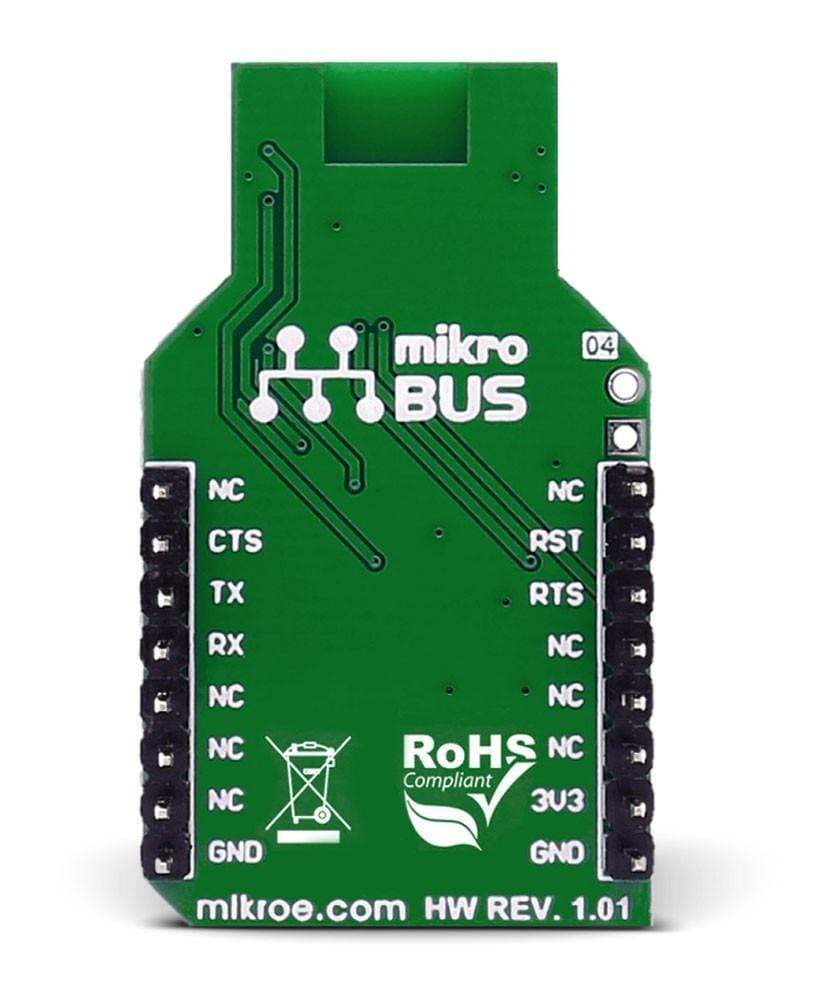

This table shows how the pinout on RN4871 Click Board™ corresponds to the pinout on the mikroBUS socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
Module Reset	RST_N	2	RST	INT	15	UART_CTS	UART Clear To Send
UART Ready To Send	UART_RTS	3	CS	TX	14	UART_TXD	UART Data output
	NC	4	SCK	RX	13	UART_RXD	UART Data input
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

MAXIMUM RATINGS
