PWM 2 Click Board
PWM 2 Click Board
Regular price
€27,95 EUR
exc tax
Regular price
Sale price
Unit price
per
€27,95 EUR
exc tax
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview

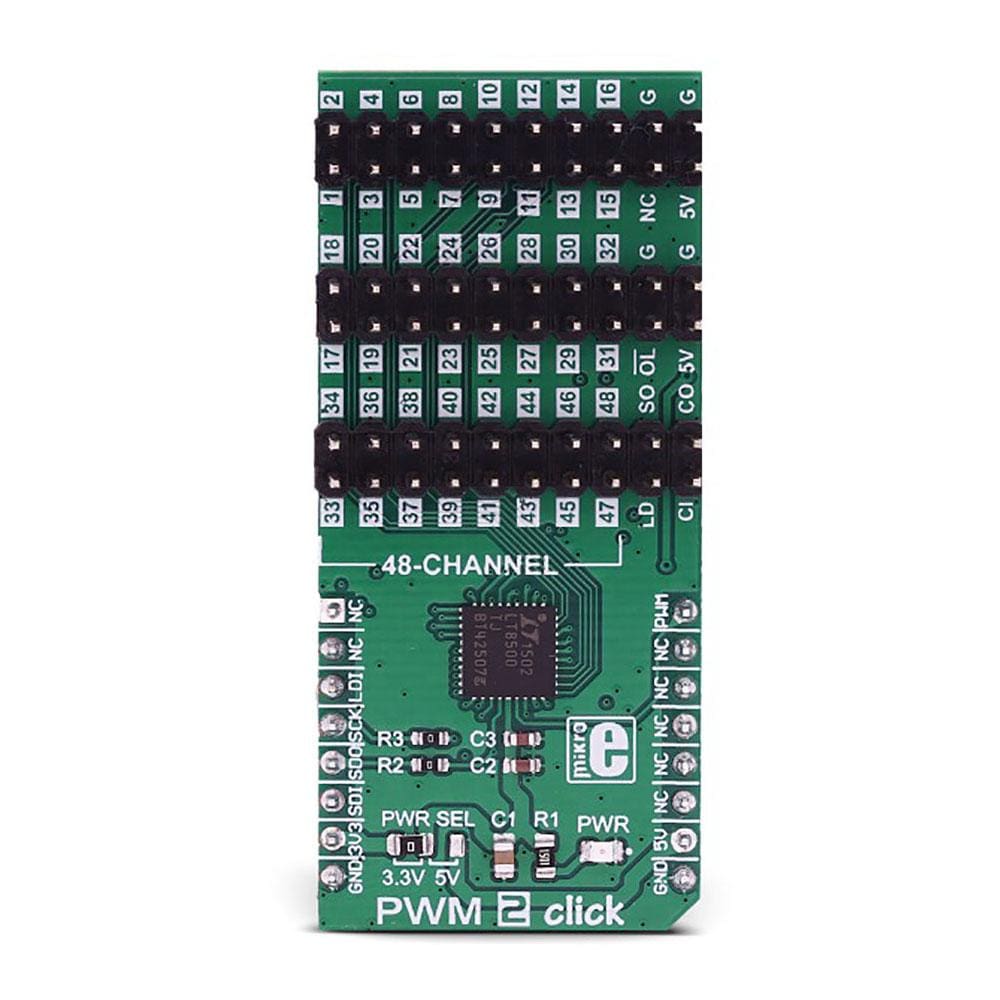

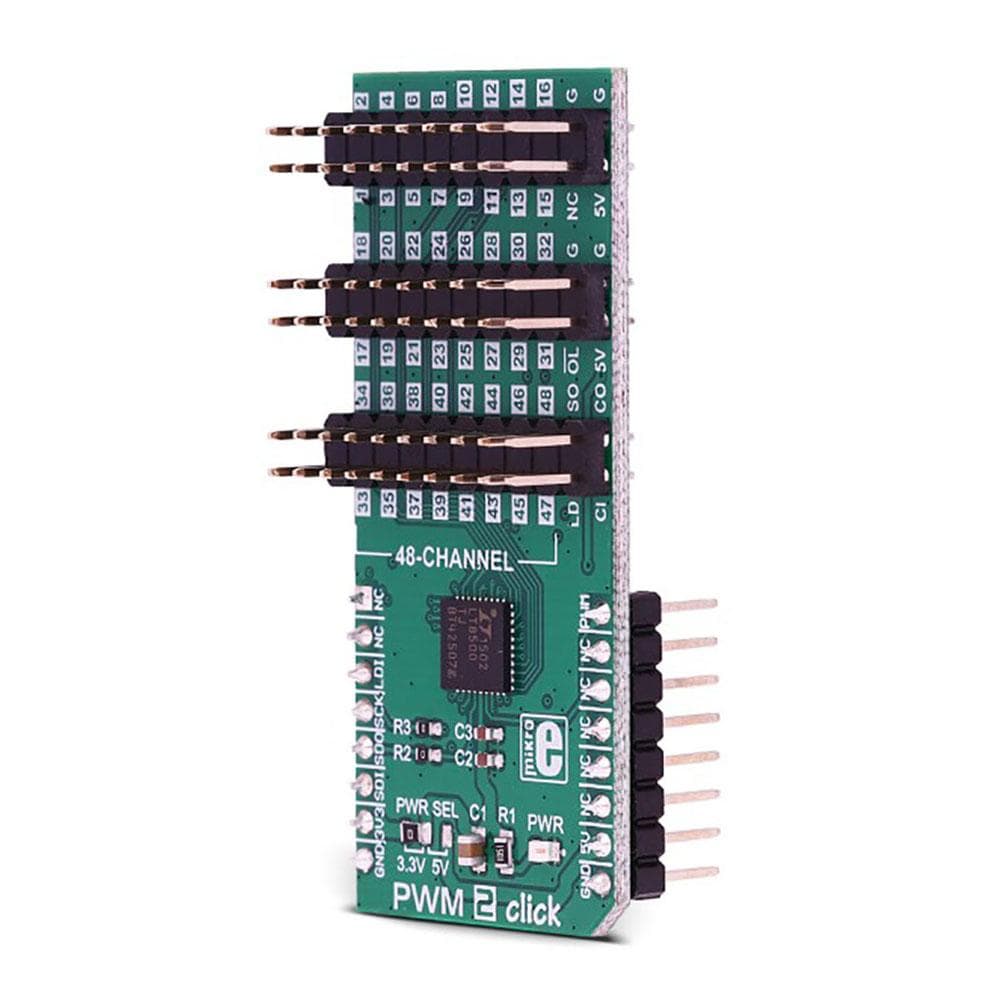

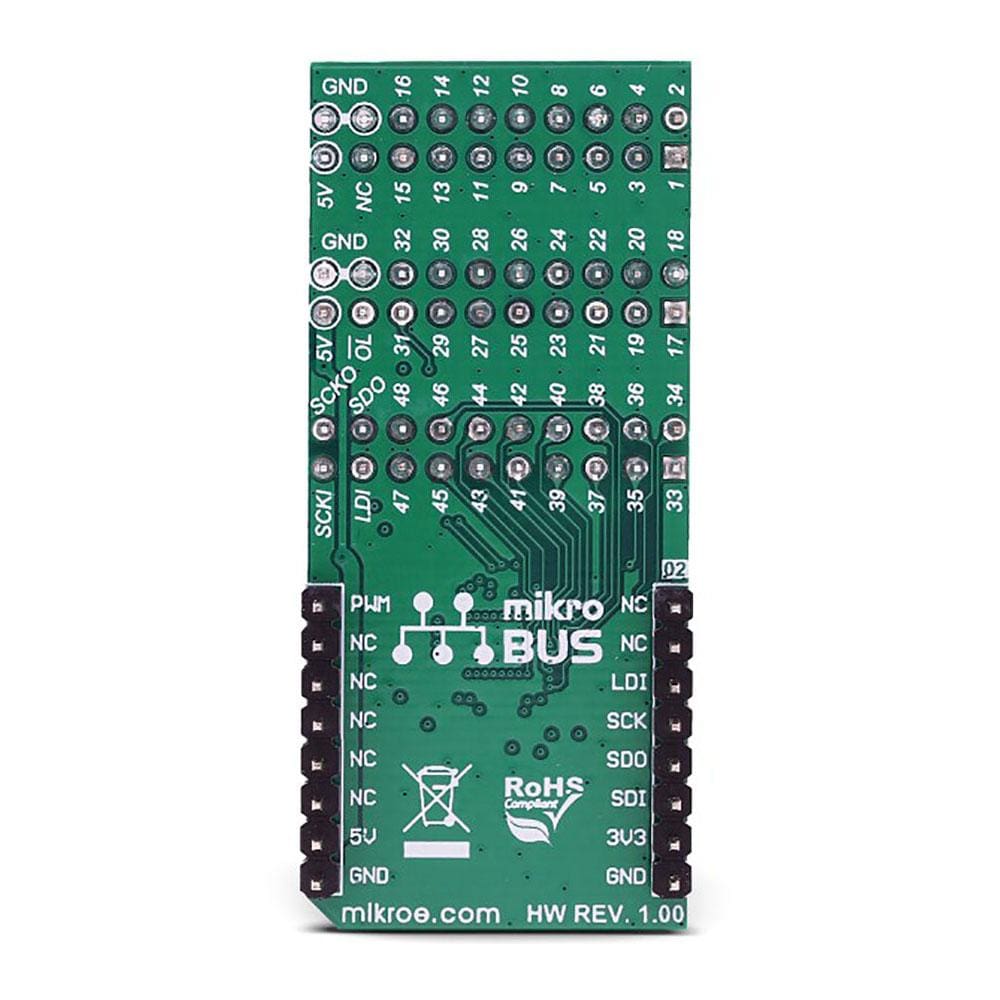

The PWM 2 Click Board™ offers 48 independently controlled PWM channels, available over the on-board headers, perfectly suited for driving LEDs. Each channel has a 12-bit PWM register associated to it, with the addition of the 6-bit correction register, also known as the dot correction register. PWM 2 is able to detect both synchronization errors and open LED errors, signaling the error via the dedicated pin and the status frame.
The PWM 2 Click Board™ fully supports cascading, exposing all the necessary pins on the on-board headers, so it can support a large array of LED elements.
