RK-System
SKU: LOGICDAQRK-System LogicDAQ Logic Analyser

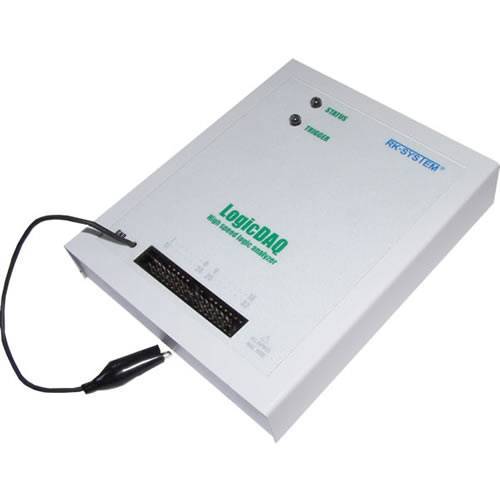

RK-System LogicDAQ Logic Analyser
Regular price
€413,95 EUR
exc tax
Regular price
Sale price
Unit price
per
€413,95 EUR
exc tax
Shipping calculated at checkout.
This item is no longer available
Couldn't load pickup availability
The RK-System LogicDAQ is affording to sample the digital data on 32-channels. Maximum frequency of sampling while using all-channels is 100MHz. Higher sampling frequencies are available after reducing the number of used-channels, 200MHz for 16-channels.
The instrument is offering many trigger options - the trigger can occur on the slope or specific combination of levels of digital signals. Additionally, the logic analyser is offering the possibility of registration of signals with regulated time delay, change threshold level, skipping defined quantity of edges after trigger, counting the quantity of edges on any channel after the trigger occurs. Basic version of the instrument is equipped with 128K data buffer, optionally it can be enlarged up to 512KB.
RK-System LogicDAQ Logic Analyser
