Dediprog ISP-ADP-intel Adapter Range
Dediprog ISP-ADP-intel Adapter Range
SKU: ISP-ADP-Intel-A1
Couldn't load pickup availability
Key Features
Overview
Complete Intel ISP Programming Solution
The ISP-ADP-Intel adapter series provides comprehensive connectivity between Dediprog's industry-leading programmers and Intel motherboard ISP headers. Each adapter in the range addresses specific compatibility requirements whilst maintaining consistent build quality and signal integrity standards essential for reliable flash programming operations.
Complete Range Summary
| Model | Compatible Programmers | Cable Length | Samtec Connector | Quad IO | Primary Use |
|---|---|---|---|---|---|

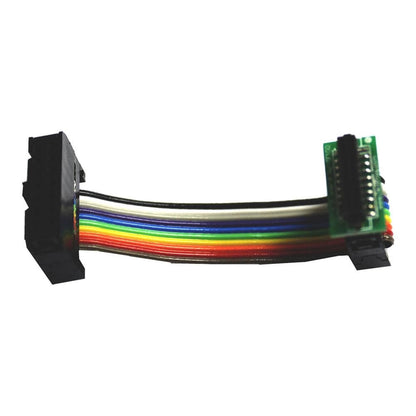

| ISP-ADP-Intel-A | SF100 only | 8cm | ASP-159358-03 | No | SF100 to Intel motherboard |

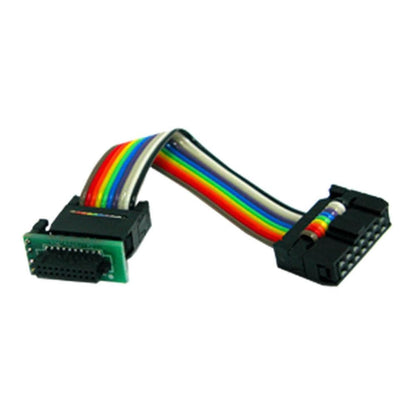

| ISP-ADP-Intel-A2 | SF100 only | 8cm + header | ASP-159358-03 | No | SF100 to Intel motherboard (with header) |
| ISP-ADP-Intel-B | SF600/SF600Plus/SF600Plus-G2 | 8cm | ASP-159358-03 | No | SF600 series to Intel motherboard |
| ISP-ADP-Intel-B2 | SF600/SF600Plus/SF600Plus-G2 | 8cm + header | ASP-159358-03 | No | SF600 series to Intel motherboard (with header) |
| ISP-ADP-Intel-C | EM100Pro series + SF600 series | 8cm | ASP-159358-02 or TFM-110-02-S-D-A | Yes | Multi-programmer to Intel motherboard (Quad IO) |
| ISP-ADP-Intel-C2 | EM100Pro series + SF600 series | 8cm + header | ASP-159358-02 or TFM-110-02-S-D-A | Yes | Multi-programmer to Intel motherboard (Quad IO with header) |
A Series - Entry-Level SF100 Support
The ISP-ADP-Intel-A and ISP-ADP-Intel-A2 adapters provide dedicated connectivity for SF100 programmers to Intel motherboards. These cost-effective solutions handle the signal routing differences between the SF100's 2x7 ISP header and Intel's 2x10 connector standard.
- Dedicated SF100 programmer compatibility
- Samtec ASP-159358-03 connector support
- 8cm cable length with optional header (A2)
- Basic SPI programming modes
SF100 to Intel Signal Mapping
| SF100 Pin | Signal | Intel Pin | Signal |
|---|---|---|---|
| 3 | I/O2 or CS2 | 4 | CS1 |
| 5 | VCC | 6 | VCC |
| 7 | CS | 2 | CS0 |
| 12 | I/O3 | 3 | RESET |
B Series - SF600 Family Compatibility
The ISP-ADP-Intel-B and ISP-ADP-Intel-B2 adapters support the complete SF600 programmer family including SF600, SF600Plus, and SF600Plus-G2 models. These adapters provide single IO programming capabilities with robust signal routing for production environments.
- SF600 series programmer compatibility
- Single IO programming support up to 25MHz
- Automatic CS2/CS1 to CS1/CS0 conversion
- Production-ready build quality
Important: B series adapters do not support Quad IO programming modes. For Quad IO requirements, use the C series adapters.
C Series - Universal Multi-Programmer Support
The ISP-ADP-Intel-C and ISP-ADP-Intel-C2 adapters offer the most comprehensive compatibility, supporting both SF600 series and EM100Pro series programmers. These advanced adapters include full Quad IO support for high-speed programming operations.
- Universal programmer compatibility (SF600 + EM100Pro series)
- Full Quad IO programming support
- Enhanced connector compatibility (ASP-159358-02 or TFM-110-02-S-D-A)
- Maximum programming speed capabilities
Header Variants Configuration
The "2" variants (A2, B2, C2) include an additional 2x10 header at the cable end, providing enhanced connectivity options for specific motherboard configurations or test setups requiring intermediate connections. This design allows for daisy-chaining or connection to test fixtures whilst maintaining signal integrity.
Technical Implementation
Connector Standards by Series
| Series | Connector Type | Programming Modes | Primary Application |
|---|---|---|---|
| A/A2 | ASP-159358-03 | Basic SPI | Development and prototyping |
| B/B2 | ASP-159358-03 | Single IO SPI | Production programming |
| C/C2 | ASP-159358-02 or TFM-110-02-S-D-A | Single + Quad IO | High-speed production |
Common Applications
All adapters in the ISP-ADP-Intel range support critical motherboard programming applications including:
- BIOS/UEFI Recovery: Emergency firmware restoration for unbootable systems
- Production Programming: High-volume motherboard flash memory programming
- Development Support: Firmware iteration and debugging during product development
- Quality Assurance: Verification and testing of programmed flash content
- Field Service: On-site firmware updates and system recovery operations
Selection Criteria
Adapter selection depends on programmer compatibility requirements, programming speed needs, and connector compatibility. The A series provides cost-effective SF100 support, the B series offers robust SF600 compatibility for standard applications, whilst the C series delivers maximum flexibility with universal programmer support and Quad IO capabilities for demanding production environments.
All adapters maintain the optimised 8cm cable length to ensure signal integrity whilst providing adequate reach for typical motherboard programming scenarios. The professional-grade construction ensures reliable operation across repeated programming cycles in both development and production environments.
Complete Intel ISP Programming Solution
The ISP-ADP-Intel adapter series provides comprehensive connectivity between Dediprog's industry-leading programmers and Intel motherboard ISP headers. Each adapter in the range addresses specific compatibility requirements whilst maintaining consistent build quality and signal integrity standards essential for reliable flash programming operations.
A Series - Entry-Level SF100 Support
The ISP-ADP-Intel-A and ISP-ADP-Intel-A2 adapters provide dedicated connectivity for SF100 programmers to Intel motherboards. These cost-effective solutions handle the signal routing differences between the SF100's 2x7 ISP header and Intel's 2x10 connector standard.
- Dedicated SF100 programmer compatibility
- Samtec ASP-159358-03 connector support
- 8cm cable length with optional header (A2)
- Basic SPI programming modes
SF100 to Intel Signal Mapping
| SF100 Pin | Signal | Intel Pin | Signal |
|---|---|---|---|
| 3 | I/O2 or CS2 | 4 | CS1 |
| 5 | VCC | 6 | VCC |
| 7 | CS | 2 | CS0 |
| 12 | I/O3 | 3 | RESET |
B Series - SF600 Family Compatibility
The ISP-ADP-Intel-B and ISP-ADP-Intel-B2 adapters support the complete SF600 programmer family including SF600, SF600Plus, and SF600Plus-G2 models. These adapters provide single IO programming capabilities with robust signal routing for production environments.
- SF600 series programmer compatibility
- Single IO programming support up to 25MHz
- Automatic CS2/CS1 to CS1/CS0 conversion
- Production-ready build quality
Important: B series adapters do not support Quad IO programming modes. For Quad IO requirements, use the C series adapters.
C Series - Universal Multi-Programmer Support
The ISP-ADP-Intel-C and ISP-ADP-Intel-C2 adapters offer the most comprehensive compatibility, supporting both SF600 series and EM100Pro series programmers. These advanced adapters include full Quad IO support for high-speed programming operations.
- Universal programmer compatibility (SF600 + EM100Pro series)
- Full Quad IO programming support
- Enhanced connector compatibility (ASP-159358-02 or TFM-110-02-S-D-A)
- Maximum programming speed capabilities
Header Variants Configuration
The "2" variants (A2, B2, C2) include an additional 2x10 header at the cable end, providing enhanced connectivity options for specific motherboard configurations or test setups requiring intermediate connections. This design allows for daisy-chaining or connection to test fixtures whilst maintaining signal integrity.
Technical Implementation
Connector Standards by Series
| Series | Connector Type | Programming Modes | Primary Application |
|---|---|---|---|
| A/A2 | ASP-159358-03 | Basic SPI | Development and prototyping |
| B/B2 | ASP-159358-03 | Single IO SPI | Production programming |
| C/C2 | ASP-159358-02 or TFM-110-02-S-D-A | Single + Quad IO | High-speed production |
Common Applications
All adapters in the ISP-ADP-Intel range support critical motherboard programming applications including:
- BIOS/UEFI Recovery: Emergency firmware restoration for unbootable systems
- Production Programming: High-volume motherboard flash memory programming
- Development Support: Firmware iteration and debugging during product development
- Quality Assurance: Verification and testing of programmed flash content
- Field Service: On-site firmware updates and system recovery operations
Selection Criteria
Adapter selection depends on programmer compatibility requirements, programming speed needs, and connector compatibility. The A series provides cost-effective SF100 support, the B series offers robust SF600 compatibility for standard applications, whilst the C series delivers maximum flexibility with universal programmer support and Quad IO capabilities for demanding production environments.
All adapters maintain the optimised 8cm cable length to ensure signal integrity whilst providing adequate reach for typical motherboard programming scenarios. The professional-grade construction ensures reliable operation across repeated programming cycles in both development and production environments.
| General Information | |
|---|---|
Product Type |
Programmer Adapter
|
Part Number (SKU) |
ISP-ADP-Intel-A1
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.5 kg
|
| Other | |
EAN |
5055383696734
|
Frequently Asked Questions
Have a Question?
-
Can these adapters power the target motherboard during programming?
The adapters can provide VCC to the target ISP header, but this is typically only sufficient for powering the SPI flash device, not the entire motherboard. External power may be required depending on the application.
-
What is the maximum insertion cycle rating for these connectors?
The connectors are rated for over 1000 insertion cycles under normal use conditions. Professional development environments with frequent connections should expect excellent durability.
-
How do I identify the correct pin 1 orientation on the motherboard?
Intel ISP headers typically have a pin 1 marker (square pad or dot) and the adapter connector is keyed to prevent incorrect insertion. Always consult the motherboard manual for ISP header location and pinout.
-
Are these adapters compatible with third-party programming software?
The adapters provide hardware connectivity only. Software compatibility depends on the Dediprog programmer used. Dediprog's own software supports all programmer models, whilst third-party support varies.
-
Do I need the Quad IO variants for standard SPI flash programming?
Standard single-wire SPI programming works with all variants. Quad IO variants (C/C2) are only necessary when using 4-wire SPI communication for faster programming speeds on compatible flash devices.
-
What cable length is provided with the ISP-ADP-Intel adapters?
All variants feature an 8cm cable length, providing sufficient reach for typical motherboard ISP headers whilst maintaining signal integrity for reliable programming operations.
-
Can I use the adapter for programming external SPI flash devices?
Yes, the adapters work with any target board featuring a compatible Intel-style 2×10 ISP header, not just motherboards. This includes development boards and custom PCBs with Intel-compatible ISP interfaces.
-
Do these adapters work with non-Intel motherboards?
These adapters are specifically designed for Intel motherboard ISP headers using Samtec ASP-159358 series connectors. Compatibility with other motherboard manufacturers depends on their ISP connector specification.
-
What is the difference between numbered variants (A vs A2, B vs B2)?
The numbered variants (A2, B2, C2) are updated revisions with improved connector reliability and enhanced signal integrity. Functionally, they are equivalent to their non-numbered counterparts.
-
Which ISP-ADP-Intel variant do I need for my Dediprog programmer?
Variant selection depends on your programmer model: A/A2 for SF100, B/B2 for SF600/SF600Plus, and C/C2 for EM100Pro series. The C/C2 variants also support SF600 series with Quad IO capability.
