Mikroelektronika d.o.o.

ZIF to Terminal Block for BLDC

ZIF to Terminal Block for BLDC

SKU: MIKROE-4774
€6,95 EUR exc tax
€6,95 EUR exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability
View full details
  • Mikroelektronika d.o.o. MIKROE-4774 ZIF to Terminal Block for BLDC - The Debug Store UK
  • Mikroelektronika d.o.o. MIKROE-4774 ZIF to Terminal Block for BLDC - The Debug Store UK
  • Mikroelektronika d.o.o. MIKROE-4774 ZIF to Terminal Block for BLDC - The Debug Store UK

Overview

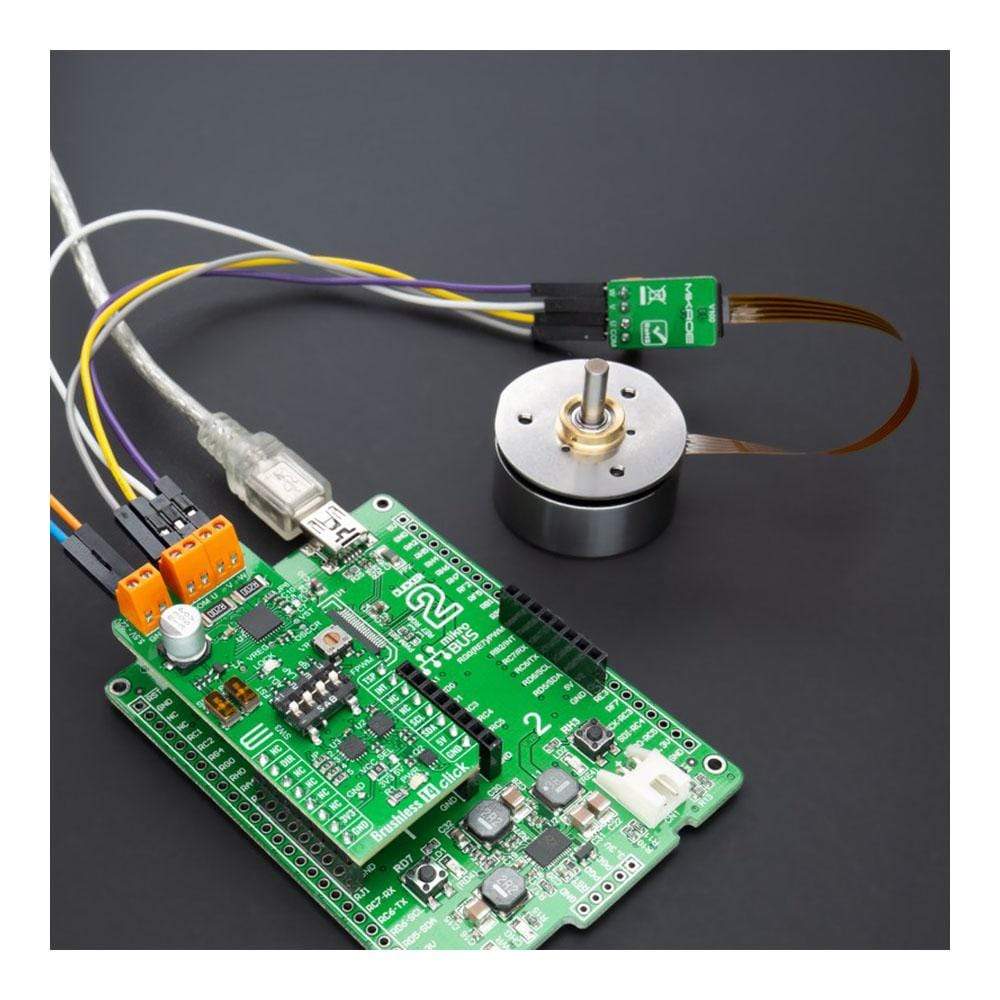

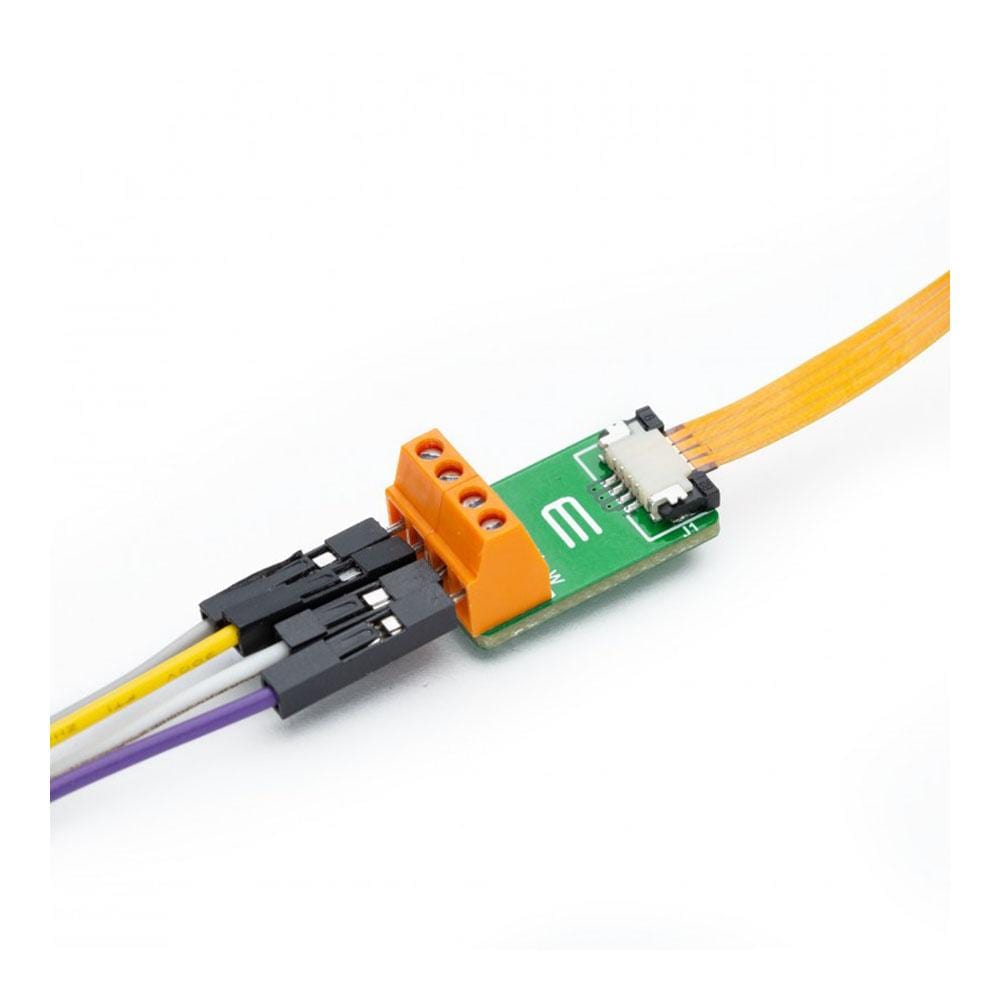

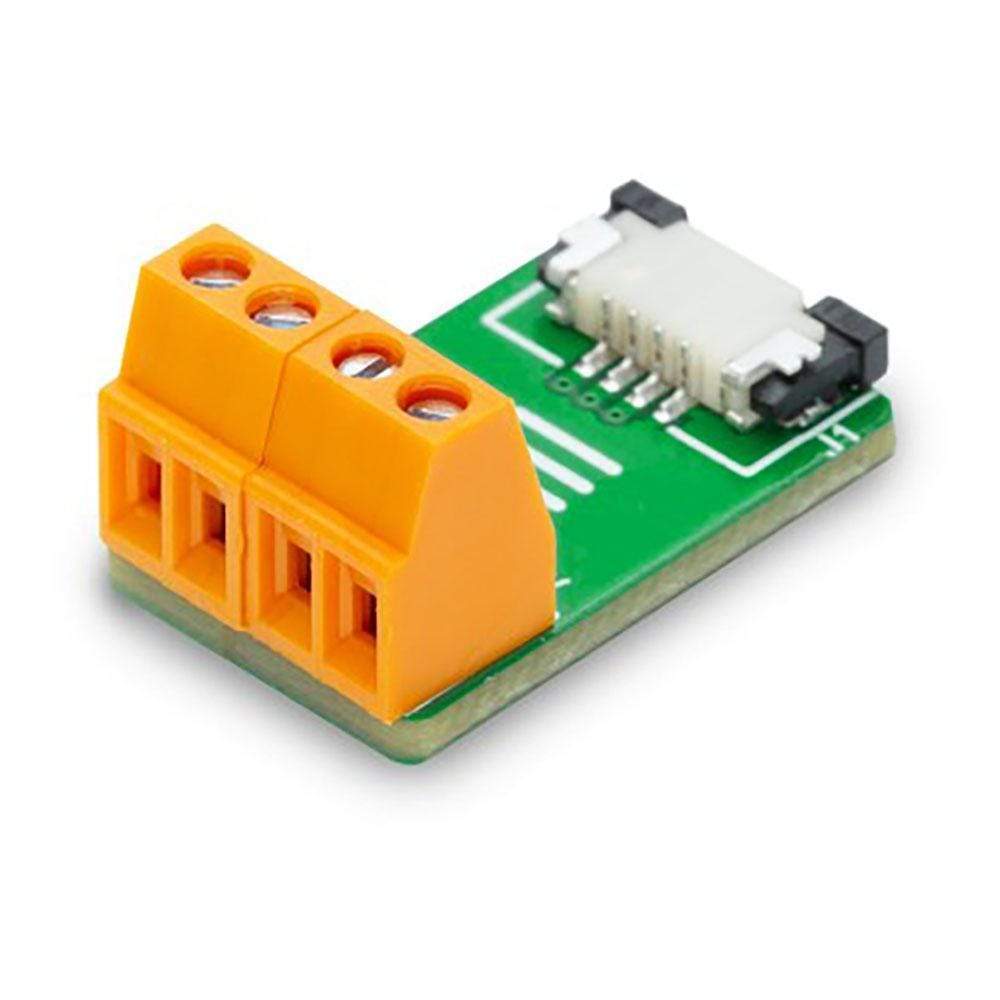

The ZIF to Terminal Block for BLDC represents a small-sized adapter board that allows you to connect all BLDC motors without a Hall sensor and a Flexprint port to target Brushless Click Board™. The adapter consists of one ZIF connector ZIF1004UH with four pins of 1.0mm pitch, and two 2.54mm pitch screw terminals on opposite sides of the board. Connect the screw terminals to target Brushless Click board with appropriate COM, U, V, and W pinout, and then connect 4-pole Flexprint connector with all Flexprint port sensorless BLDC motors.
