ZeroPlus LAP-C-DSO 2-Channel Oscilloscope add-on for LAP-C Logic Analyser
ZeroPlus LAP-C-DSO 2-Channel Oscilloscope add-on for LAP-C Logic Analyser
Couldn't load pickup availability
Overview

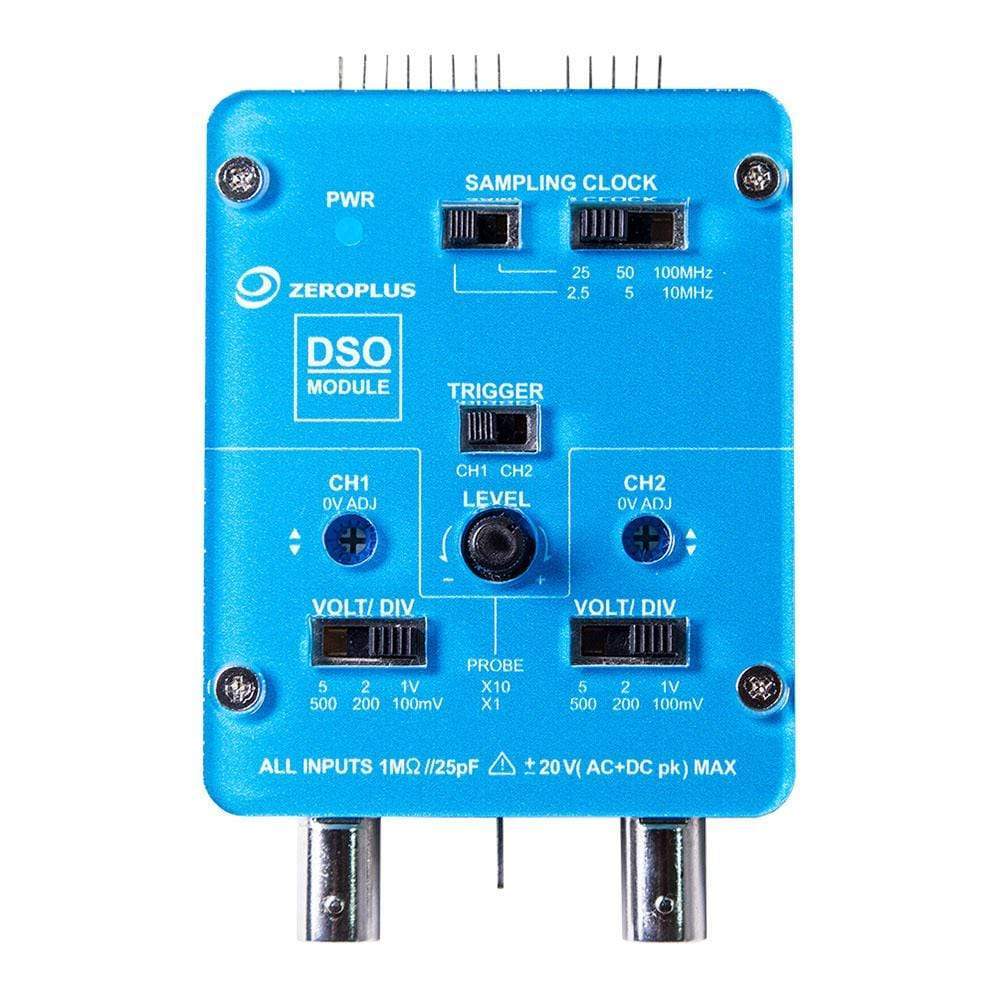

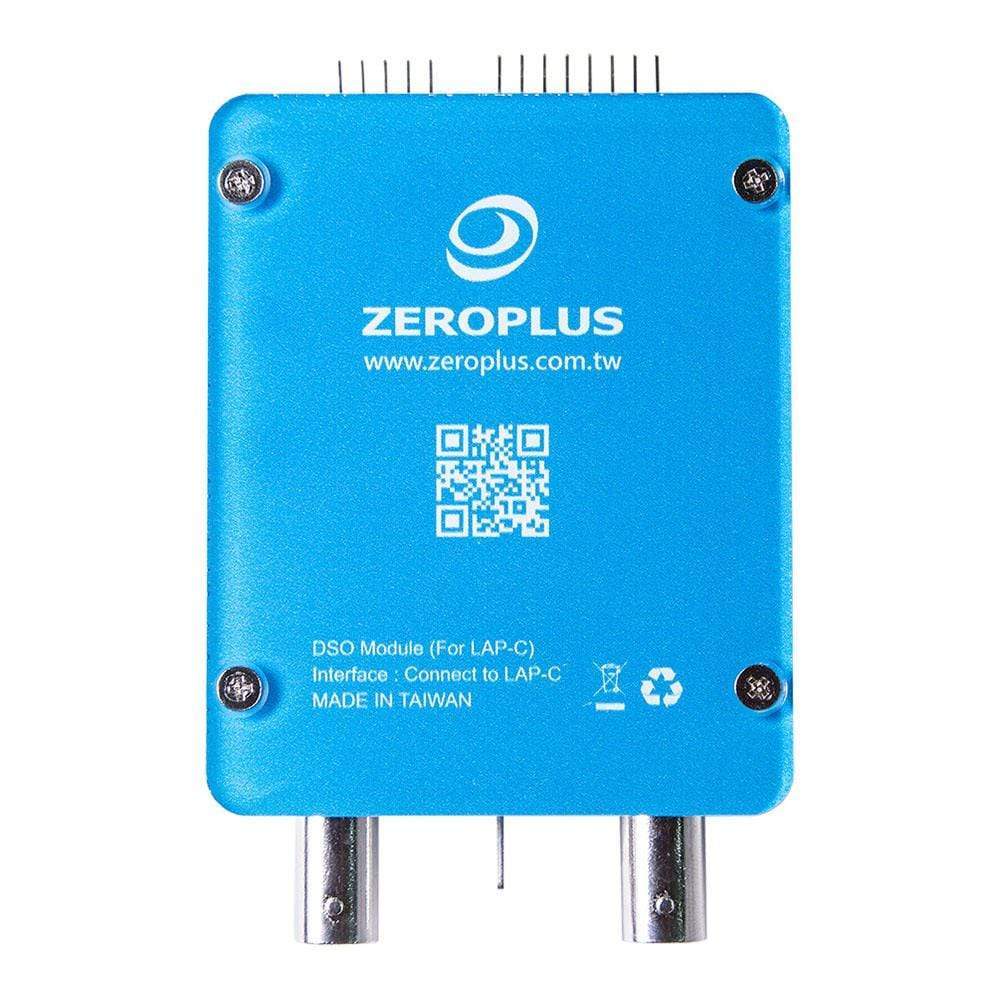

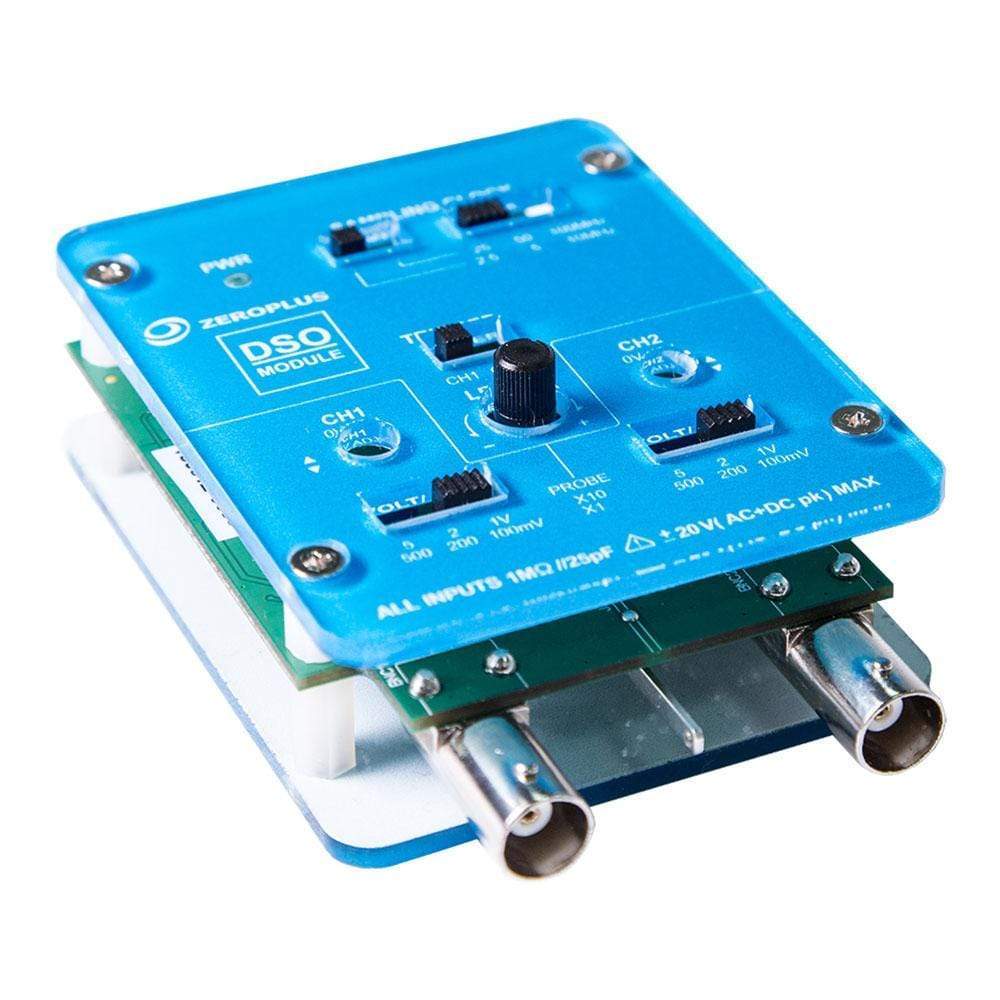

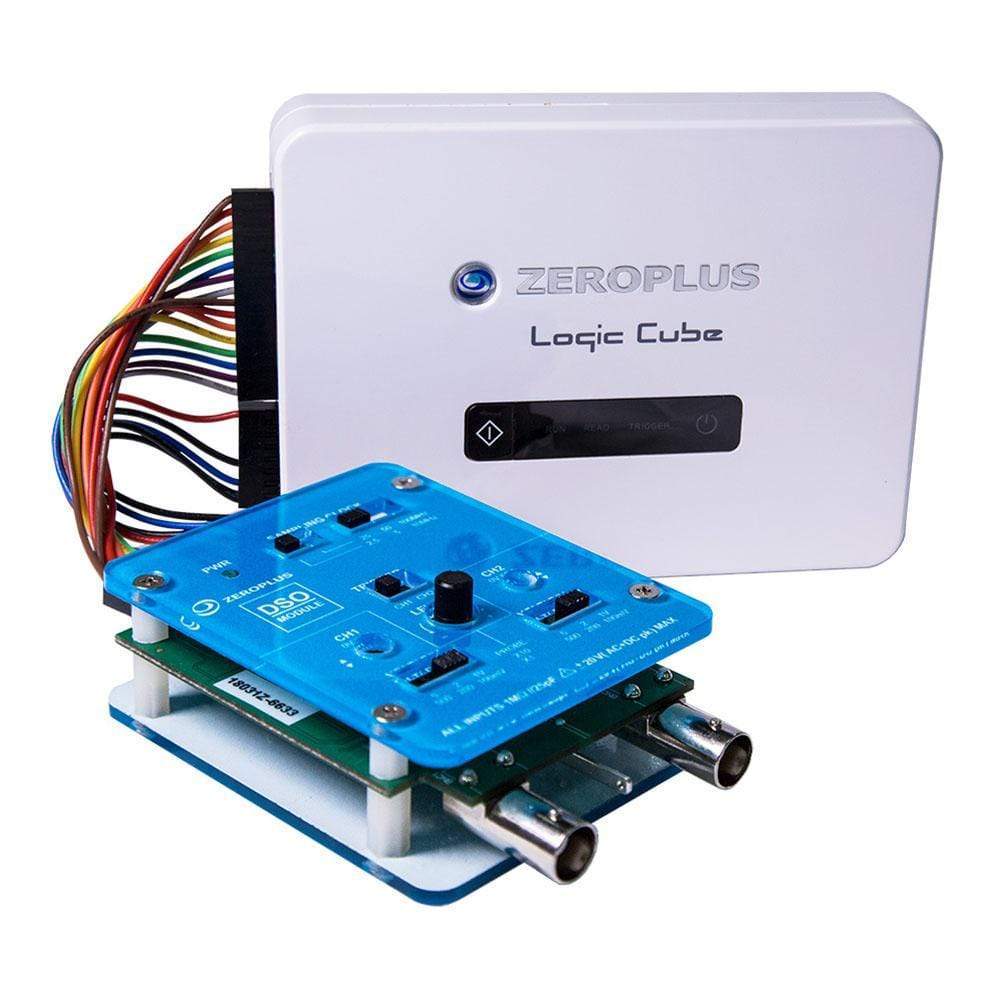

The ZeroPlus LAP-C-DSO turns your LAP-C Logic Analyser into a MSO.

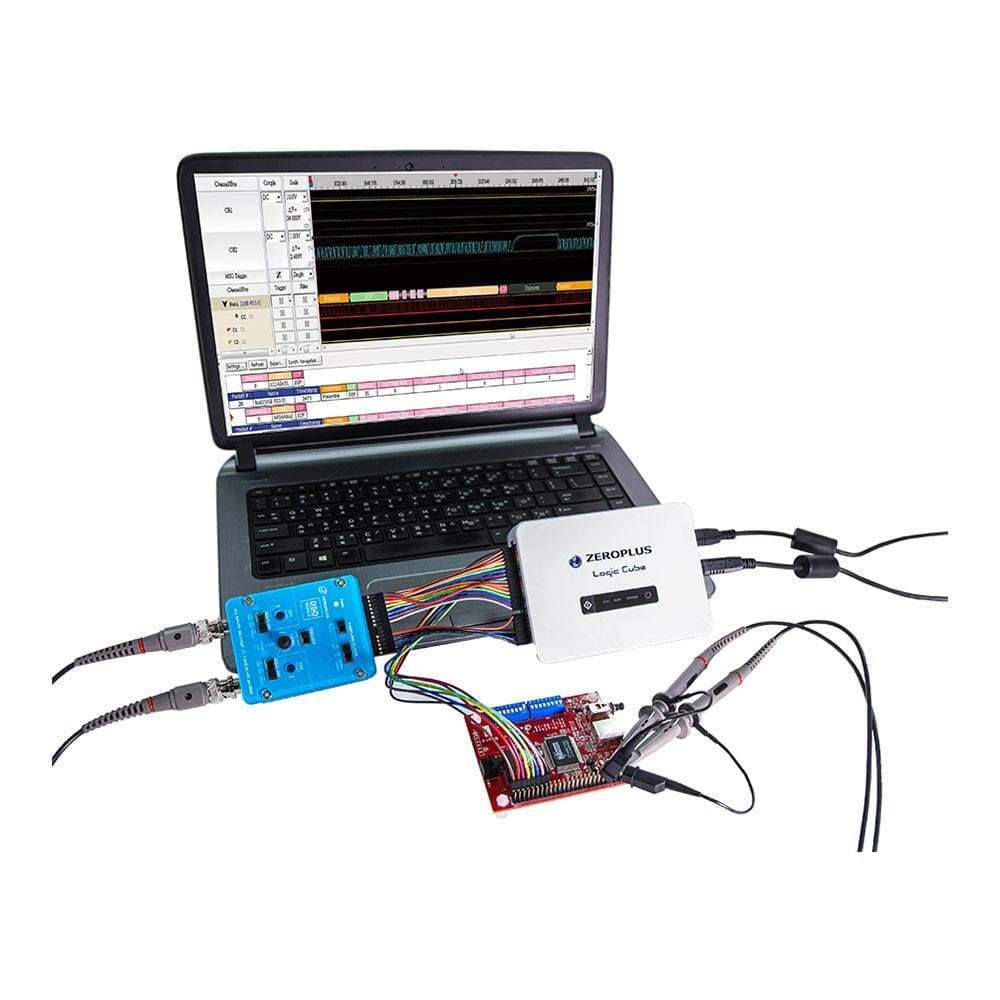

The two analogue channels are displayed alongside digital and protocol decoding in the IDE.
LAP-C DSO Review
Pete Scargill has independently reviewed the LAP-C Logic Analyser and LAP-C DSO add-on module.
| General Information | |
|---|---|
Part Number (SKU) |
LAP-C-DSO
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.2 kg
|
| Other | |
EAN |
5055383688890
|
Specifications
Basic Specification
Probe compensation
2kHz, 3Vp-p, Square wave ‧Interface A0~A7, B0~B7, Ext CLK, VDD, GND connect to LAP-C
Size
145 x 70 x 25 mm
Weight
< 0.2kg
Parameter Measurement
Cursor measurement
time difference, voltage difference
Automatic parameter measurement
Maximum, minimum, high, low, peak-to-peak, amplitude, rms, mean, overshoot, undershoot, median, frequency, Cycle, positive wave width, negative wave width, positive cycle ratio, negative cycle ratio, rise time, fall time
Triggering System
Trigger Mode
Auto, Normal, Single
Trigger Source
CH1, CH2, Logic channels from LAP-C
Trigger Coupling
DC
Trigger Slope
Rising, Falling
Trigger Level
Adjustable
Vertical System
Bandwidth
DC ~ 20MHz
Input Channel
2 (CH1/CH2)
Input voltage scale
100mV, 200mV, 500mV/div at 1:1 Probe 1V, 2V, 5V/div at 10:1 Probe 10V, 20V, 50V/div At 100:1 Probe
Input Coupling
DC
Input Impedance
1MΩ//25pF
Maximum Input Voltage
± 20V (DC+AC pk) at 1:1 Probe
± 200V (DC+AC pk) at 10:1 Probe
± 2000V (DC +AC pk) at 100:1 Probe
Vertical Position
0V Adjustable
DC Accuracy
± 3%
Signal Capture System
Sampling Frequency
100M, 50M, 25M, 10M, 5M, 2.5MS/s Selectable
ADCs
100MS/s 8 bits ADC x2
Record Length
32k, 16k, 8k/ch Selectable
