IR Eclipse Click Board™
IR Eclipse Click Board™
Couldn't load pickup availability
Overview

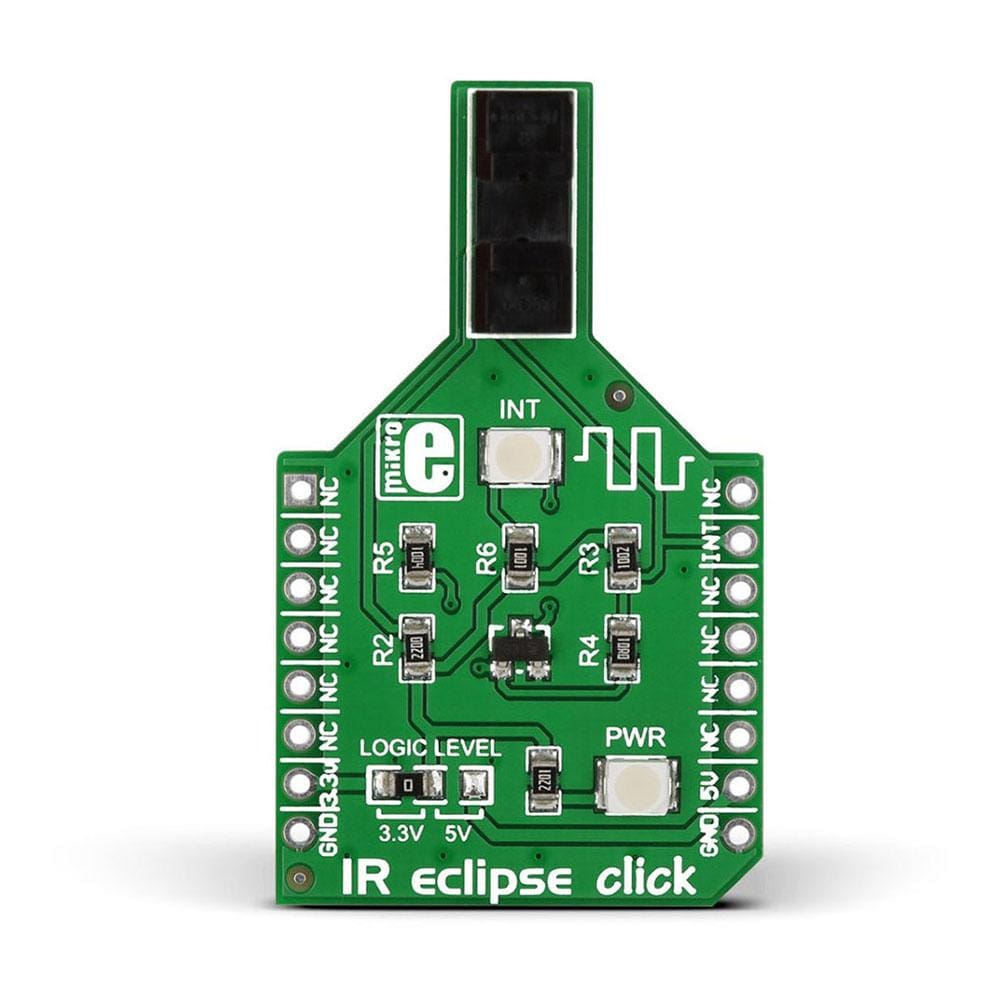

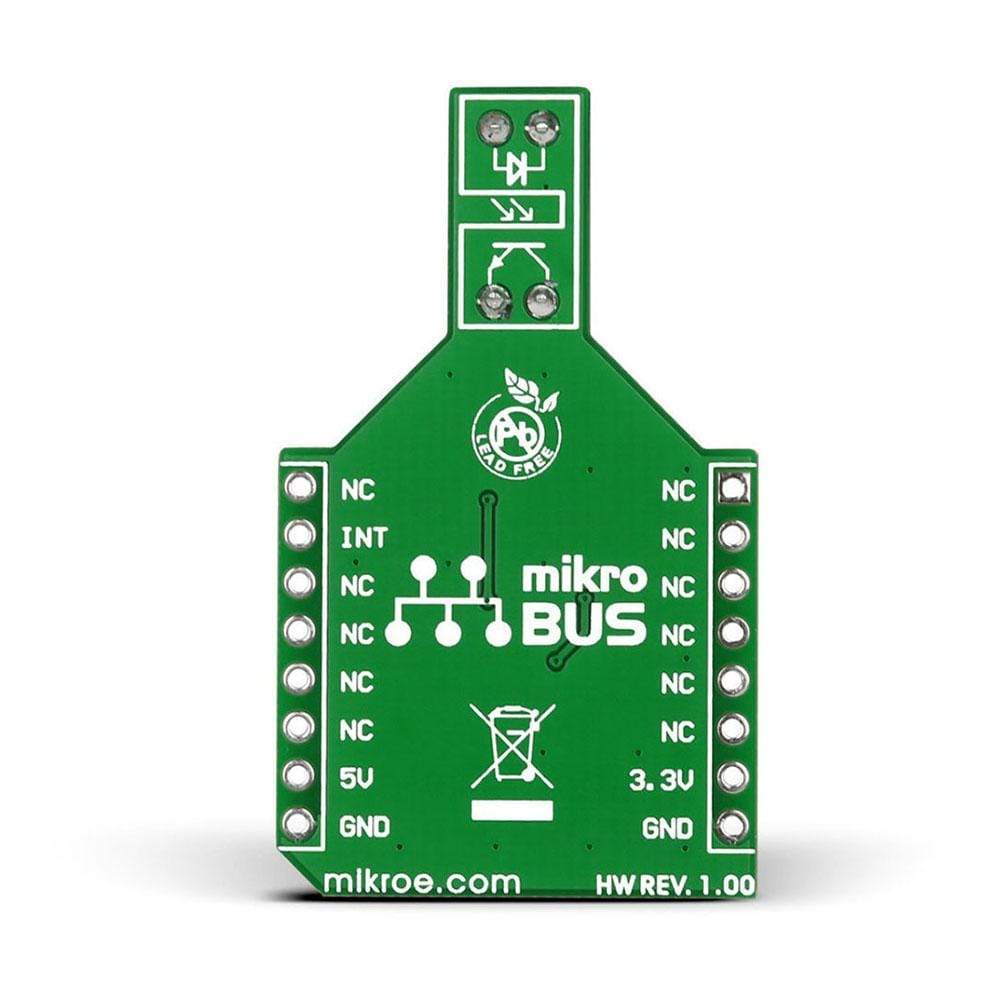

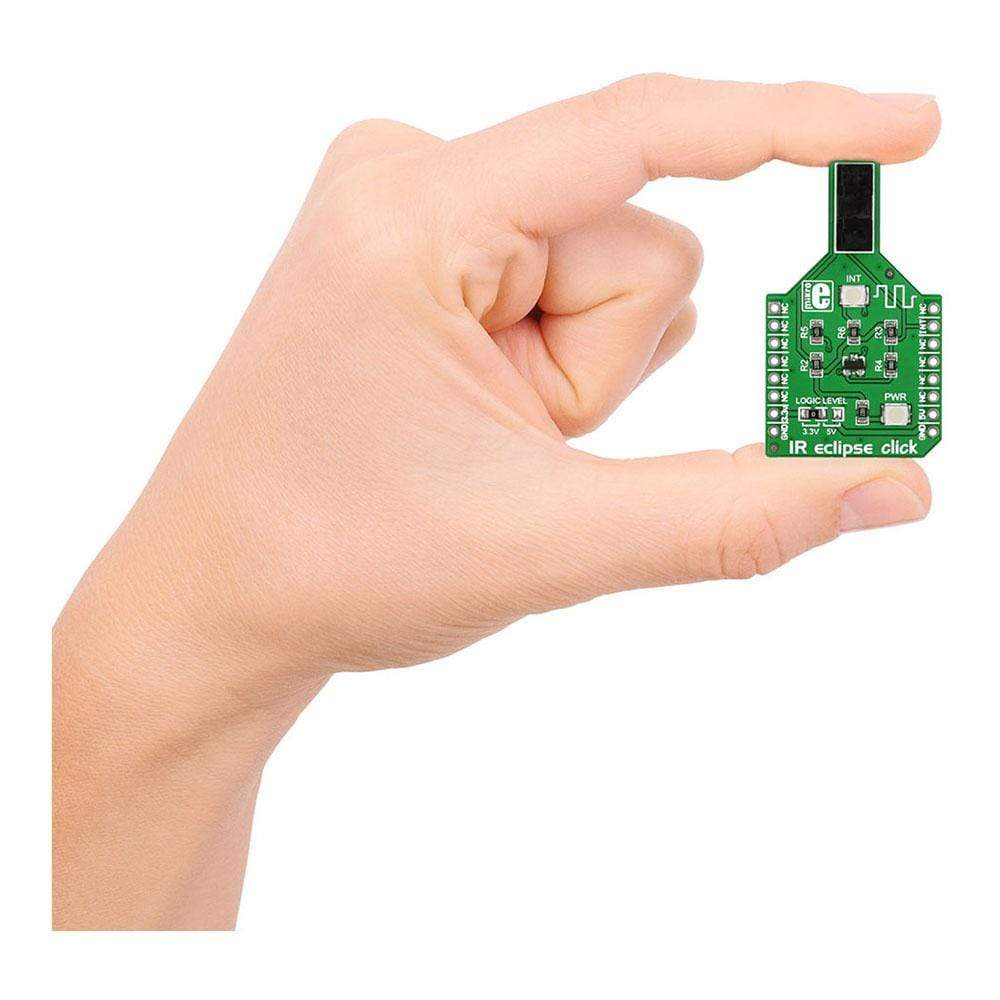

The IR Eclipse Click Board™ from MikroE is a popular accessory board incorporating an EE-SX198 photo interrupter sensor, which consists of an infrared transmitter and receiver facing each other, separated by a 3mm-wide slit. When an object, say a piece of paper, is placed in the slit, the beam of infrared that travels from the transmitter to receiver is eclipsed, which in return, activates the sensor. The activated sensor status is indicated by the onboard INT LED.
The application of an IR Eclipse Click Board™ seen in everyday use would be a printer or copier machine, where the sensor detects whether the paper is in place. IR eclipse Click Board™ would be an ideal choice for your design wherever there
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-1711
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.03 kg
|
| Other | |
Country of Origin |
|
HS Code Customs Tariff code
|
|
EAN |
8606015075747
|
IC/module: EE-SX198 Photo Interrupter Sensor
EE-SX198 is a compact on-board photomicrosensor that comprises of a general-purpose model featuring an infrared transmitter and receiver on opposite sides and spaced apart by a 3mm slit. Featuring PCB mounting type, this optical sensor has a high resolution with a 0.5-mm-wide aperture. This transmissive interrupter sensor is typically used in printers, copiers, vending machines and so forth.
Areas of Application

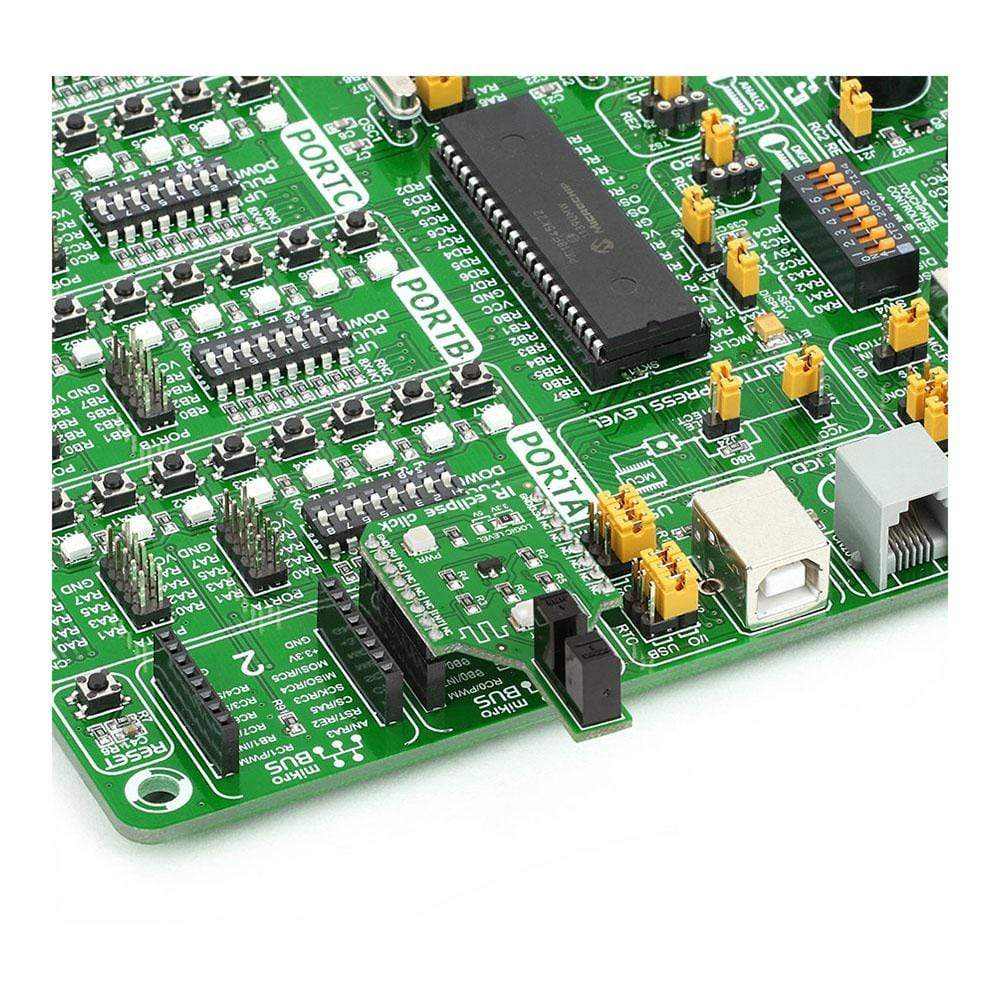

The user can implement the IR Eclipse Click Board™ in its design wherever there's a need to detect any type of object, infer its position or speed,
