How To Use The EM-AD-SOK-BK-8W Adapter
Step 1
Remove the SPI Flash from the socket. (Note: If the SPI Flash is in the socket, make sure there is a pull-up resistor on the Hold pin.)
Step 2
Connect 2 pieces of 1.27mm 4 pin male header to the SPI socket.
Step 3
Connect adaptor to the pin headers on the SPI socket.
Step 4
Connect 2x4 1.27mm cable to the adaptor.

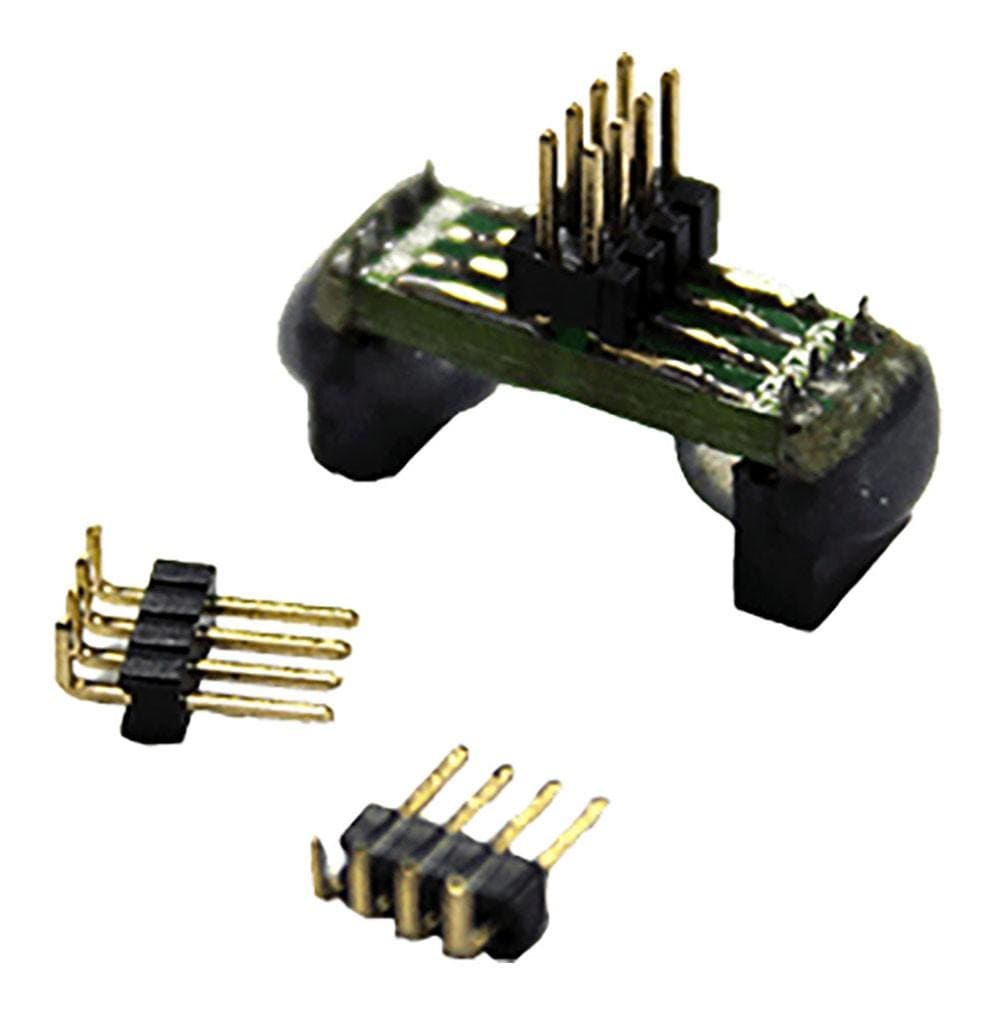

Dediprog SO8 Adaptor with 1.27mm 2x4 Pin Header
