BIGDSPIC6 Development Board

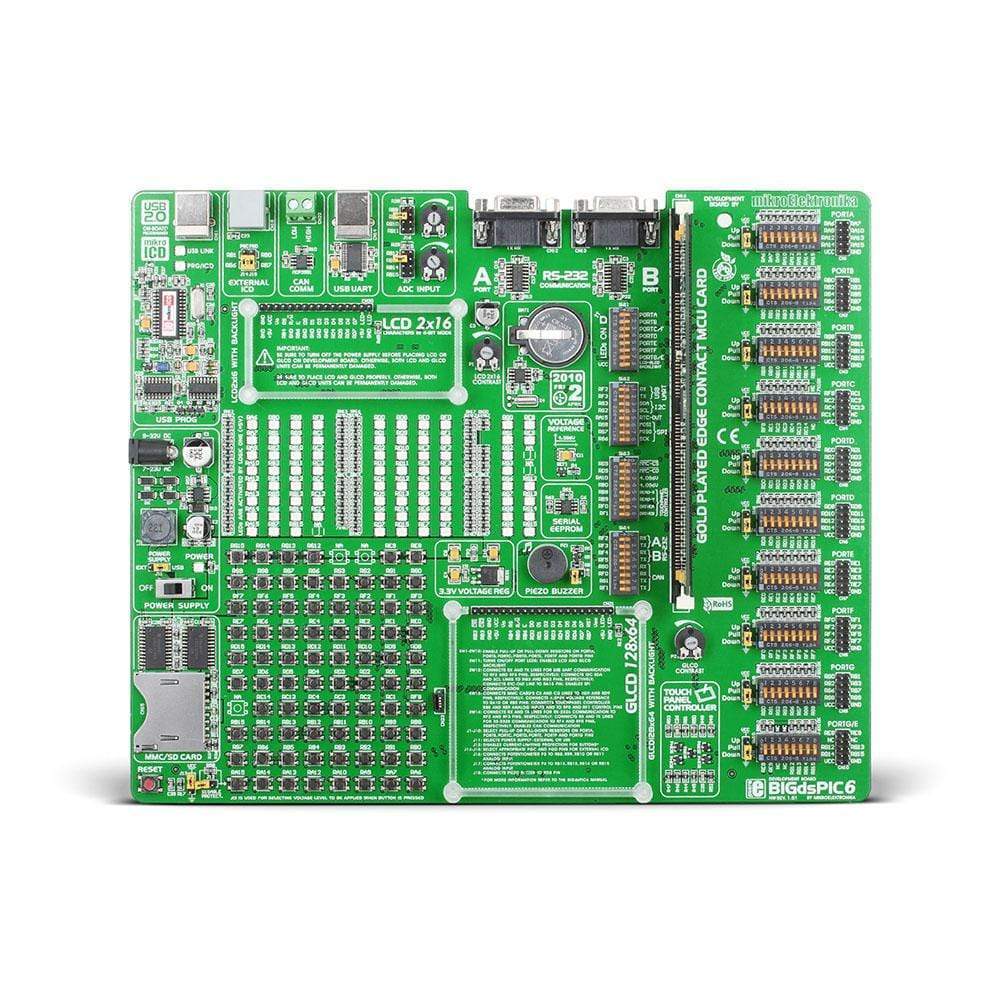

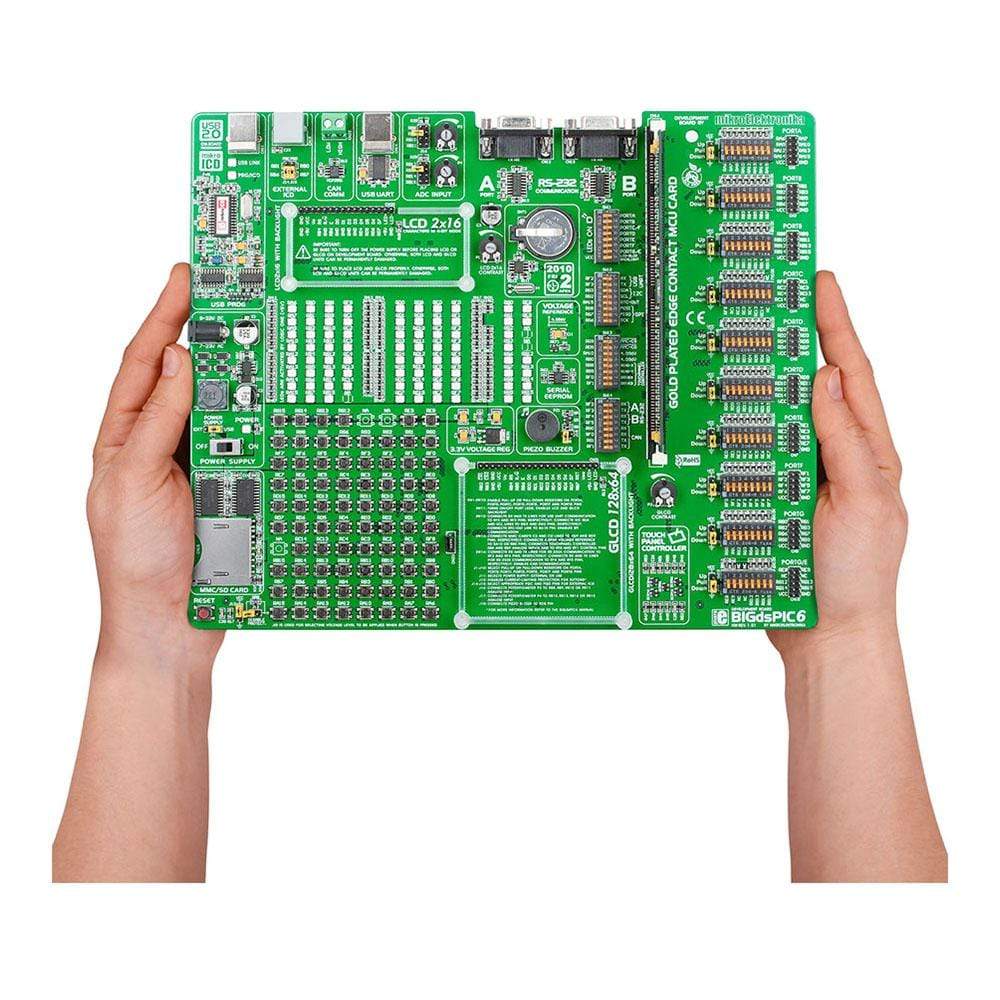

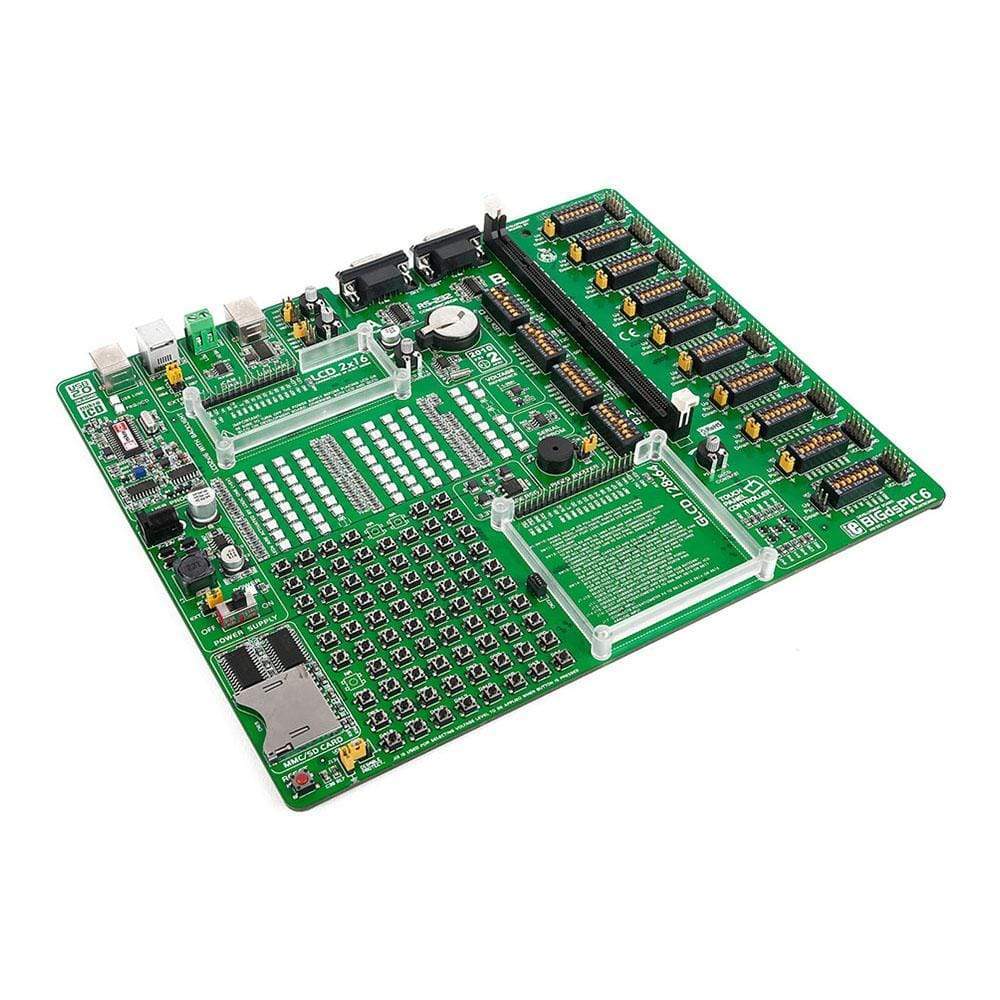

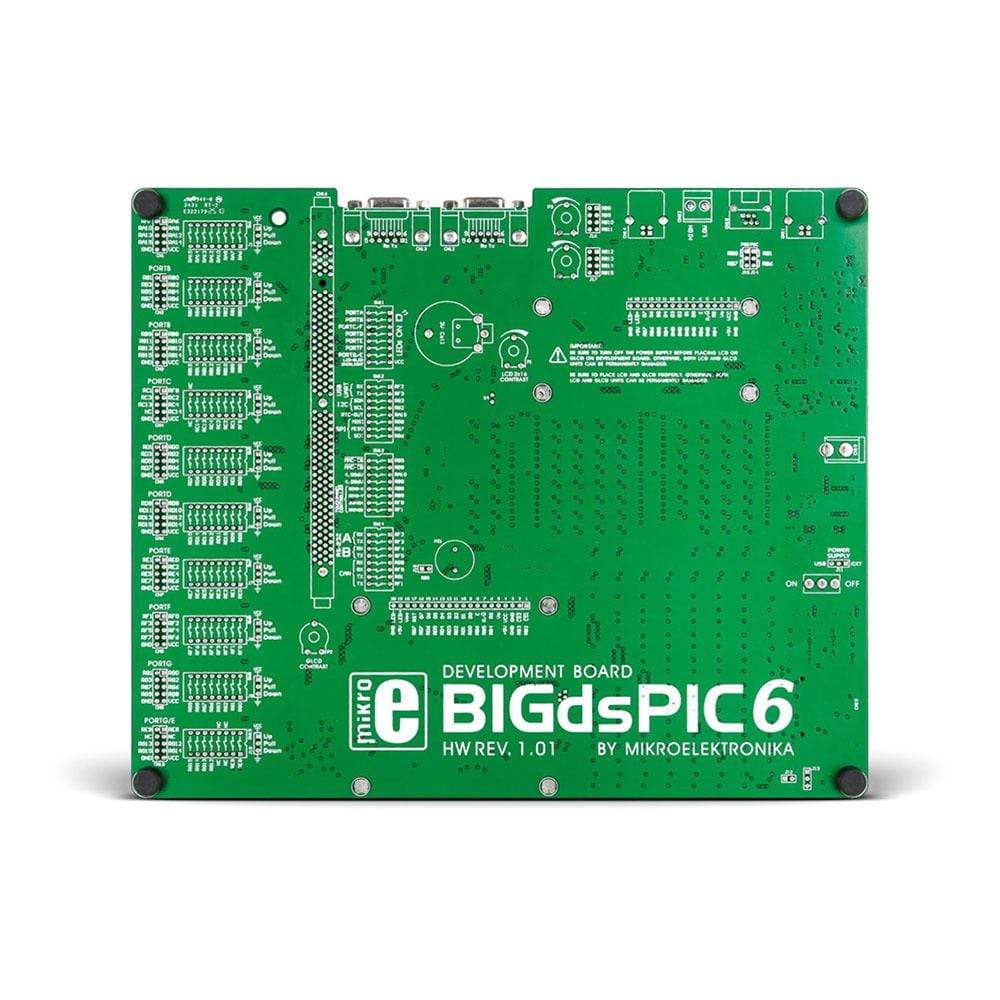

The BIGdsPIC6 is a Development Board for 64- and 80-pin dsPIC30F devices. Board is delivered with a MCU card that contains dsPIC30F6014A. The system features a USB 2.0 programmer with mikroICD and many peripheral modules such as Piezo speaker, EEPROM, FTDI, RTC, CAN, etc.

In-Circuit Debugger

On-Board USB 2.0 programmer with mikroICD (In-Circuit Debugger). mikroICD is a highly effective tool for Real-Time debugging at hardware level. It enables you to execute mikroC PRO, mikroPascal PRO and mikroBasic PRO programs on a host PIC18FxxJxx MCU and monitor variable values, SFRs, RAM and EEPROM memory modules while the program is running. Also, there is an ultra fast USB 2.0 programmer for MCU programming that now supports more PIC MCUs.

Features

PORTs, Buttons and LEDs

77 push buttons and 77 LEDs are connected to all microcontrollers pins. DIP switch is used to separate port pins from pull-up/pull-down resistors. 2 potentiometers are provided for testing multiple A/D conversions. Inputs can be configured via jumpers.

Displays

Graphic LCD 128x64 and LCD 2x16 can be easily connected via the on-board connectors. Board also features a Touch Screen controller.

Communication and Interfaces

RS-232 communication is enabled via DB9 connector and MAX232 level converter. USB UART module features the FT232RL interface between a USB device and the microcontroller. USB communication connectors are available for microcontrollers with USB facilities. CAN transceiver MCP2551 is also available.

EEPROM, Piezo Buzzer

Board features Serial EEPROM Module24AA01 uses I2C communication and can store up to 1Kbit of data. Built-in Piezo buzzer enables the system to emit audio signals.

Package Contains

• BIGdsPIC6 development system
• BIGdsPIC6 80-pin TQFP MCU Card with dsPIC30F6014A Microcontroller
• USB cable
• Documentation
