Tag-Connect TC2050-IDC-LONGLEGS 10-Pin Plug-of-Nails Cable for Thick PCBs
Tag-Connect TC2050-IDC-LONGLEGS 10-Pin Plug-of-Nails Cable for Thick PCBs
SKU: TC2050-IDC-LONGLEGS
Couldn't load pickup availability
Key Features
Overview

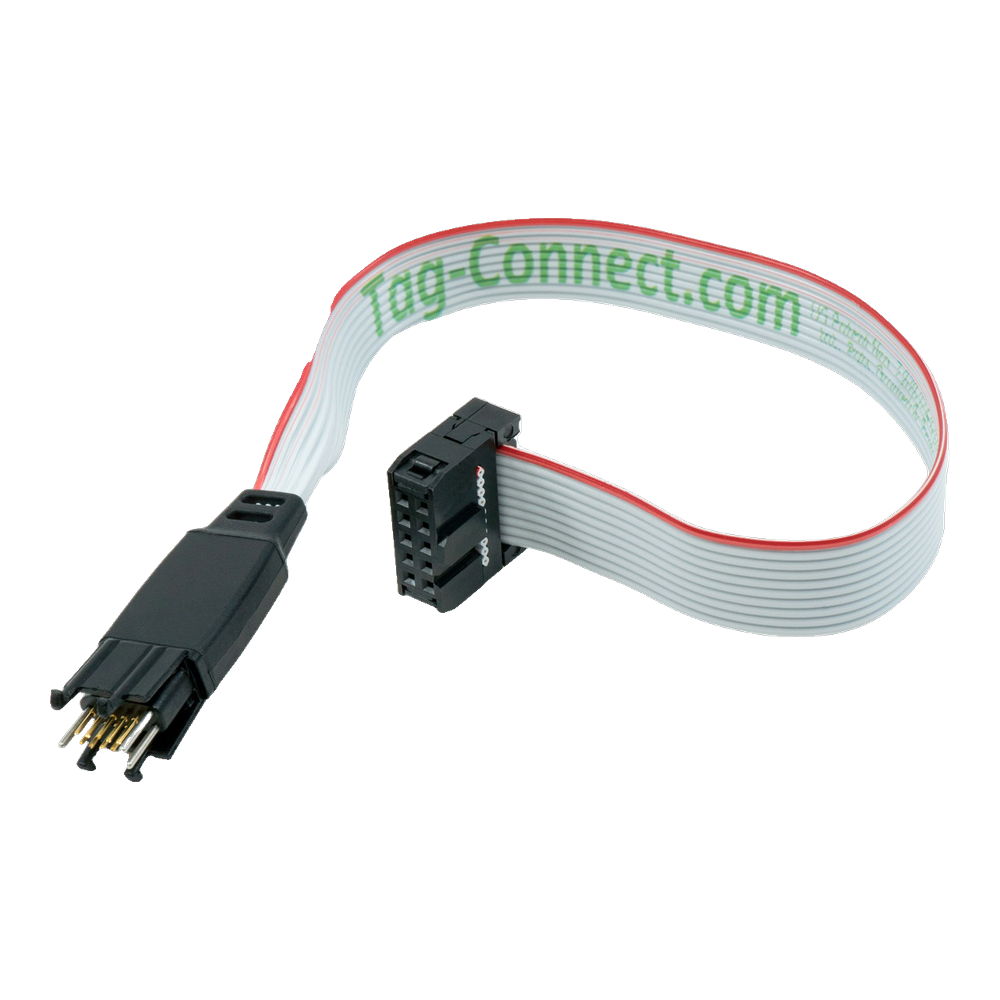

The TC2050-IDC-LONGLEGS is a version of the TC2050-IDC 10-pin Plug-of-Nails debug cable for thicker boards. Its connector has longer alignment pins and legs, so the legs clip securely through PCBs thicker than the standard 1.6 mm (0.063 in).
Use it for boards over 1.6 mm and up to 3.2 mm (0.126 in) thick. For boards thicker than 3.2 mm, ask us and we will check with Tag-Connect.
The board needs only pads and holes, with no connector fitted. Check your layout against the TC2050-IDC datasheet below.
Downloads
Why Engineers Choose the Tag-Connect TC2050-IDC-LONGLEGS 10-Pin Plug-of-Nails Cable for Thick PCBs
Thick Boards Covered
No Connector Fitted
Hands-Free Hold
Specifications
| Parameter | Value |
|---|---|
| Target end | TC2050 10-pin Plug-of-Nails, legged, with longer legs and alignment pins |
| PCB thickness | Over 1.6 mm (0.063 in), up to 3.2 mm (0.126 in) |
| Based on | TC2050-IDC debug cable |
| PCB footprint | TC2050 legged footprint (datasheet below) |
Standard-thickness boards: TC2050-IDC. Which cable fits your debugger? See our Tag-Connect cable guide.
| General Information | |
|---|---|
Part Number (SKU) |
TC2050-IDC-LONGLEGS
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
9 g
|
Questions and Answers
-
What PCB Thickness Does It Support?
Boards over 1.6 mm (0.063 in) and up to 3.2 mm (0.126 in) thick. For thicker boards, ask us before ordering.
-
Does It Need a Different Footprint?
It is based on the TC2050-IDC, so start from the footprint in the TC2050-IDC datasheet below. The longer legs and alignment pins reach through the thicker board. If your board is close to 3.2 mm or the layout is tight, ask us and we will confirm it with Tag-Connect.
-
Should I Use It on a 1.6 mm Board?
Use the standard TC2050-IDC for boards up to 1.6 mm thick. The LONGLEGS version is for boards over 1.6 mm.
No questions match your search.
