Overview
The TouchPanel Controller Board allows you to easily connect your development board with a touch panel. When the connection is established, the panel can be used in various applications.
Work Principle
The working principle of a touch panel is based on the voltage change caused by a touch or pressure applied to the touch screen. The touch screen design enables the voltage change detection. Separated by an air gap, it has two flexible sheets coated with a resistive material. The sheet with voltage will detect a contact and the other sheet measures the voltage in the pressed point as a distance along the first sheet.
Board Connections

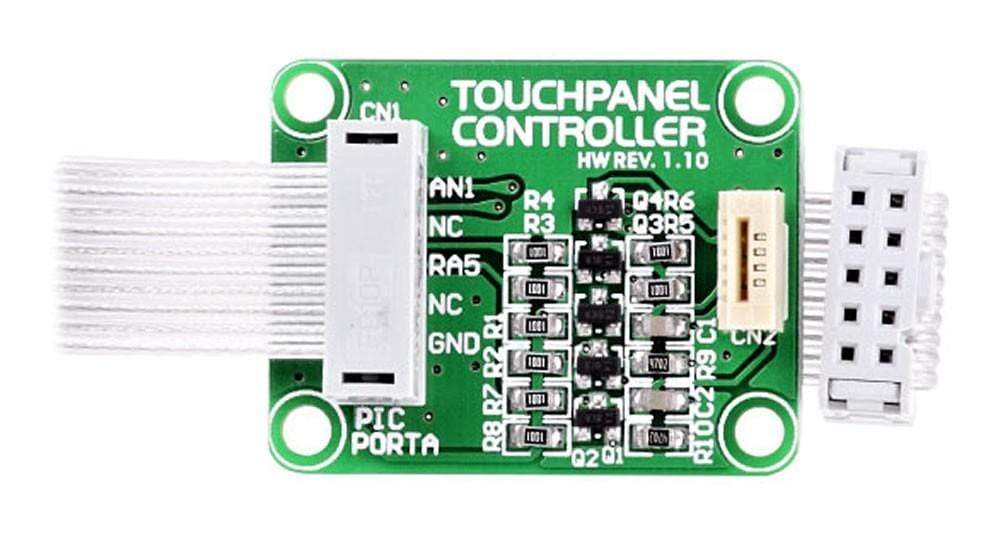

Using an IDC10 connector CN1, the TouchPanel Controller Board can be connected to a port of the development system. On the other hand, for connection between a touch panel and the TouchPanel Controller Board, the connector CN2 is used.
| Overview | |
|---|---|
| Applications | This board allows you add touch panel input to your prototype device |
| Product type | Touch Panel (resistive) |
| Key components | |
| On-board modules | 4-wire resistive analog touch panel controller |
| Features | |
| Key features | On-board connector Touch panel flat cable |
| Key benefits | Board is clearly marked, and easy to interface. |
| Interfaces | |
| Interface | Analog |
| Compatibility | IDC10 |
| Electrical | |
| Power supply | 5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-261 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015072463 |
| Warranty | 12 months |
| Shipping weight | 0.01 kg |
-
1 ×
TouchPanel Controller Board
Contact us to confirm the full contents of the box.
