Mikroelektronika d.o.o.

Nano GPS Click Board™

Nano GPS Click Board™

SKU: MIKROE-1912

Regular price
€68,95 EUR exc tax
Regular price Sale price
€68,95 EUR exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

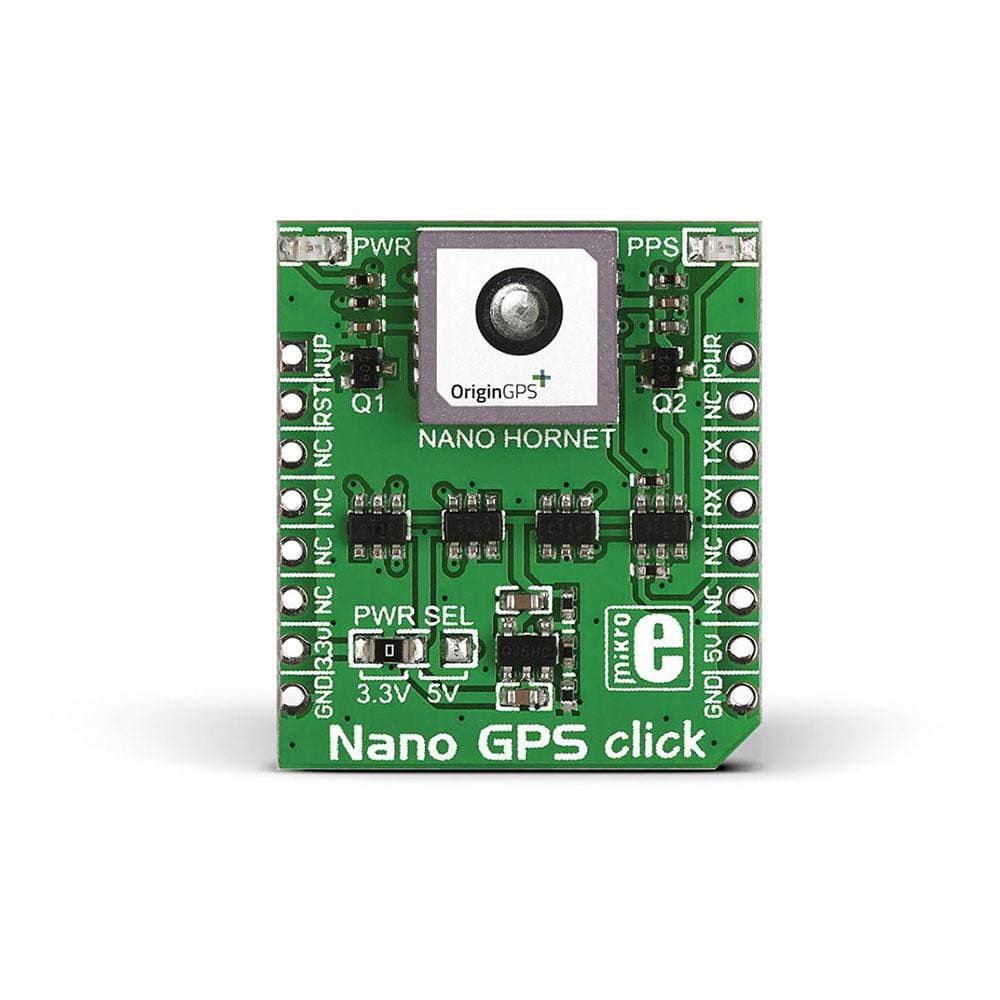

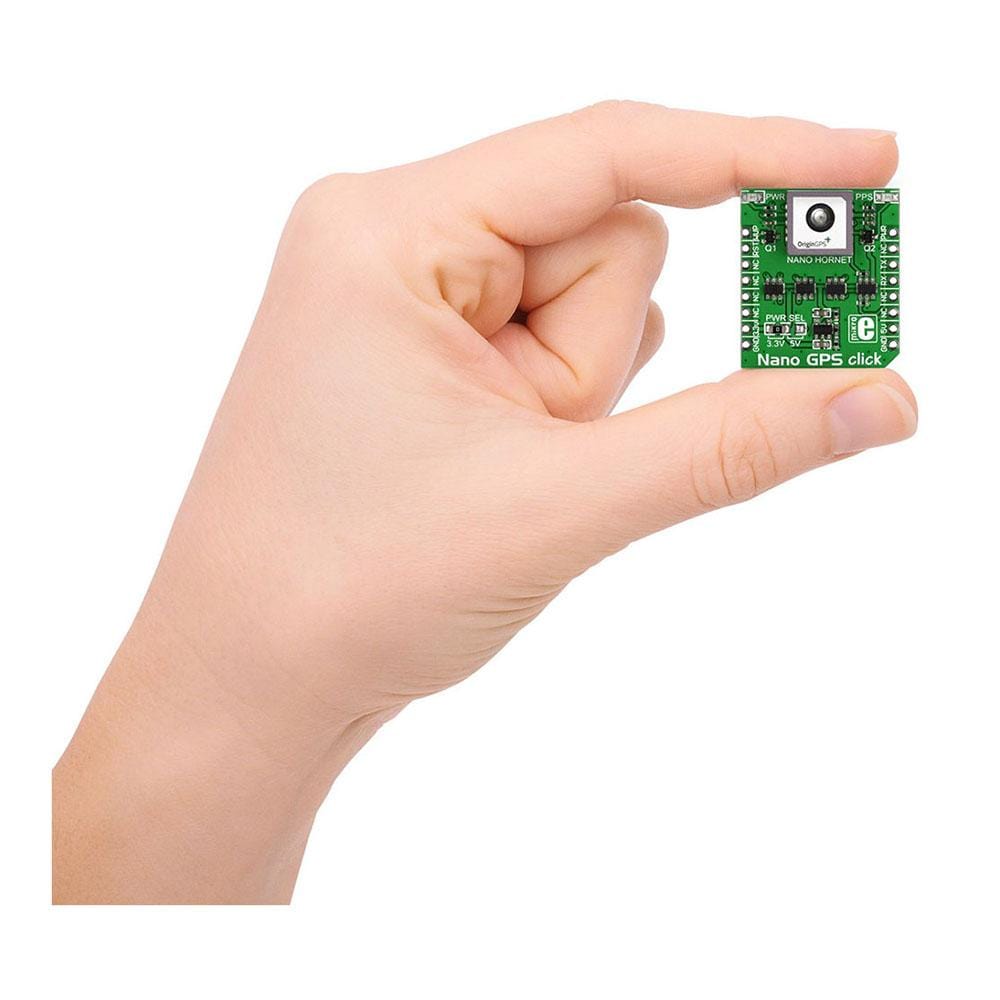

The Nano GPS Click Board™ carries the Nano Hornet module from OriginGPS. It's the smallest GPS module with an integrated patch antenna (measuring just 10x10x3.8mm).

Videos

Nano GPS Click Example

MikroElektronika · 0:40 · 2015

Video notes

Nano GPS Click carries the Origin GPS Nano Hornet (ORG1411) module with an integrated patch antenna. MikroE shows the board running its example code.

Videos are hosted on YouTube and load only when you press play.

IC/Module: Nano Hornet module from OriginGPS

Nano Hornet is an optimised receiver and patch antenna combination, offered in a small footprint. Inclusion of OriginGPSs proprietary NFZ technology, the Hornet module offers absolute frequency stability, enhanced noise immunity, and superior sensitivity, even under marginal signal conditions.

Great Performance, Small Size

Nano GPS Click Board™ features outstanding sensitivity and performance with an accuracy approximate to 1 meter, tracking sensitivity down to -163dBm, and achieve rapid TTFF in less than 1 second.

Communication with target MCU

Nano GPS Click Board™ uses the UART interface (TX, RX) for the main communication with the target board. The additional pins, including Wake Up (indicates powerstate), Reset, and PWR lines, are in place of default mikroBUS AN, RST, and PWM pins, respectively to provide additional functionality to the design.

Ordering information
Part number (SKU)MIKROE-1912
ManufacturerMikroelektronika d.o.o.
EAN8606015077697
Warranty12 months
Shipping weight0.026 kg
  • 1 × Nano GPS Click Board™

Contact us to confirm the full contents of the box.
