ccRF 2 Click Board™
ccRF 2 Click Board™
SKU: MIKROE-1716
Couldn't load pickup availability
Overview

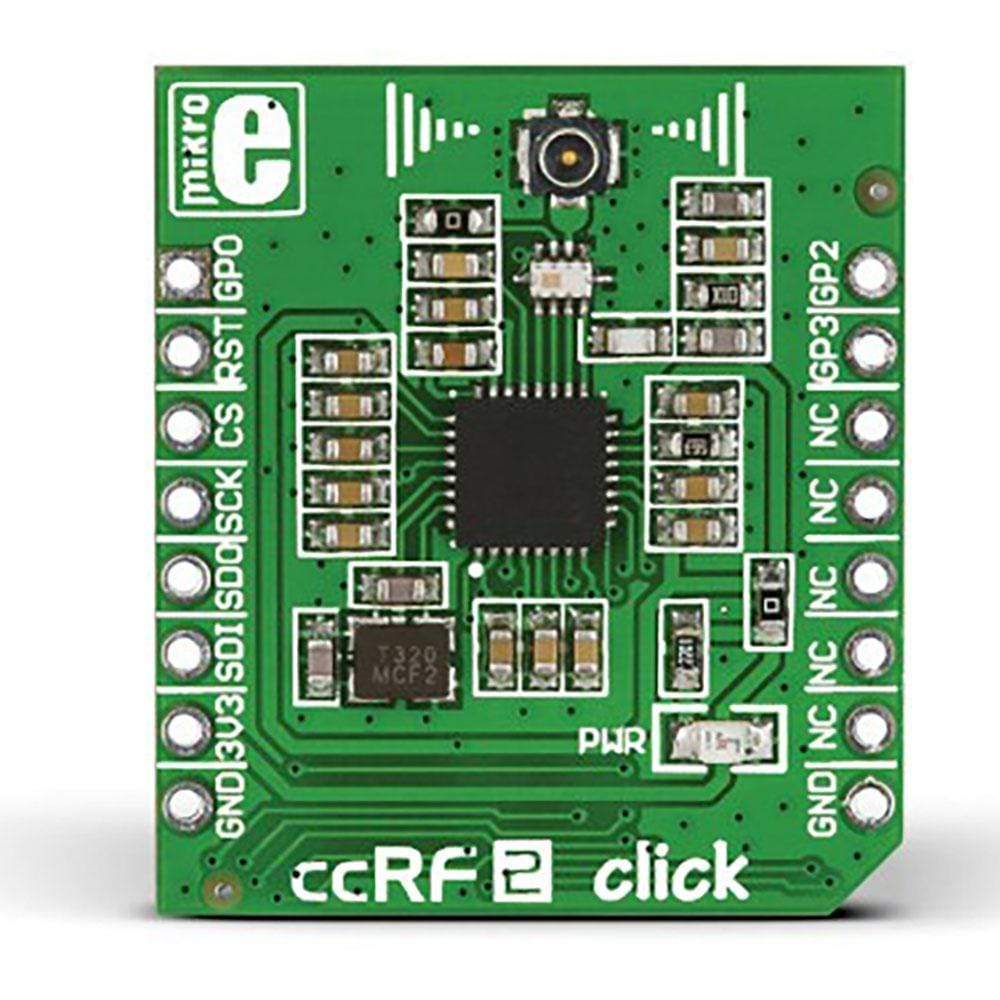

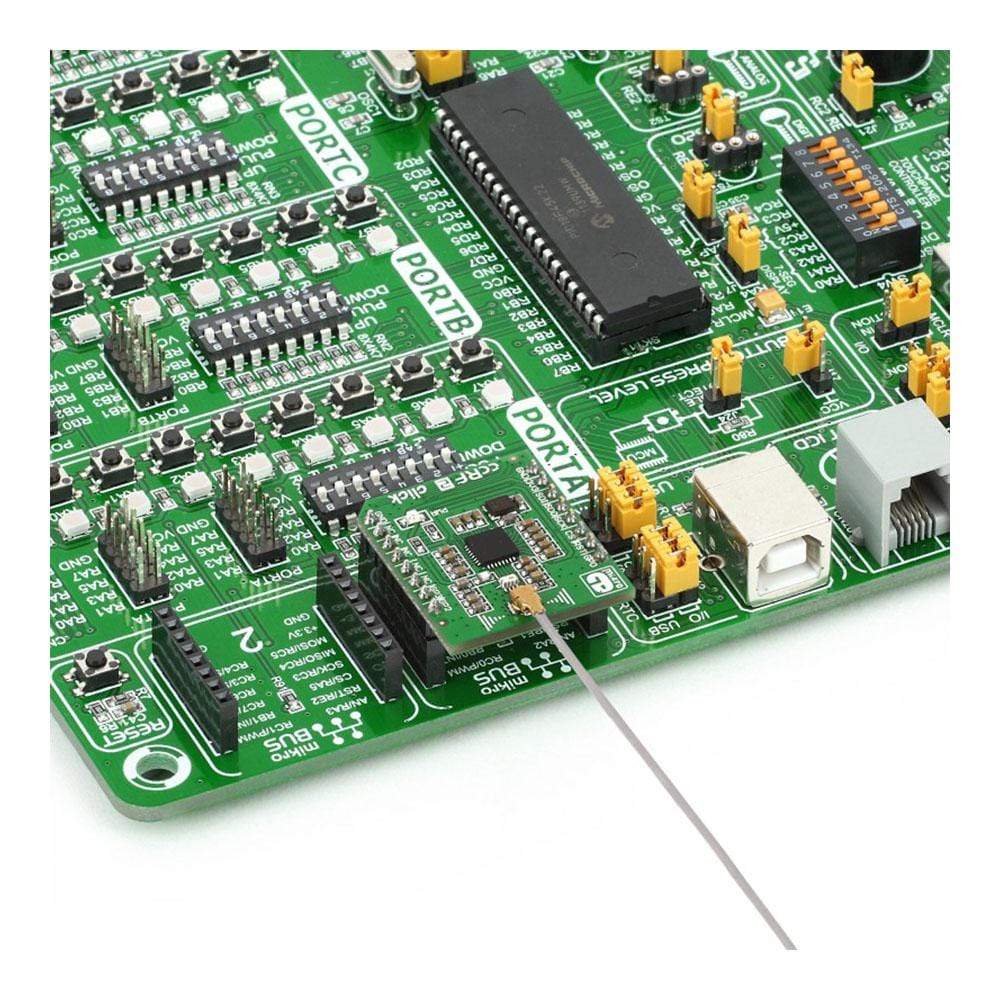

The ccRF 2 Click Board™ from MikroE is a simple and compact solution to add a high-performance RF transceiver to your design. This add-on board features an onboard CC1120 high-performance single-chip radio transceiver that is specifically designed for low-power and low-voltage operation.

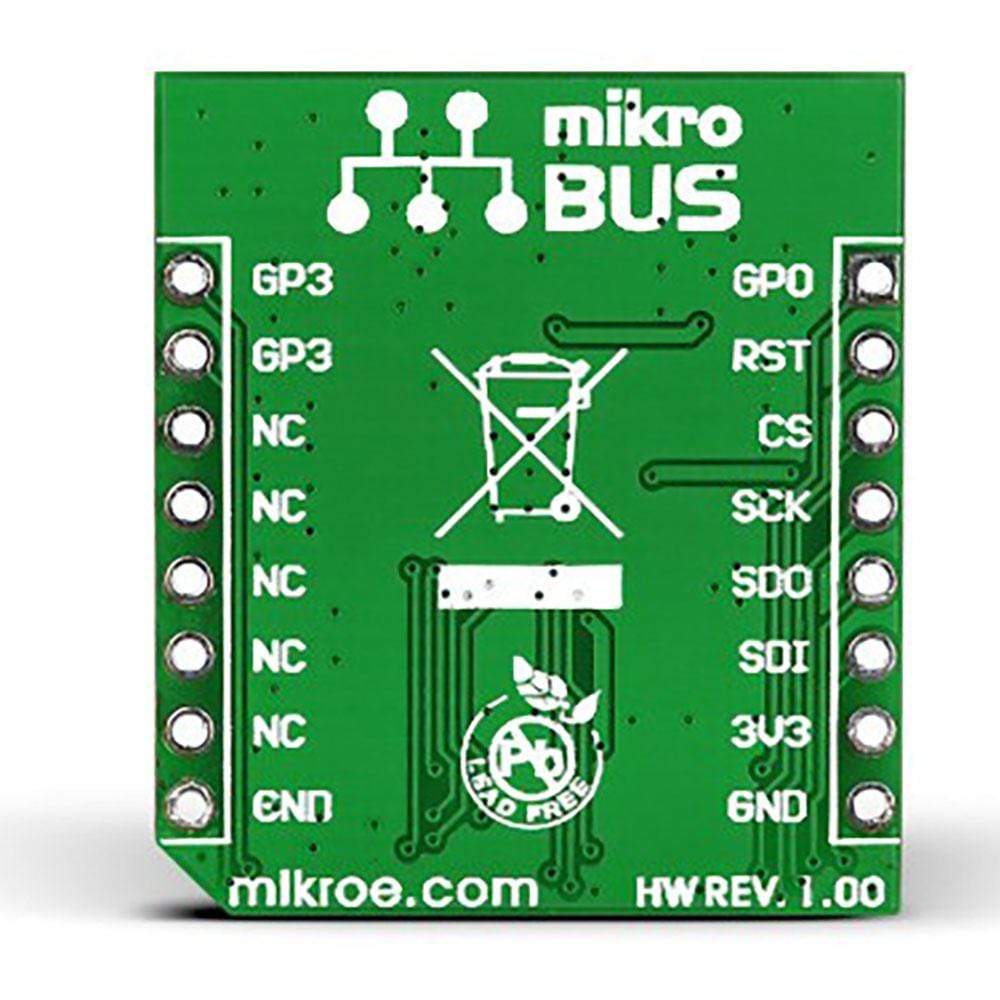

The RF transceiver is chiefly designed to support narrow ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands. This fully integrated CC1120 radio transceiver is designed to provide extensive hardware support for a range of applications, including data buffering, burst transmissions, link quality indication, wake-on-radio, clear channel assessment, and packet handling. The board has an N.FL connector and uses a 3.3V power supply only. Furthermore, the ccRF2 Click Board™ has exceptional RF sensitivity. It communicates with the target board through MikroBUS SPI (MISO, MOSI, CSK), and AN, RST, CS, PWM and INT lines.
The ccRF 2 Click Board™ makes an ideal choice for wireless communication in the home and building automation, as well as industrial monitoring and control.
IC/Module: CC1120
The Texas Instruments CC1120 is a high-performance single-chip transceiver with excellent receiver sensitivity (123 dBm at 1.2 kbps, 108 dBm at 50 kbps). This IC is specifically designed for exceptional performance at very low-power and low-voltage operation in cost-effective wireless systems. All the filters are integrated, thus removing the need for costly external SAW and IF filters.
Narrow ISM and SRD Frequency Bands
ccRF2 Click Board™, featuring low-power highly integrated CC1120 Sub 1 GHz transceiver, is primarily designed to support multiple narrow ISM and SRD frequency bands at 164,.
| Overview | |
|---|---|
| Category | Sub-1 GHz Transceievers, ccRF |
| Applications | Home and Building Automation, Industiral monitoring and control, wireless metering and so on |
| Key components | |
| On-board modules | CC1120 single-chip radio transceiver |
| Features | |
| Key features | Chip is designed chiefly for for ISM and SRD frequency bands |
| Interfaces | |
| Interface | GPIO, SPI |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1716 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015077475 |
| Warranty | 12 months |
| Shipping weight | 0.02 kg |
-
1 ×
ccRF 2 Click Board™
Contact us to confirm the full contents of the box.
