Mikroelektronika d.o.o.

BLE P Click Board™

BLE P Click Board™

SKU: MIKROE-1597

Regular price
€37,95 EUR exc tax
Regular price Sale price
€37,95 EUR exc tax
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

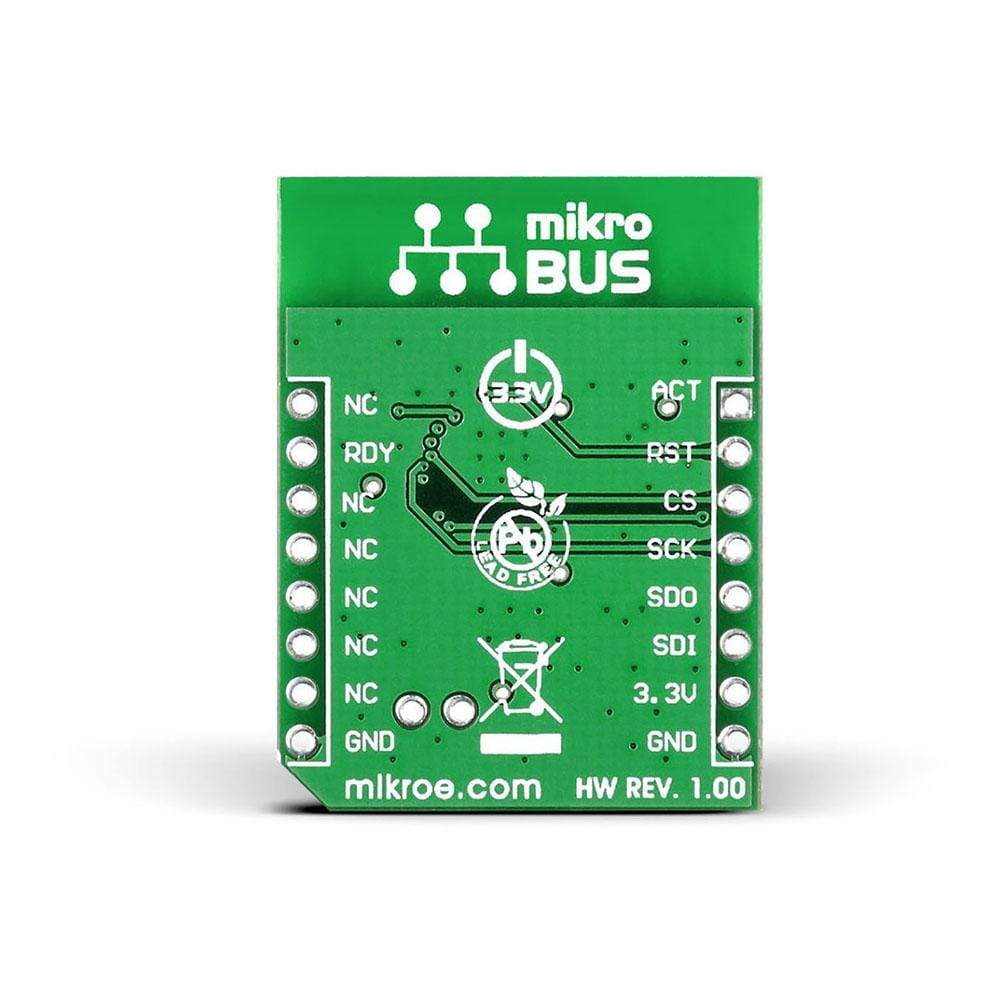

The BLE P Click Board™ carries the nRF8001 IC that allows you to add Bluetooth 4.0 to your device. The click communicates with the target board MCU through mikroBUS™ SPI (CS, SCK, MISO, MOSI), RDY and ACT lines, and runs on a 3.3V power supply.

Videos

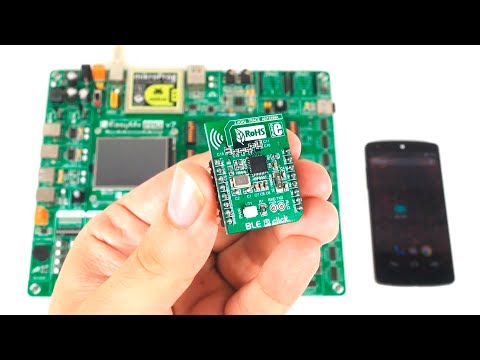

BLE P Click: Android Remote Control of EasyMx PRO for STM32

MikroElektronika · 1:32 · 2014

Video notes

BLE P Click is a Bluetooth Low Energy board for peripheral mode. MikroE shows an Android app controlling an EasyMx PRO for STM32 board through it.

Videos are hosted on YouTube and load only when you press play.

Key Features

  • nRF8001 Bluetooth low energy RF transceiver
    • 16 MHz crystal oscillator
    • Ultra-low peak current consumption <14 mA
    • Low current for connection oriented profiles, typically 2 μA
  • PCB trace antenna
  • BLE Android app
  • Interface: SPI
  • 3.3V power supply

IC/Module: nRF8001 Single Chip Bluetooth Low Energy IC

nRF8001, a highly integrated Bluetooth Smart Connectivity IC, has a simple serial interface that supports a wide range of external application microcontrollers. It is designed with a fully compliant Bluetooth Smart v4.0 Radio, Link Layer, and Host stack. With low-power consumption, it is specifically designed for Bluetooth Smart applications that operate in the peripheral (slave) role.

BLE Android App

An open-source android app has been developed that works on all devices with hardware and software support for BLE. The users can use this app as a starting point for developing their own apps.

Embedded Stack

The stack aboard the BLE P Click Board™ has a low energy PHY layer, low energy link layer slave, low energy host for devices in the peripheral role and an Application Controller Interface (ACI).

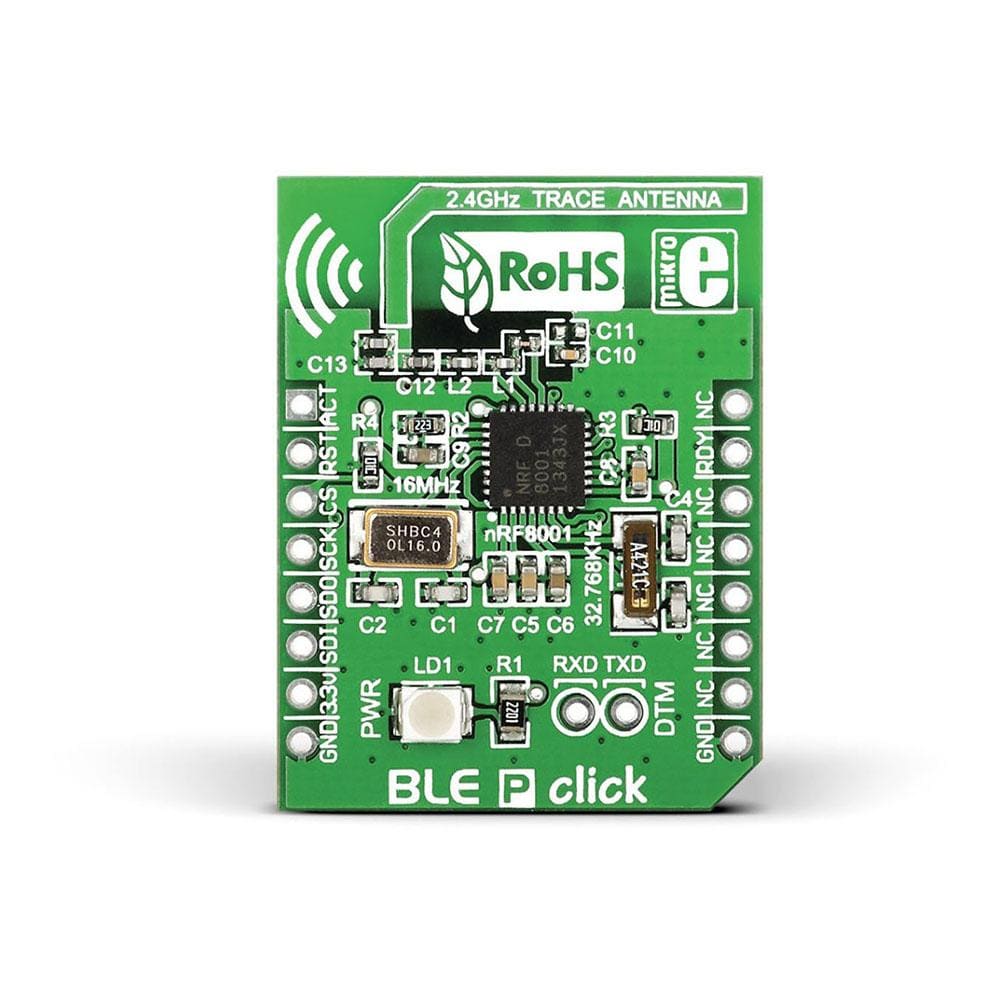

PCB trace antenna

BLE P Click Board™ features a PCB trace antenna that works in 2400-2483.5 MHz frequency band. It has a maximum device range up to 40 meters in open space.

Overview
CategoryBT/BLE
ApplicationsDeveloping smart devices requiring a Bluetooth Low Energy device in a peripheral role (sport and fitness gadgets, smart watches, proximity sensors...)
Key components
On-board modulesnRF8001 IC for adding a Bluetooth 4.0
Features
Key featuresAdditional UART input and output pins (RXD and TXD) serve as a Direct Test Mode Interface
Interfaces
InterfaceSPI, GPIO

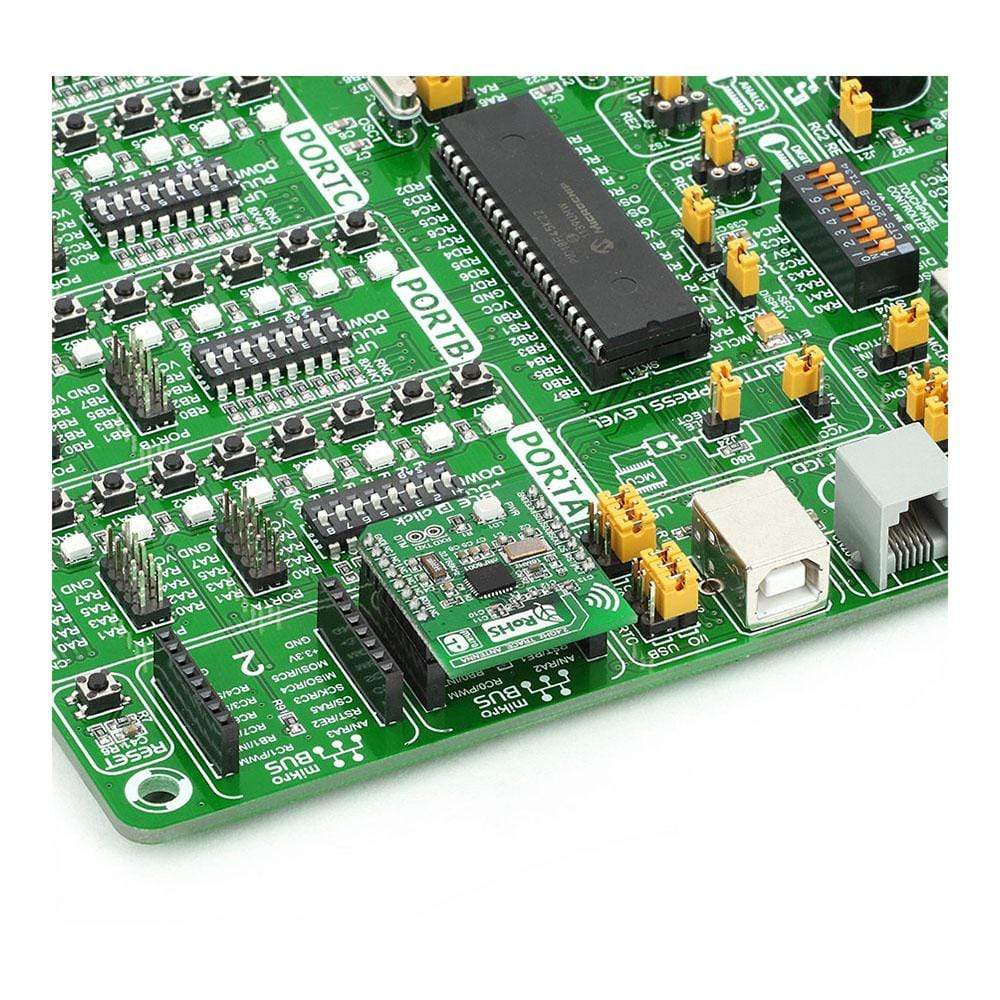

CompatibilitymikroBUS™
Electrical
Input voltage3.3V
Physical
Click board sizeS (28.6 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1597
ManufacturerMikroelektronika d.o.o.
EAN8606015075273
Warranty12 months
Shipping weight0.03 kg
  • 1 × BLE P Click Board™

Contact us to confirm the full contents of the box.
