Trust M Click Board
Trust M Click Board
Verfügbarkeit für Abholungen konnte nicht geladen werden

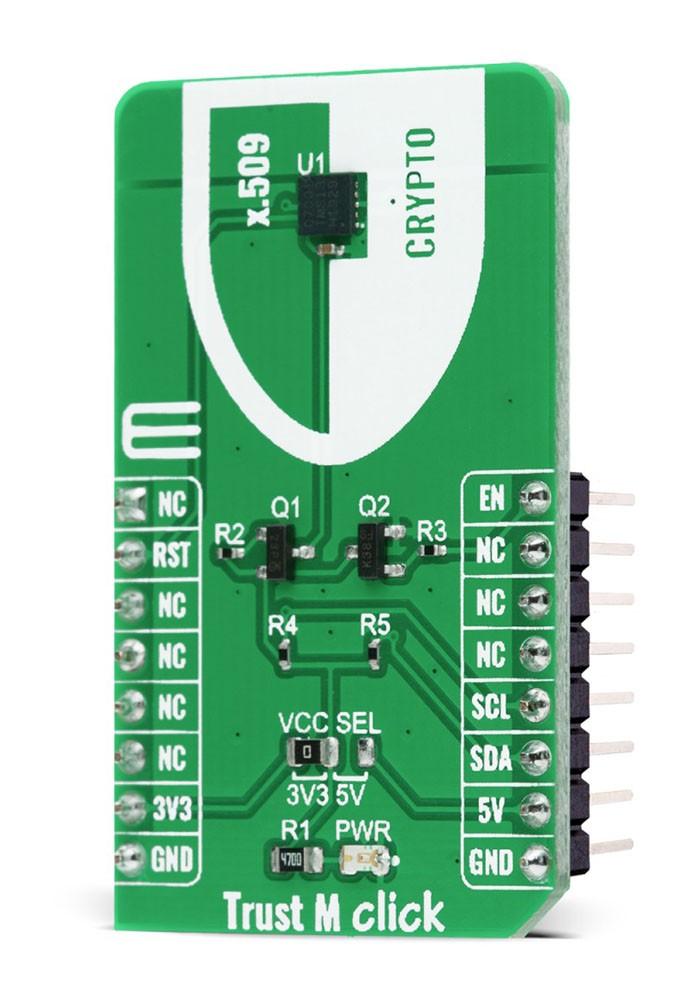

Das Trust M Click Board™ ist eine Trust Anchor-Zusatzkarte für erweiterte Sicherheit kombiniert mit hoher Leistung für verbundene Geräte, die individuelle Anforderungen im Bereich eingebetteter Authentifizierung, Markenschutz und weiterer Sicherheitsanwendungen erfüllen. Sie basiert auf dem High-End-Sicherheitscontroller SLS 32AIA010 OPTIGA™ Trust M1 von Infineon, der über einen erweiterten Sicherheitscontroller mit integriertem manipulationssicherem NVM für sichere Speicherung und symmetrische/asymmetrische Krypto-Engines verfügt. OPTIGA™ Trust M1 deckt ein breites Spektrum an Anwendungsfällen ab, die für viele Arten von Anwendungen erforderlich sind, darunter Netzwerkknotenschutz durch gegenseitige Authentifizierung wie TLS oder DTLS, Schutz der Authentizität, Integrität und Vertraulichkeit von Daten und IP, sichere Kommunikation und vieles mehr.

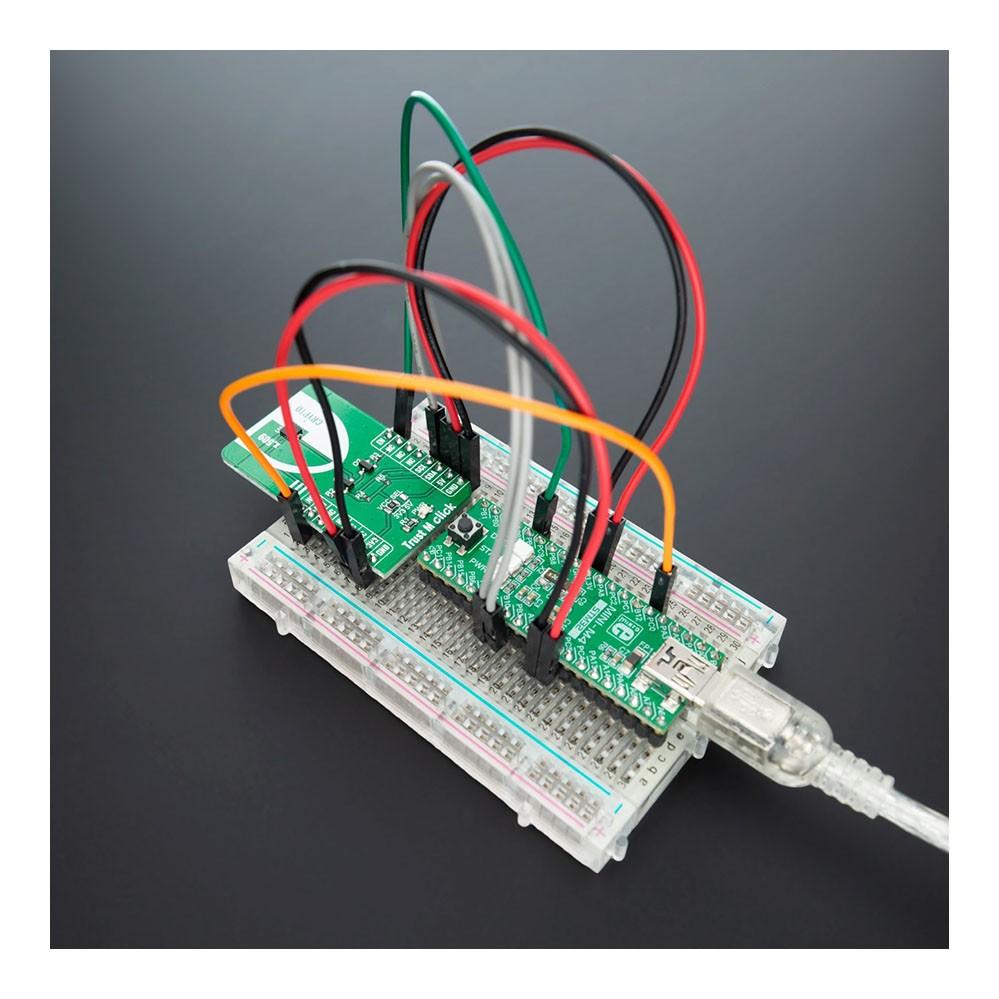

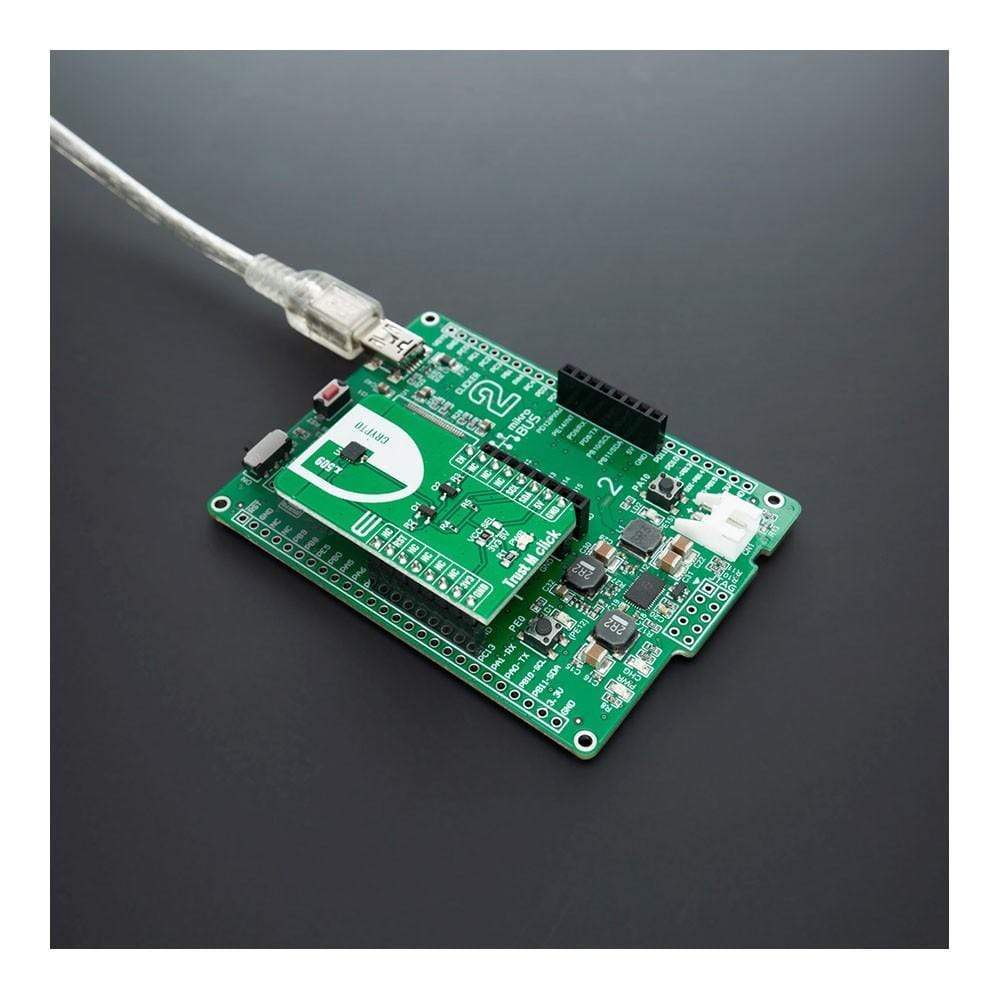

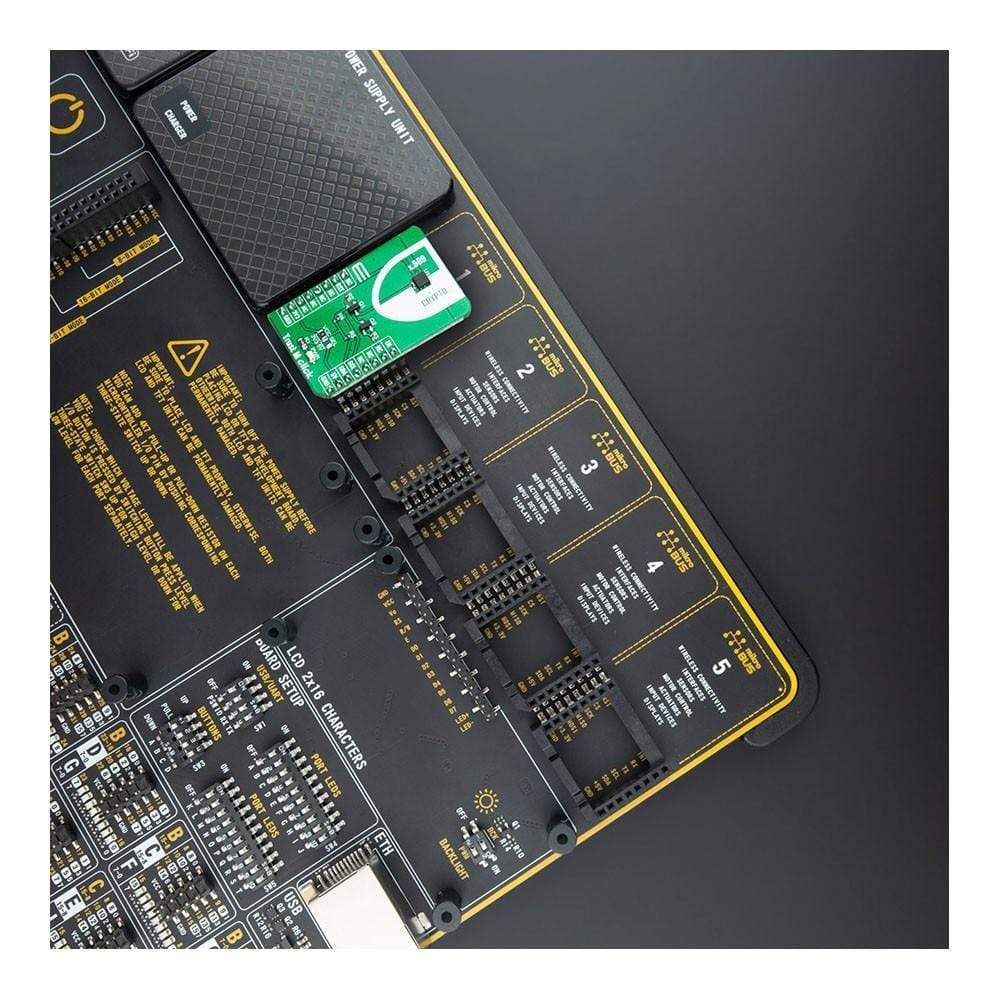

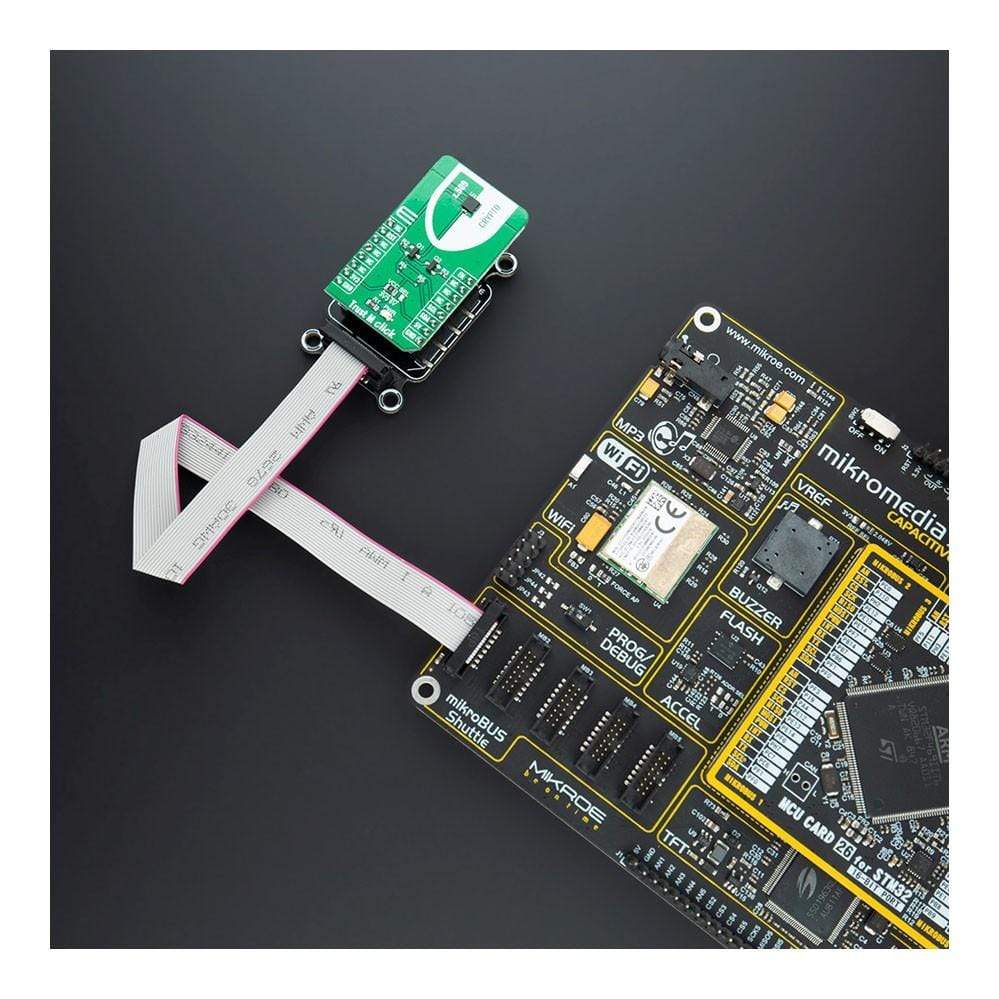

How Does The Trust M Click Board™ Work?
As embedded systems (e.g. IoT devices) are increasingly gaining the attention of attackers, the Trust M Click Board™ offers the OPTIGA™ Trust M1 from Infineon as a turnkey security solution for industrial automation systems, smart homes, consumer devices and medical devices. This high-end security controller comes with full system integration support for easy and cost-effective deployment of high-end security for your assets.
The Trust M Click Board™ comes with up to 10kB user memory that can be used to store X.509 certificates and data. OPTIGA™ Trust M1 is based on Common Criteria (CC) Certified EAL6+ (high) hardware enabling it to prevent physical attacks on the device itself and providing high assurance that the keys or arbitrary data stored cannot be accessed by an unauthorized entity.
All communication is done through I2C bus which supports a highspeed I2C communication interface of up to 1MHz (FM+). Trust M Click also features two FETs for disconnecting/connecting power to IC using EN pin on mikroBUS™ which allows it to go to hibernation.
During chip production, unique asymmetric keys (private and public) are generated. The public key is signed by customer specific CA and the resulting X.509 certificate issued is securely stored in the OPTIGA™ Trust M1. Special measures are taken to prevent the leakage and modification of private key material at the Common Criteria Certified production site.
All of this features available on the Trust M Click Board™ makes it perfect solution for industrial automation systems, smart homes and consumer devices in broad range of use cases necessary to protect the authenticity, integrity and confidentiality in your device: mutual authentication, secured communication, data store protection, life-cycle management, secured updates, and also platform integrity protection.
Specifications
| Type | Encryption |
| Applications | Industrial control and automation, Consumer electronics and Smart Home, Medical devices and more |
| On-board modules | SLS 32AIA010 |
| Key Features | Symmetric/Asymmetric crypto engines to support ECC 256/384, RSA® 1024/2048 and SHA-256 |
| Interface | GPIO,I2C |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

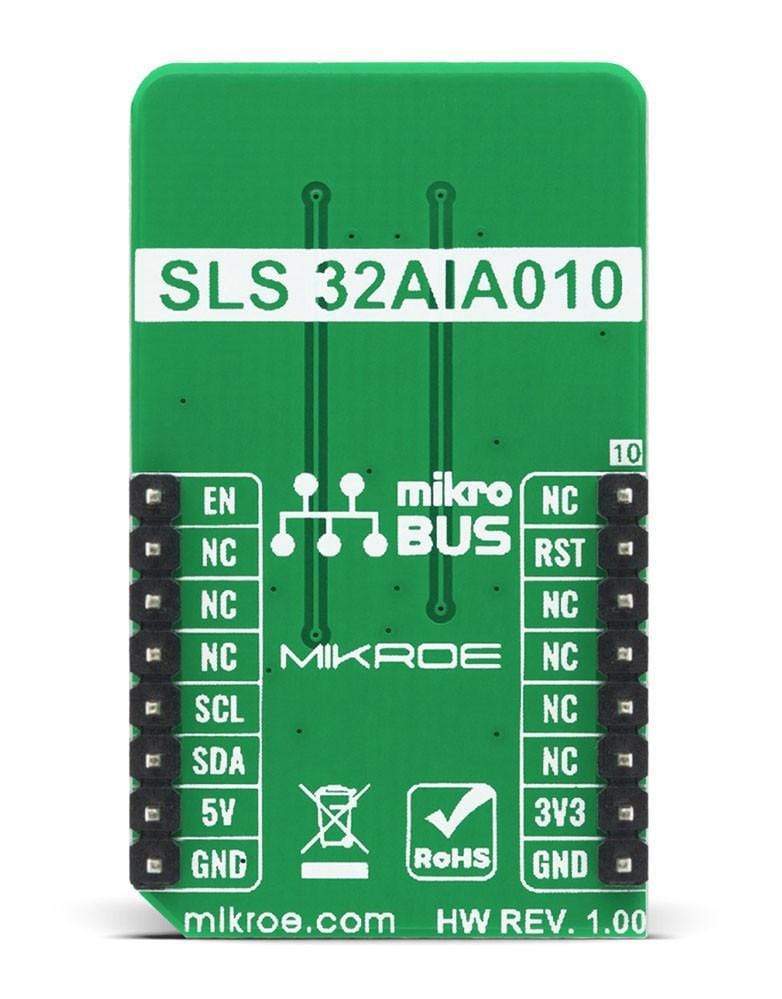

Pinout Diagram
This table shows how the pinout on the Trust M Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | EN | Enable | |
| Reset | RST | 2 | RST | INT | 15 | NC | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

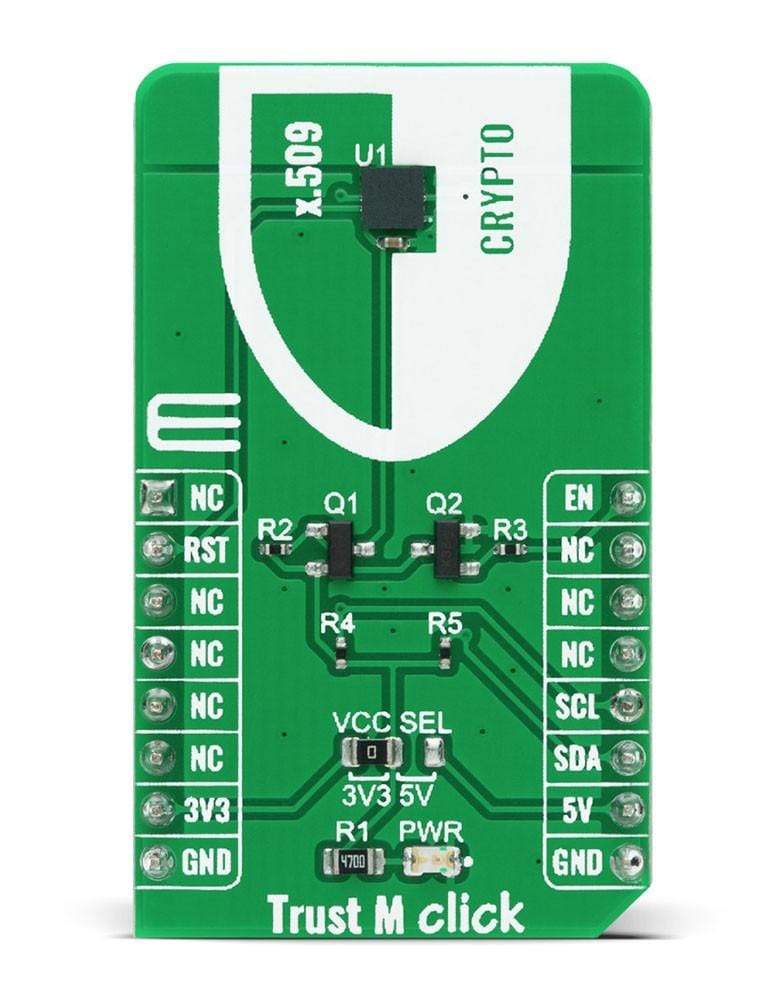

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| PWR | LD1 | - | Power LED Indicator |
| VCC SEL | JP1 | Left | Logic level voltage selection: left position 3V3, right position 5V |
Software Support
MikroElektronika does not provide software support for this Click board™ in the form of libraries, functions, or example code at this moment. The software support is provided by our development partner on this project Infineon. Please visit the Infineon Github repository to get the full software support and Command Line Interface (CLI) for Optiga Trust M device.
Software Support
MikroElektronika does not provide software support for this Click board™ in the form of libraries, functions, or example code at this moment. The software support is provided by our development partner on this project Infineon. Please visit the Infineon Github repository to get the full software support and Command Line Interface (CLI) for Optiga Trust M device.
