Overview

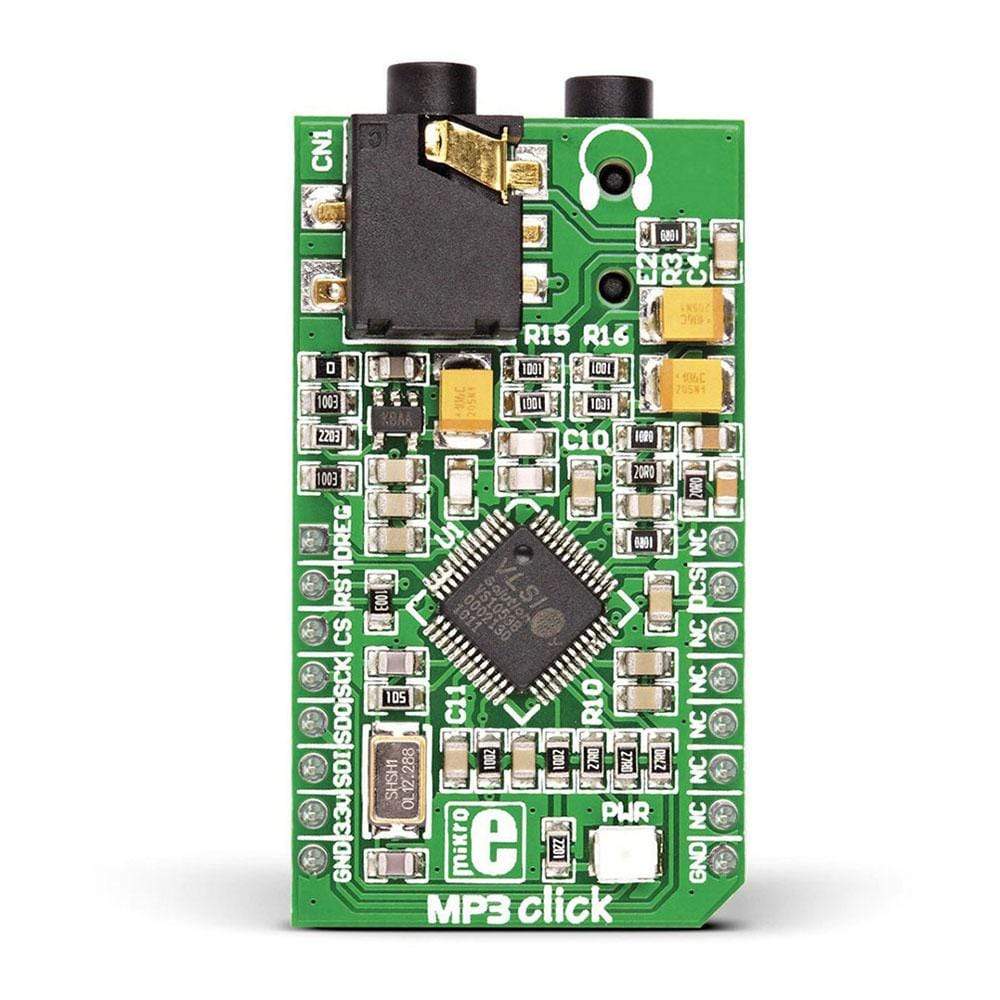

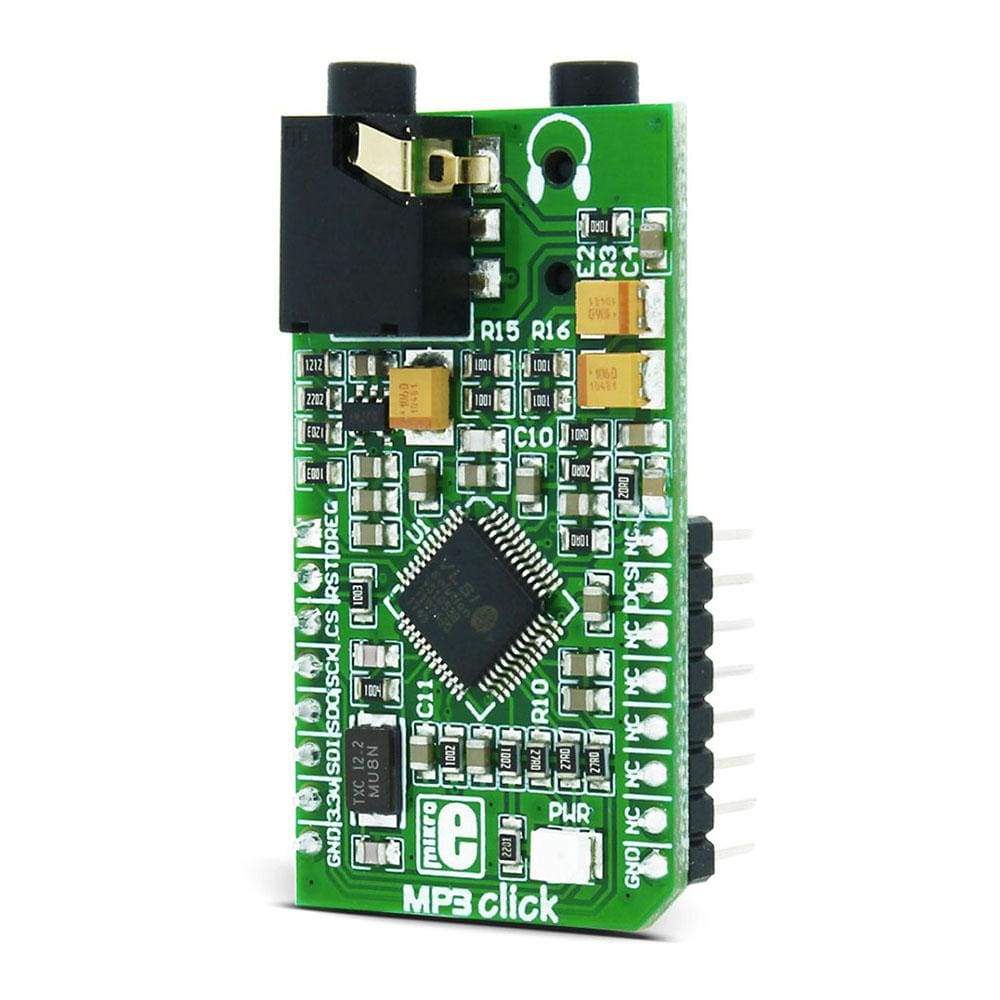

The MP3 Click Board™ is an easy and compact accessory board that incorporates a versatile VS1053 stereo MP3 decoder chip. Designed to add an MP3 feature, the VS1053 IC allows the user to decode all the commonly used formats (including the new AAC format). The formats include Ogg Vorbis, MP3, MP1, MP2, MPEG4, WMA, FLAC, WAW, and MIDI. It also allows encoding of three different formats (Ogg Vorbis, IMA ADPCM, 16-bit PCM) from microphone line-in mono or stereo. MP3 Click Board™ utilize the industry-standard SPI line for communication with the target board microcontroller. This Click Board™ also includes stereo headphone and microphone audio connectors. It is designed to use a 3.3V power supply only.
The MP3 Click Board™ is an easy-to-use, powerful workhorse for audio playback and recording applications, including MP3 players, audio signalization devices, voice recorders, and many more.
Das MP3 Click Board™ ist eine einfache und kompakte Zubehörplatine, die einen vielseitigen VS1053 Stereo-MP3-Decoderchip enthält. Der VS1053 IC wurde entwickelt, um eine MP3-Funktion hinzuzufügen und ermöglicht dem Benutzer, alle häufig verwendeten Formate (einschließlich des neuen AAC-Formats) zu dekodieren. Die Formate umfassen Ogg Vorbis, MP3, MP1, MP2, MPEG4, WMA, FLAC, WAW und MIDI. Es ermöglicht auch die Kodierung von drei verschiedenen Formaten (Ogg Vorbis, IMA ADPCM, 16-Bit-PCM) vom Mikrofon-Line-In Mono oder Stereo. MP3 Click Board™ verwendet die Industriestandard-SPI-Leitung für die Kommunikation mit dem Zielplatinen-Mikrocontroller. Dieses Click Board™ enthält auch Stereo-Kopfhörer- und Mikrofon-Audioanschlüsse. Es ist nur für die Verwendung einer 3,3-V-Stromversorgung ausgelegt.
Das MP3 Click Board™ ist ein benutzerfreundliches, leistungsstarkes Arbeitsgerät für Audiowiedergabe- und -aufzeichnungsanwendungen, einschließlich MP3-Player, Audiosignalisierungsgeräte, Sprachrekorder und vieles mehr.
| Overview | |
|---|---|
| Category | MP3 |
| Applications | MP3 click is ideal for creating MP3 players, audio signalization devices, voice recorders and other devices. |
| Key components | |
| On-board modules | Stereo MP3 decoder chip VS1053 |
| Features | |
| Key features | High-quality on-chip stereo DAC with no phase error between channels; Streaming support for MP3 and WAV; Zero-cross detection for smooth volume change |
| Interfaces | |
| Interface | SPI, GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V |
| Physical | |
| Click board size | M (42.9 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-946 |
| Manufacturer | Mikroelektronika doo |
| EAN | 8606015073309 |
| Warranty | 12 Monate |
| Shipping weight | 0.03 kg |
-
1 ×
MP3-Click-Platine
Contact us to confirm the full contents of the box.
