Overview
Das Thermo 26 Click Board™ ist eine kompakte Zusatzplatine, die die Temperatur genau misst. Diese Platine verfügt über den STS31-DIS, einen hochpräzisen digitalen Temperatursensor von Sensirion. Der STS31-DIS zeichnet sich durch seine hohe Genauigkeit (typischerweise bis zu ±0,2 °C) und hohe Auflösung von 0,01 °C aus und liefert Temperaturdaten an den Host-Controller mit einer konfigurierbaren I2C-Schnittstelle. Es basiert auf der branchenerprobten CMOSens®-Technologie und bietet erhöhte Intelligenz, Zuverlässigkeit und verbesserte Genauigkeitsspezifikationen, einschließlich verbesserter Signalverarbeitung, benutzerdefinierter I2C-Adressen und Kommunikationsgeschwindigkeiten von bis zu 1 MHz. Dieses Click Board™ ist für das Wärmemanagement verschiedener Verbraucher-, Industrie- und Umweltanwendungen geeignet.
Das Thermo 26 Click Board™ wird von einer mikroSDK-kompatiblen Bibliothek unterstützt, die Funktionen enthält, die die Softwareentwicklung vereinfachen. Dieses Click Board™ ist ein gründlich getestetes Produkt und kann auf einem System verwendet werden, das mit der mikroBUS™-Buchse ausgestattet ist.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-5384
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.02 kg
|
| Other | |
Country of Origin |
|
HS Code Customs Tariff code
|
|
EAN |
8606027386916
|
Warranty |
|

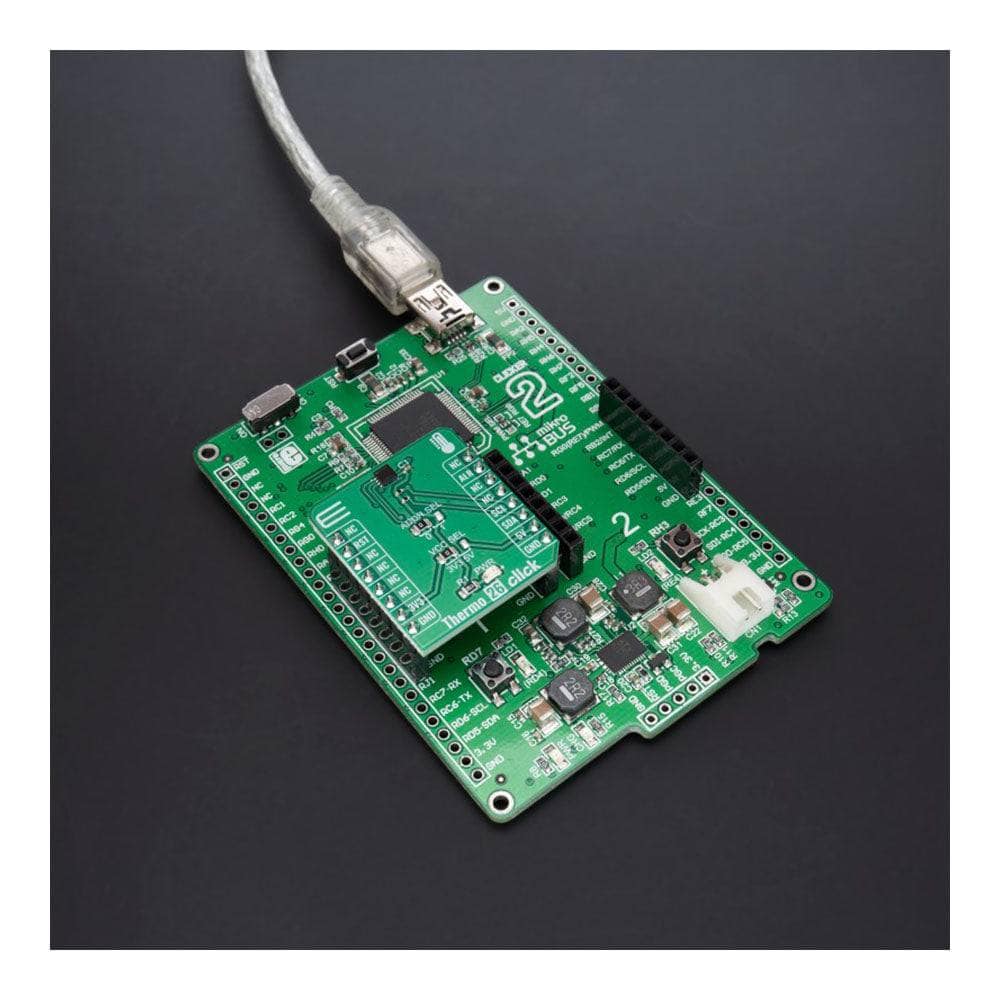

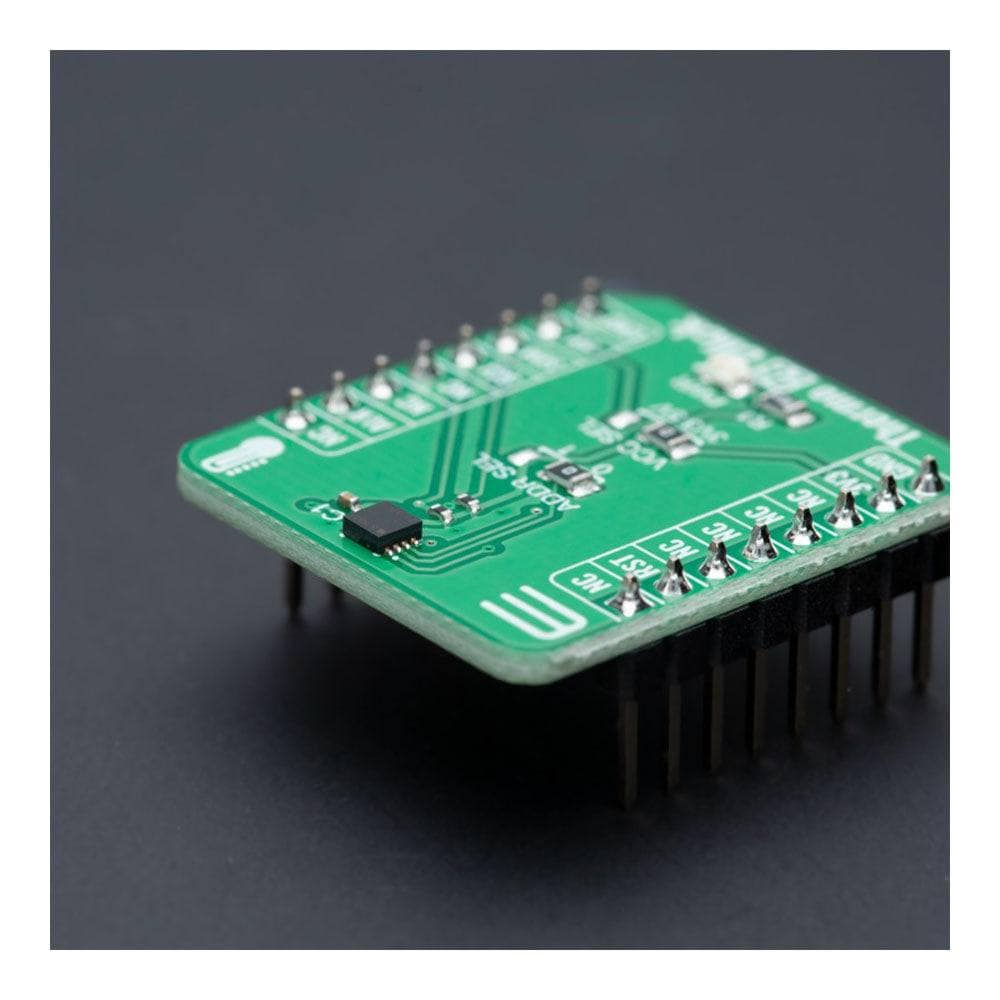

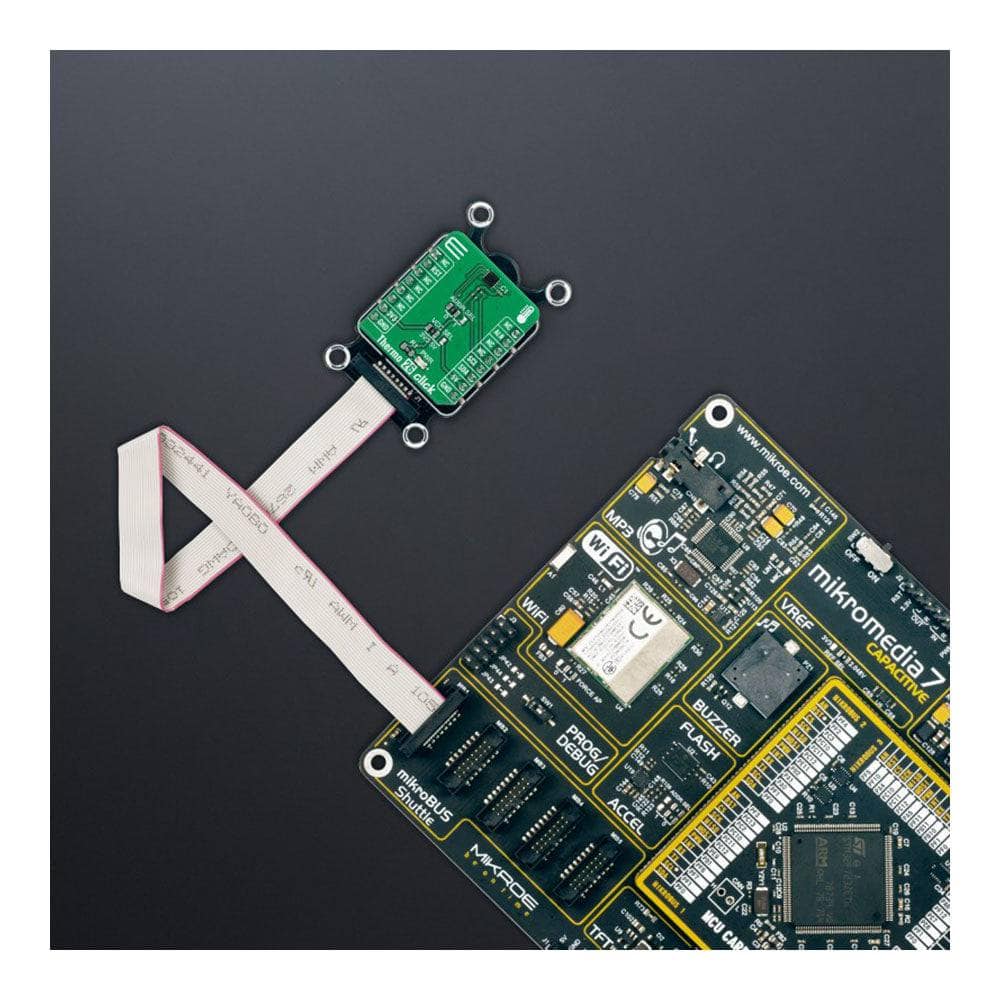

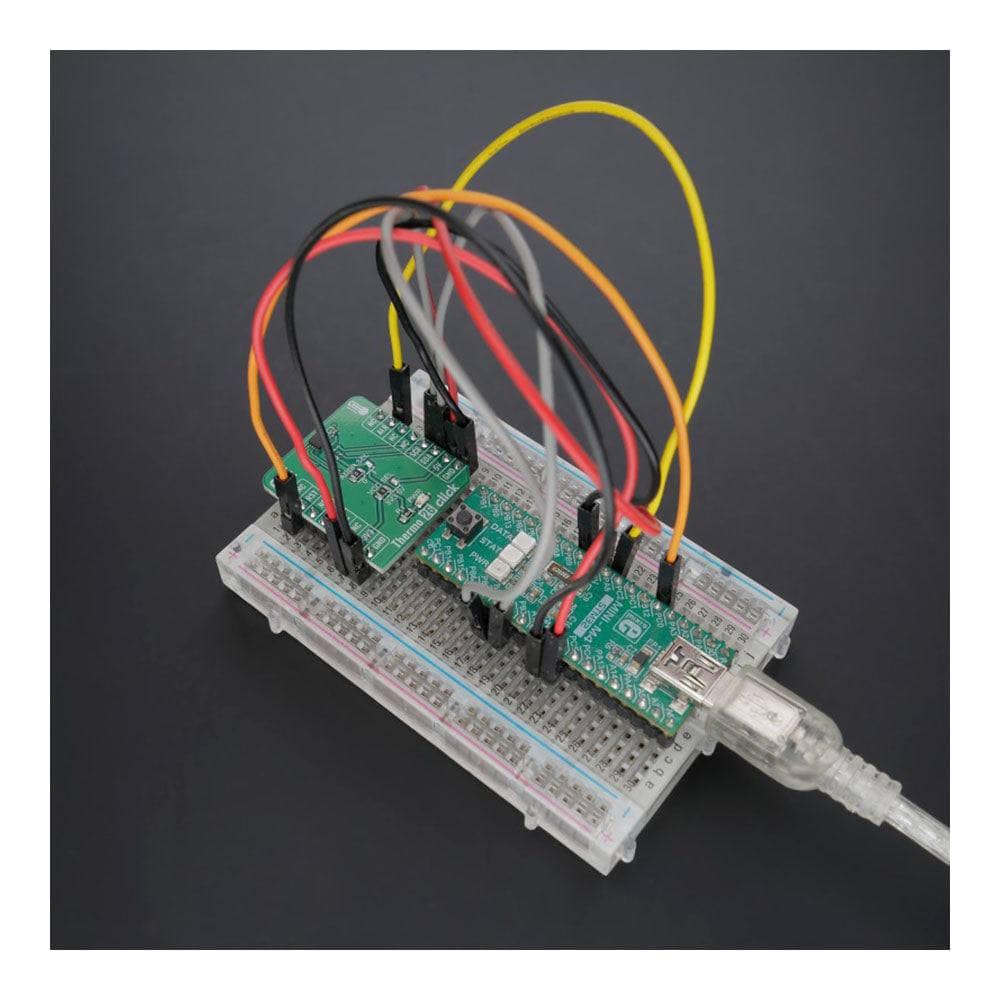

How Does The Thermo 26 Click Board™ Work?
The Thermo 26 Click Board™ is based on the STS31-DIS, a digital temperature sensor from Sensirion with increased intelligence, reliability, NIST traceability, and improved accuracy specifications utilizing the industry-proven CMOSens® Technology. It integrates a digital temperature sensor with a 16-bit analog-to-digital converter (ADC), a data processing circuit, and serial interface logic functions in one package. The voltage is digitized and converted to a 16-bit temperature result in degrees Celsius, with a resolution of 0.01°C.
The STS31-DIS temperature sensor gives a fully calibrated, linearized, and supply-voltage-compensated digital output with outstanding accuracy of up to ±0.2°C typical over a temperature range of 0°C to 90°C.
The Thermo 26 Click Board™ communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings, supporting Fast Mode Plus up to 1MHz. Besides, the STS31-DIS allows choosing the least significant bit (LSB) of its I2C slave address using the SMD jumper labelled ADDR SEL. It also possesses an additional interrupt alert signal, routed on the INT pin of the mikroBUS™ socket labelled as ALT, indicating when a specific interrupt event occurs that depends on the value of the temperature reading relative to programmable limits and general reset function routed on the RST pin of the mikroBUS™ socket.
The Thermo 26 Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Temperature & humidity |
| Applications | Can be used for the thermal management of various consumer, industrial, and environmental applications |
| On-board modules | STS31-DIS - digital temperature sensor from Sensirion |
| Key Features | Low power consumption, high precision, I2C interface, temperature sensor in the STS31-DIS is the chip itself, resolution of 0.01°C, high accuracy, high reliability and long-term stability, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

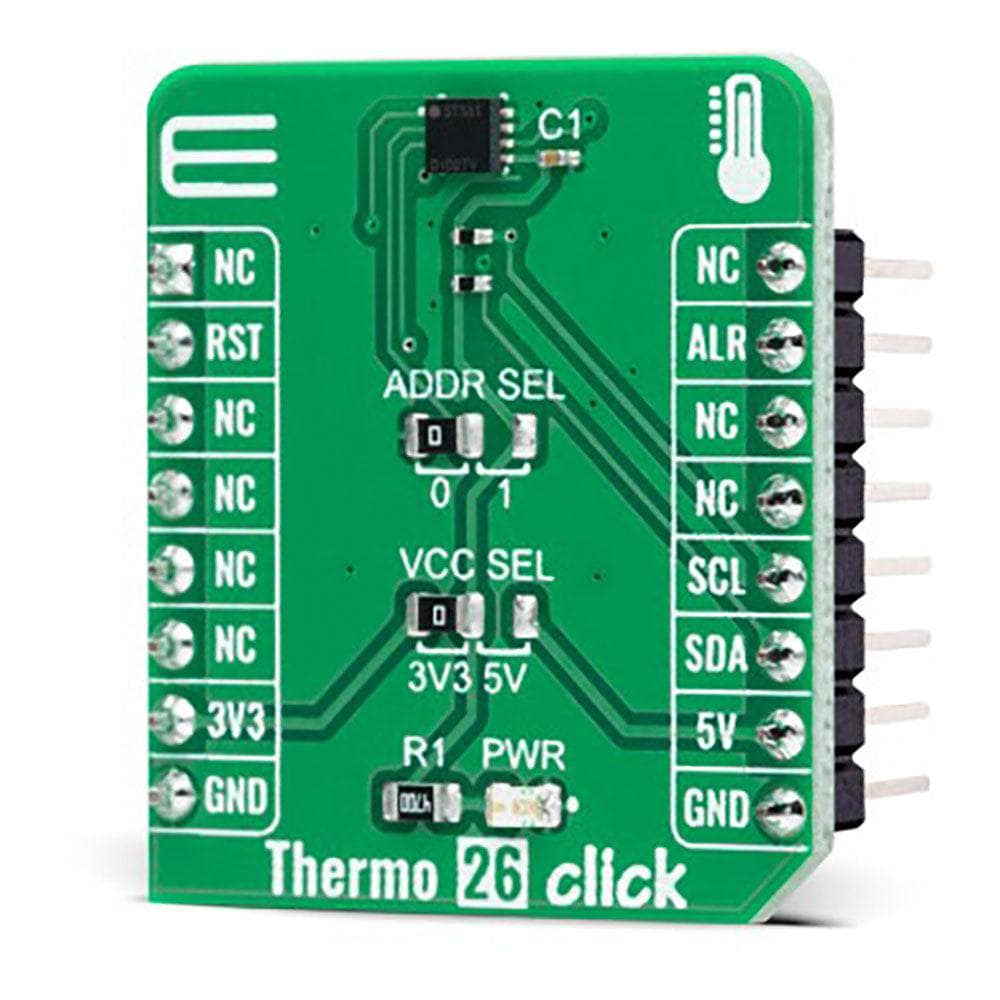

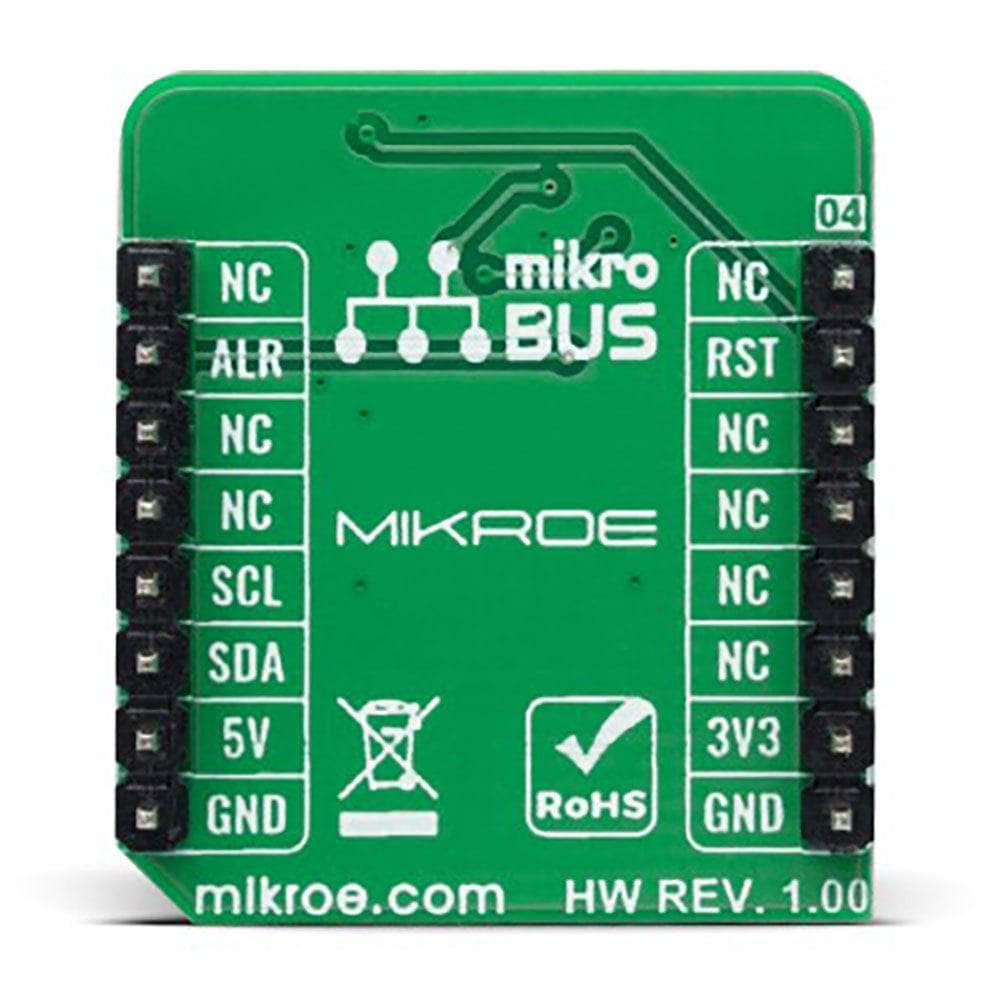

PINOUT DIAGRAM
This table shows how the pinout of the Thermo 26 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| Reset | RST | 2 | RST | INT | 15 | ALT | Alert Interrupt |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

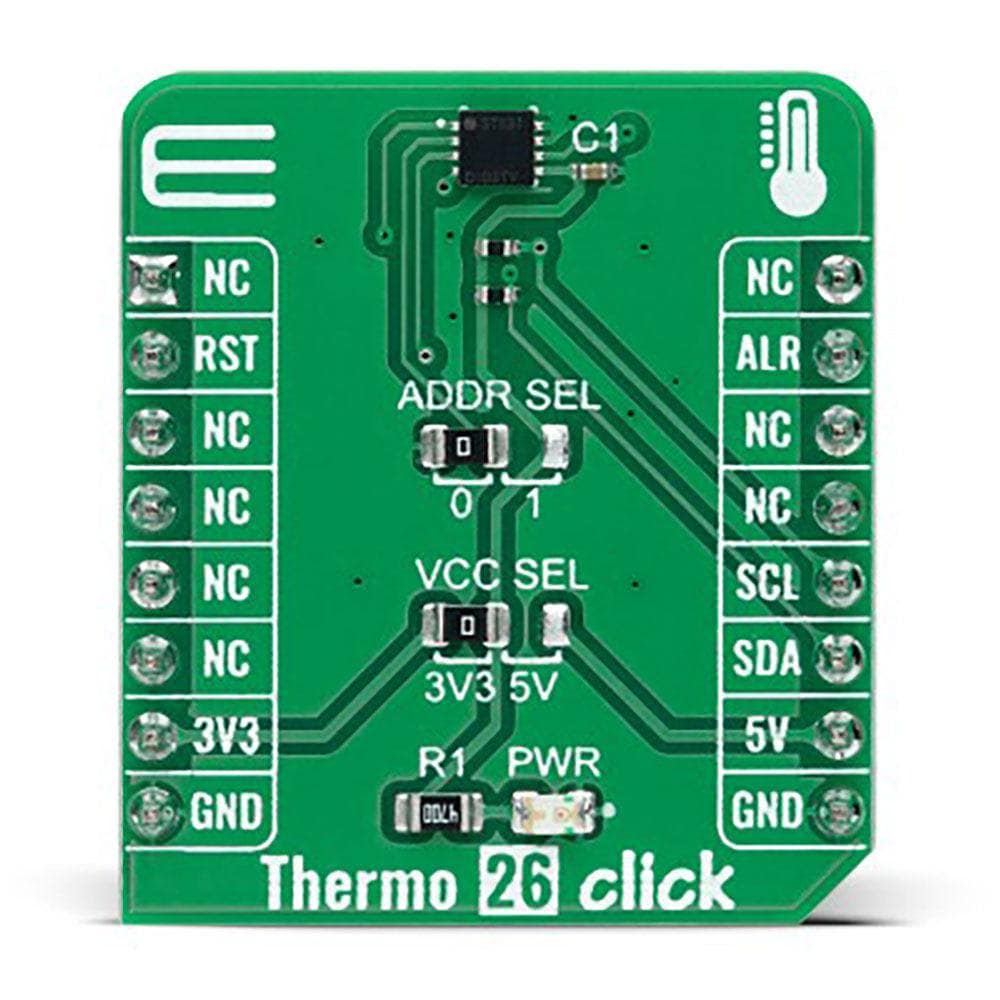

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
| JP2 | ADDR SEL | Left | I2C Address Selection 0/1: Left position 0, Right position 1 |
THERMO 26 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Temperature Accuracy | - | ±0.2 | - | °C |
| Temperature Resolution | - | 0.01 | - | °C |
| Operating Temperature Range | -40 | +25 | +125 | °C |
