Mikroelektronika d.o.o.

Rauchkammer

Rauchkammer

SKU: MIKROE-5297
Normaler Preis
£7.56 GBP ohne MwSt
Normaler Preis £10.80 GBP Verkaufspreis
£7.56 GBP ohne MwSt
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability
Vollständige Details anzeigen
} ] }

Key Features

Smoke chamber ist eine von analog devices entwickelte erweiterung

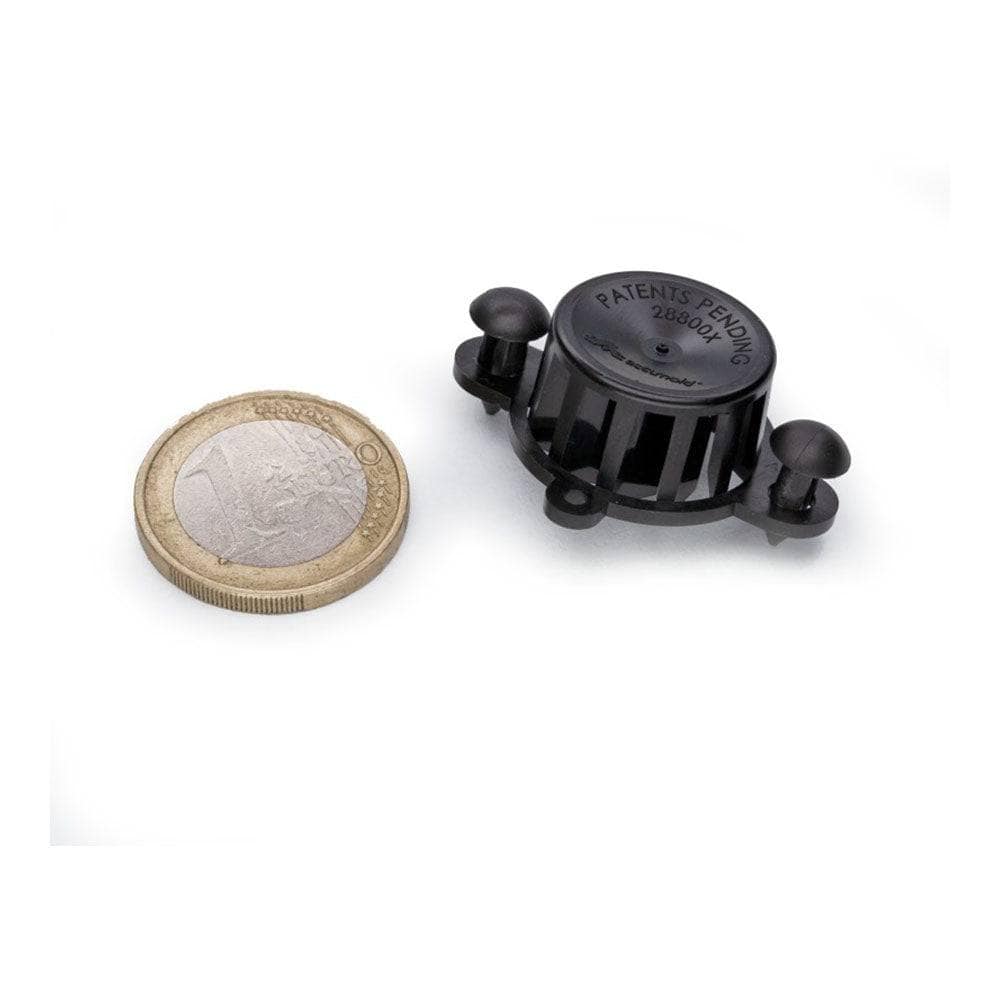

11,5 mm durchmesser

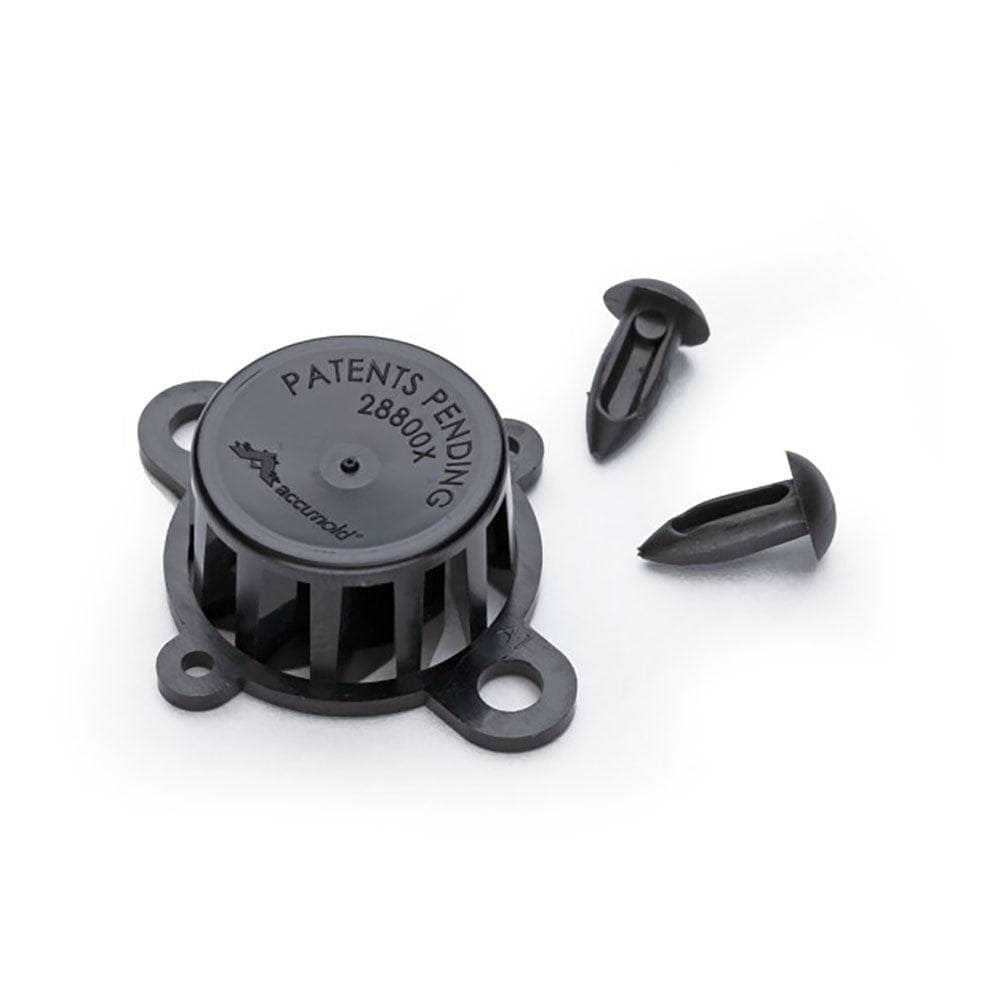

Inklusive befestigungsnieten aus kunststoff

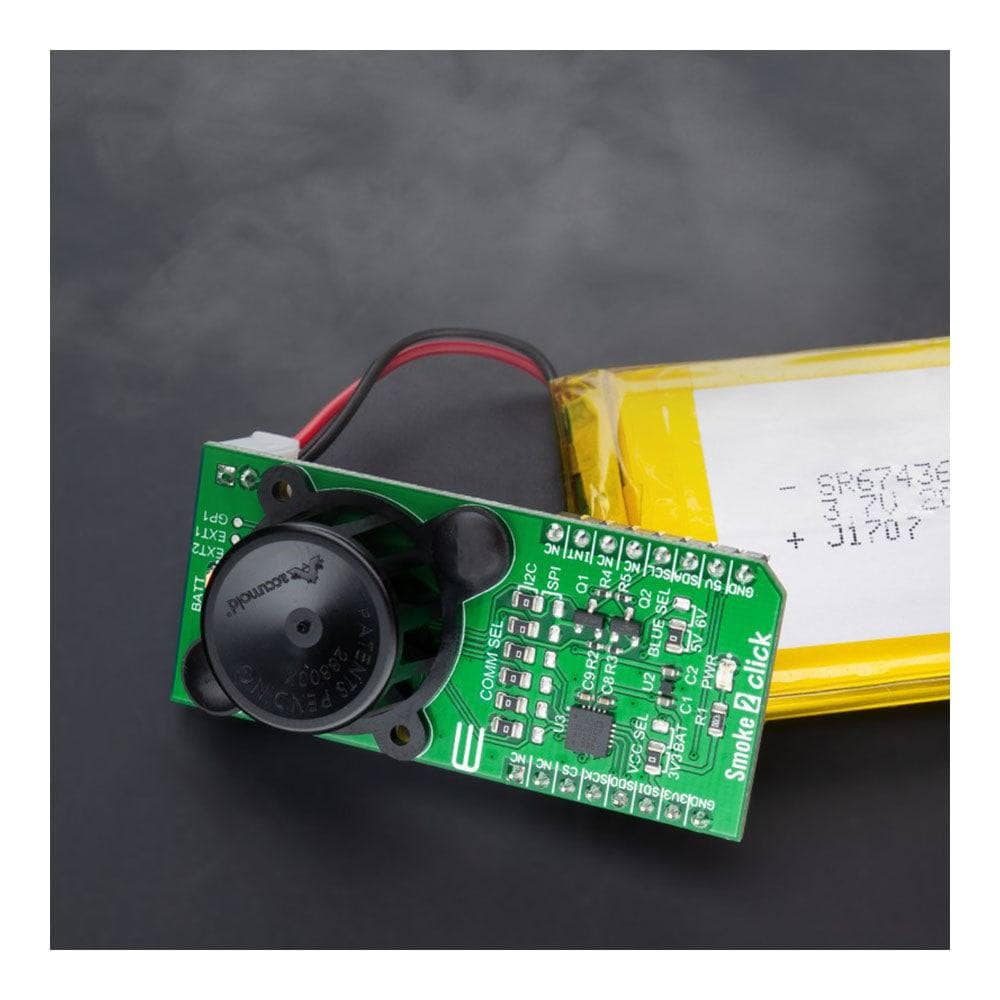

Passend für das smoke 2 click board™

Overview

Die Rauchkammer ist ein speziell von Analog Devices entwickeltes Gerät, das es Benutzern ermöglicht, Rauch- und Aerosolerkennungsanwendungen so einfach wie möglich zu gestalten. Sie verfügt über einen runden Kunststoffständer mit 11,5 mm Durchmesser und anbringbare Nieten oder selbstschneidende Schrauben für die Befestigung der Kammer an der Platte, sodass Benutzer ein genaueres Raucherkennungsgerät erstellen können.

Die Kammer ist so konzipiert, dass sie über einen Rauchmelder passt, um die Staubansammlung zu begrenzen und Insekten fernzuhalten

How Does The Smoke Chamber Work?

The Smoke Chamber is an accessory designed by Analog Devices for use alongside smoke and aerosol detection sensors. The Analog Devices smoke chamber comes with a reference design so users can create a more positive smoke detection device with better verification results straight out of the box. This solution enables designers that do not have technical expertise in the area of smoke design or the time to create and test their custom smoke chamber.

It comes in a plastic stand circular shape of 11.5mm diameter (28x15x11.5 millimetres (L x W x H)) and attachable rivets or self-tapping screws for the chamber-board attachment, which helps control the environment around the smoke sensor. In this chamber, when smoke particles enter the light path, light strikes the particles and is reflected onto the photosensitive device alerting the microcontroller.

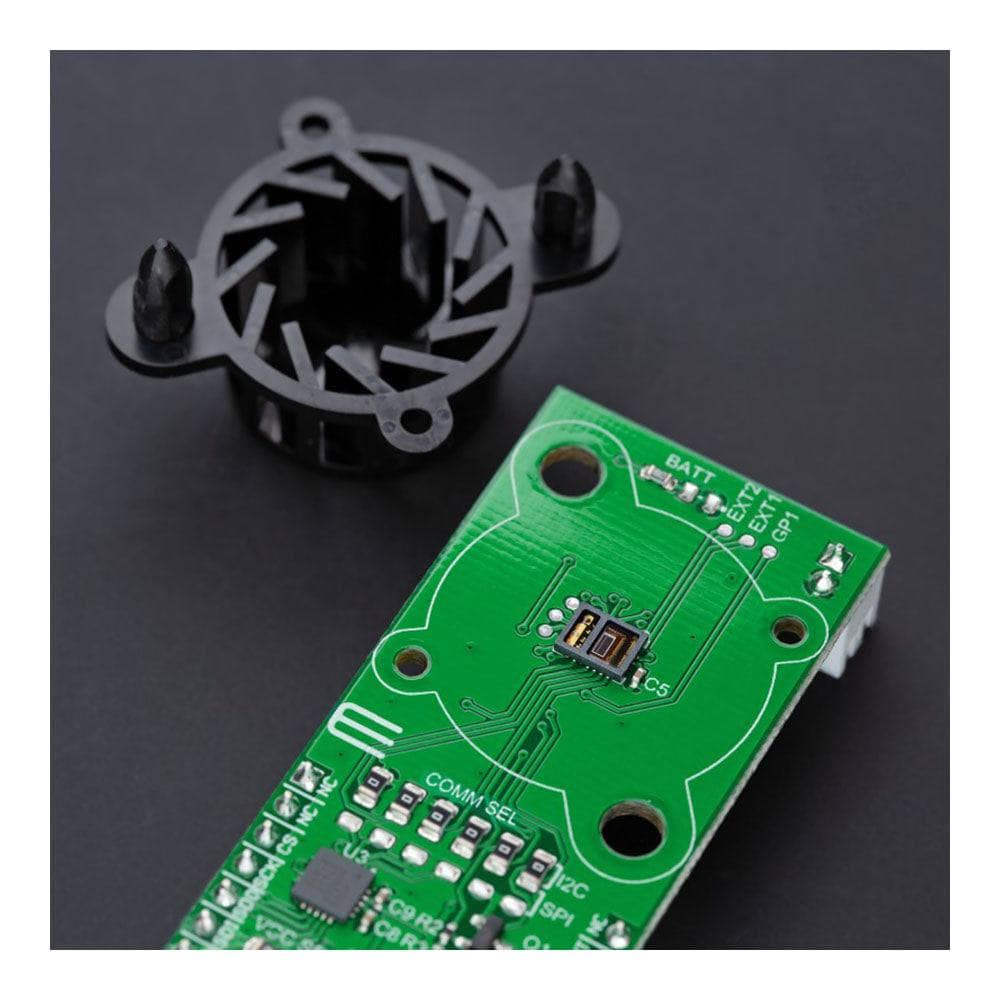

Smoke Chamber inner
