ADC 19 Click-Platine
ADC 19 Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
- Niedriger Stromverbrauch, spezifiziert über einen Bereich von Abtastraten, zwei Eingangskanäle, serielle Hochgeschwindigkeitsschnittstelle, hohe Leistung und mehr
- Basierend auf dem ADC122S101 - Zweikanal-CMOS-12-Bit-Analog-Digital-Wandler von Texas Instruments
- Kann für die anspruchsvollsten Anwendungen verwendet werden, von allgemeinen Anwendungen zur Ferndatenerfassung bis hin zu tragbarer Unterhaltungselektronik und mehr
- mikroBUS: SPI-Schnittstelle
Overview

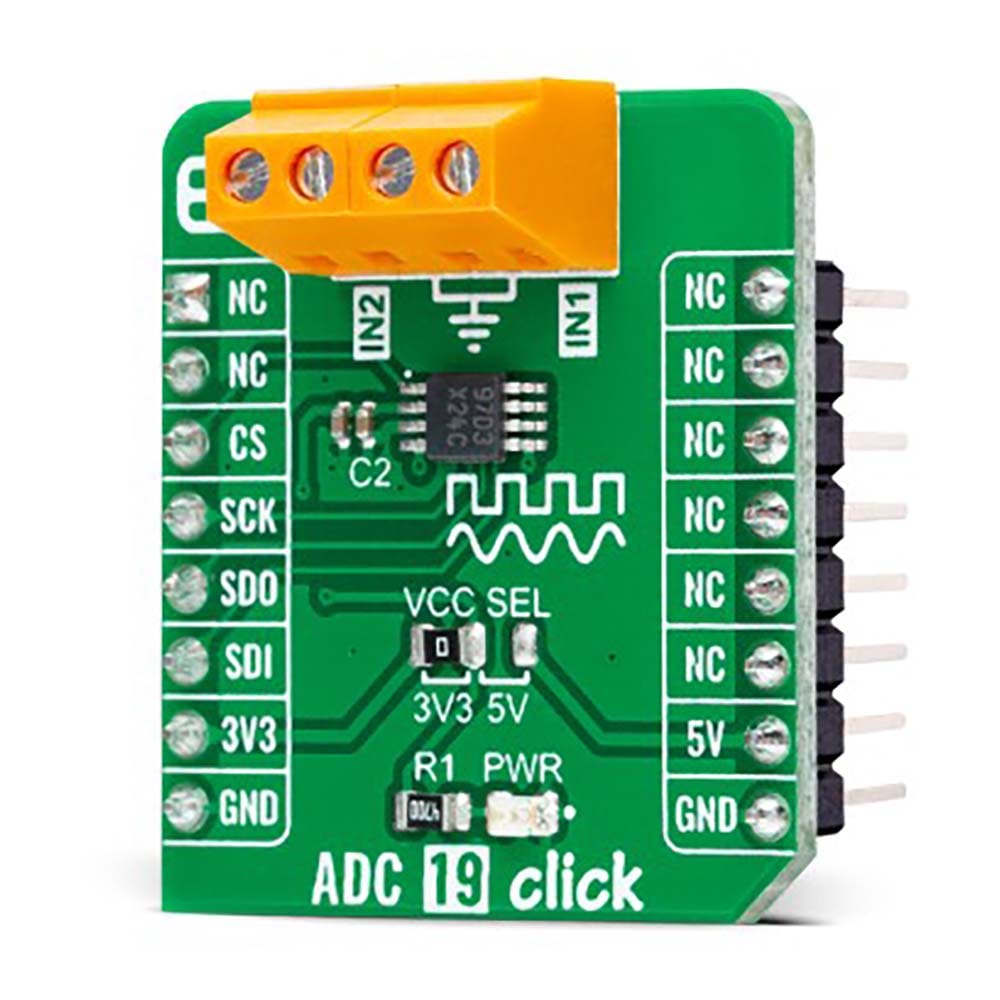

Das ADC 19 Click Board™ ist eine kompakte Zusatzplatine, die einen Hochleistungsdatenkonverter enthält. Diese Platine verfügt über den ADC122S101, einen stromsparenden Zweikanal-CMOS-12-Bit-Analog-Digital-Konverter von Texas Instruments. Dieser SPI-konfigurierbare Analog-Digital-Konverter (ADC) ist über einen Abtastratenbereich von 500 kSps bis 1 MSps vollständig spezifiziert und bietet hohe Zuverlässigkeit und Leistung. Der Konverter basiert auf einer Registerarchitektur mit sukzessiver Approximation mit einer internen Track-and-Hold-Schaltung, die so konfiguriert werden kann, dass sie ein oder zwei Eingangssignale an ihren Eingangskanälen akzeptiert. Dieses Click Board™ bietet eine hochpräzise Lösung für die anspruchsvollsten Anwendungen, von allgemeinen Anwendungen zur Ferndatenerfassung bis hin zu tragbarer Unterhaltungselektronik und mehr.
Das ADC 19 Click Board™ wird von einer mikroSDK-kompatiblen Bibliothek unterstützt, die Funktionen enthält, die die Softwareentwicklung vereinfachen. Dieses Click Board™ wird als vollständig getestetes Produkt geliefert und ist bereit für den Einsatz auf einem System, das mit der mikroBUS™-Buchse ausgestattet ist.

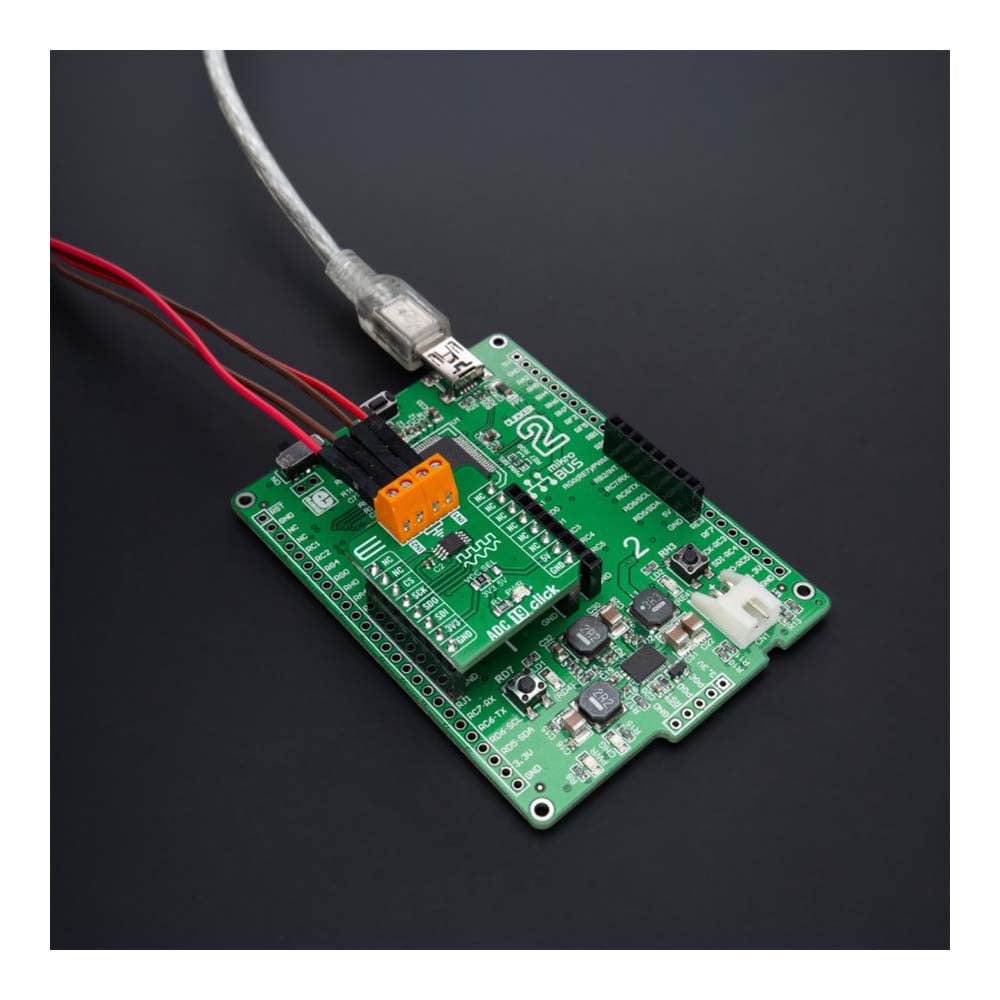

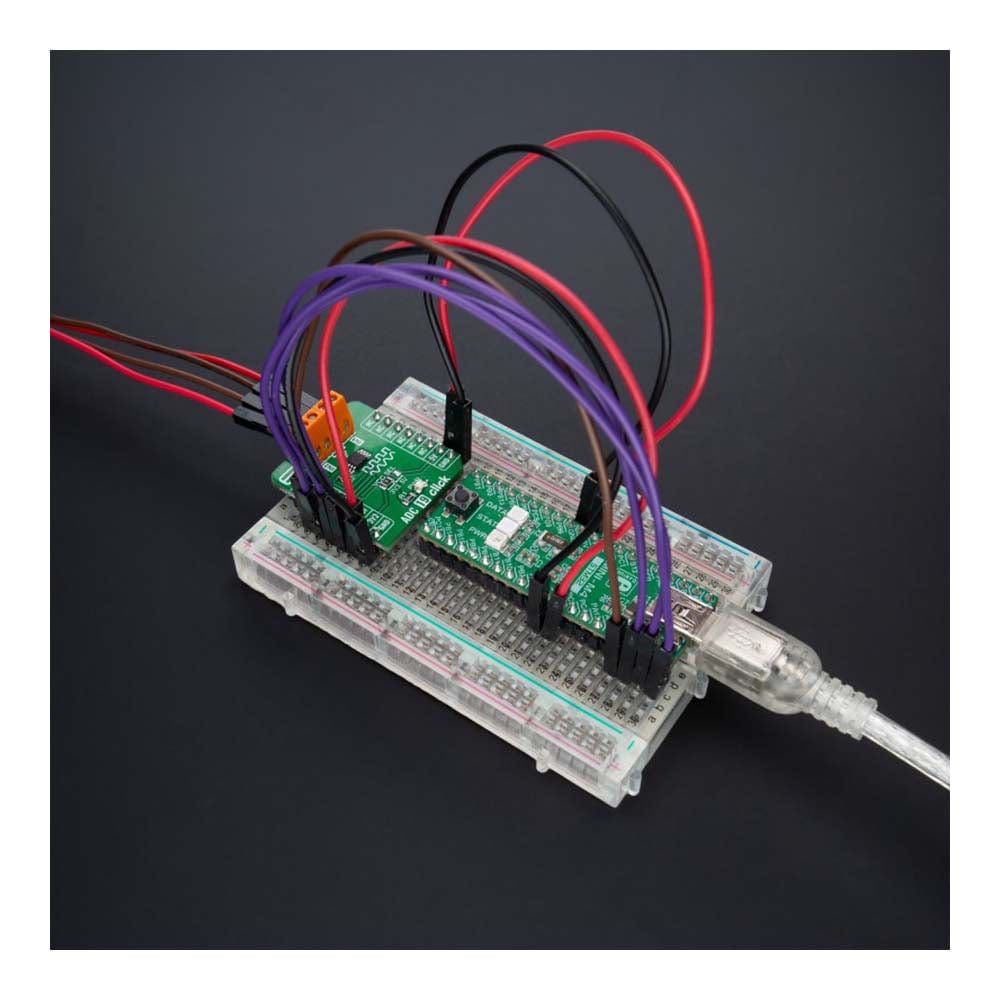

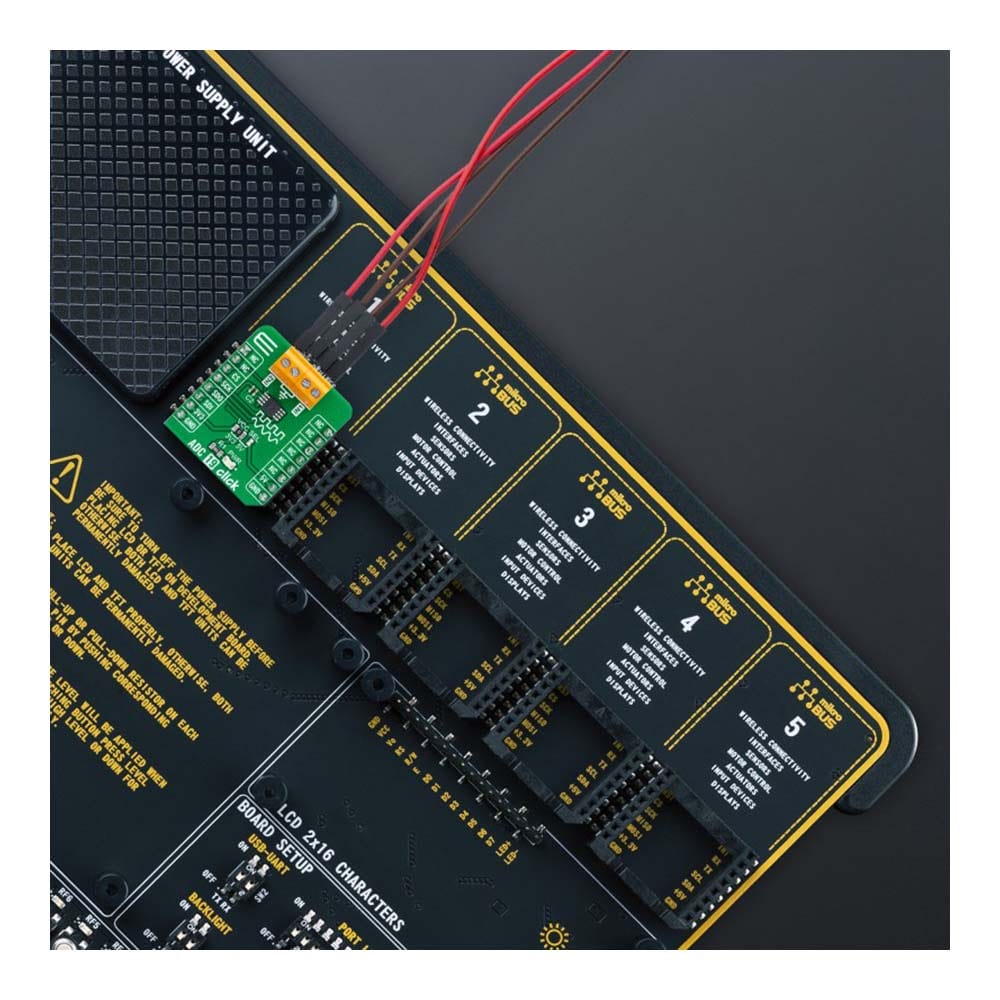

How Does The ADC 19 Click Board™ Work?
The ADC 19 Click Board™ as its foundation uses the ADC122S101, a high-performance two-channel CMOS analog-to-digital converter (ADC) from Texas Instruments. The ADC122S101 comes with an integrated 12-bit SAR-ADC, input multiplexer, and control logic block, allowing ADC to communicate with MCU through a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, this ADC is fully specified over a sample rate range of 500ksps to 1Msps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit configurable to accept one or two input signals at its input channels.
The ADC 19 Click Board™ communicates with MCU through a standard SPI interface and operates at clock rates up to 16MHz, providing data in digital format of 12-bits. The output serial data is straight binary and is compatible with several standards, such as SPI, QSPI, MICROWIRE, and many standard DSP serial interfaces.
The ADC 19 Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | ADC |
| Applications | The ADC 19 Click Board™ can be used for the most demanding applications, from general-purpose remote data acquisition applications to portable consumer electronics and more |
| On-board modules | ADC122S101 - two-channel CMOS 12-bit analog-to-digital converter from Texas Instruments |
| Key Features | Low power consumption, specified over a range of sample rates, two input channels, high-speed serial interface, high performance, and more |
| Interface | SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

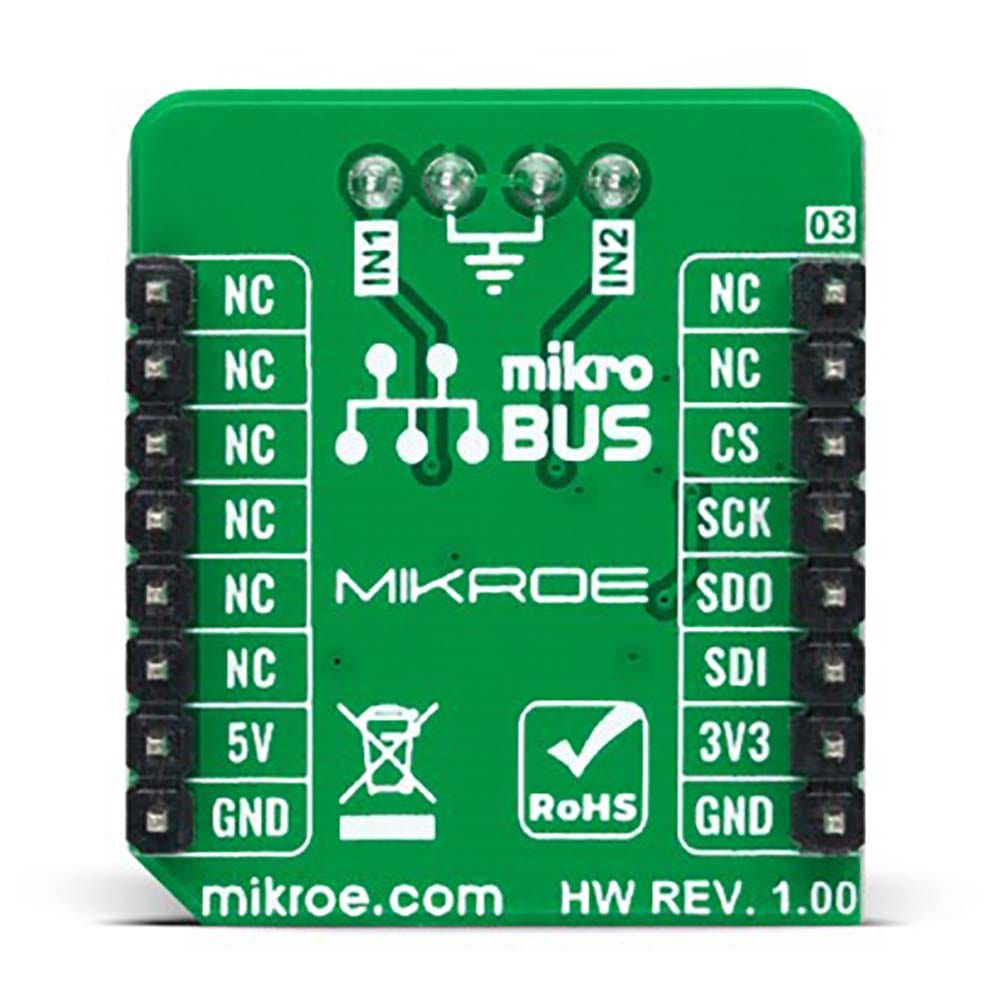

PINOUT DIAGRAM
This table shows how the pinout of the ADC 19 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | NC | ||
| SPI Chip Select | CS | 3 | CS | RX | 14 | NC | |
| SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
| SPI Data OUT | SDO | 5 | MISO | SCL | 12 | NC | |
| SPI Data IN | SDI | 6 | MOSI | SDA | 11 | NC | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
ADC 19 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Analog Input Voltage | 0 | - | 5 | V |
| Resolution | - | 12 | - | bits |
| Operating Temperature Range | -40 | +25 | +85 | °C |
Software Support
We provide a library for the ADC 19 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the ADC 19 Click Board™ driver.
Key functions
-
adc19_set_vrefThis function sets the voltage reference value that will be used for voltage calculation. -
adc19_set_input_channelThis function sets the selected input channel active by modifying the control register. -
adc19_get_voltageThis function reads the voltage from the previously selected channel by using SPI serial interface.
Example Description
This example demonstrates the use of the ADC 19 Click Board™ by reading the voltage from the two analog input channels.
void application_task ( void )
{
float voltage;
if ( ADC19_OK == adc19_set_input_channel ( &adc19, ADC19_INPUT_CHANNEL_1 ) )
{
if ( ADC19_OK == adc19_get_voltage ( &adc19, &voltage ) )
{
log_printf ( &logger, " IN1 : %.3f V rn", voltage );
}
}
if ( ADC19_OK == adc19_set_input_channel ( &adc19, ADC19_INPUT_CHANNEL_2 ) )
{
if ( ADC19_OK == adc19_get_voltage ( &adc19, &voltage ) )
{
log_printf ( &logger, " IN2 : %.3f V rnn", voltage );
}
}
Delay_ms ( 500 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.ADC19
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The ADC 19 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the ADC 19 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the ADC 19 Click Board™ driver.
Key functions
-
adc19_set_vrefThis function sets the voltage reference value that will be used for voltage calculation. -
adc19_set_input_channelThis function sets the selected input channel active by modifying the control register. -
adc19_get_voltageThis function reads the voltage from the previously selected channel by using SPI serial interface.
Example Description
This example demonstrates the use of the ADC 19 Click Board™ by reading the voltage from the two analog input channels.
void application_task ( void )
{
float voltage;
if ( ADC19_OK == adc19_set_input_channel ( &adc19, ADC19_INPUT_CHANNEL_1 ) )
{
if ( ADC19_OK == adc19_get_voltage ( &adc19, &voltage ) )
{
log_printf ( &logger, " IN1 : %.3f V rn", voltage );
}
}
if ( ADC19_OK == adc19_set_input_channel ( &adc19, ADC19_INPUT_CHANNEL_2 ) )
{
if ( ADC19_OK == adc19_get_voltage ( &adc19, &voltage ) )
{
log_printf ( &logger, " IN2 : %.3f V rnn", voltage );
}
}
Delay_ms ( 500 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.ADC19
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The ADC 19 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
