Hall-Strom 8 -120 A Click-Platine
Hall-Strom 8 -120 A Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
- Hochpräzise, skalierbare Gleich- und Wechselstrommessung, analoge Schnittstelle und zwei unabhängige schnelle Überstromerkennungsausgänge (OCD), sehr geringer Empfindlichkeitsfehler bei Übertemperatur und mehr.
- Basierend auf dem TLI4971-A120T5 - hochpräziser kernloser Miniatur-Magnetstromsensor für AC- und DC-Messungen bis zu 120 A mit analoger Schnittstelle und zwei schnellen Überstromerkennungsausgängen von Infineon Technologies
- Kann für AC/DC-Strommessanwendungen verwendet werden: elektrische Antriebe, Allzweck-Wechselrichter, Ladegeräte, Stromüberwachung, Überlastung, Überstromerkennung und vieles mehr.
- mikroBUS: Analoge Schnittstelle
Overview
Der Hall Current 8 -120A Click Board™ ist eine kompakte Zusatzplatine, die eine präzise Lösung für die AC/DC-Strommessung enthält. Diese Platine verfügt über den TLI4971-A120T5, einen hochpräzisen kernlosen Stromsensor von Infineon Technologies für Industrie-/Verbraucheranwendungen. Der TLI4971-A120T5 verfügt über eine analoge Schnittstelle und zwei schnelle Überstromerkennungsausgänge, die den Schutz der Stromkreise unterstützen. Eine galvanische Trennung erfolgt ebenfalls nach dem magnetischen Sensorprinzip. Die monolithische Hall-Technologie von Infineon ermöglicht eine genaue und hochlineare Messung von Strömen mit einem vollen Bereich von bis zu 120 A.
Das Hall Current 8 -120A Click Board™ eignet sich für AC/DC-Strommessanwendungen: elektrische Antriebe, Allzweck-Wechselrichter, Ladegeräte, Stromüberwachung, Überlastung, Überstromerkennung und vieles mehr.
DO NOT TOUCH THE BOARD WHILE THE EXTERNAL POWER SUPPLY IS ON!
Note: The Hall Current 8 - 120A Click Board™ has exposed pins/pads. To stay safe take precaution when applying high voltage to the Click Board™. The Click Board™ is to be used by trained personnel only when applying high voltage.

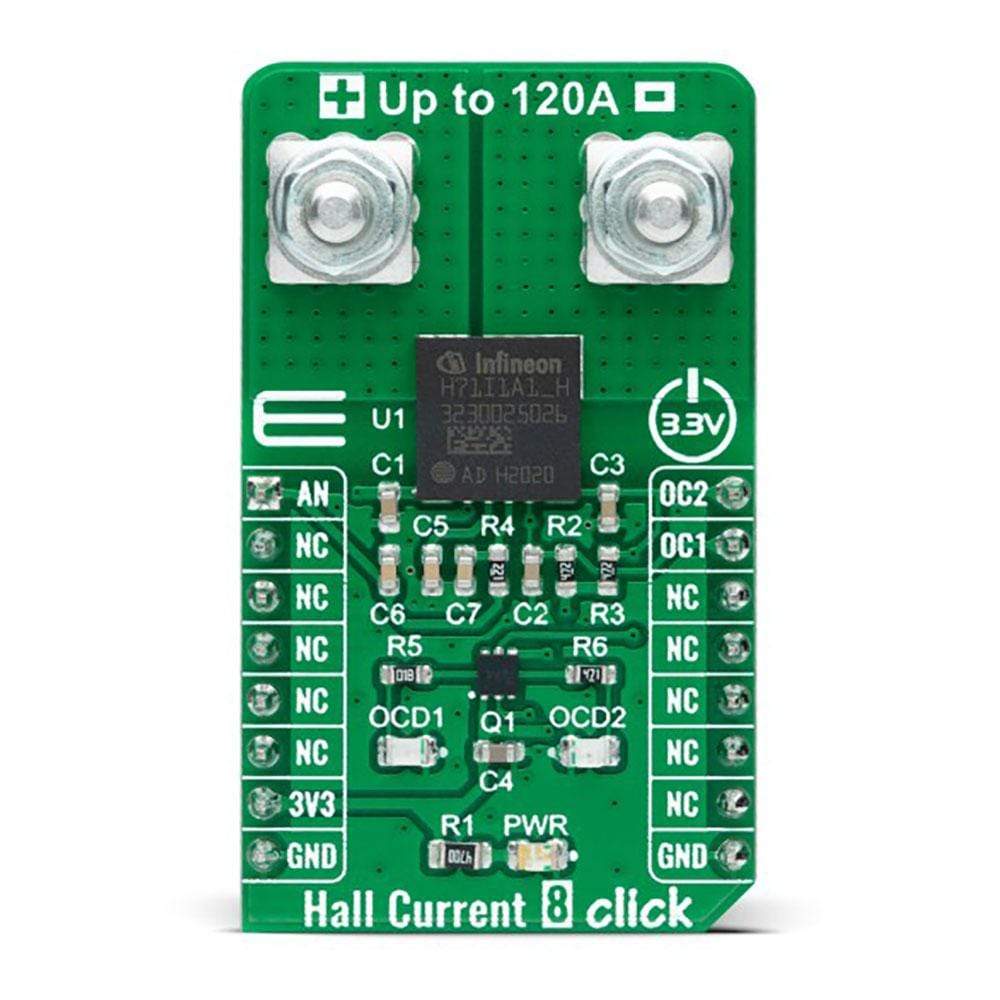

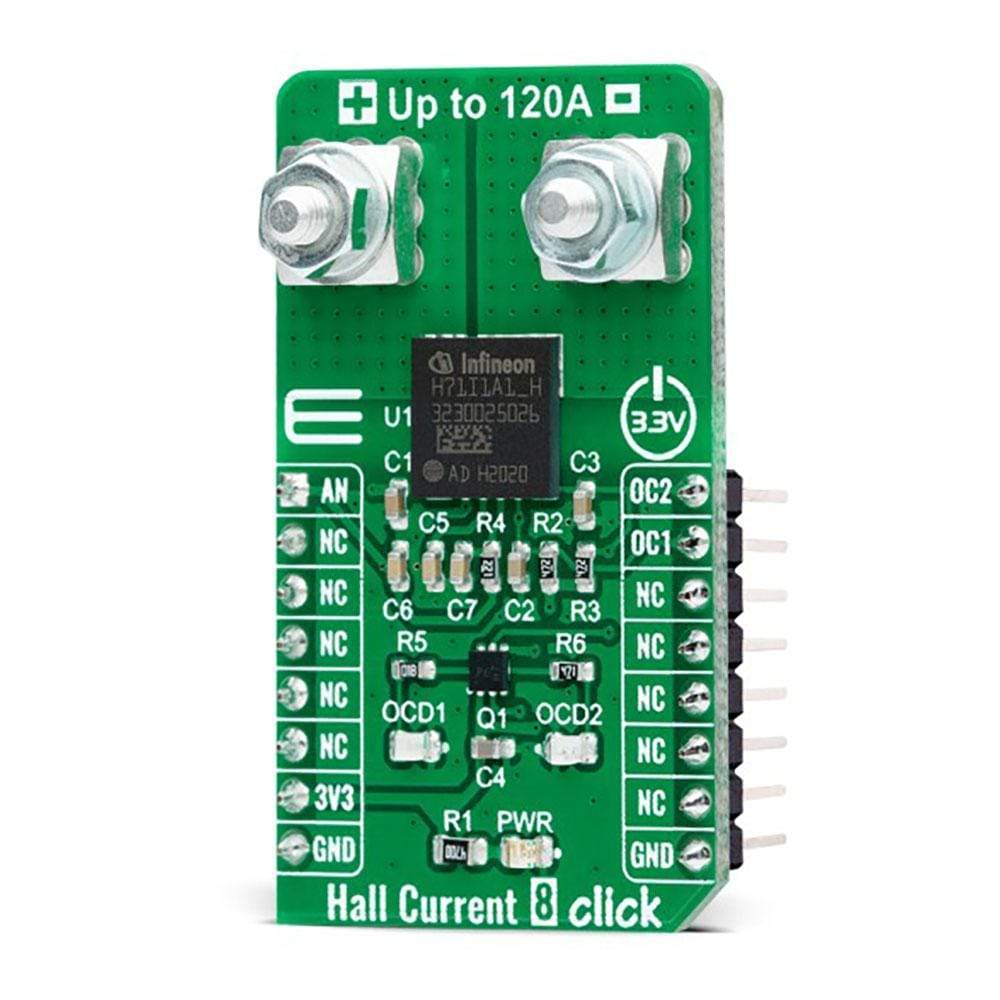

How Does The Hall Current 8 - 120A Click Board™ Work?
The Hall Current 8 - 120A Click Board™ as its foundation uses the TLI4971-A120T5, a high-precision miniature coreless magnetic current sensor for AC and DC measurements with an analog interface and two fast overcurrent detection outputs from Infineon Technologies. The well-established Hall technology, on which the TLI4971 is based, enables accurate and highly linear measurement of currents with a full scale that depends on the chosen product variant, in this case, up to 120A. Typical applications are electrical drives and general-purpose inverters. It is suitable for fast over-current detection, which allows the control unit to switch off and protect the affected system from damage, independently from the primary measurement path.
The preconfigured output mode of the TLI4971-A120T5 is set to semi-differential mode. Current flowing through the primary conductors are galvanically isolated, protecting low-voltage parts of the Click board™, as well as the host MCU, and induces a magnetic field that is differentially measured by two Hall probes. A high-performance amplifier combines the signal resulting from the differential field and the internal compensation information provided by the temperature and stress compensation unit. Then the amplifier output signal is fed into a differential output amplifier, which drives the sensor's analog output available on the AN pin of the mikroBUS™ socket.
In addition to the already mentioned characteristics, this Click board™ also has two separate interface pins (OCD), routed to the PWM and INT pins of the mikroBUS socket. They provide fast output signals if a current exceeds a preset threshold in combination with the red and yellow LEDs marked with OCD1 and OCD2. Those pins offer a swift response, thanks to independence from the main signal path. They can be used as a trap functionality to quickly shut down the current source and precisely detect mild overload conditions.

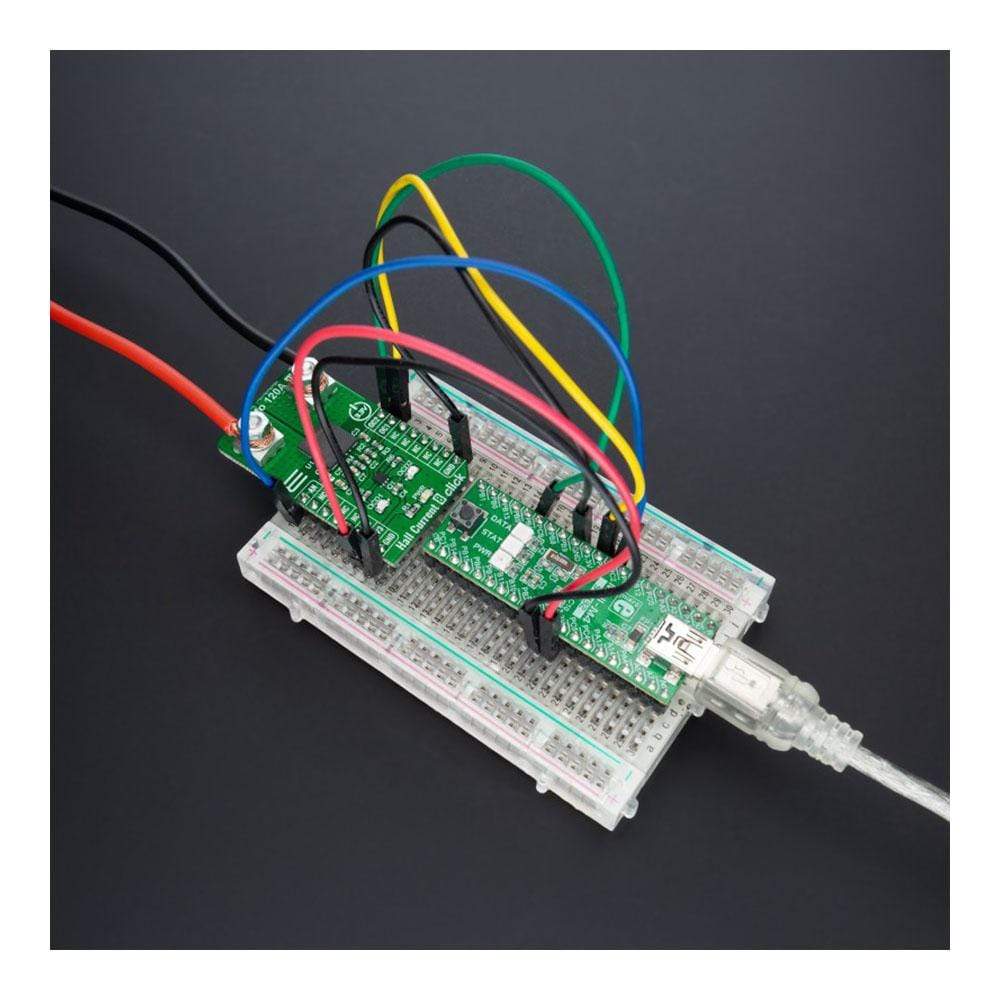

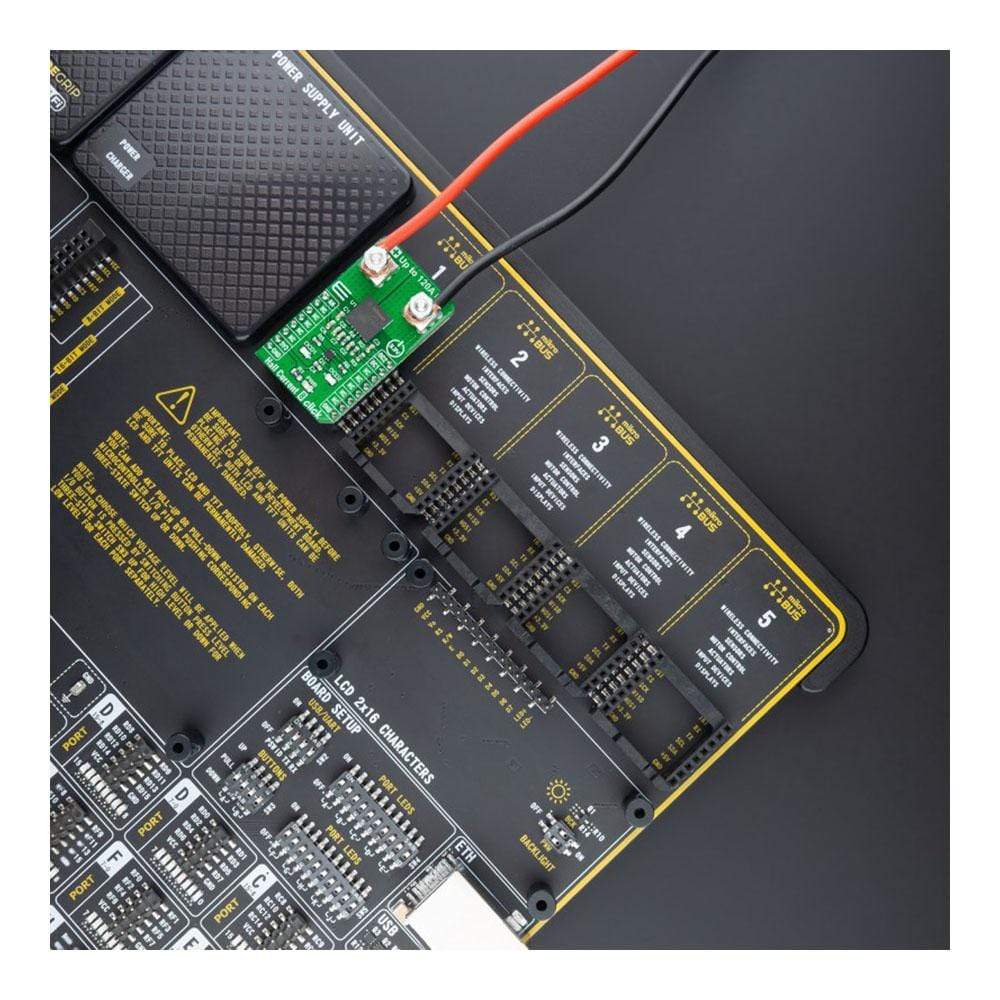

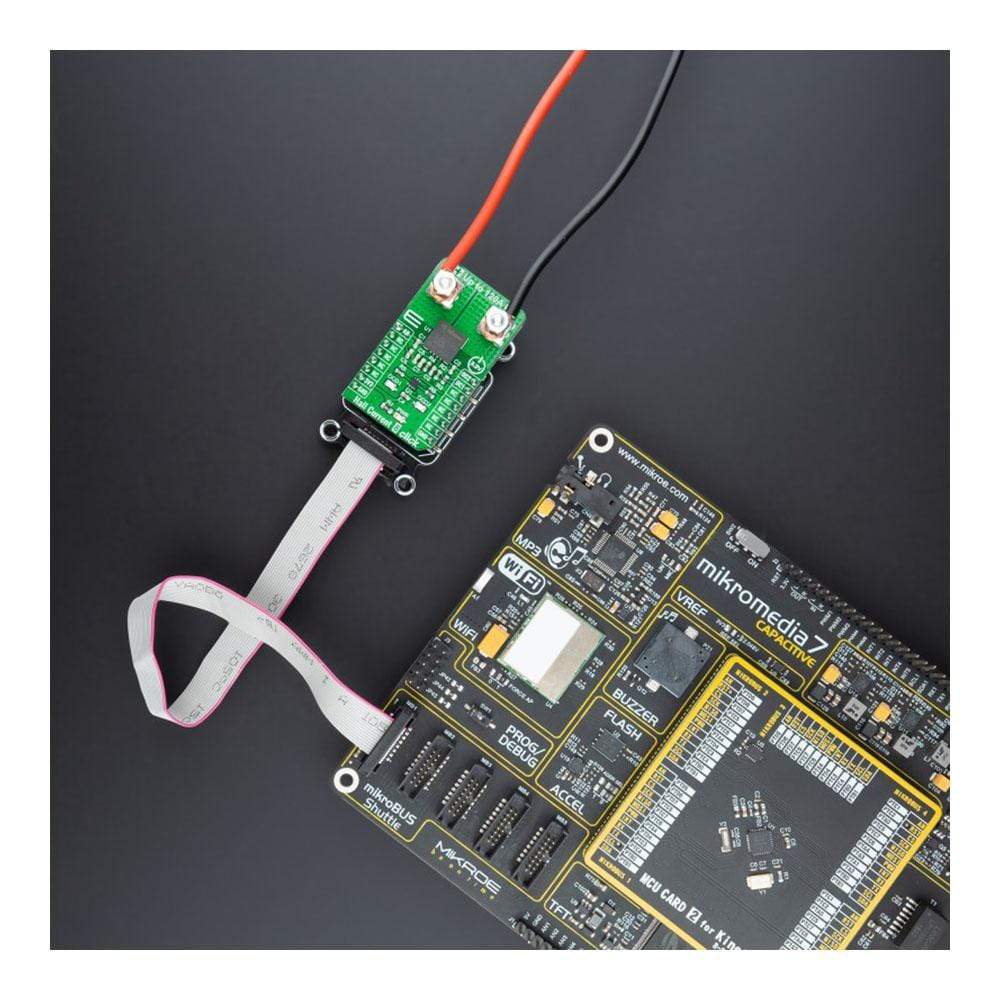

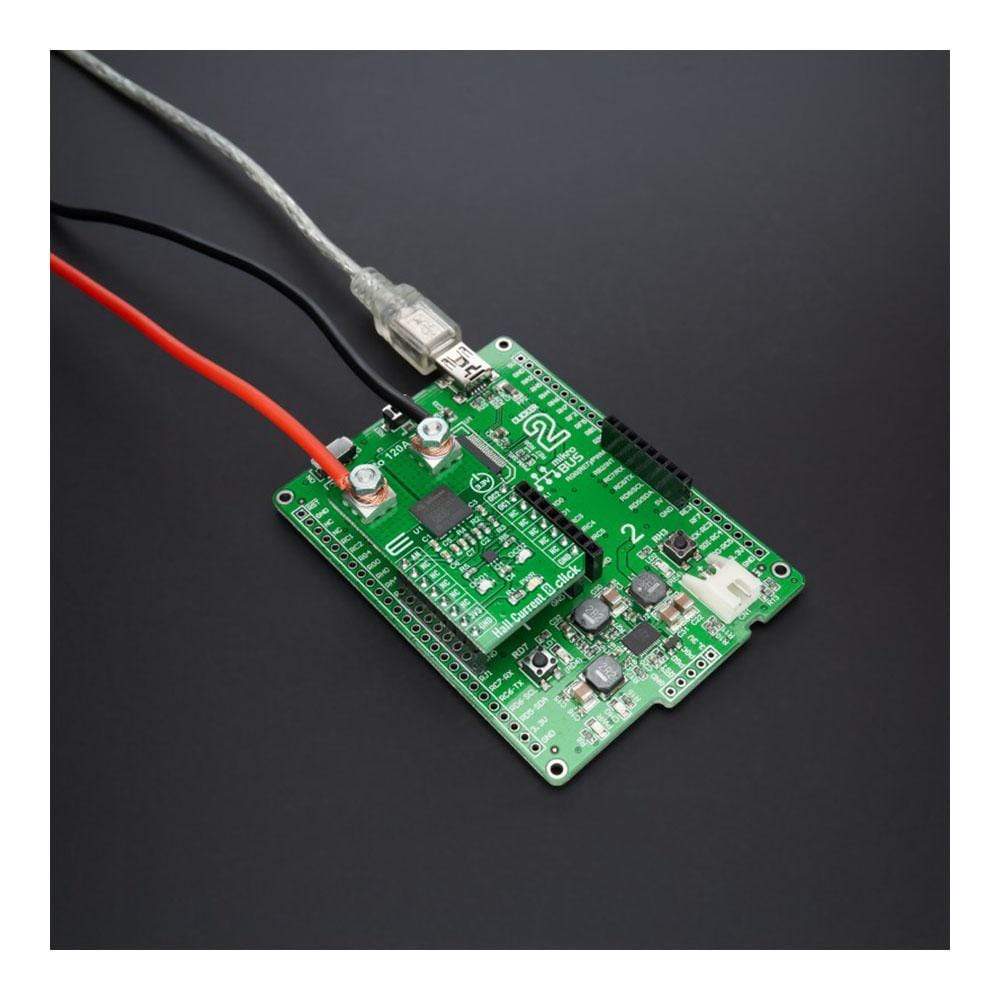

Also, the Hall Current 8 - 120A Click Board™ should be connected in series with the load. The current is measured by two onboard terminal connectors, one terminal block for the positive and the other for the negative current input.
The Hall Current 8 - 120A Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before use with MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Current sensor |
| Applications | Can be used for AC/DC current measurement applications: electrical drives, general-purpose inverters, chargers, current monitoring, overload, over-current detection, and many more. |
| On-board modules | TLI4971-A120T5 - high-precision miniature coreless magnetic current sensor for AC and DC measurements up to 120A with an analog interface and two fast overcurrent detection outputs from Infineon Technologies |
| Key Features | High accurate, scalable, DC & AC current sensing, analog interface and two independent fast Over-Current Detection (OCD) outputs, very low sensitivity error over temperature, and more. |
| Interface | Analog |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V |

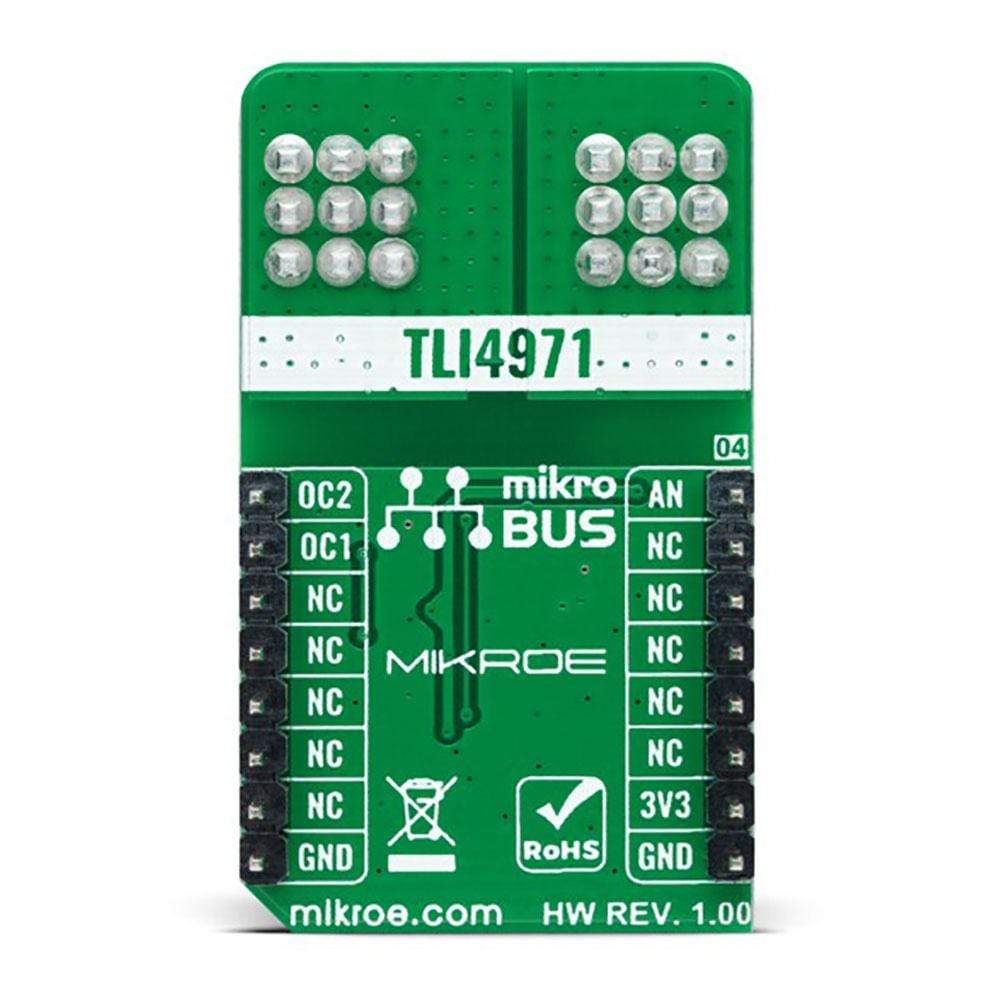

PINOUT DIAGRAM
This table shows how the pinout of the Hall Current 8 - 120A Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| Analog Signal | AN | 1 | AN | PWM | 16 | OC2 | Overcurrent Output 2 |
| NC | 2 | RST | INT | 15 | OC1 | Overcurrent Output 1 | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| LD2 | OCD1 | - | Output 1 Overcurrent LED Indicator |
| LD3 | OCD2 | - | Output 2 Overcurrent LED Indicator |
HALL CURRENT 8 CLICK - 120A ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | - | 3.3 | - | V |
| Measurement Range | - | - | 120 | A |
| Operating Temperature Range | -40 | +25 | +105 | °C |
Software Support
We provide a library for the Hall Current 8 - 120A Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on mikroE Github account.
Library Description
This library contains API for Hall Current 8 Click driver.
Key Functions
hallcurrent8_cfg_setup- Config Object Initialization function.hallcurrent8_init- Initialization function.hallcurrent8_default_cfg- Click Default Configuration function.
Example Description
This library contains API for the Hall Current 8 - 120A Click Board™ driver. The library initializes and defines the ADC drivers. The library also includes a function for calibration, current measurement and overcurrent detection.
void application_task ( void ) {
float hallcurrent8_current = 0;
if ( hallcurrent8_get_current ( &hallcurrent8, &offset_val, &hallcurrent8_current ) != ADC_ERROR ) {
log_printf( &logger, " Current : %.2f [A]rn", hallcurrent8_current );
}
uint16_t hallcurrent8_an_value = 0;
if ( hallcurrent8_read_an_pin_value ( &hallcurrent8, &hallcurrent8_an_value ) != ADC_ERROR ) {
log_printf( &logger, " ADC Value : %urn", hallcurrent8_an_value );
}
float hallcurrent8_an_voltage = 0;
if ( hallcurrent8_read_an_pin_voltage ( &hallcurrent8, &hallcurrent8_an_voltage ) != ADC_ERROR ) {
log_printf( &logger, " AN Voltage : %.2f [V]rn", hallcurrent8_an_voltage );
}
log_printf( &logger, "---------------------------rn");
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on mikroE Github account.
Other mikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.HallCurrent8
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Hall Current 8 - 120A Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the Hall Current 8 - 120A Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on mikroE Github account.
Library Description
This library contains API for Hall Current 8 Click driver.
Key Functions
hallcurrent8_cfg_setup- Config Object Initialization function.hallcurrent8_init- Initialization function.hallcurrent8_default_cfg- Click Default Configuration function.
Example Description
This library contains API for the Hall Current 8 - 120A Click Board™ driver. The library initializes and defines the ADC drivers. The library also includes a function for calibration, current measurement and overcurrent detection.
void application_task ( void ) {
float hallcurrent8_current = 0;
if ( hallcurrent8_get_current ( &hallcurrent8, &offset_val, &hallcurrent8_current ) != ADC_ERROR ) {
log_printf( &logger, " Current : %.2f [A]rn", hallcurrent8_current );
}
uint16_t hallcurrent8_an_value = 0;
if ( hallcurrent8_read_an_pin_value ( &hallcurrent8, &hallcurrent8_an_value ) != ADC_ERROR ) {
log_printf( &logger, " ADC Value : %urn", hallcurrent8_an_value );
}
float hallcurrent8_an_voltage = 0;
if ( hallcurrent8_read_an_pin_voltage ( &hallcurrent8, &hallcurrent8_an_voltage ) != ADC_ERROR ) {
log_printf( &logger, " AN Voltage : %.2f [V]rn", hallcurrent8_an_voltage );
}
log_printf( &logger, "---------------------------rn");
Delay_ms( 1000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on mikroE Github account.
Other mikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.HallCurrent8
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Hall Current 8 - 120A Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
