Proximity 13 Click-Platine
Proximity 13 Click-Platine

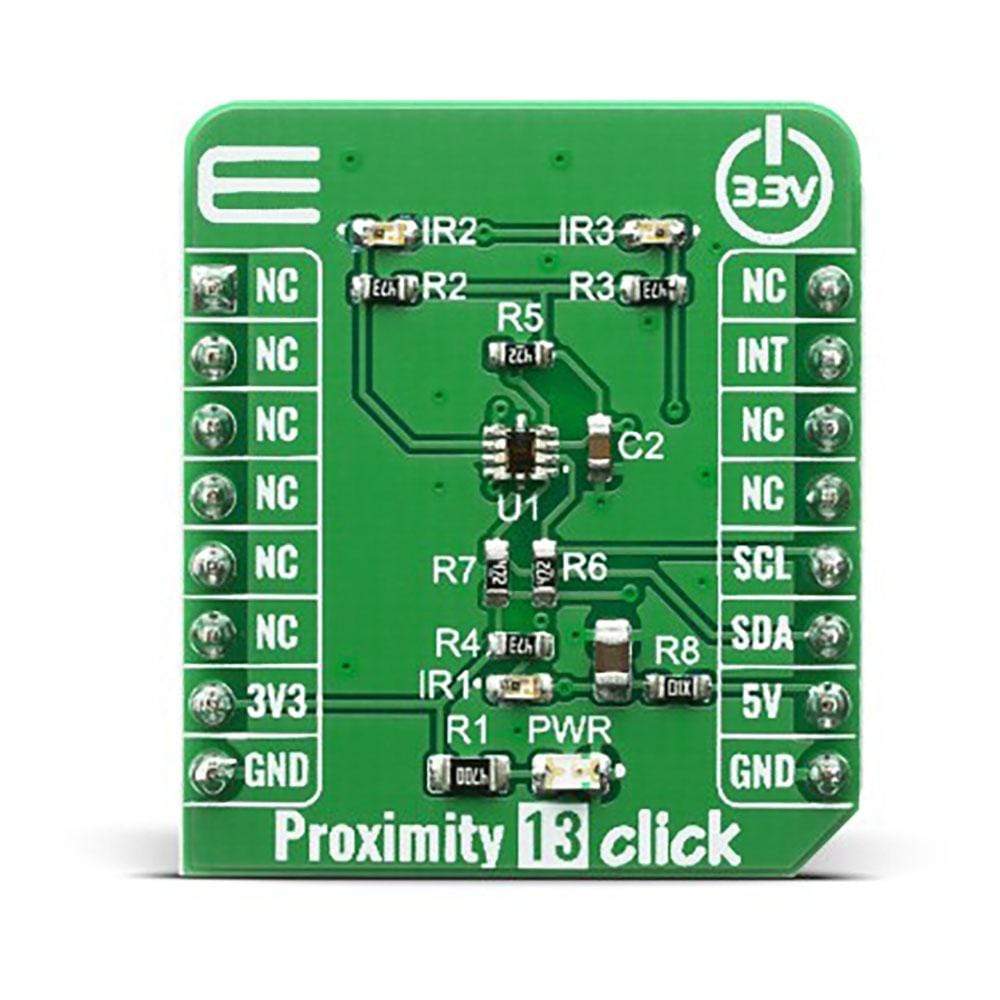

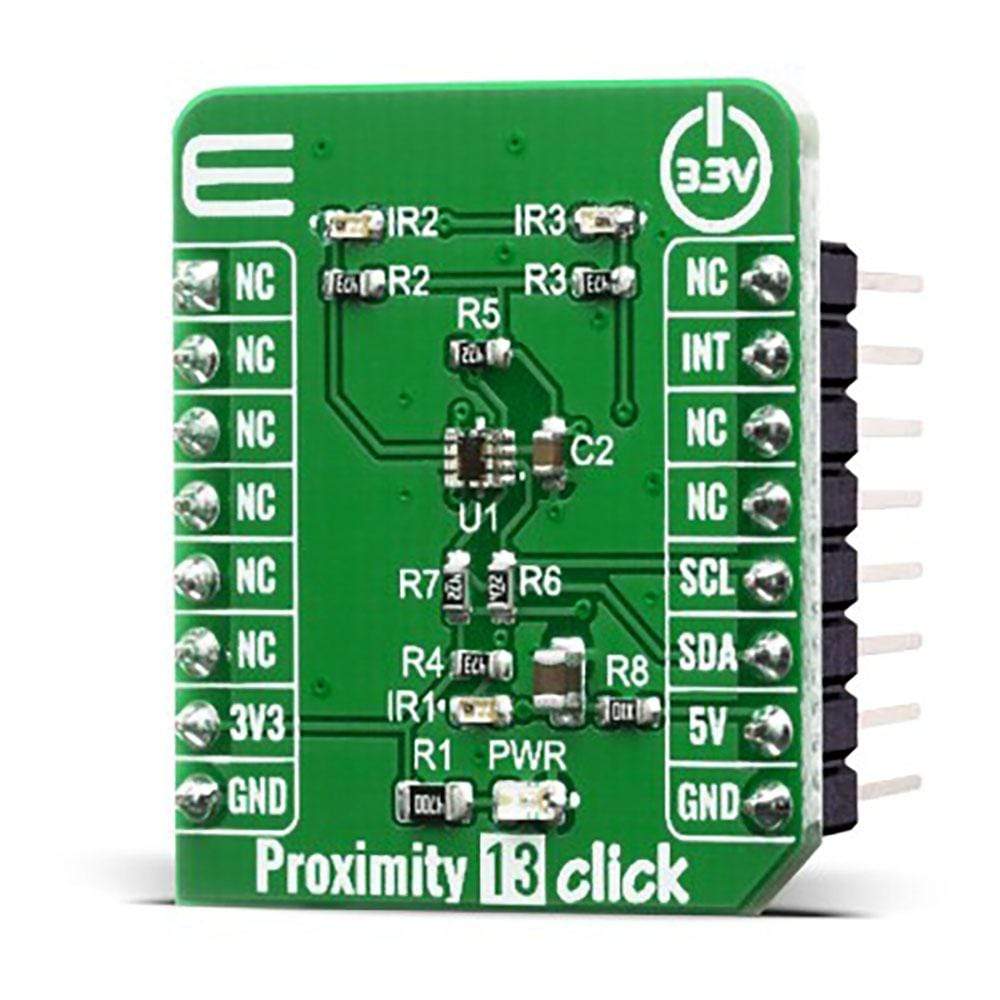

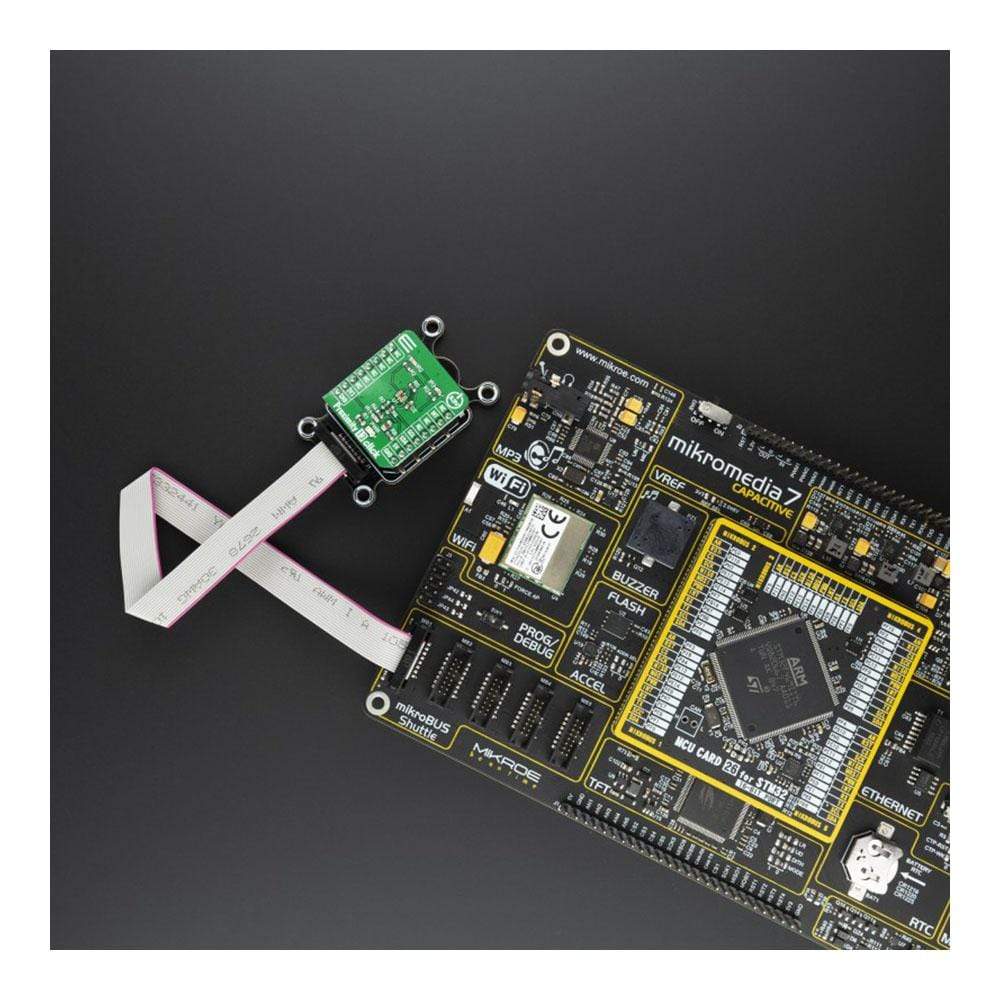

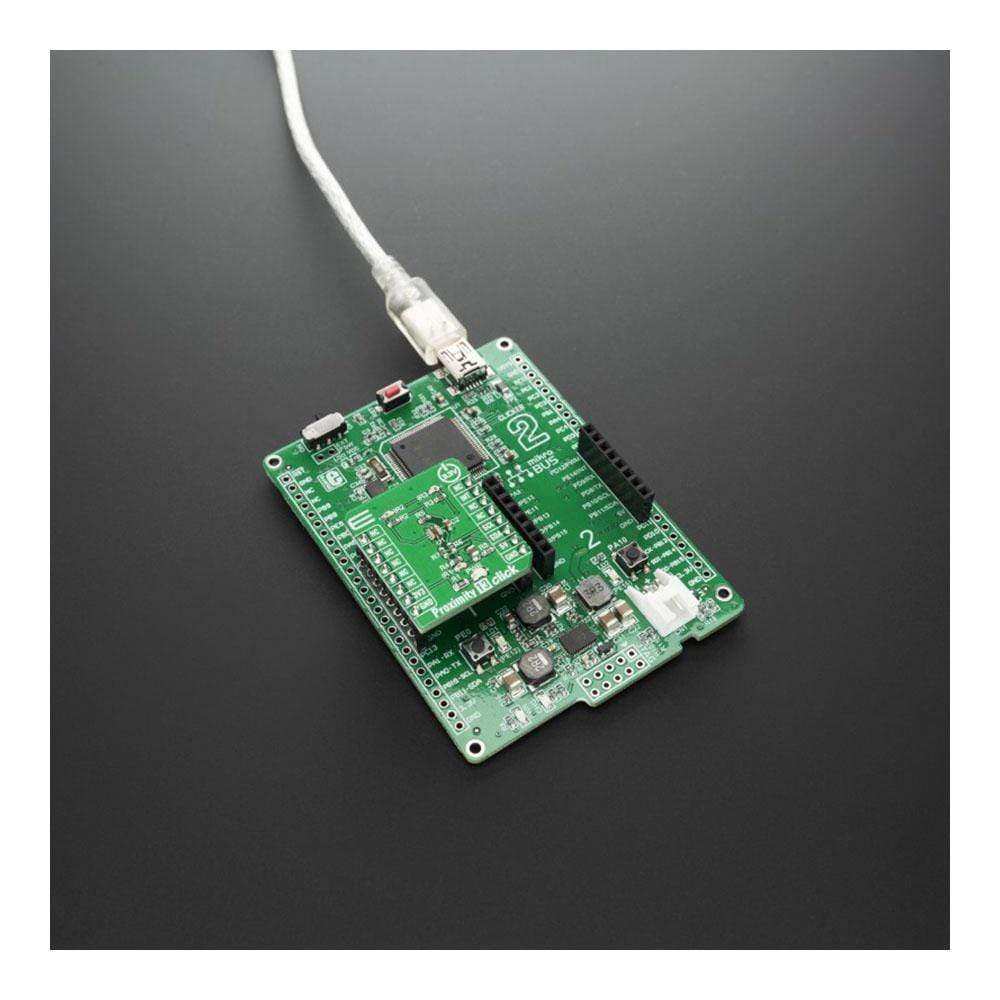

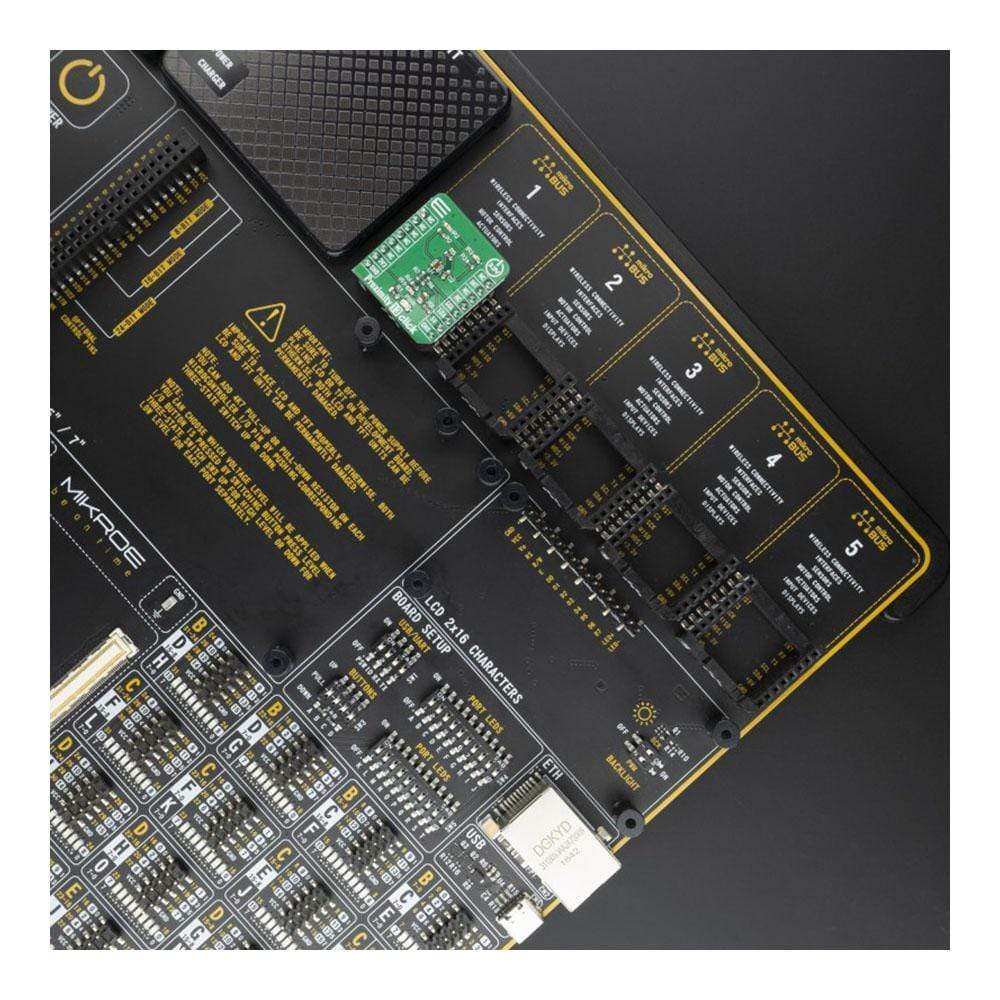

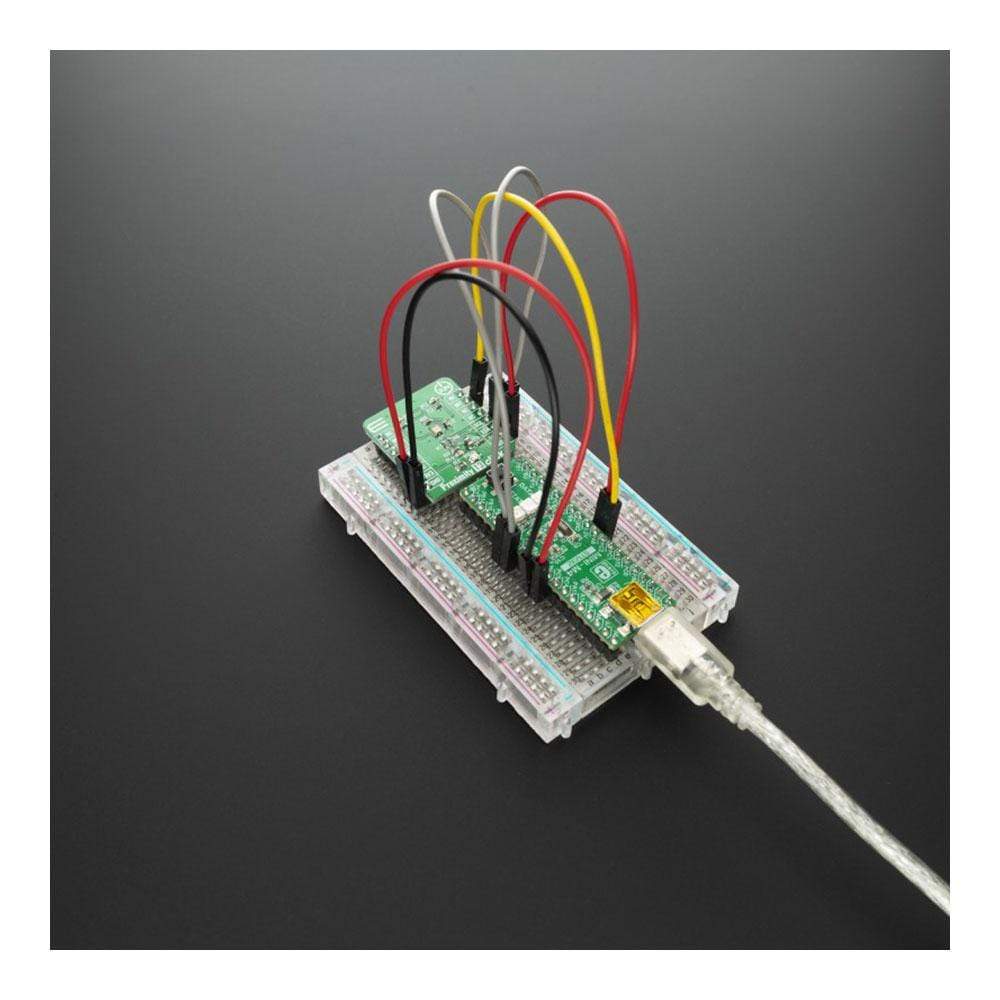

Der Proximity 13 Click Board™ basiert auf SI1153-AB09-GMR IC von Silicon Labs, das als Näherungs- und Gestendetektor mit digitaler I2C-Schnittstelle und programmierbarem Ereignis-Interrupt-Ausgang verwendet werden kann. Der Host kann dem Proximity 13 Click Befehle senden, um Näherungsmessungen auf Abruf zu initiieren. Der Host kann das Click Board auch in einen autonomen Betriebszustand versetzen, in dem es Messungen in festgelegten Intervallen durchführt und den Host entweder nach Abschluss jeder Messung oder immer dann unterbricht, wenn die Probe größer/kleiner als ein festgelegter Schwellenwert ist oder ein festgelegtes Schwellenwertfenster verlässt/eintritt.
Das Proximity 13 Click Board™ wird von einer mikroSDK-kompatiblen Bibliothek unterstützt, die Funktionen enthält, die die Softwareentwicklung vereinfachen. Dieses Click Board™ wird als vollständig getestetes Produkt geliefert und ist bereit für den Einsatz auf einem System, das mit der mikroBUS™-Buchse ausgestattet ist.
How Does The Proximity 13 Click Board™ Work?
The Proximity 13 Click Board™ features touchless sensor IC that includes dual 23-bit analog-to-digital converters, an integrated high-sensitivity array of visible and infrared photodiodes, a digital signal processor, and three integrated LED drivers with programmable drive levels. The photodiode response and associated digital conversion circuitry provide excellent immunity to artificial light flicker noise and natural light flutter noise.
By default, the measurement parameters are optimized for indoor ambient light levels, where it is possible to detect low light levels. For operation under direct sunlight, the ADC can be programmed to operate in a high signal operation so that it is possible to measure direct sunlight without overflowing.
The Proximity 13 Click Board™ is capable of measuring visible and infrared light. However, the visible photodiode is also influenced by infrared light. The measurement of illuminance requires the same spectral response as the human eye. If an accurate lux measurement is desired, the extra IR response of the visible-light photodiode must be compensated. Therefore, to allow the host to make corrections to the infrared light's influence, SI1153-AB09-GMR reports the infrared light measurement on a separate channel. The separate visible and IR photodiodes lend themselves to a variety of algorithmic solutions. The host can then take these two measurements and run an algorithm to derive an equivalent lux level as perceived by a human eye. Having the IR correction algorithm running in the host allows for the most flexibility in adjusting for system-dependent variables. For example, if the glass used in the system blocks visible light more than infrared light, the IR correction needs to be adjusted.
Over distances of less than 50 cm, the dual-port active reflection proximity detector has significant advantages over single-port, motion-based infrared systems, which are only good for triggered events. Motion-based infrared detectors identify objects within proximity, but only if they are moving. Single-port motion-based infrared systems are ambiguous about stationary objects even if they are within the proximity field. The Proximity 13 click can reliably detect an object entering or exiting a specified proximity field, even if the object is not moving or is moving very slowly. However, beyond about 30–50 cm, even with good optical isolation, single-port signal processing may be required due to static reflections from nearby objects, such as tables, walls, etc. If motion detection is acceptable, the SI1153-AB09-GMR can achieve ranges of up to 50 cm, through a single product window.
Since the three infrared LEDs are placed in an L-shaped configuration, it is possible to triangulate an object within the three-dimensional proximity field. Thus, a touchless user interface can be implemented with the aid of host software.
SPECIFICATIONS
Type | Proximity |
Applications | Wearables, Handsets, Display backlight control, Consumer electronics |
On-board modules | SI1153-AB09-GMR |
Key Features | Proximity detector, three independet LED drivers, operates in direct sunlight with on die 940 nm pasband filter, internal and external wake support |
Interface | GPIO,I2C |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
Input Voltage | 3.3V |

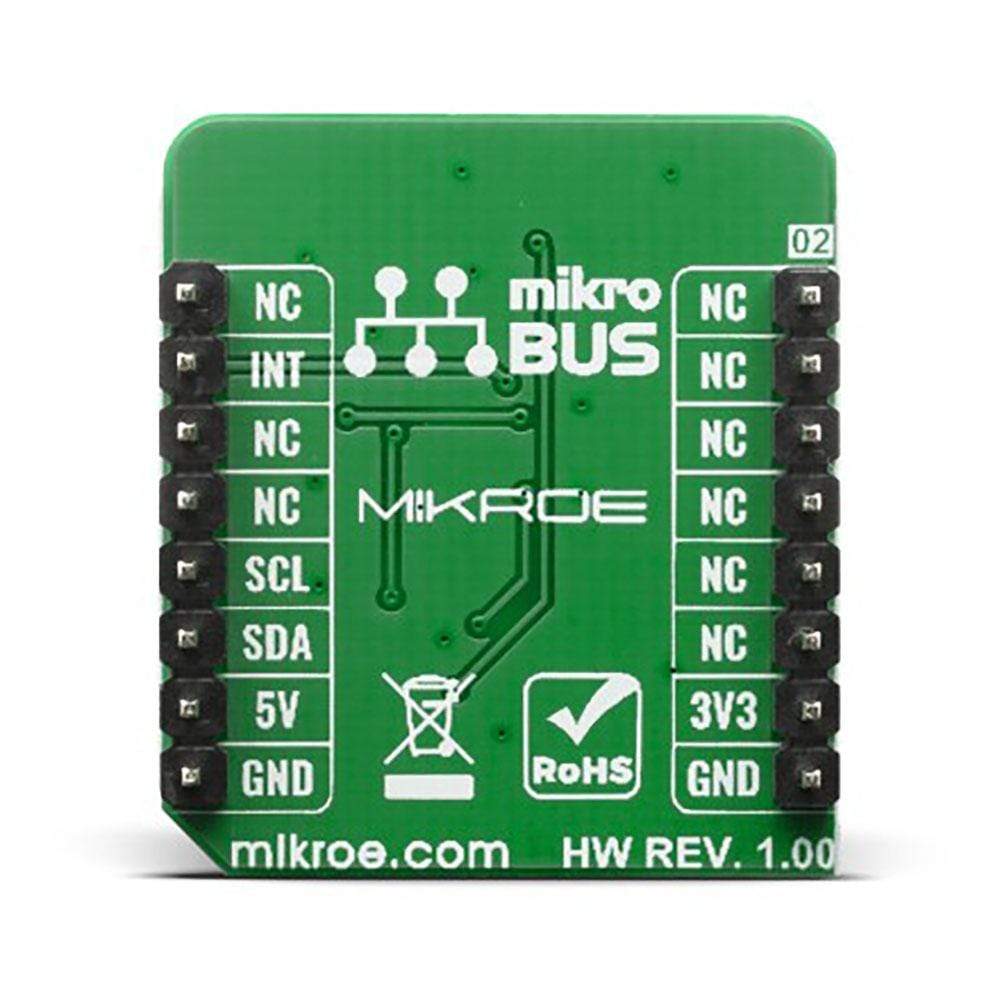

PINOUT DIAGRAM
This table shows how the pinout of the Proximity 13 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Notes | Pin | Pin | Notes | ||||
---|---|---|---|---|---|---|---|
NC | 1 | AN | PWM | 16 | NC | ||
NC | 2 | RST | INT | 15 | INT | Interrupt | |
NC | 3 | CS | RX | 14 | NC | ||
NC | 4 | SCK | TX | 13 | NC | ||
NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | +5V | Power supply |
Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
Label | Name | Default | Description |
---|---|---|---|
PWR | LED GREEN | - | Power LED Indicator |
IR1, IR2, IR3 | IR LED | - | Infrared LED |
Software Support
We provide a library for the Proximity 13 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library provides functions for reading and writing to registers. You have functions for setting parameters, sending commands and configurating device channels. There is function for reading all channels if they are enabled.
Key Functions
uint8_t proximity13_generic_read ( uint8_t reg_adr )
- Generic read function from registersvoid proximity13_generic_write ( uint8_t reg_adr, uint8_t write_data )
- Generic write function to registersuint8_t proximity13_get_int_pin_status ( void )
- Function for reading status of int pinuint8_t proximity13_send_command ( uint8_t cmd_val )
- Function for sending commandsuint8_t proximity13_set_parameter ( uint8_t param, uint8_t cmd_val )
- Function for setting parametersuint8_t porximity13_config_channel ( uint8_t chn_num, proximity13_cfg_t cfg_val )
- Function for configurating specific channelvoid proximity13_read_channels ( proximity13_chn_val_t *chn_val )
- Fucnction for reading from all enabled channels
Example Description
The application is composed of three sections :
- System Initialization - Initialization of I2C module and setting int pin to output
- Application Initialization - Check id status, configures device and sends command for measurement
- Application Task - Appliction measures values very 100ms and converts it to 24bit
void application_task ( ) { proximity13_chn_val_t chn_val; char txt[ 30 ]; proximity13_read_channels( &chn_val ); WordToStr( chn_val.channel_1, txt ); mikrobus_logWrite( "Data :", _LOG_TEXT ); mikrobus_logWrite( txt, _LOG_LINE ); Delay_ms ( 100 ); }
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Proximity 13 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the Proximity 13 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library provides functions for reading and writing to registers. You have functions for setting parameters, sending commands and configurating device channels. There is function for reading all channels if they are enabled.
Key Functions
uint8_t proximity13_generic_read ( uint8_t reg_adr )
- Generic read function from registersvoid proximity13_generic_write ( uint8_t reg_adr, uint8_t write_data )
- Generic write function to registersuint8_t proximity13_get_int_pin_status ( void )
- Function for reading status of int pinuint8_t proximity13_send_command ( uint8_t cmd_val )
- Function for sending commandsuint8_t proximity13_set_parameter ( uint8_t param, uint8_t cmd_val )
- Function for setting parametersuint8_t porximity13_config_channel ( uint8_t chn_num, proximity13_cfg_t cfg_val )
- Function for configurating specific channelvoid proximity13_read_channels ( proximity13_chn_val_t *chn_val )
- Fucnction for reading from all enabled channels
Example Description
The application is composed of three sections :
- System Initialization - Initialization of I2C module and setting int pin to output
- Application Initialization - Check id status, configures device and sends command for measurement
- Application Task - Appliction measures values very 100ms and converts it to 24bit
void application_task ( ) { proximity13_chn_val_t chn_val; char txt[ 30 ]; proximity13_read_channels( &chn_val ); WordToStr( chn_val.channel_1, txt ); mikrobus_logWrite( "Data :", _LOG_TEXT ); mikrobus_logWrite( txt, _LOG_LINE ); Delay_ms ( 100 ); }
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- I2C
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Proximity 13 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
