Overview
Das Riverdi Click Board™ ist ein Adapter zum Anschluss von Riverdi TFT-Displays an eine MikroBUS-Buchse. Der integrierte ZIF-20-Anschluss ermöglicht Ihnen die Verbindung zwischen der Ziel-MCU und einem FT8xx-Grafikcontroller auf Riverdi-Displays . Das Click Board™ läuft entweder mit einer 3,3-V- oder einer 5-V-Stromversorgung.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-2100
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.022 kg
|
| Other | |
Country of Origin |
|
HS Code Customs Tariff code
|
|
EAN |
8606015079080
|
Warranty |
|

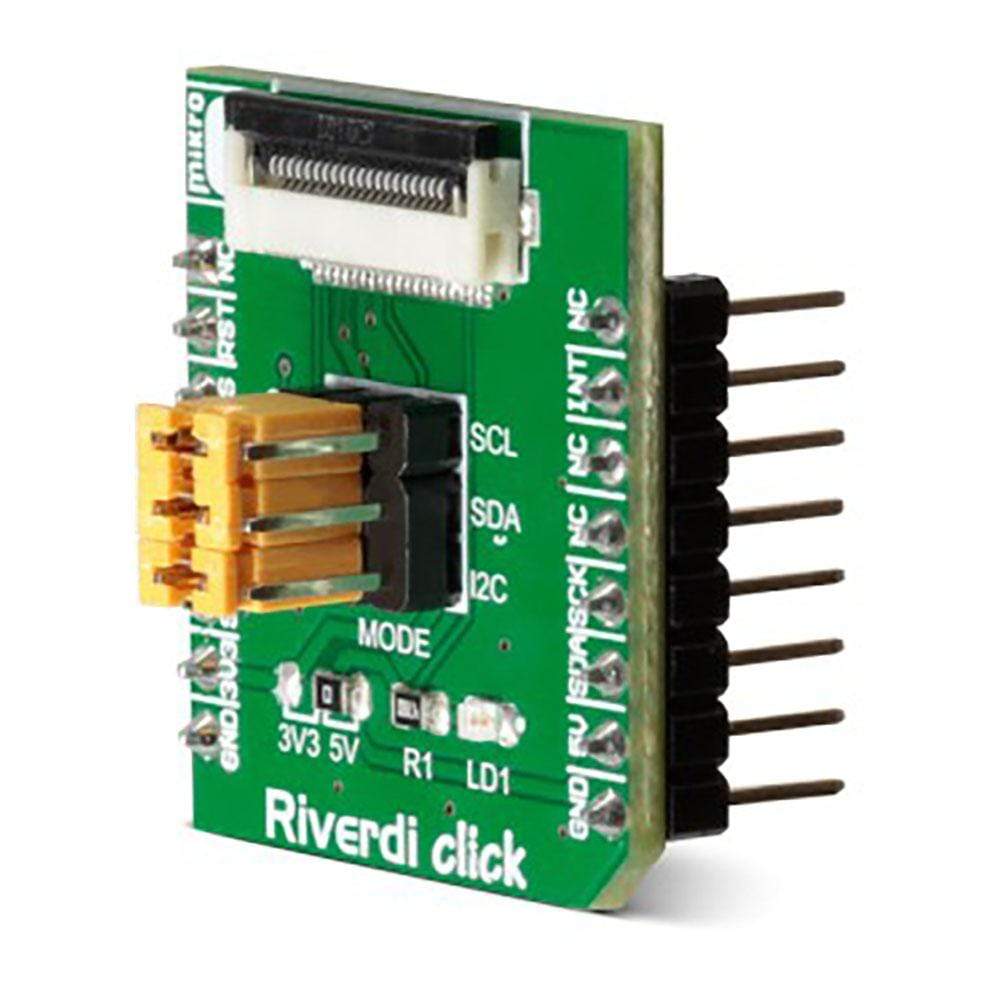

The Riverdi Click Board™ is an adapter for connecting Riverdi TFT displays to a mikroBUS socket. The onboard zif20 connector allows you to interface between the target MCU and an FT8xx graphic controller on Riverdi displays. The click runs on either a 3.3V or 5V power supply.
Note: The Riverdi Click Board™ comes with a flat flexible cable for the onboard ZIF20 connector.

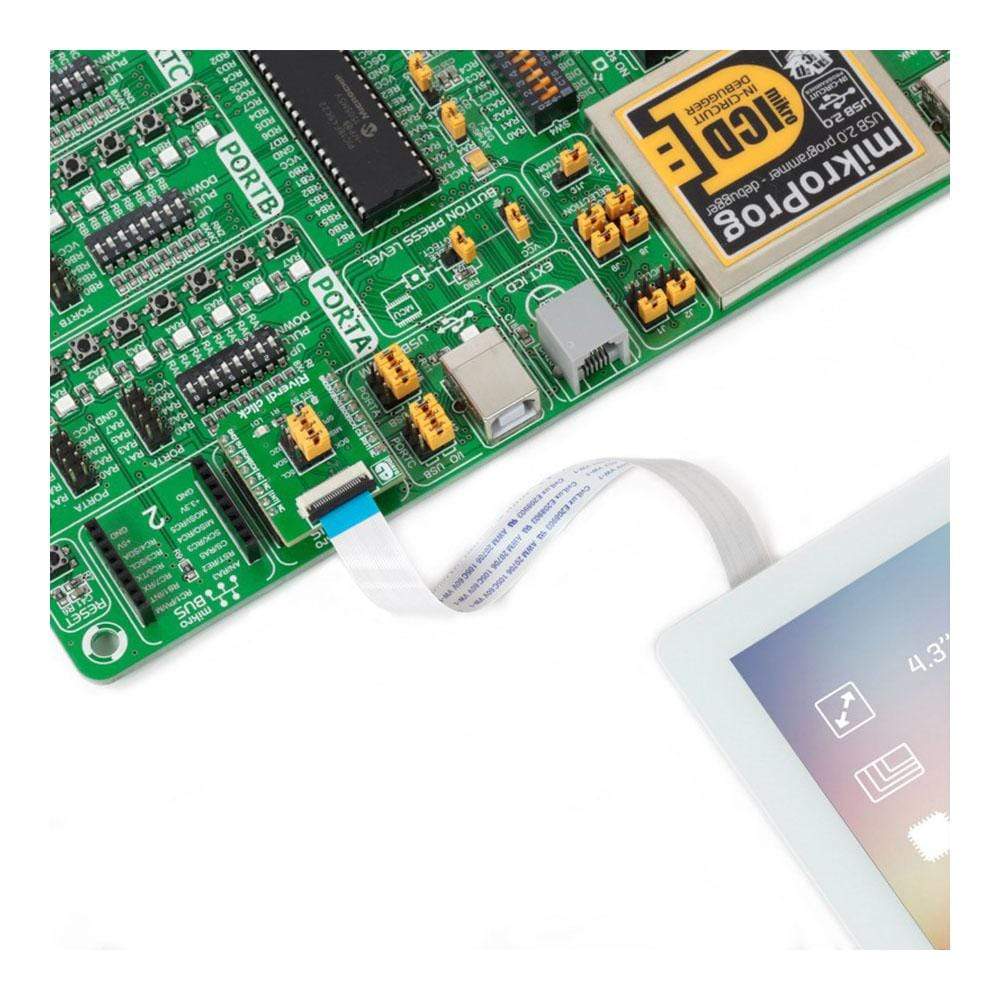

RIVERDI TFT DISPLAYS
We have more than 20 Riverdi TFT displays available, in different sizes, from 7'' to 2.8'' screens. Choose from a wide variety of frames – metal mounting frames for industrial use to the white bezel for homes and offices, and many more.
I2C/SPI INTERFACE

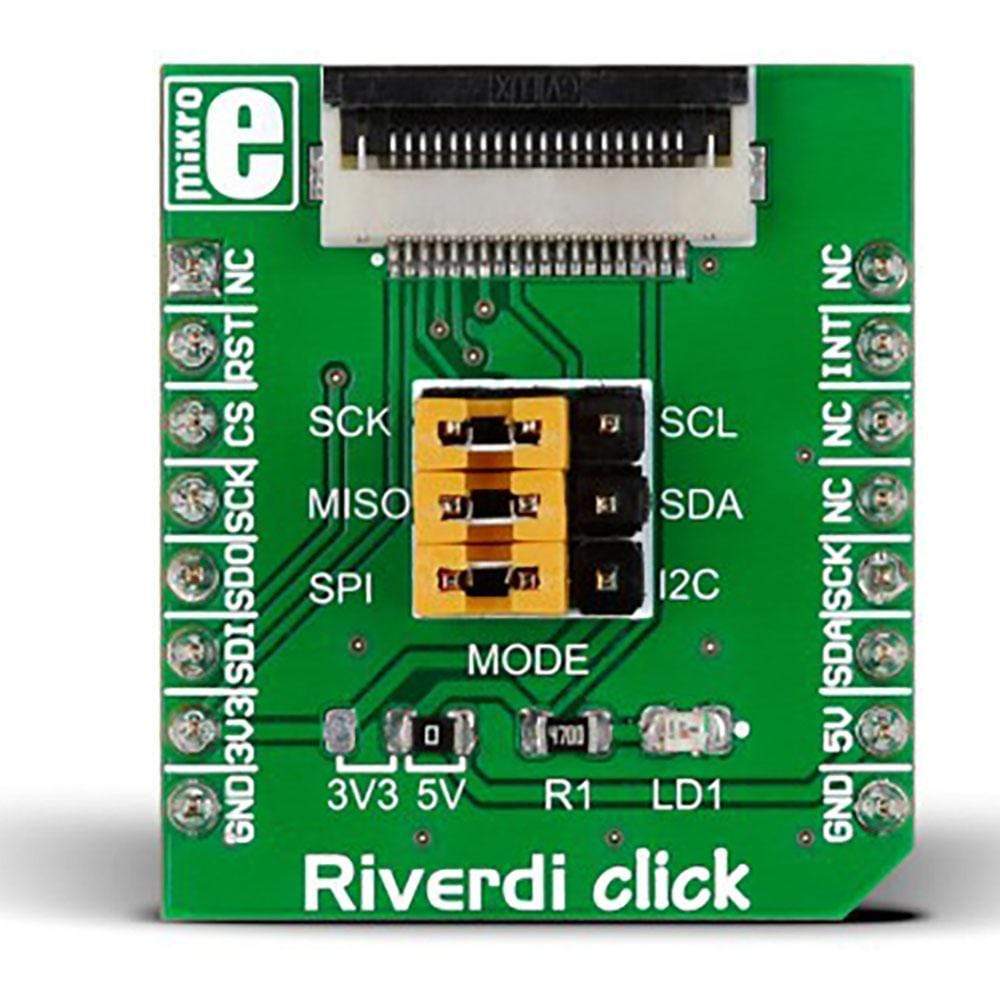

Riverdi click can have either an I2C or an SPI interface. A set on onboard jumpers allows you to switch between these communication lines.
SPECIFICATIONS
| Type | Adapter, Displays, TFT |
| Applications | Interfacing Riverdi HMI displays with mikroBUS™ compatible development boards |
| On-board modules | ZIF20 connector. FT8xx graphic controller |
| Key Features | SPI/I2C interface with selection jumpers |
| Interface | GPIO,I2C,SPI |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
PINOUT DIAGRAM

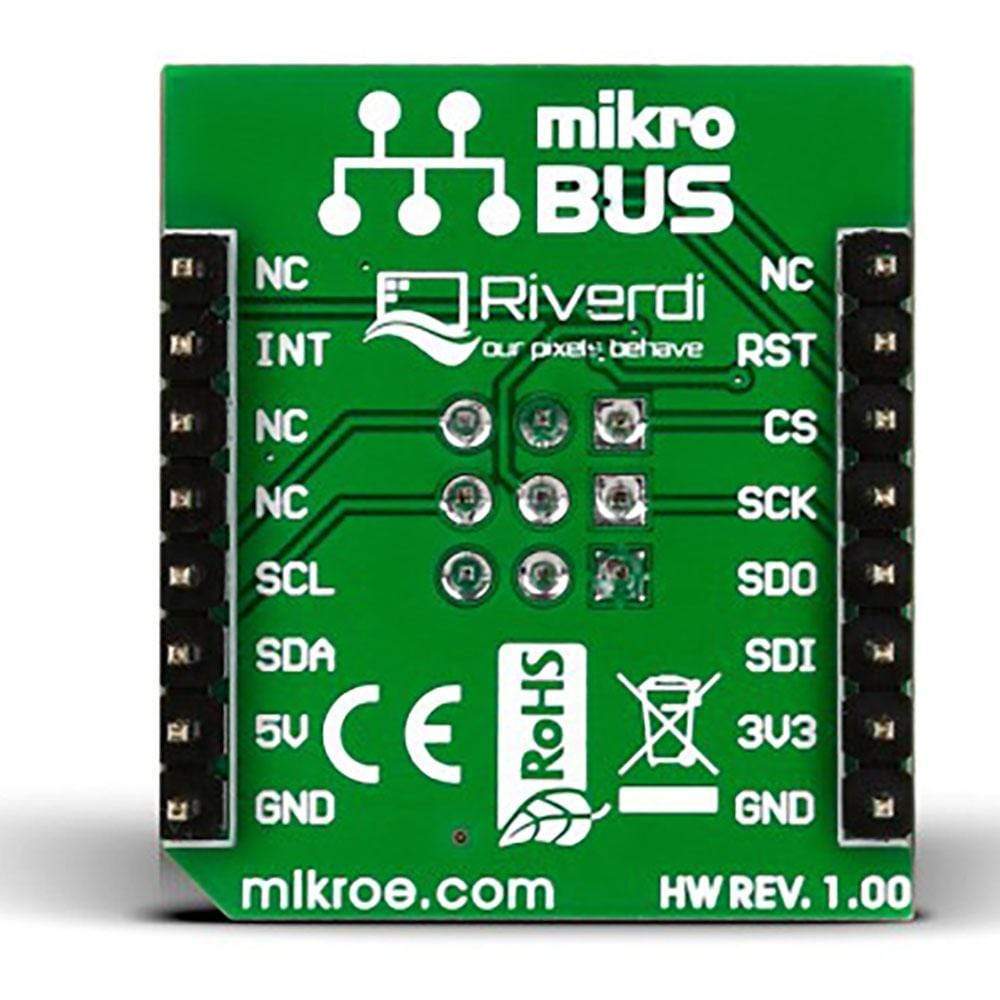

This table shows how the pinout on the Riverdi Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| Reset | RST | 2 | RST | INT | 15 | INT | Interrupt |
| Chip select | CS | 3 | CS | TX | 14 | NC | |
| SPI clock | SCK | 4 | SCK | RX | 13 | NC | |
| Master input slave output | MISO | 5 | MISO | SCL | 12 | SCL | SCL I2C line |
| Master output slave input | MOSI | 6 | MOSI | SDA | 11 | SDA | SDA I2C line |
| Power supply | +3.3V | 7 | 3.3V | 5V | 10 | +5V | Power supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
