WiFi 7 Click-Platine
WiFi 7 Click-Platine
Verfügbarkeit für Abholungen konnte nicht geladen werden

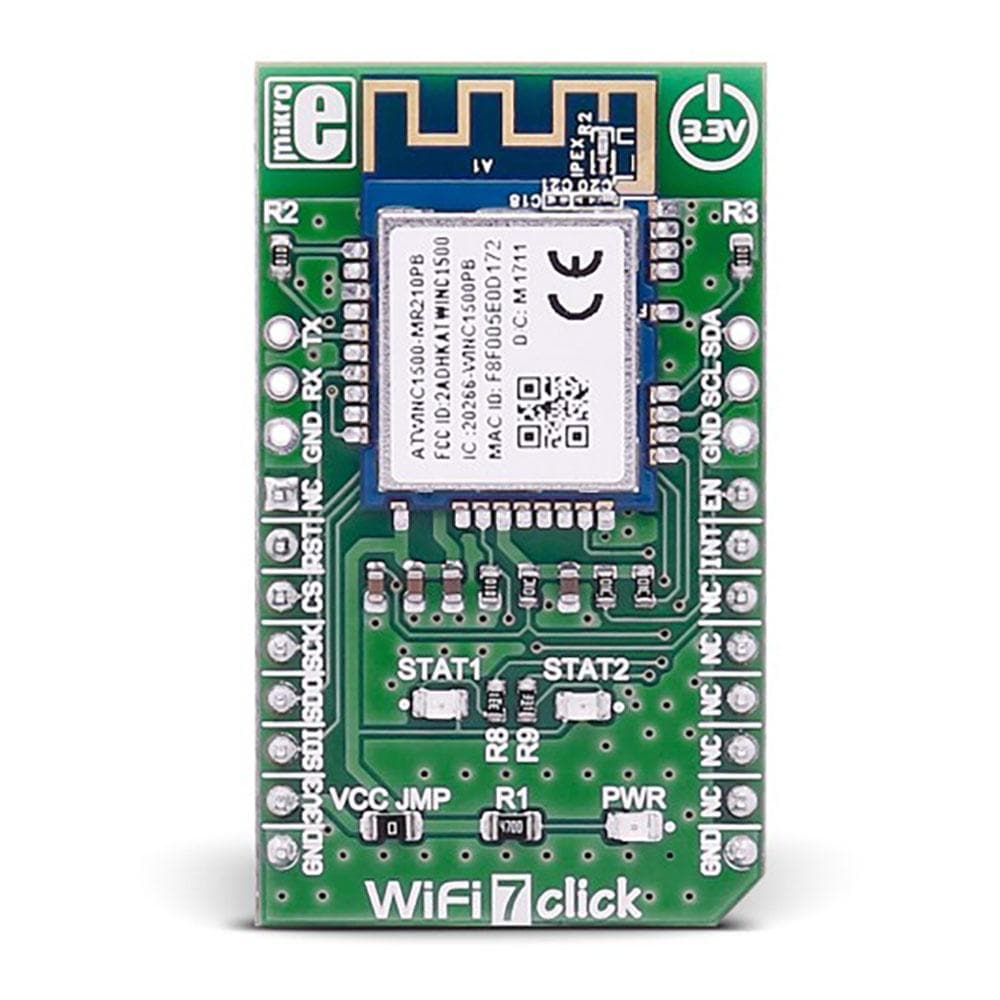

Das WiFi 7 Click Board™ basiert auf dem ATWINC1510-MR210PB IEEE 802.11 b/g/n-Modul, das speziell für IoT-Anwendungen mit geringem Stromverbrauch optimiert ist. Es nutzt das 2,4-GHz-ISM-Band.
Das WiFi 7 Click Board™ ist für den Betrieb mit einer 3,3-V-Stromversorgung ausgelegt. Es kommuniziert mit dem Zielmikrocontroller über die SPI-Schnittstelle, wobei zusätzliche Funktionen durch die folgenden Pins auf den MikroBUS-Leitungen bereitgestellt werden: PWM, INT, RST.
The WiFi 7 Click Board™ is based on the Atmel ATWINC1510-MR210PB IEEE 802.11 b/g/n module, specifically optimized for low-power IoT applications. The Click Board™ is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, INT, RST.
ATWINC1510-MR210PB Features
The ATWINC1510-MR210PB is a low-power consumption 802.11 b/g/n module which is specifically optimized for low-power IoT applications.
The module has a Cortus APS3 32-bit processor. This processor performs many of the MAC functions, including but not limited to association, authentication, power management, security key management, and MSDU aggregation/de-aggregation. In addition, the processor provides flexibility for various modes of operation, such as STA and AP modes.
MODULE CURRENT CONSUMPTION
The table below describes the current consumption of the ATWINC1510-MR210PB module:
| Device state | Code rate | Output power, dBm | Current consumption(1) | |
|---|---|---|---|---|
| IVBATT | IVDDIO | |||
| ON_Transmit | 802.11b 11Mbps | 20.5 | 290mA | 22mA |
| 802.11b 11Mbps | 19.5 | 294mA | 22mA | |
| 802.11g 6Mbps | 19.5 | 292mA | 22mA | |
| 802.11b 54Mbps | 17.5 | 250mA | 22mA | |
| 802.11n MCS 0 | 18.0 | 244mA | 22mA | |
| 802.11n MCS 7 | 15.5 | 289mA | 22mA | |
| ON_Receive | 802.11b 1Mbps | N/A | 52.5mA | 22mA |
| 802.11b 11Mbps | N/A | 52.5mA | 22mA | |
| 802.11g 6Mbps | N/A | 55.0mA | 22mA | |
| 802.11b 54Mbps | N/A | 57.5mA | 22mA | |
| 802.11n MCS 0 | N/A | 54.0mA | 22mA | |
| 802.11n MCS 7 | N/A | 58.5mA | 22mA | |
| ON_Doze | N/A | N/A | 380µA | <3.5µA |
| Power_Down | N/A | N/A | <0.5µA | <3.5µA |

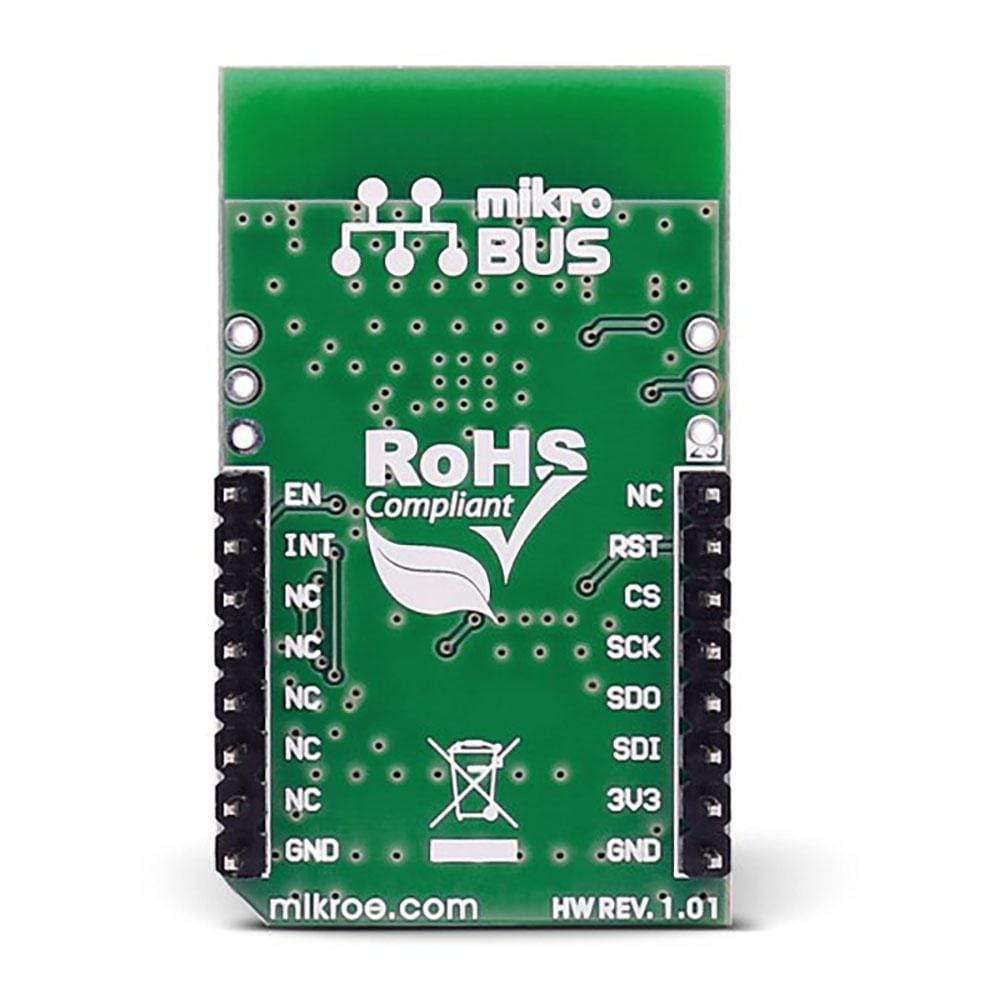

ADDITIONAL PINS
Additional pins on the WiFi 7 Click Board™, besides the ones on the mikroBUS™ line:
WiFi 7 Click-Platine
