Mikroelektronika d.o.o.

MINI-M4 für Tiva MCU-Board

MINI-M4 für Tiva MCU-Board

SKU: MIKROE-1595

Normaler Preis
£59.00 exc VAT
£70.80 inc VAT
Normaler Preis Verkaufspreis
£59.00 exc VAT
£70.80 inc VAT
Sale Ausverkauft
Versand wird beim Checkout berechnet
If no stock shown above, check availability

Zahlungsmethoden

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Banküberweisung
Vollständige Details anzeigen

Overview

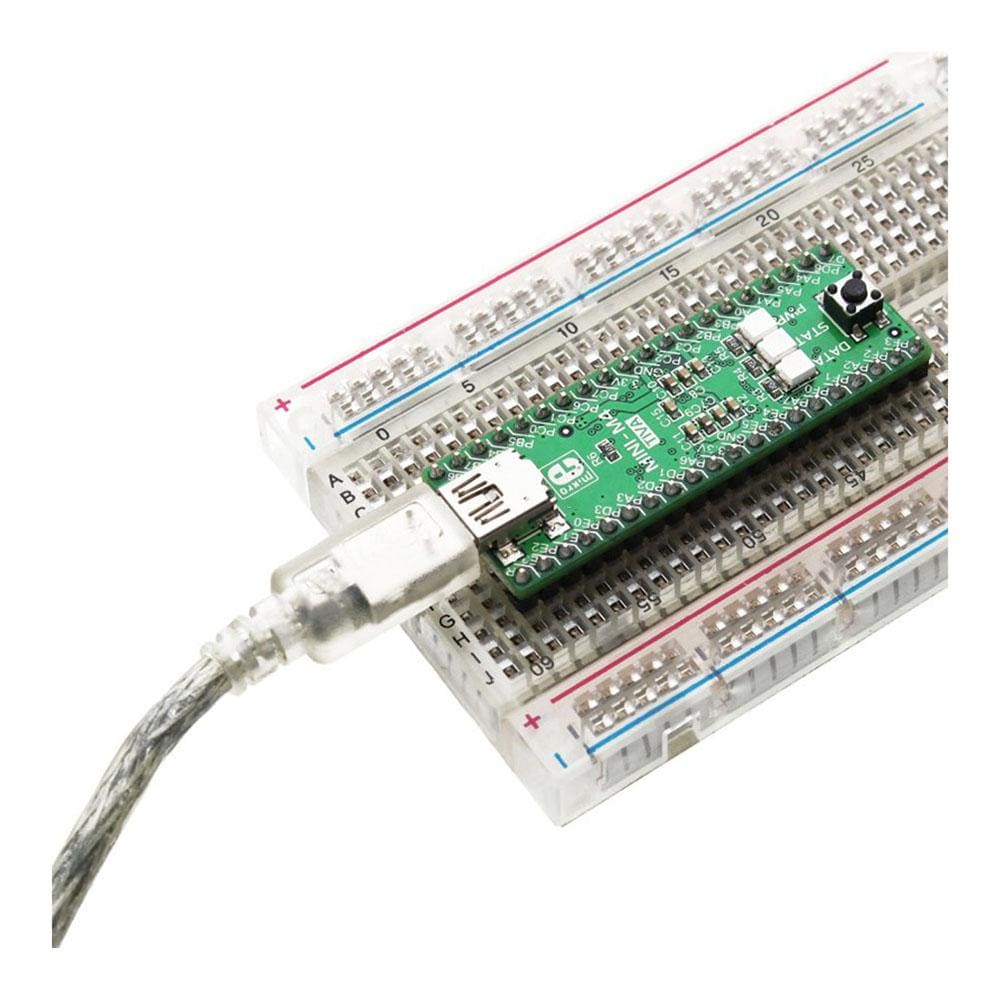

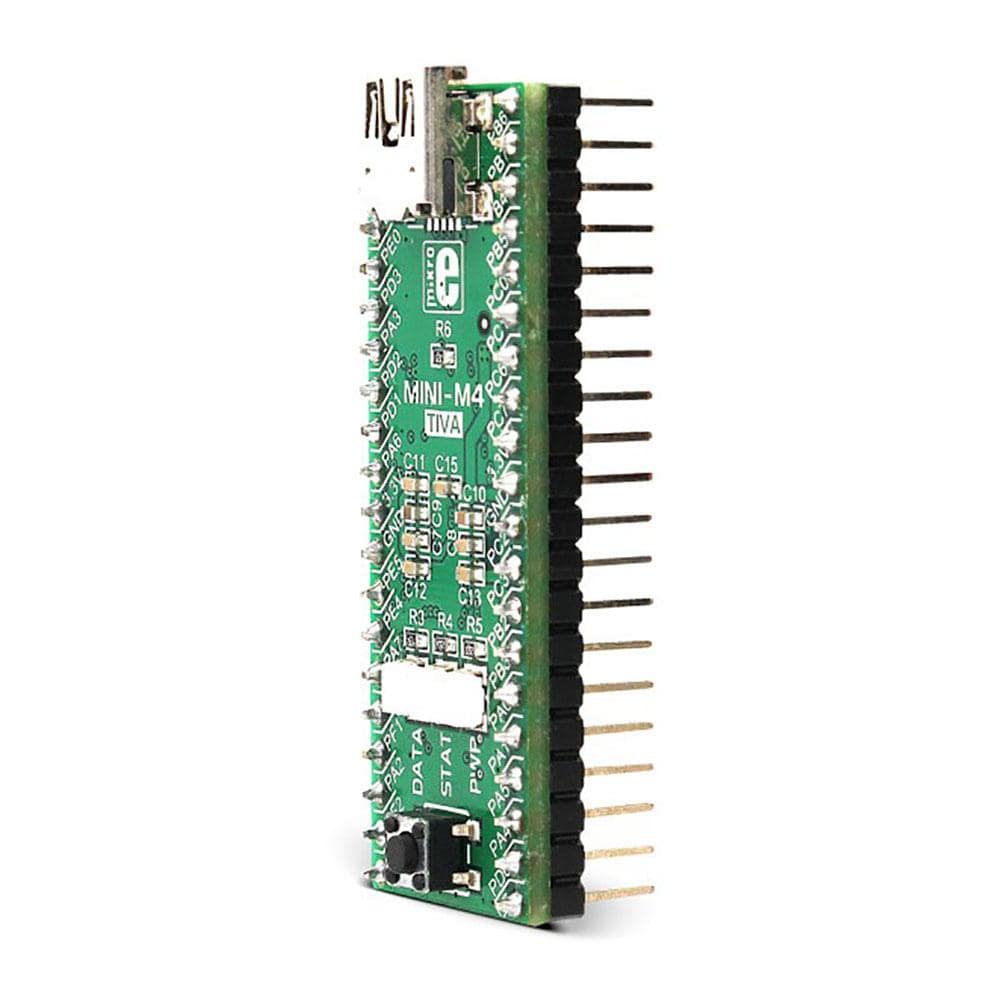

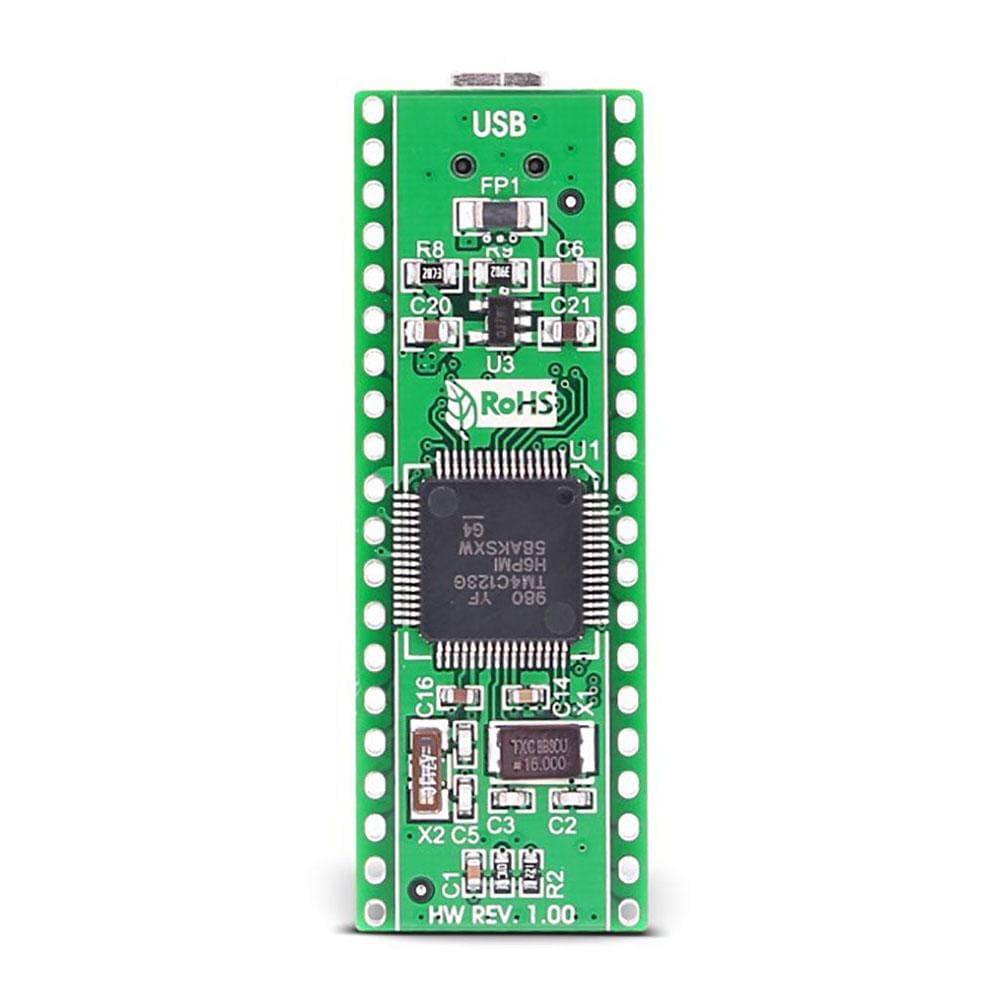

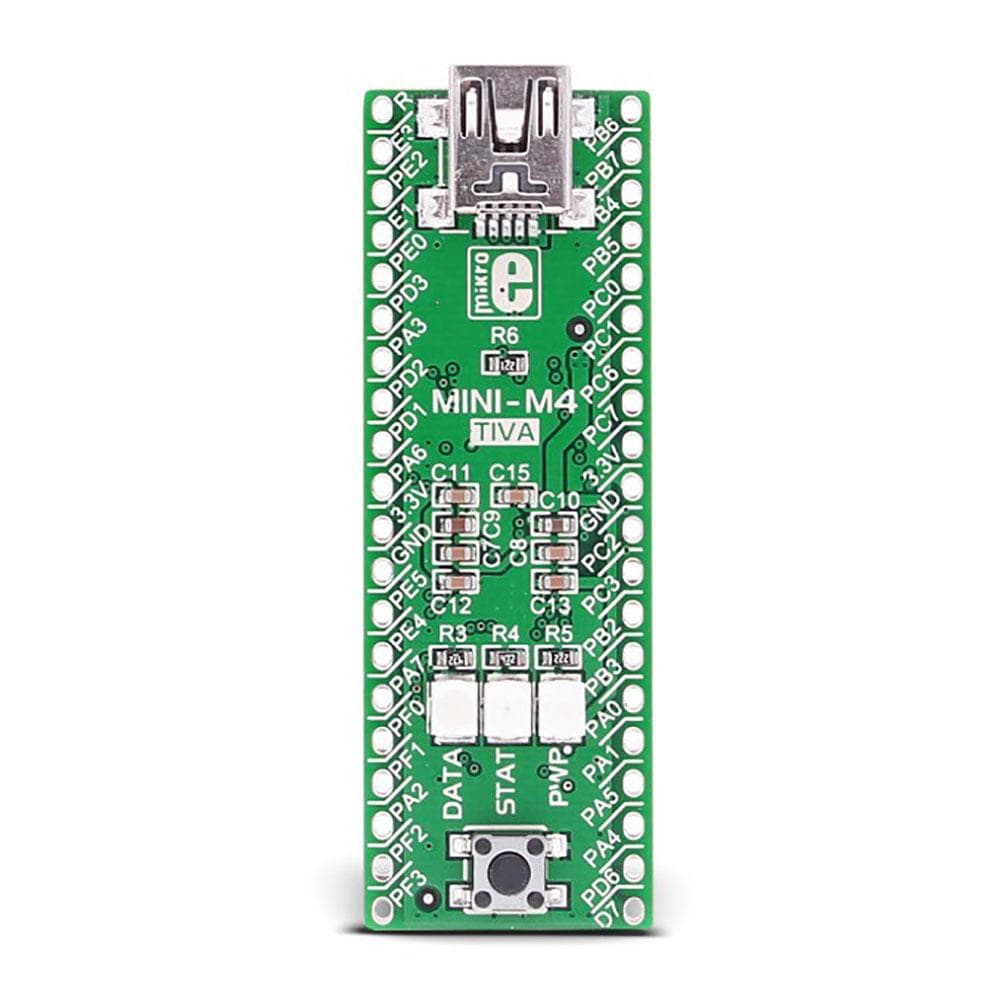

The MINI-M4 for Tiva C Series is a small ARM Cortex-M4 development board containing a Tiva C Series TM4C123GH6PM microcontroller. It perfectly fits into a standard DIP40 socket. The board is equipped with a 16MHz SMD crystal oscillator and 32.768KHz crystal which can be used for the internal hibernation module. It has a reset button and three signal LEDs.

The MINI-M4 for Tiva board comes pre-programmed with a fast USB HID bootloader, so no external programmers are needed for development. It operates on a 3.3V power supply. The onboard voltage regulator allows the board to be powered directly from the USB cable.

Das MINI-M4 für die Tiva C-Serie ist ein kleines ARM Cortex-M4-Entwicklungsboard mit einem Tiva C-Serie TM4C123GH6PM-Mikrocontroller. Es passt perfekt in einen Standard-DIP40-Sockel. Das Board ist mit einem 16-MHz-SMD-Quarzoszillator und einem 32,768-kHz-Quarz ausgestattet, der für das interne Ruhezustandsmodul verwendet werden kann. Es verfügt über eine Reset-Taste und drei Signal-LEDs.

Das MINI-M4 für Tiva- Board ist mit einem schnellen USB-HID-Bootloader vorprogrammiert, sodass für die Entwicklung keine externen Programmierer erforderlich sind. Es wird mit einer 3,3-V-Stromversorgung betrieben. Der integrierte Spannungsregler ermöglicht die direkte Stromversorgung des Boards über das USB-Kabel.

Overview
ArchitectureARM (32-bit)
Key components
MCUTM4C123GH6PM
MCU speed80MHz
MCU memory256KB of Flash, 32kB of SRAM
On-board modules3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector
Interfaces
ProgrammingComes preprogrammed with USB HID bootloader
Electrical
Power supply5V (via USB) or 3.3V (via external source)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1595
ManufacturerMikroelektronika doo
EAN8606015075259
Warranty12 Monate
Shipping weight0.01 kg
  • 1 × MINI-M4 für Tiva MCU-Board

Contact us to confirm the full contents of the box.
