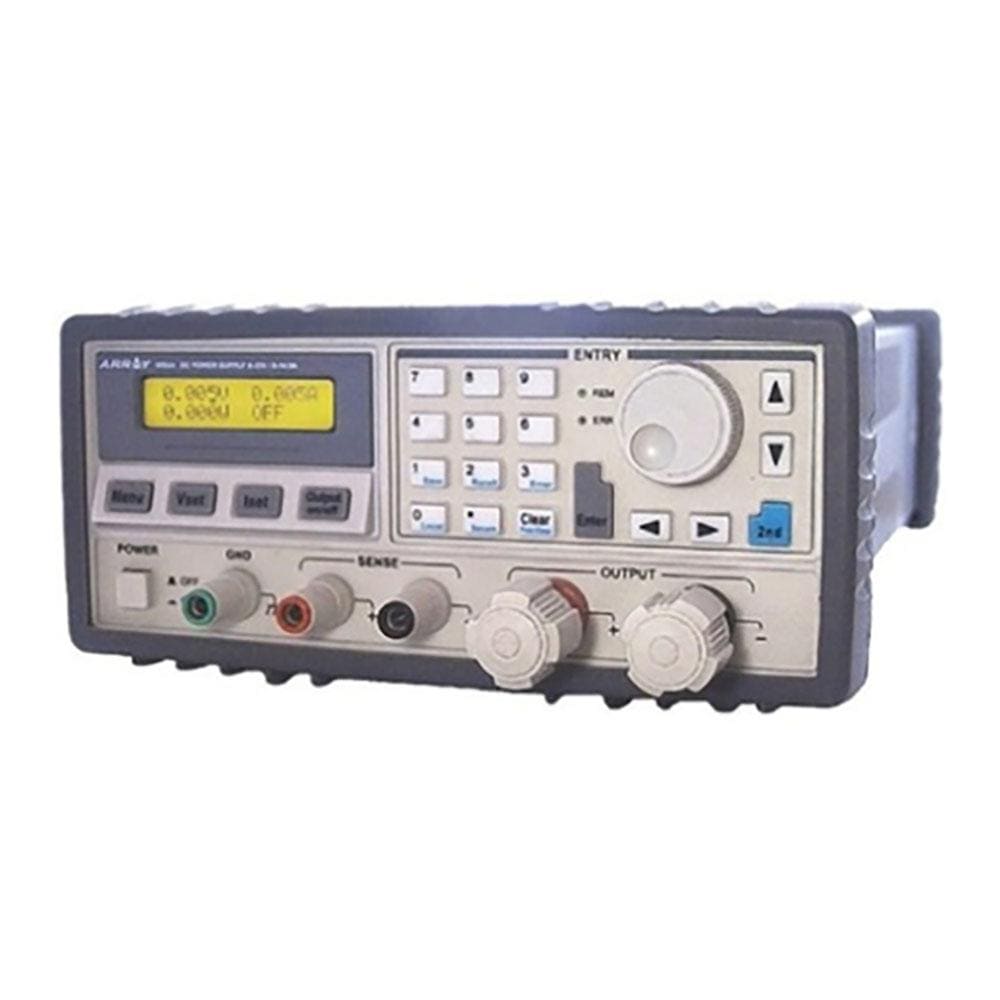

DC-Tischnetzteil der Serie Array 367XA

DC-Tischnetzteil der Serie Array 367XA

Professional switching-mode DC power supply delivering up to 22.5A current with precision control and multiple interface options for demanding test applications.
SKU: 3672A
Ausgabebereich
Normaler Preis
£675.00 GBP ohne MwSt
Normaler Preis Verkaufspreis
£675.00 GBP ohne MwSt
Sale Ausverkauft
Versand wird beim Checkout berechnet
Vollständige Details anzeigen

Key Features

Single Output Design
Wide Voltage Range Options
High Current Capability
Low Noise Output Performance
Intuitive LCD Interface
Direct Parameter Setting
10-Memory and SCPI Control

Overview

Das Array 367XA ist eines aus einer Reihe programmierbarer Gleichstrom-Schaltnetzteile mit Ausgangsspannungen von 35 V bis 200 V und Strömen von 4 A bis 22,5 A, jeweils mit RS-232-, USB- (optional) und GPIB-Schnittstellen (optional).

Die gute Haltbarkeit, einfache Bedienung, geringe Geräuschentwicklung, hervorragende Ausgangsgenauigkeit sowie eine Einstellung ab 0V machen diese Serie zuverlässiger Netzteile zur richtigen Wahl für viele Anwendungen. Sie bietet flexible und stabile Gleichstromversorgung für verschiedene Design- und Testumgebungen.

High Power Capability

500W+ output handles demanding power requirements

Professional Reliability

Proven switching-mode design ensures consistent performance

Automated Test Integration

SCPI compatibility enables seamless ATE integration

Summary

The Array 367X is a series of 800W programmable switching-mode DC power supplies with RS-232, USB (optional) and GPIB (optional) interfaces. The good durability, simple operation, low noise, excellent output accuracy as well as an adjustment from 0V make this series of reliable power supplies the right choice for many applications. It provides flexible and stable DC power for various design and test environments.

​Features

  • High definition liquid crystal display
  • Full-featured keyboard and knobs
  • Highly-efficient switch-mode power supply
  • The same continuous adjustment (0-Vout) as a linear power supply ​
  • Low ripple and noise which matches that of a linear power supply ​
  • Excellent line and load regulation ​
  • Up to 10 operating states, storage and recall ​
  • Automatic ON/OFF function, simplifying its use ​
  • Portable, ruggedized case and flexible system functions ​
  • Standardized USB interface with optional GPIB and USB interfaces​
  • SCPI ( Standard Commands for Programmable Instruments) compatibility ​
  • Direct setting of I/O Parameters from the front panel

Specification

3672A 3673A 3674A 3675A
Output Ratings
Voltage 0~35V 0~80V 0~120V 0~200V
Current 0~22.5A 0~10A 0~6.5A 0~4A
Ripple and Noise (20 Hz to 20 MHz)
Voltage(root mean square value) <10mVrms <16mVrms <16mVrms <20mVrms
Voltage(peak-to-peak value) <20mVp-p <25mVp-p <80mVp-p <80mVp-p
Current <8mArms <6mArms <5mArms <4mArms
Common Mode Current 1.5mArms 1.5mArms 1.5mArms 1.5mArms
Load Regulation
Voltage 3mV 3mV 10mV 10mV
Current 2mA 2mA 2mA 2mA
Line Regulation
Voltage 2mV 2mV 10mV 10mV
Current 1mA 1mA 1mA 1mA
Programming Accuracy
Voltage 0.03%+5mV 0.03%+10mV 0.03%+15mV 0.03%+20mV
Current 0.5%+6mA 0.5%+5mA 0.5%+5mA 0.5%+5mA
Readback Accuracy
Voltage 0.02%+2mV 0.02%+5mV 0.02%+8mV 0.02%+20mV
Current 0.2%+5mA 0.2%+5mA 0.2%+5mA 0.2%+5mA
Programming Resolution
>Voltage 1mV 1mV 1mV(@0-100V) 1mV(@0-100V)
10mV(@100-120V) 10mV(@100-200V)
Current 1mA 1mA 1mA 1mA
Readback Resolution
Voltage 1mV 2mV 4mV 4mV
Current 1mA 1mA 1mA 1mA
Meter Resolution
Voltage 1mV 2mV 1mV(@0-100V) 1mV(@0-100V)
10mV(@100-120V) 10mV(@100-120V)
Current 1mA 1mA 1mA 1mA
Output Programming Range (maximum programmable values)
Voltage 0~35.2V 0~80.2V 0~120.2V 0~200.2V
Current 0~22.5A 0~10A 0~6.5A 0~2.5V
Temperature Coefficient, ±(% of output + offset)
Maximum change in output/readback per °C after a 30-minute warm-up.
Voltage 30ppm+0.5mV 30ppm+0.8mV 30ppm+ 1mV 30ppm+ 1.5mV
Current 30ppm+0.2mA 30ppm+0.1mA 30ppm+0.1mA 30ppm+1.5mV
Stability, ±(% of output + offset) Following a 30-minute warm-up,
the change occurs in output within 8 hours under constant load, line, and ambient temperature.
Voltage 0.02% + 2mV 0.02% +3mV 0.02% + 4mV 0.02% + 5mV
Current 0.2% + 6mA 0.3% + 3mA 0.1% +2mA 0.02% + 2mV
Voltage Programming Speed Maximum time required for output voltage to settle within 1% of its total excursion (for resistive load). Command processing time is excluded.
Full load Up 50msec 50msec 60msec 60msec
Full load Down 50msec 50msec 60msec 60msec
No load Up 50msec 50msec 60msec 60msec
No load Down 200msec 300msec 300msec 500msec
AC Input Ratings AC180V-265V/47Hz~
63Hz/1050VAMax
AC180V-265V/47Hz~
63Hz/1050VAMax
AC180V-265V/47Hz~
63Hz/1050VAMax
AC180V-265V/47Hz~
63Hz/1050VAMax
Operating Temperature 0~40℃ 0~80%RH 0~40℃ 0~80%RH 0~40℃ 0~80%RH 0~40℃ 0~80%RH
Cooling Fan Cooling Fan Cooling Fan Cooling Fan Cooling
Output Voltage Overshoot <1V <1V <1V <1V
Programming Language SCPI(Standard Commands for
Programmable Instruments)
SCPI(Standard Commands for
Programmable Instruments)
SCPI(Standard Commands for
Programmable Instruments)
SCPI(Standard Commands for
Programmable Instruments)
Recommended Calibration Interval 1 year 1 year 1 year 1 year
Net Weight 5.5 kg 5.5 kg 5.5 kg 5.5 kg

Frequently Asked Questions

Have a Question?

Ask a Question
  • What are the key differences between the four Array 367XA models available?

    The Array 367XA series comprises four models optimised for different voltage and current requirements: the 3672A (0-35V, 0-22.5A, 787.5W), 3673A (0-80V, 0-10A, 800W), 3674A (0-120V, 0-6.5A, 780W), and 3675A (0-200V, 0-4A, 800W). Each model maintains the same professional feature set including SCPI compatibility, 10-memory storage, and multiple interface options. The 3672A excels in high-current applications such as power electronics testing, the 3673A and 3674A models provide intermediate voltage ranges suitable for component testing, whilst the 3675A delivers the highest voltage capability ideal for high-voltage component burn-in, insulation testing, and reliability validation. All models feature identical programming resolution and protection systems, with the 3675A offering <20mVrms voltage ripple performance for sensitive high-voltage applications.

  • What applications benefit most from the Array 367XA's high power and low noise combination?

    The Array 367XA excels in applications requiring both substantial power delivery and precision performance, including power electronics development, LED driver testing, battery simulation, and component burn-in procedures. The combination of 500W+ power capability with <10-16mVrms noise makes it particularly suitable for analogue circuit characterisation, where high currents must be delivered without introducing measurement artifacts. Automated test environments benefit from the SCPI compatibility and memory storage features, enabling sophisticated test sequences for production testing and reliability validation. Research laboratories utilise the wide voltage ranges and precise control for component evaluation and failure analysis. The switching-mode efficiency reduces heat generation in temperature-sensitive environments whilst maintaining the low noise essential for accurate measurements.

  • How does the Array 367XA's user interface enhance laboratory productivity?

    The Array 367XA features an intuitive high-definition LCD display with dedicated voltage and current adjustment controls, eliminating the menu navigation complexity found in many competitive products. Direct parameter entry via numerical keypad enables rapid setting changes without scrolling through multiple display screens. The display simultaneously shows voltage, current, power output, and operating status, providing comprehensive information at a glance. Front-panel operation includes dedicated output enable/disable control, memory recall buttons, and protection status indicators. The interface design prioritises frequently used functions for immediate access whilst maintaining professional appearance suitable for calibrated laboratory environments. This user-centric design significantly reduces setup time and operational errors compared to menu-driven alternatives.

  • What voltage and current programming resolution does the Array 367XA provide?

    The Array 367XA delivers professional-grade programming resolution of 1mV for voltage setting and 1mA for current setting across all three models in the series. This high resolution enables precise parameter control essential for component characterisation, device testing, and research applications. The programming accuracy specifications include 0.03% + offset for voltage and 0.5% + offset for current, ensuring reliable and repeatable measurements. Combined with excellent line and load regulation (2-3mV voltage, 1-2mA current), the Array 367XA provides the precision control capabilities typically found in premium laboratory instruments whilst maintaining the efficiency and compact size advantages of switching-mode topology.

  • What protection features does the Array 367XA include for safe operation?

    The Array 367XA incorporates comprehensive protection systems including over-voltage protection (OVP), over-current protection (OCP), over-temperature protection (OTP), and reverse voltage protection. The OVP system monitors output voltage continuously and immediately shuts down the supply if preset limits are exceeded, protecting connected devices from damage. OCP provides precise current limiting with foldback characteristics to prevent thermal stress during fault conditions. The thermal protection system monitors internal temperature and implements controlled shutdown if safe operating limits are approached. All protection thresholds are user-programmable via front panel or SCPI commands, with protection status clearly indicated on the display and available for remote monitoring.

  • How many operating configurations can the Array 367XA store and recall?

    The Array 367XA features comprehensive memory storage capability, allowing users to store and recall up to 10 complete operating configurations. Each stored setting includes voltage setpoint, current limit, output state, and protection parameters, enabling rapid configuration changes for repetitive testing procedures. The memory system stores settings in non-volatile memory, ensuring configurations remain available after power cycling. Settings can be recalled either through front-panel operation or remotely via SCPI commands, making the feature valuable for both manual laboratory work and automated test sequences. This memory capability significantly enhances productivity in applications requiring frequent parameter changes between different test conditions.

  • What remote control interfaces does the Array 367XA support for laboratory automation?

    The Array 367XA provides comprehensive connectivity options including standard RS-232 serial interface, optional USB, and optional GPIB (IEEE-488) interfaces. All interfaces support full SCPI command compatibility, enabling integration with popular automation platforms including LabVIEW, Python, MATLAB, and proprietary test software. The RS-232 interface operates at standard baud rates with hardware handshaking support, whilst the optional USB interface provides plug-and-play connectivity with modern computer systems. GPIB compatibility ensures seamless integration with established automated test equipment installations. Multiple interfaces can operate simultaneously, allowing local monitoring whilst maintaining automated control.

  • How does the Array 367XA achieve low noise performance despite using switching-mode topology?

    The Array 367XA employs advanced switching-mode design with sophisticated filtering and regulation circuits to achieve exceptionally low noise performance rivalling linear power supplies. The 3672A model delivers <10mVrms voltage ripple and noise, whilst the 3673A and 3674A maintain <16mVrms across the full 20Hz to 20MHz bandwidth. This performance is achieved through high-frequency switching combined with multi-stage output filtering, active regulation circuits, and careful PCB layout optimisation. Unlike traditional linear supplies that achieve low noise through brute-force regulation, the Array 367XA's intelligent switching architecture maintains high efficiency (>80%) whilst delivering precision laboratory-grade noise specifications essential for sensitive analogue circuit testing

  • How does the Array 367XA's SCPI implementation compare to other professional power supplies?

    The Array 367XA features comprehensive SCPI (Standard Commands for Programmable Instruments) compliance, matching the automation capabilities found in premium test equipment. SCPI standardisation ensures the power supply integrates seamlessly with automated test systems, LabVIEW environments, and Python-based control software. Unlike proprietary command sets, SCPI provides device independence and consistent programming syntax across different manufacturers' equipment. The Array 367XA's SCPI implementation includes full voltage, current, and protection control commands, enabling sophisticated test sequencing and data logging applications typically reserved for more expensive laboratory instruments.

  • What makes the Array 367XA series superior to premium competitors like Keysight E36200?

    The Array 367XA delivers significantly higher power output (500W+) compared to Keysight's E36200 series (200-400W maximum), whilst maintaining professional-grade low noise performance of <10mVrms voltage ripple. Unlike Keysight's autoranging approach, the Array 367XA provides dedicated voltage ranges optimised for specific applications, offering superior current capability with up to 22.5A output. The Array series includes full SCPI compatibility and multiple interface options (RS-232, USB, GPIB) at a more accessible price point than premium alternatives, making it ideal for professional laboratories requiring high-power testing capabilities without compromising on precision or automation features.
