Overview

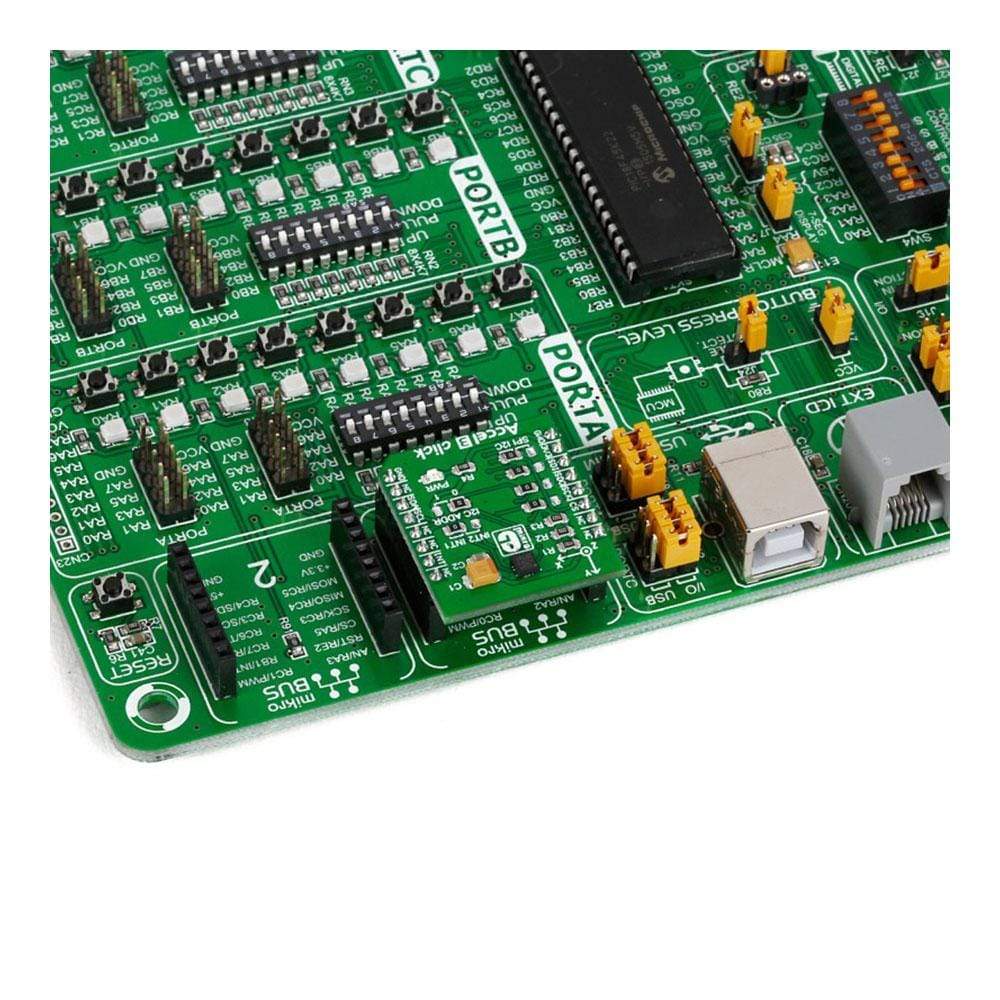

Das Accel 3 Click Board™ enthält den H3LIS331DL, einen stromsparenden, leistungsstarken 3-Achsen-Linearbeschleunigungsmesser. Das Click Board™ ist für den Betrieb mit einer 3,3-V-Stromversorgung ausgelegt. Es kommuniziert mit dem Zielmikrocontroller über eine SPI- oder I2C-Schnittstelle, wobei zusätzliche Funktionen durch den INT-Pin auf der MikroBUS-Leitung bereitgestellt werden.
The Accel 3 Click Board™ carries the H3LIS331DL a low-power high-performance 3-axis linear accelerometer. The Click Board™ is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or I2C interface, with additional functionality provided by the INT pin on the mikroBUS line.
H3LIS331DL Features
The H3LIS331DL has dynamically user selectable full scales of ±100g/±200g/±400g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.
The sleep-to-wakeup function, in conjunction with low-power mode, allows to further reduce the system power consumption and develop new smart applications.
The H3LIS331DL may be set in a low-power operating mode, characterized by lower date rate refreshments. In this way the device, even if sleeping, continues to sense acceleration and generate interrupt requests.
When the sleep-to-wakeupfunction is activated, the H3LIS331DL is able to automatically wake up as soon as the interrupt event has been detected, increasing the output data rate and bandwidth.
SPI or I2C

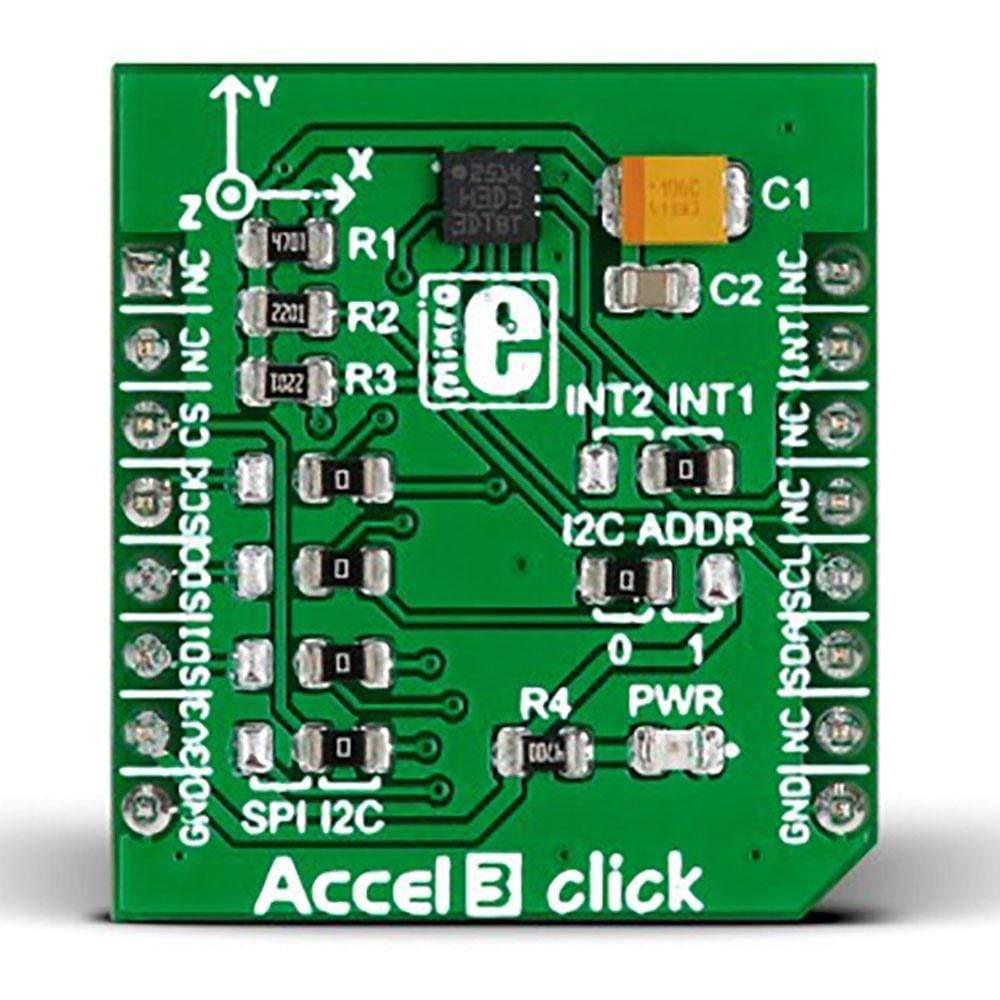

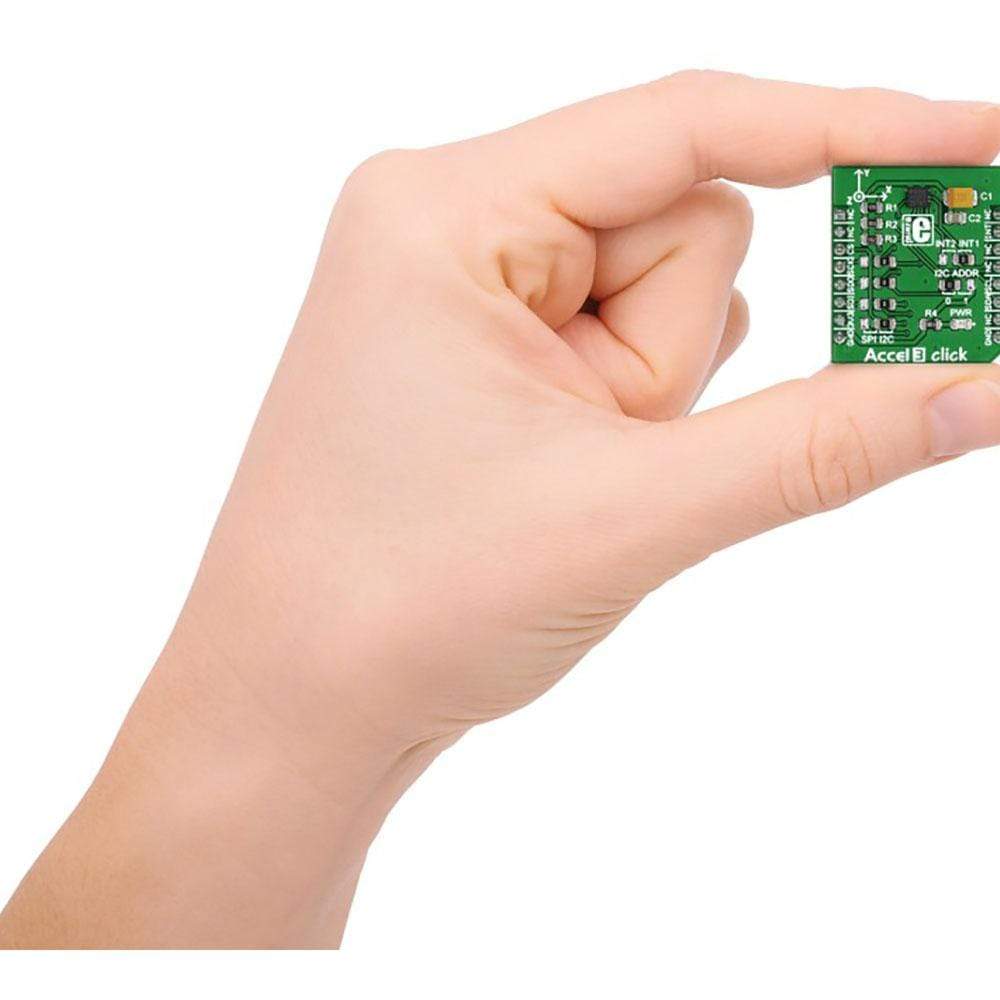

Accel 3 Click Board™ has three groups of jumpers (zero Ω resistors) on-board:.
- The four jumpers on the left side of the board are for choosing between the SPI or I2C interface for the sensor output. By default, these are soldered into the I2C position.
- On the right side of the board, the upper jumper is for specifying which of the two interrupt pins on H3LIS331DL will be connected to the mikroBUS pin.
- The final jumper is for configuring the I2C address The I2C interface is compliant with both normal and fast modes (400 KHz), both common I2C standards.
Key Features
- H3LIS331DL 3-axis linear accelerometer
- Ultra-low power consumption down to 10 μA in low-power mode
- ±100g/±200g/±400g dynamically selectable full scales
- Sleep-to-wakeup function
- SPI or I2C interface
- 3.3V power supply
