Tag-Connect, LLC

Adaptateur Tag Connect TC-LATTICE-10

Adaptateur Tag Connect TC-LATTICE-10

pour Lattice

SKU: TC-LATTICE-10

€47,95 EUR hors taxes
€47,95 EUR hors taxes
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
If no stock is shown above, order now and we'll ship within 10 working days.
Afficher tous les détails
  • Tag-Connect, LLC TC-LATTICE-10 Tag Connect TC-LATTICE-10 Adapter - The Debug Store UK
  • Tag-Connect, LLC TC-LATTICE-10 Tag Connect TC-LATTICE-10 Adapter - The Debug Store UK

Key Features

Interfaces HW-USBN-2B to TC2050 cables
Built-in 500Ω VCC/GND resistor
Zero cost per target board
Standard 0.1″ pitch headers
Supports all Lattice devices
Maintains signal integrity
Compact PCB footprint

Overview

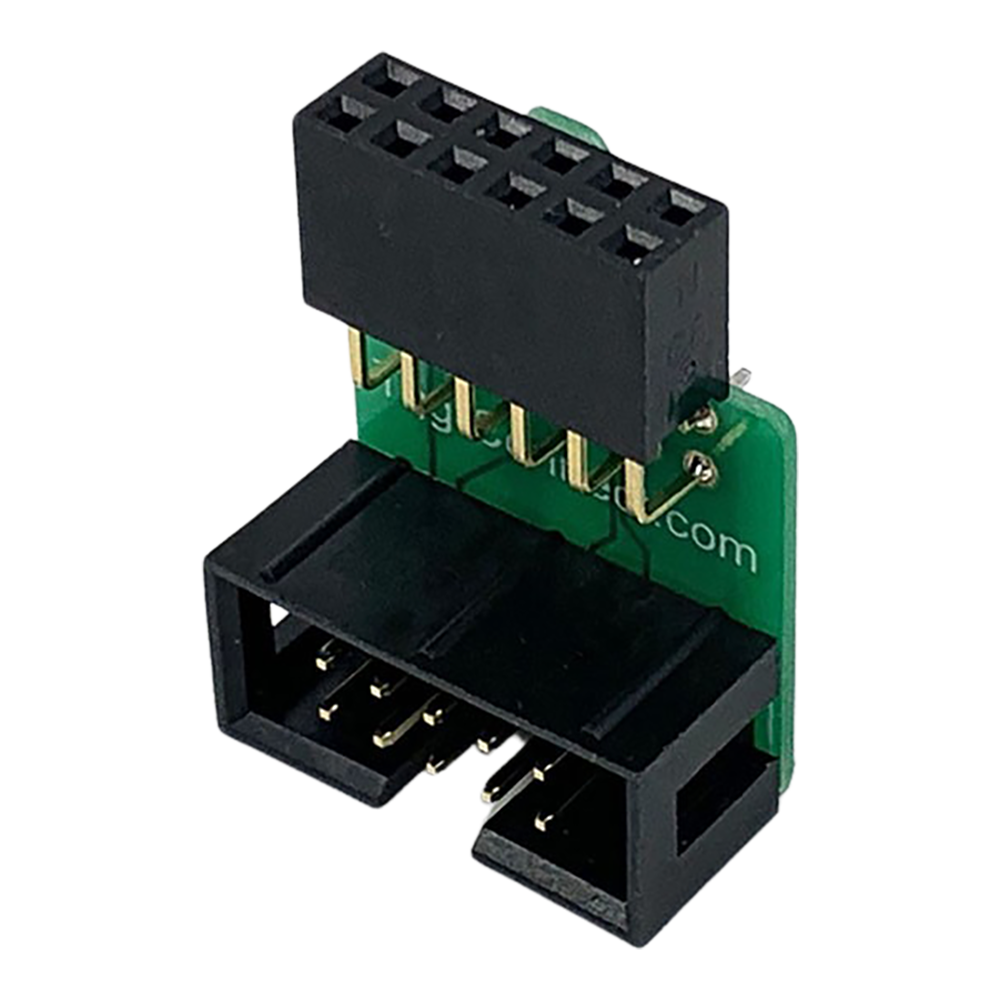

The TC-LATTICE-10 Adapter bridges the gap between Lattice's HW-USBN-2B Programming Cable and Tag-Connect's space-saving TC2050-IDC cables. Featuring a 12-pin (2×6) 0.1″ female header input and 6-pin (2×3) 0.1″ male box header output, this adapter provides secure connectivity whilst maintaining signal integrity for JTAG programming operations. The adapter includes an integrated 500Ω resistor between VCC and GND to prevent the HW-USBN-2B from unexpectedly raising VCC on low-power target designs, eliminating the need for additional resistors on each PCB. Compatible with all Lattice FPGA and CPLD families including iCE40, MachXO2, and ECP5 series. This solution significantly reduces PCB costs whilst providing reliable programming connections through TC2050-IDC cables that require only a tiny 0.03 square inch footprint on target boards.

Downloads

Why Engineers Choose The Adaptateur Tag Connect TC-LATTICE-10

Eliminates PCB Connector Costs

Removes need for programming headers on every manufactured board, reducing BOM costs significantly

Prevents Low-Power Target Issues

Built-in 500Ω resistor resolves HW-USBN-2B voltage problems without modifying target designs

Enables Production Programming

Tag-Connect footprint allows automated test equipment integration for volume manufacturing

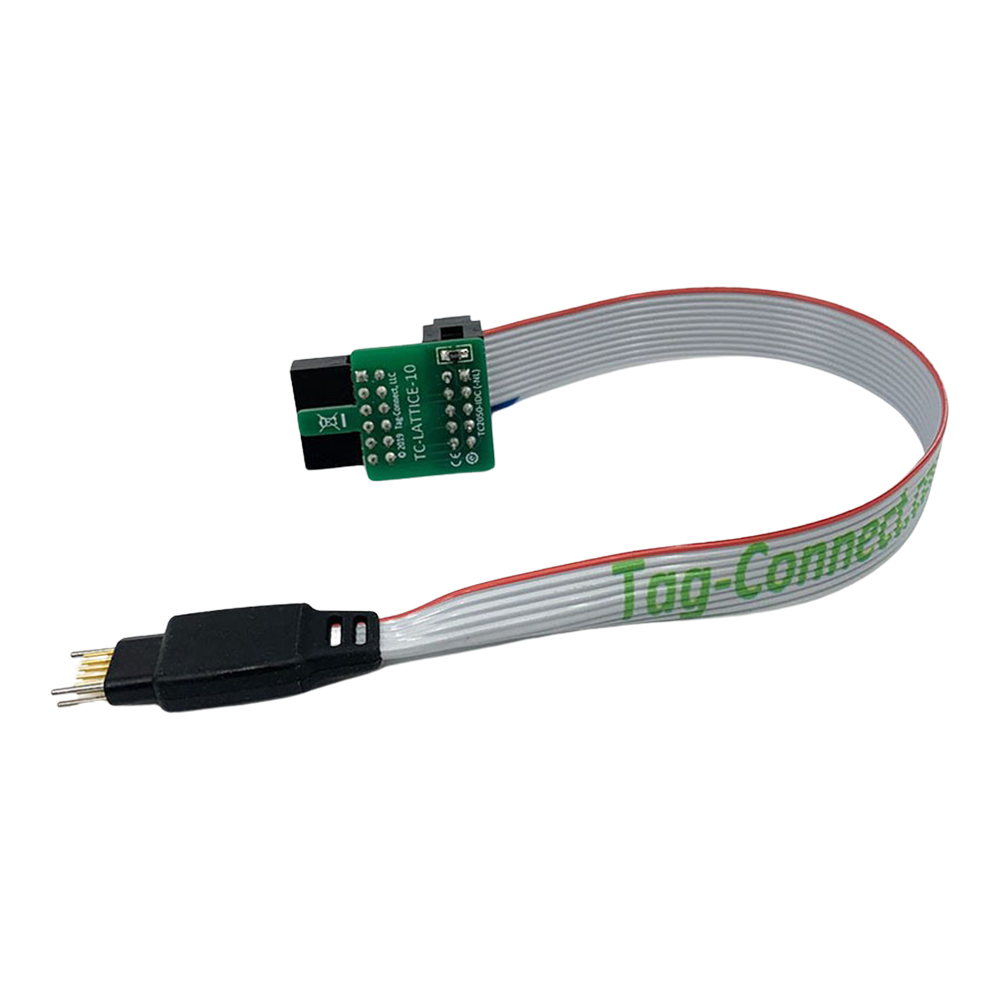

L' adaptateur Tag Connect TC-LATTICE-10 permet aux utilisateurs du câble de programmation HW-USBN-2B de Lattice avec les câbles Plug-of-Nails™ Tag-Connect TC2050-IDC ou TC2050-IDC-NL de programmer divers appareils Lattice Semiconductor.

Remarque : Adaptateur uniquement. Câble non inclus.
