mikroMedia HMI résolution 3,5"
mikroMedia HMI résolution 3,5"
Impossible de charger la disponibilité du service de retrait
Overview

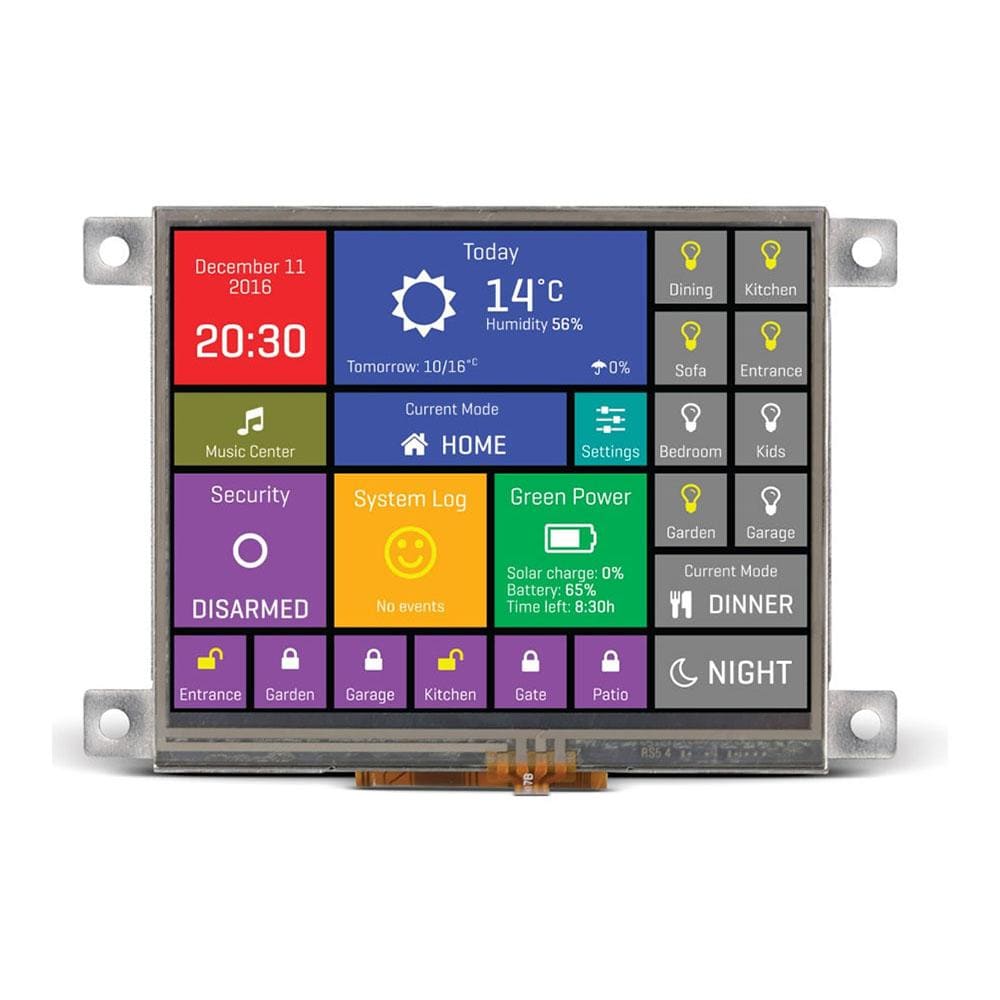

Solution d'affichage intelligente, mikroMedia™ HMI 3,5" Res dispose d'un écran couleur 320x240px avec un panneau tactile résistif à l'avant et d'un puissant MCU 32 bits FT900Q avec des circuits essentiels supplémentaires à l'arrière - ce qui en fait une solution autonome mais rentable adaptée aux applications industrielles.
mikroMedia™ HMI boards are driven by FTDI Chips FT900Q with their proprietary 32-bit RISC core with industry-leading performance. With execution from shadow memory, the MCU can achieve speeds of 3.1 DMIPS/MHz at 100 MHz. FT900Q has 256KB of Flash memory, a small part of which is taken by the built-in bootloader.
The concept of mikroMedia™ HMI is to keep only the essential components that simplify its integration into a final product, whilst keeping overall costs down.

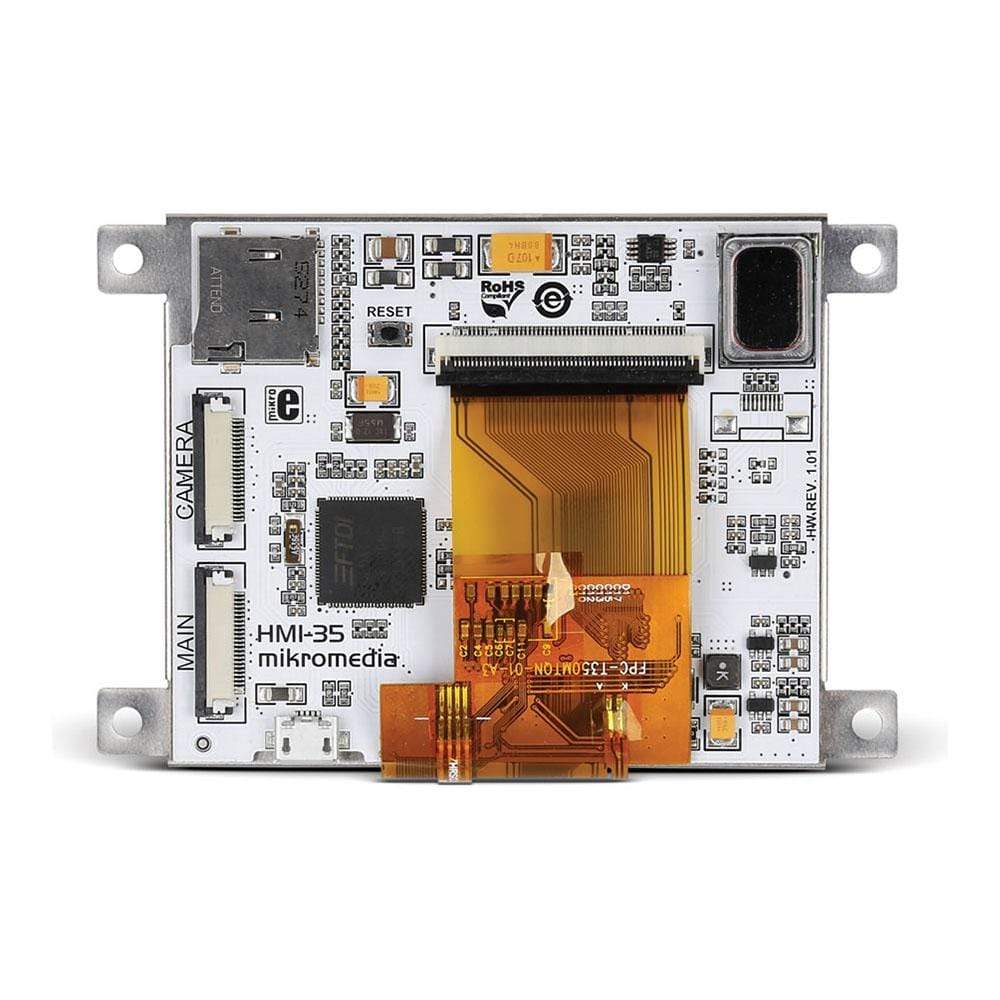

The board integrates a microSD card for expanding storage capacity, a haptic feedback motor, small audio speaker, and a micro USB connector. A connector for interfacing the MCU with external electronics, along with a separate connector for FT900Qs parallel camera interface.
mikroMedia™ for HMI 4.3" Res has a high-quality Riverdi display with 16.7M colour depth and 550 NIT brightness. The display is driven by a FT812 graphic controller. A mounting frame surrounding the screen simplifies integration.
Extras
The Mikromedia HMI Breakout Board (sold separately) contains a micro USB port, an RJ-45 Ethernet connector, as well as an external programmer connector (ideally used with mikroProg for FT90x). Two 24-pin flat cables are included in the packaging, enabling the use of both mikroMedia™ HMI connectors at the same time (MAIN, CAMERA).
